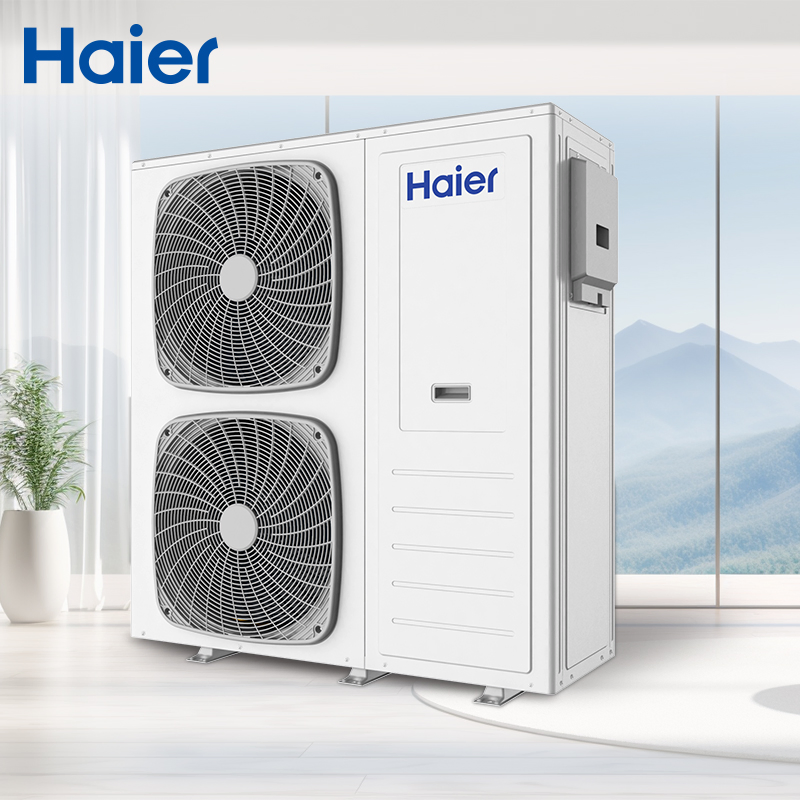

New Design OEM R290 Evi DC Inverter Haier High Temperature 12kw Air to Water Heating System Heat Pump for SPA

📋 Product Overview

Model

HPM-Nd2

Heat Source

Air Source Heat Pump

Refrigerant

R290 (Eco-Friendly)

Capacity

8~16kw

Compressor

EVI DC Inverter

Temp Range

-30°C to 43°C

Water Temp

Max 75°C

Noise Level

<51dB(a)

🔍 Product Description

Advanced Energy Solutions: High Temperature, High COP Household Domestic Hot Water EVI Full DC Inverter R290 Air Source Monoblock system designed for superior heating and cooling performance.

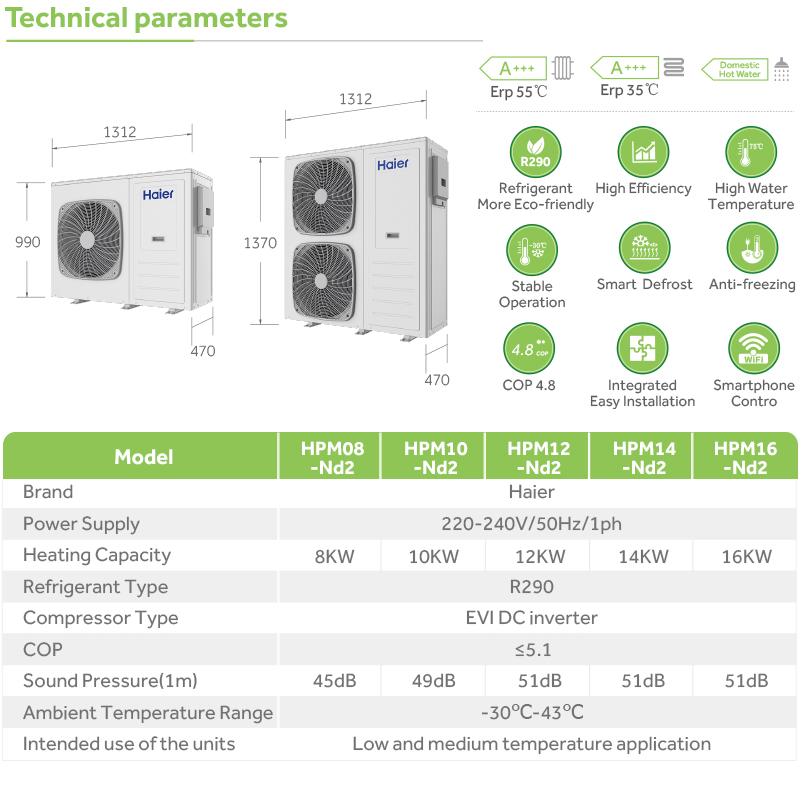

Model Parameter	HPM 08-Nd2	HPM 10-Nd2	HPM 12-Nd2	HPM 14-Nd2	HPM 16-Nd2
Heating Capacity (AT7/6, WT30/35)	8 kW	10 kW	12 kW	14 kW	16 kW
COP (Heating)	4.95	4.80	4.90	5.11	4.92
Energy Efficiency Class (35°C)	A+++	A+++	A+++	A+++	A+++
Refrigerant Type/Charge	R290 / 1.3-1.35kg			R290 / 1.95kg
Ambient Temp Range (Heating)	-30°C to 35°C
Max Leaving Water Temp	75°C

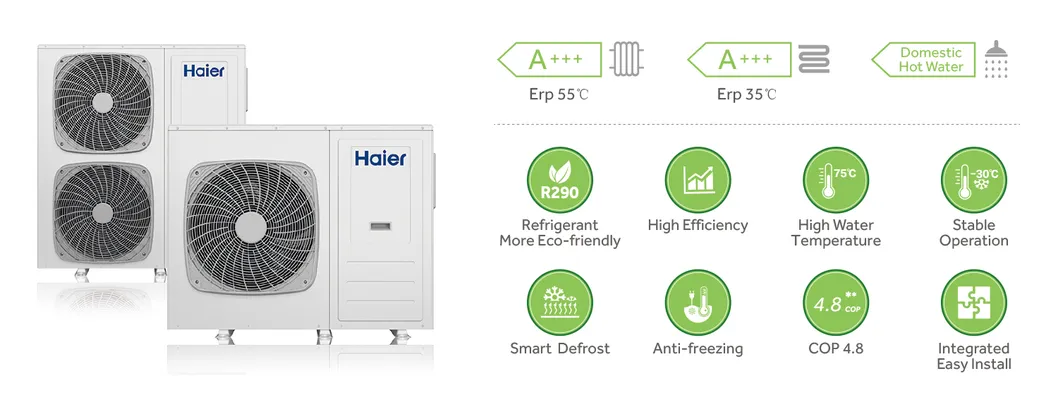

🌟 Key Features

🔥

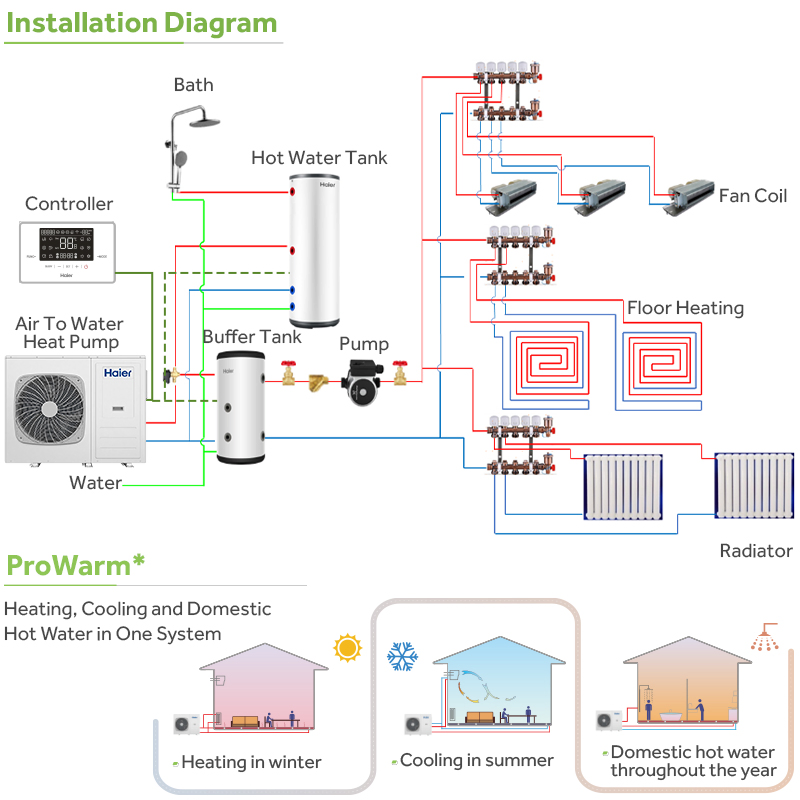

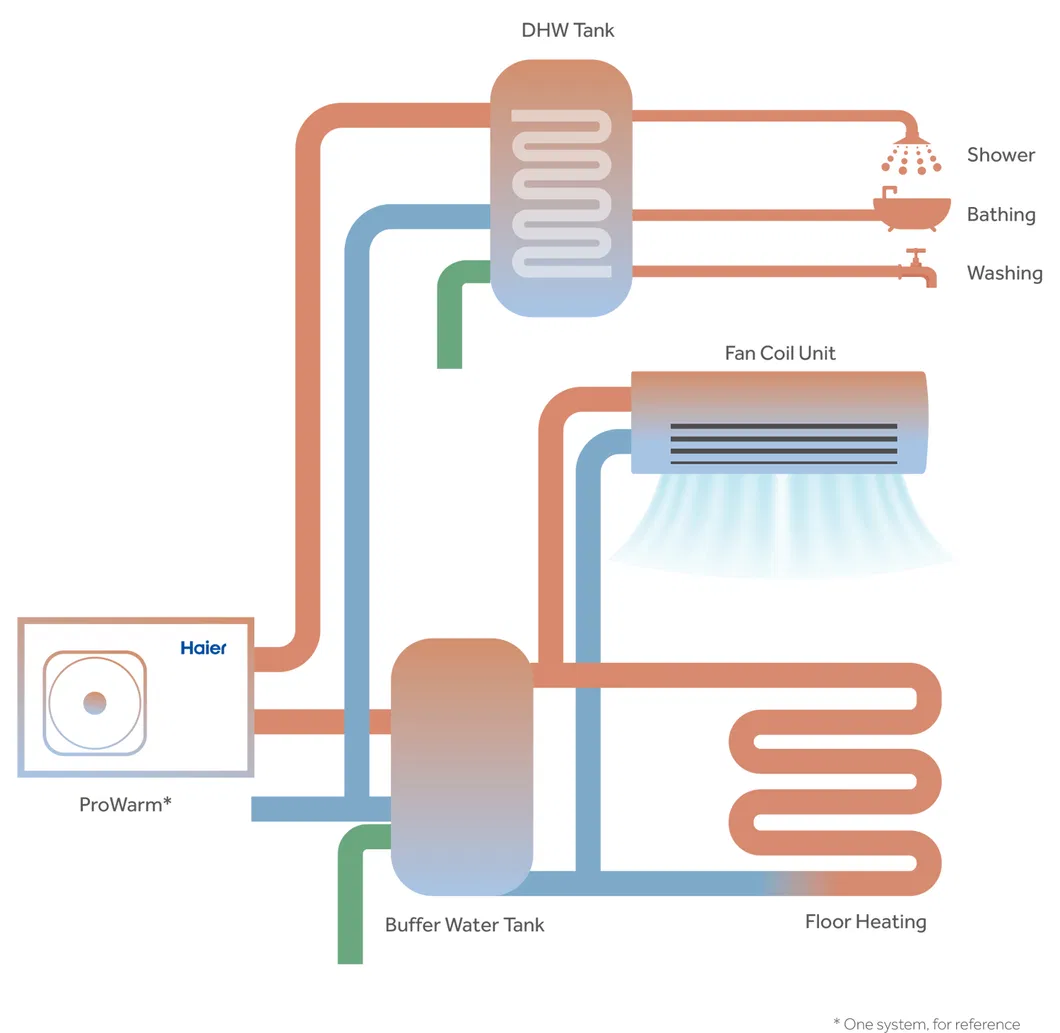

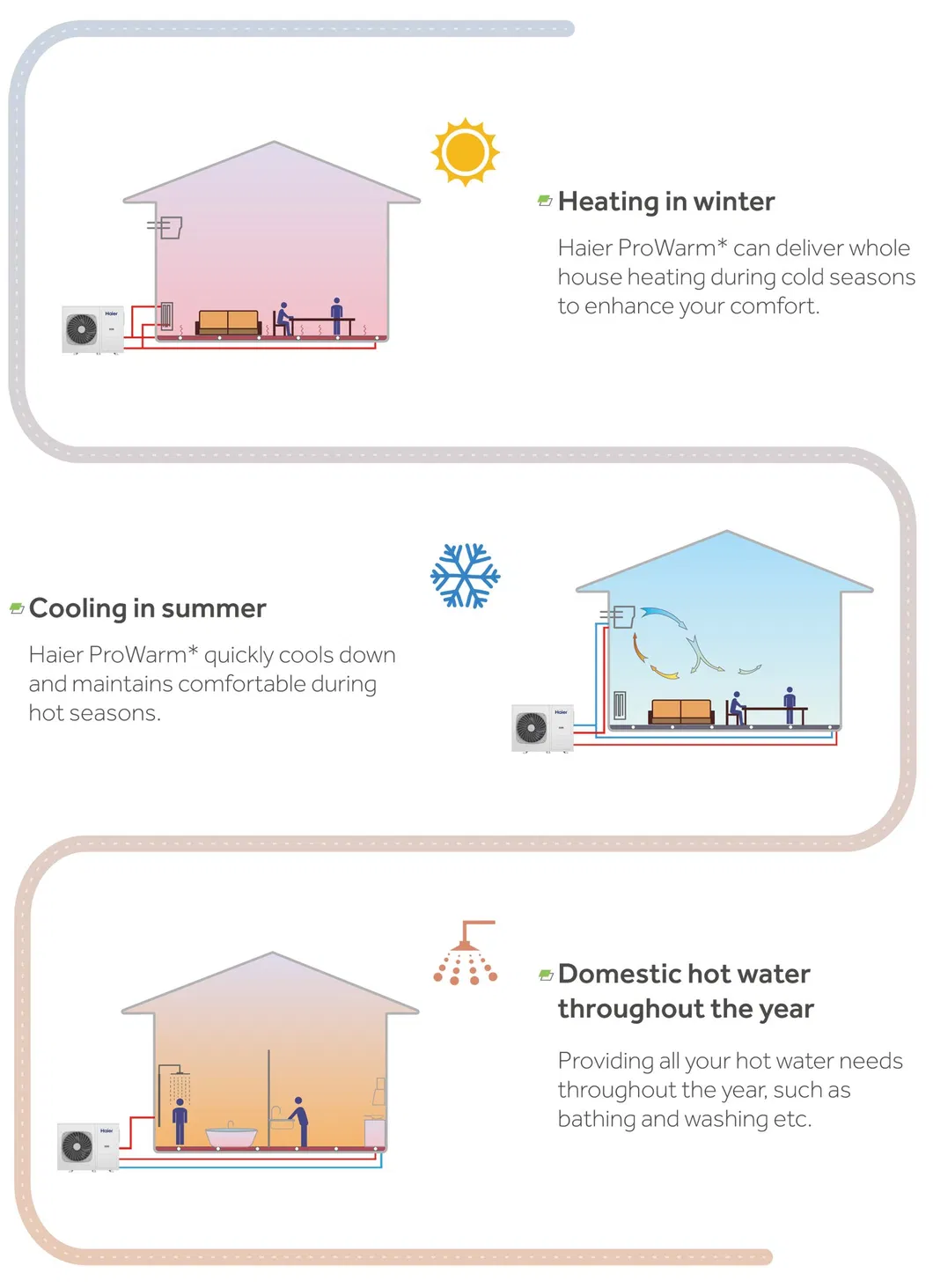

3-IN-1 INTEGRATED SYSTEM: Provides complete home climate control including heating, cooling, and domestic hot water. It serves as an ideal alternative to traditional gas or oil boilers.

⚡

ENERGY-SAVING TECHNOLOGY: Utilizing EVI Full DC Inverter technology to ensure high performance even in extreme cold while minimizing electricity consumption.

🌿

ECO-FRIENDLY R290: Uses natural refrigerant R290 with ultra-low Global Warming Potential (GWP), meeting the strictest environmental regulations.

🏆 Technical Advantage

Our systems are built in advanced production facilities with a focus on R&D. With multiple global research centers and a dedicated team of engineers, we provide cutting-edge heat pump technology that ensures 24/7 comfort and reliability.

❓ Frequently Asked Questions

🔹 What is the advantage of using R290 refrigerant?

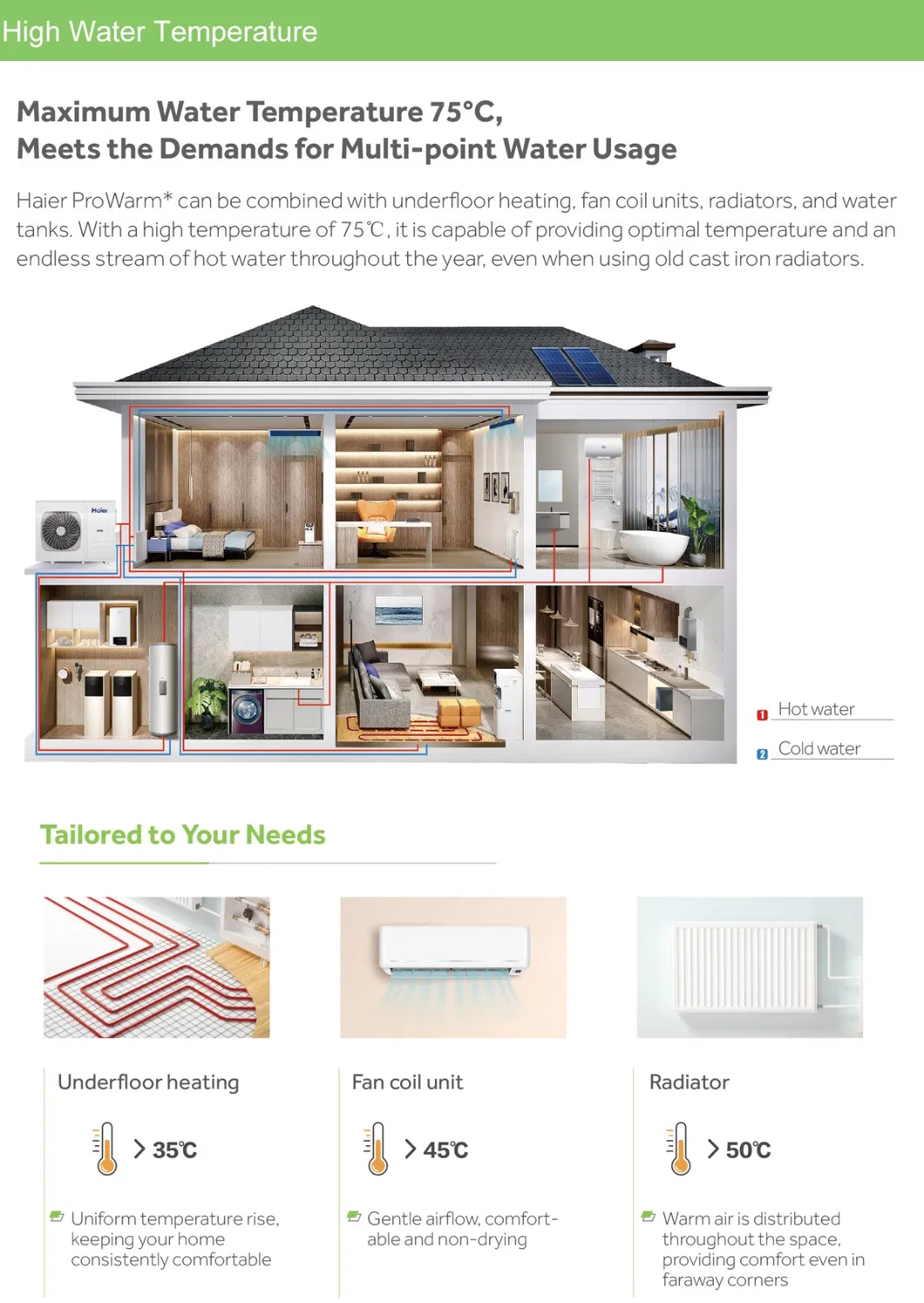

R290 is a natural refrigerant with a very low GWP (Global Warming Potential). It is highly efficient and allows the heat pump to reach higher water temperatures (up to 75°C) compared to traditional refrigerants.

🔹 How does the system perform in extremely cold weather?

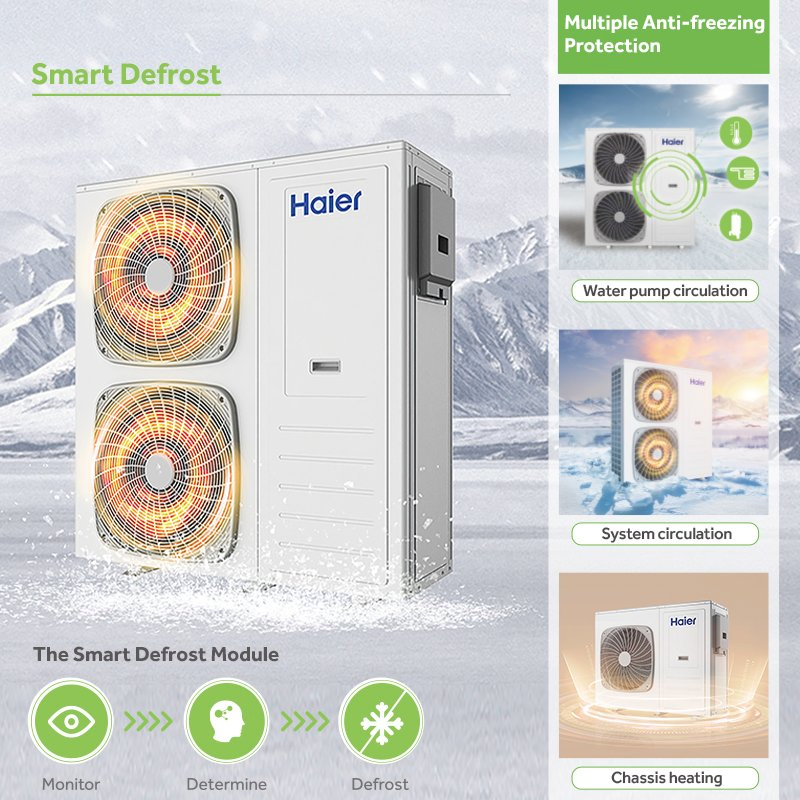

Thanks to the EVI (Enhanced Vapor Injection) DC Inverter technology, our heat pumps can operate efficiently in ambient temperatures as low as -30°C, ensuring stable heating during peak winter.

🔹 Can this unit replace my existing gas boiler?

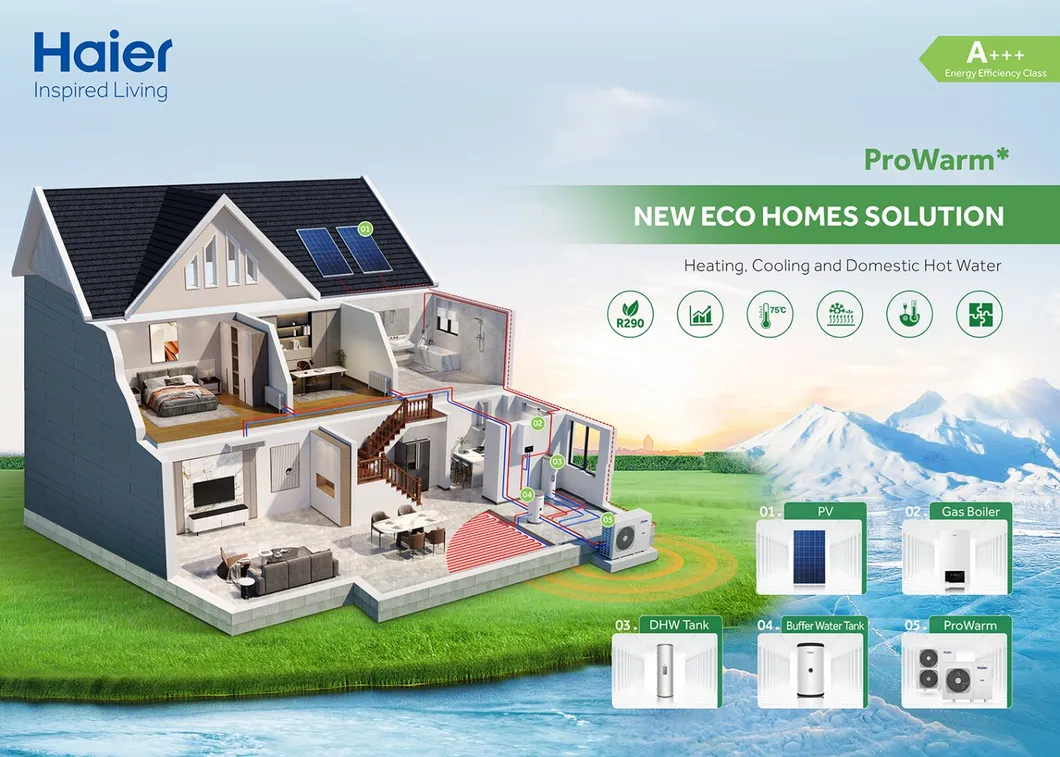

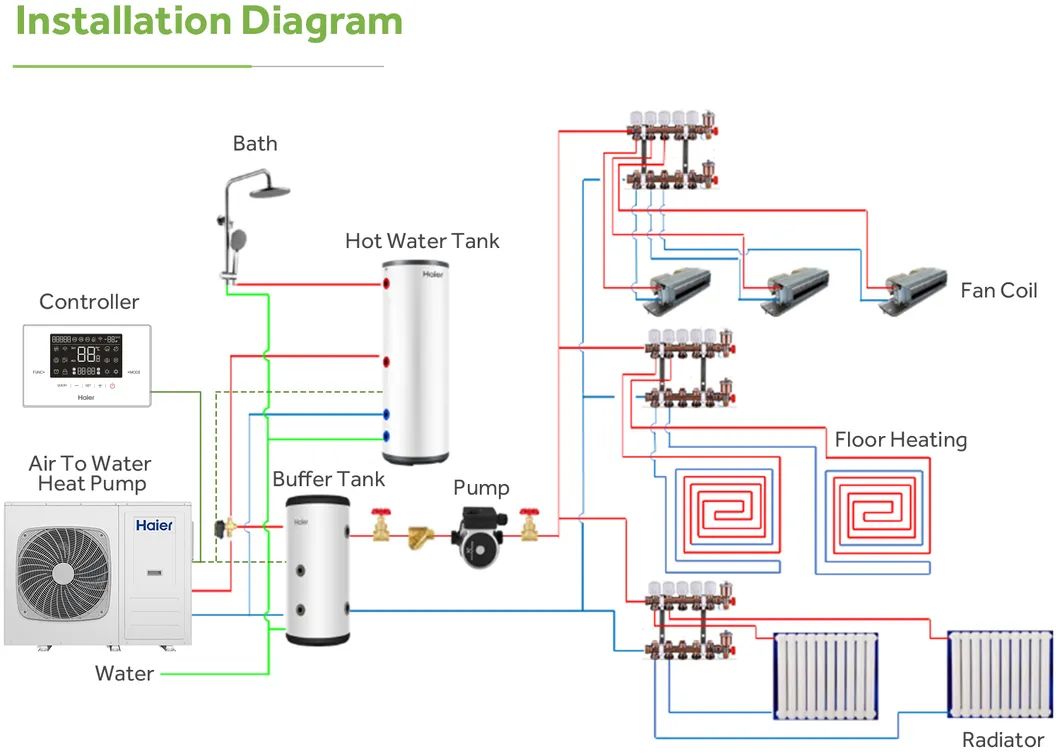

Yes, this is an ideal alternative for traditional gas or fuel oil heating. It provides space heating, cooling, and domestic hot water in one integrated monoblock system.

🔹 What is the energy efficiency rating of this heat pump?

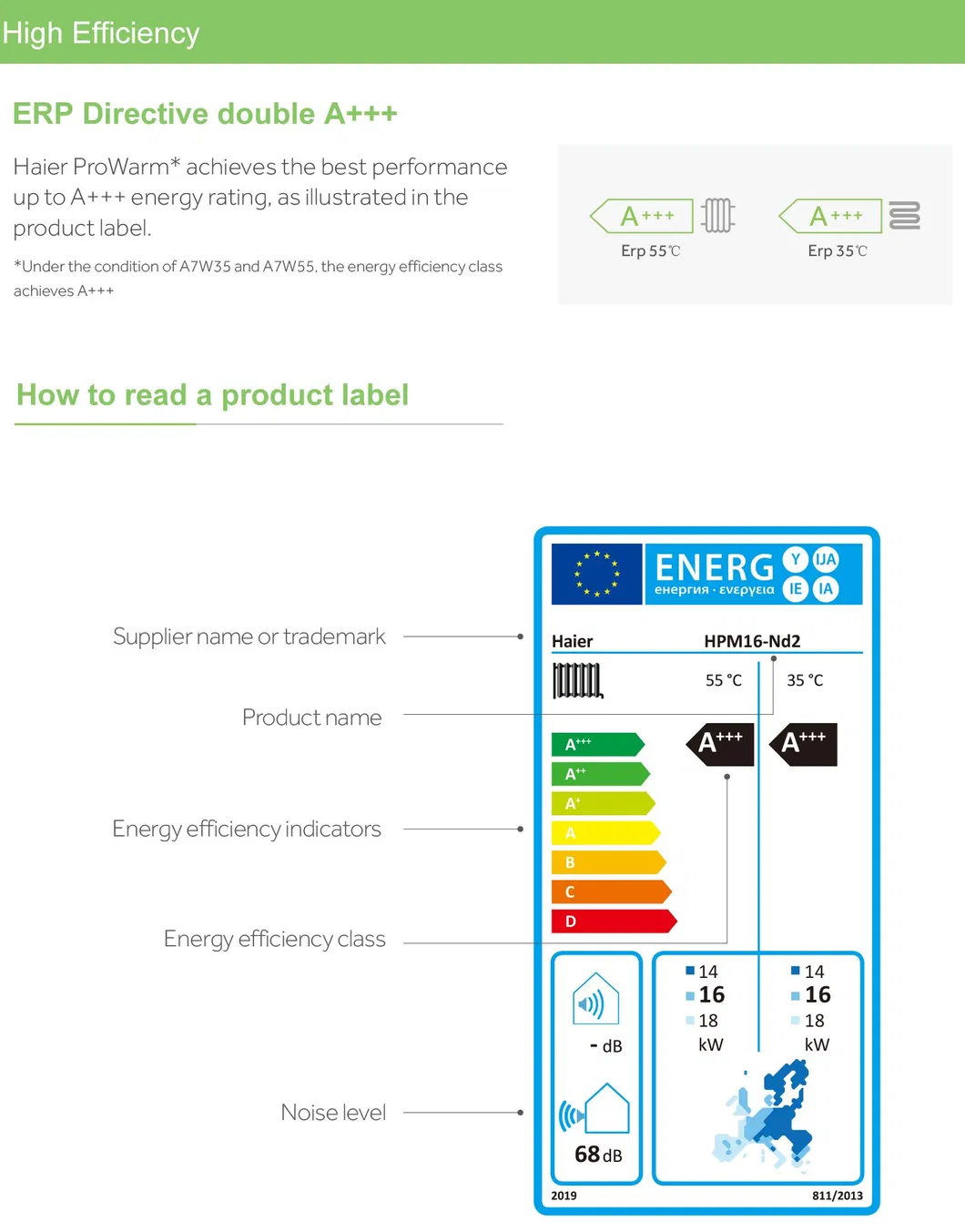

The system is rated at A+++ for seasonal space heating energy efficiency at both 35°C and 55°C water flow temperatures, maximizing your energy savings.

🔹 Is the operation noisy?

No, the unit is designed for quiet operation with sound pressure levels below 51dB(a) at 1 meter, making it suitable for residential installations.

🔹 What kind of maintenance is required?

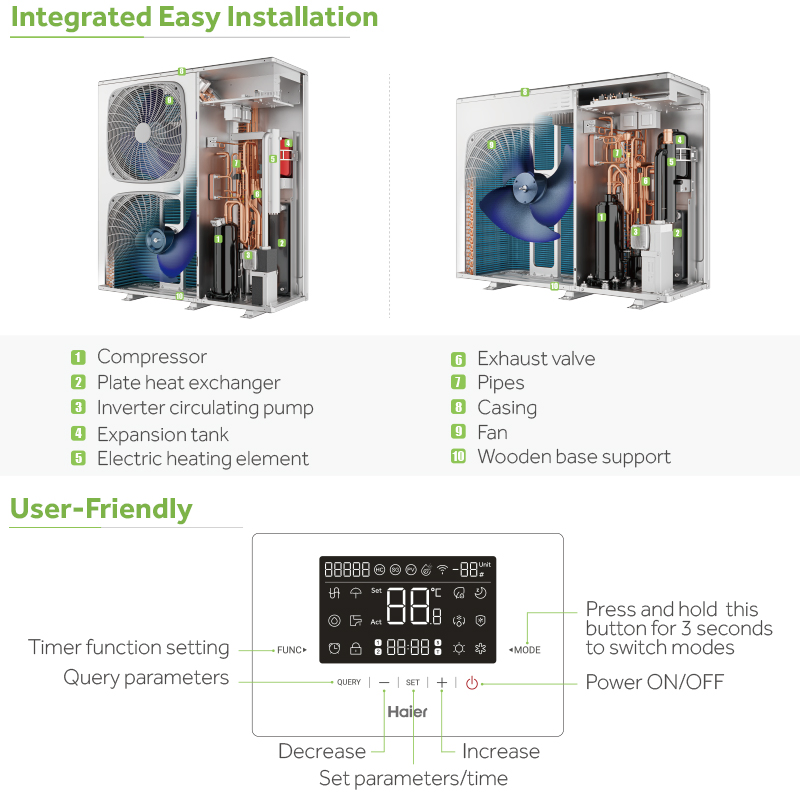

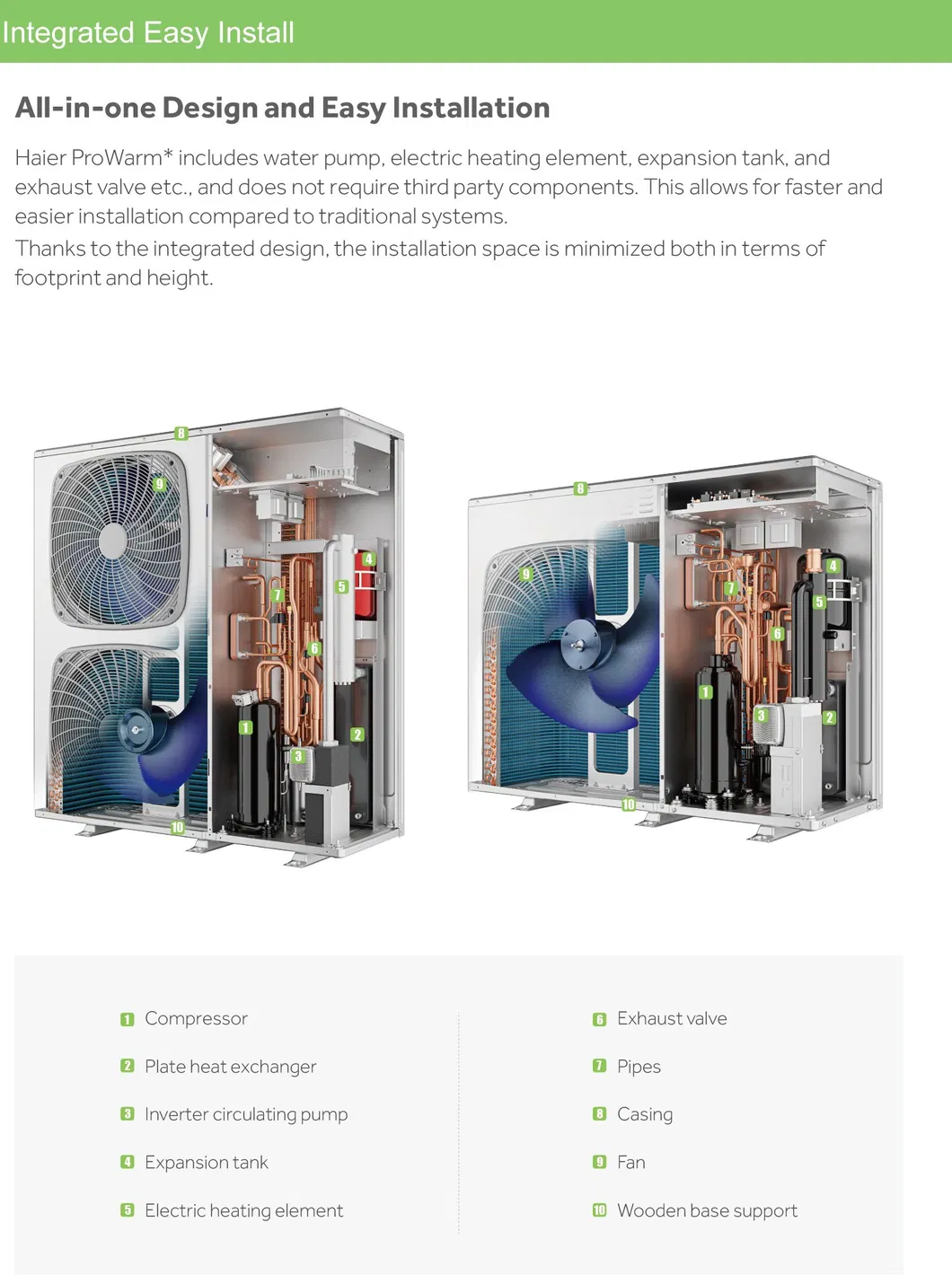

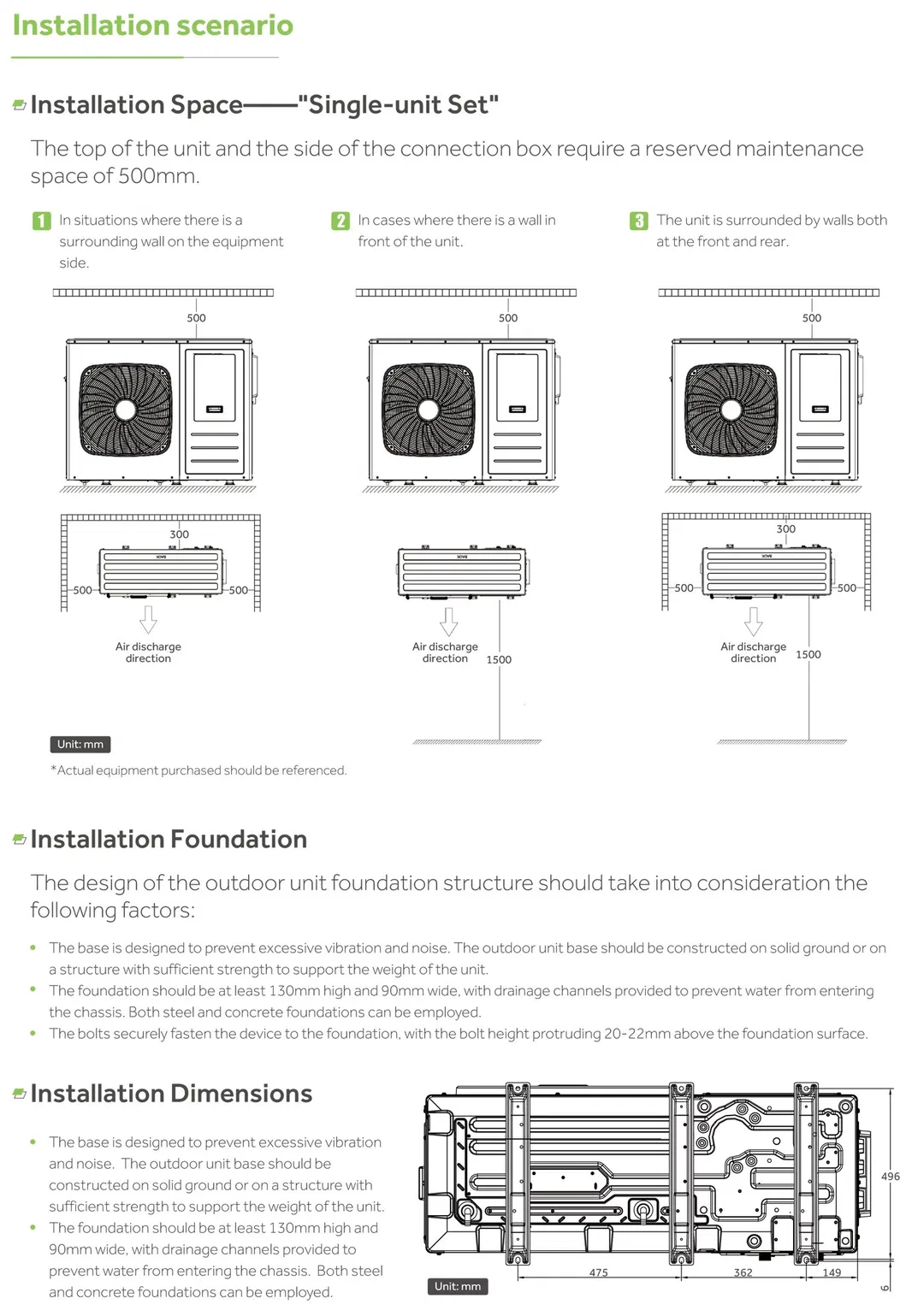

The monoblock design simplifies installation and maintenance. Regular inspection of water filters and ensuring clear air flow around the outdoor unit are the primary requirements.
