Max Outlet Water 80 Degree High Temperature Heat Pump Evi Warmtepomo for Heating for -25c

Basic Information

Model NO.

MG-10KFGRS

Work Environment

Common Heat Pump

Heat Source

Air-source + Water-source

Heating Type

Multi-power Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Specification

830*490*1160

Production Capacity

3,000,000 Unit / Year

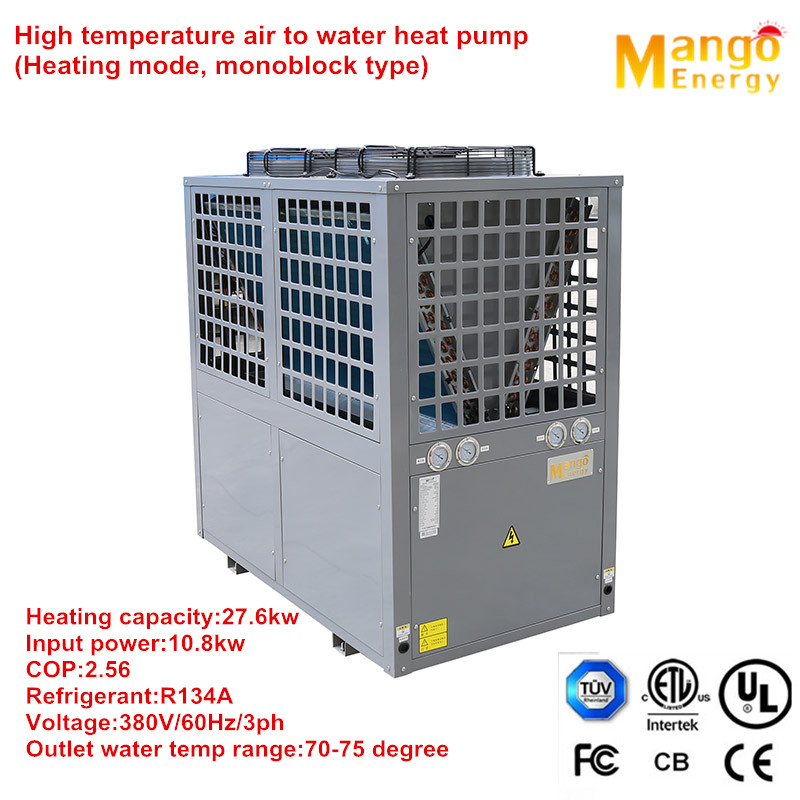

Max Outlet Water 80°C High Temperature Heat Pump EVI

Ultra-efficient heating solution designed for extreme environments as low as -25°C, delivering high-temperature water for domestic and commercial applications.

Technical Specifications	MG-030KFGRS	MG-030KFGRS/380	MG-050KFGRS	MG-10KFGRS
Refrigerant	R134A
Compressor Type	Copeland EVI Compressor
Heating Capacity (A/20ºC)	7.4 kW	8.3 kW	13.8 kW	27.6 kW
Input Power	2.9 kW	3.3 kW	5.4 kW	10.8 kW
COP	2.55	2.52	2.56	2.56
Max Outlet Water Temp	75°C - 80°C
Noise Level	≤55 dB(A)	≤55 dB(A)	≤58 dB(A)	≤66 dB(A)
Working Air Temp Range	-25°C to 43°C

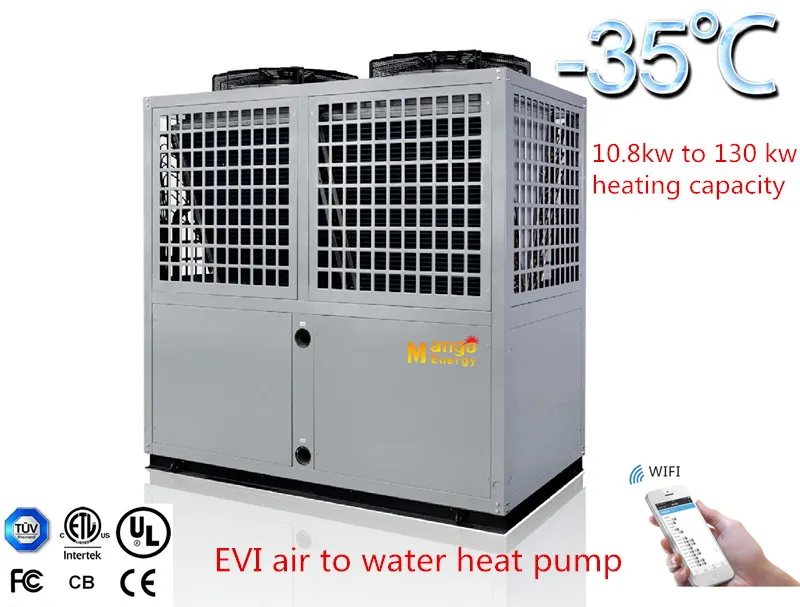

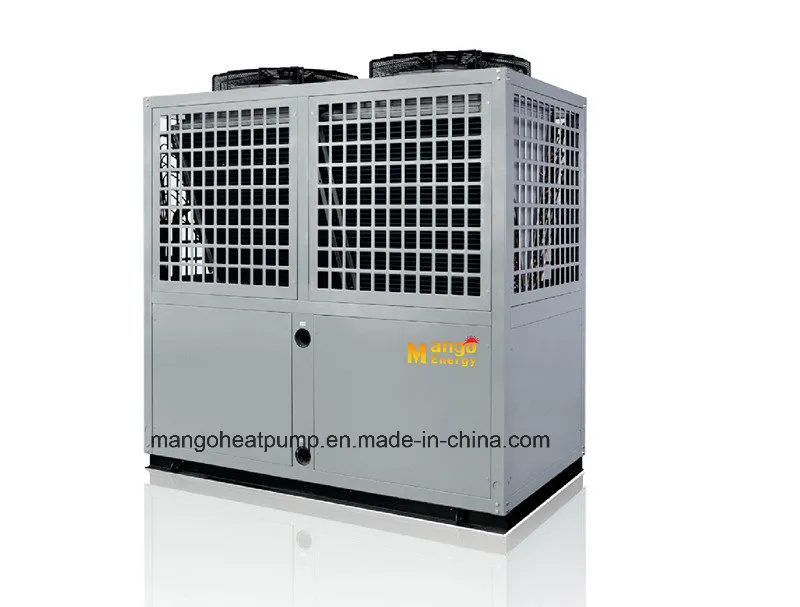

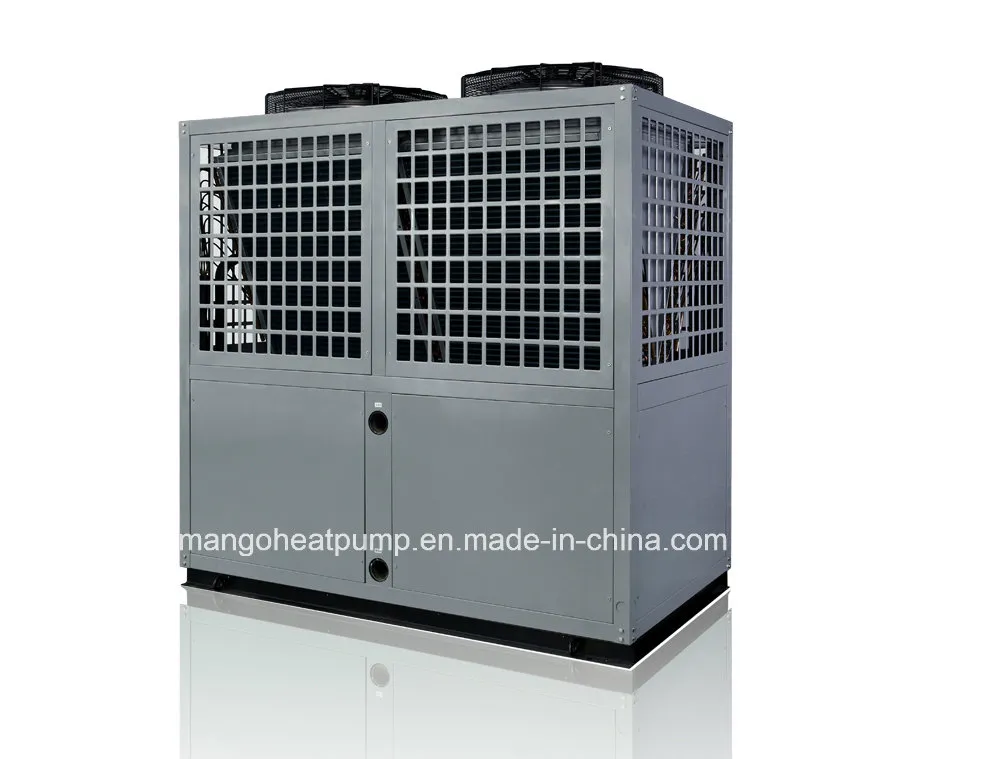

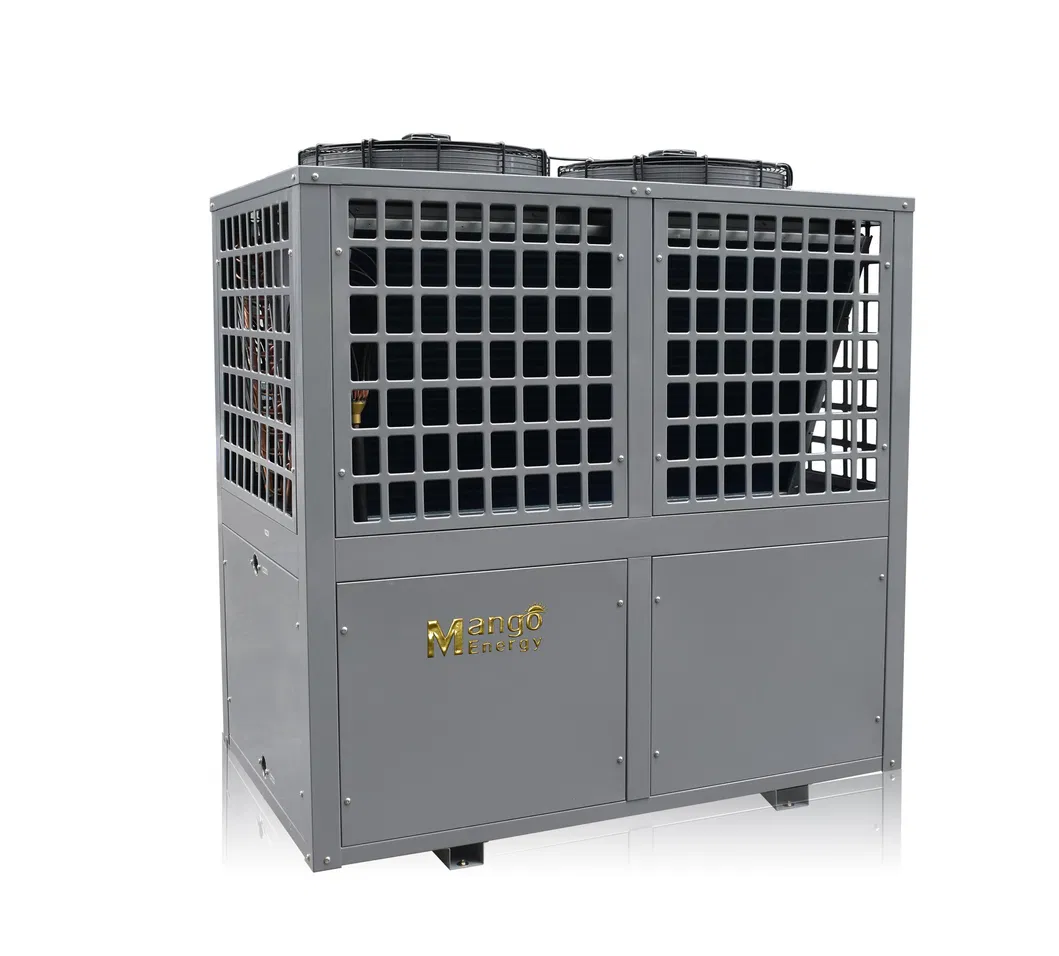

Product Characteristics

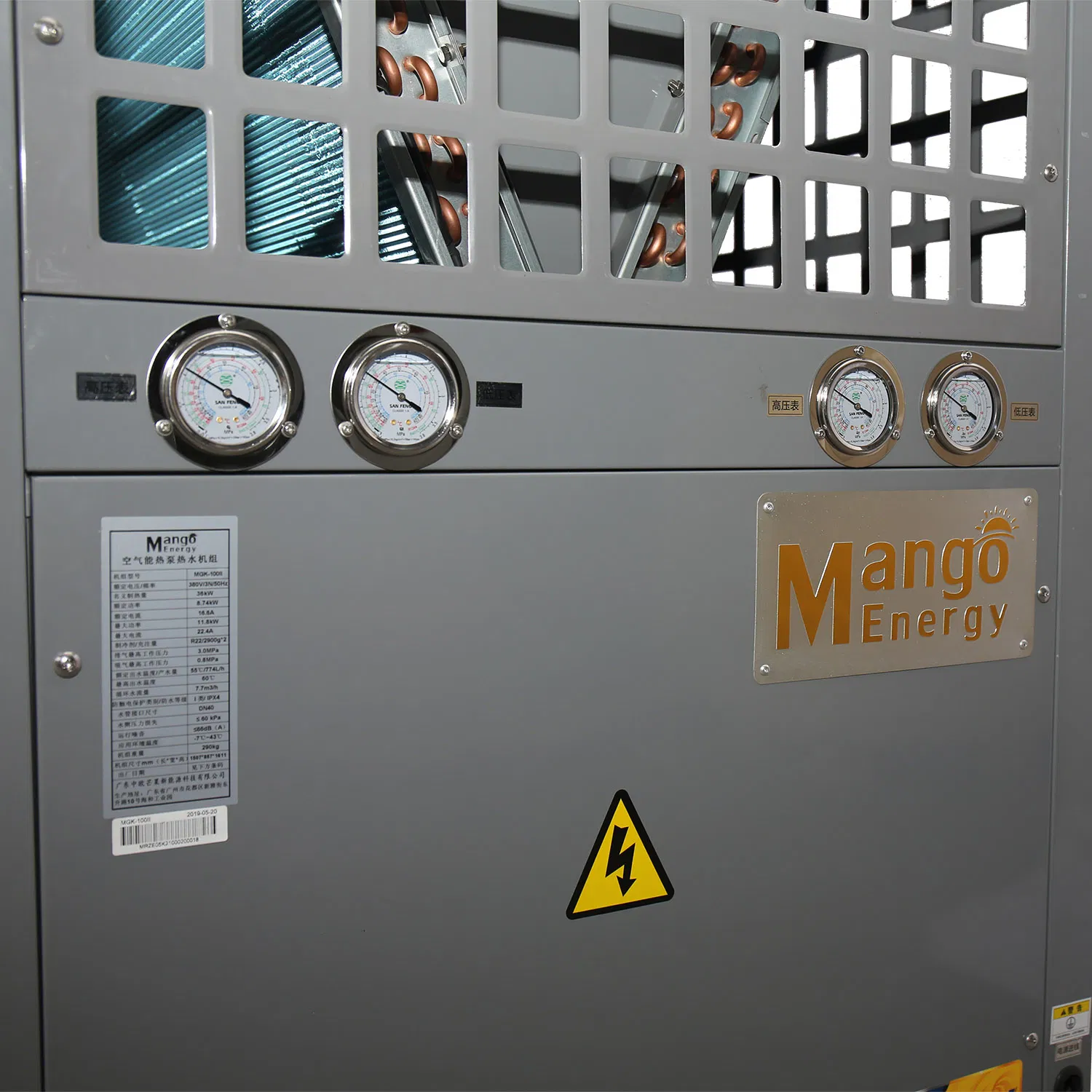

Premium Components

Certificates & Quality Assurance

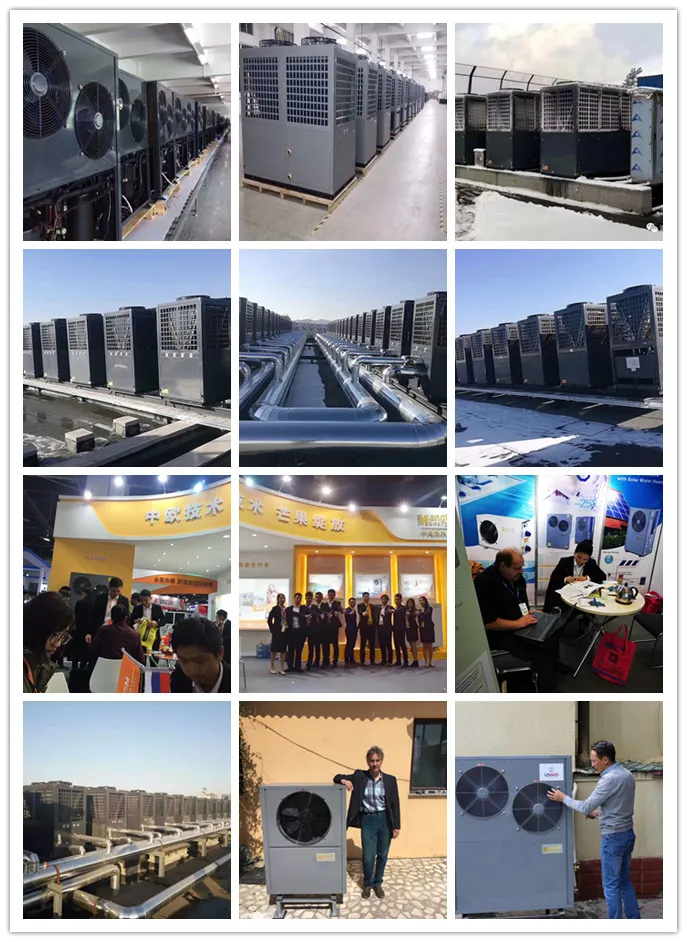

Global Projects & Applications

Frequently Asked Questions

What types of heat pumps are available?

We provide a comprehensive range of solutions including ON/OFF heat pumps, DC inverter models, air-source and water-to-water units, swimming pool heat pumps, and specialized high-temperature heat pumps.

What certifications do the products carry?

Our heat pumps are certified by SGS, CE, CB, and IEC. They meet EN14511 standards from TUV Lab and hold ISO9001, ISO18001, and ISO14001 quality management ratings, as well as ErP Class A+ and A ratings.

Where are these heat pumps typically installed?

Due to energy savings of up to 70%, they are widely used in residential homes, hotels, hospitals, schools, commercial bath centers, and industrial plants for both central heating and hot water.

What is the advantage of an EVI heat pump?

EVI (Enhanced Vapor Injection) technology allows the heat pump to operate efficiently in extreme cold climates (as low as -25°C) while still producing high-temperature outlet water up to 80°C.

Which international markets do you serve?

The products are currently exported to Western Europe, Northern Europe, South Africa, the Middle East, South America, and the Australian market.

How is energy efficiency measured for these units?

Efficiency is measured by the COP (Coefficient of Performance). Our units maintain a high COP of approximately 2.55-2.56 even under demanding heating conditions, ensuring significant electricity savings.
