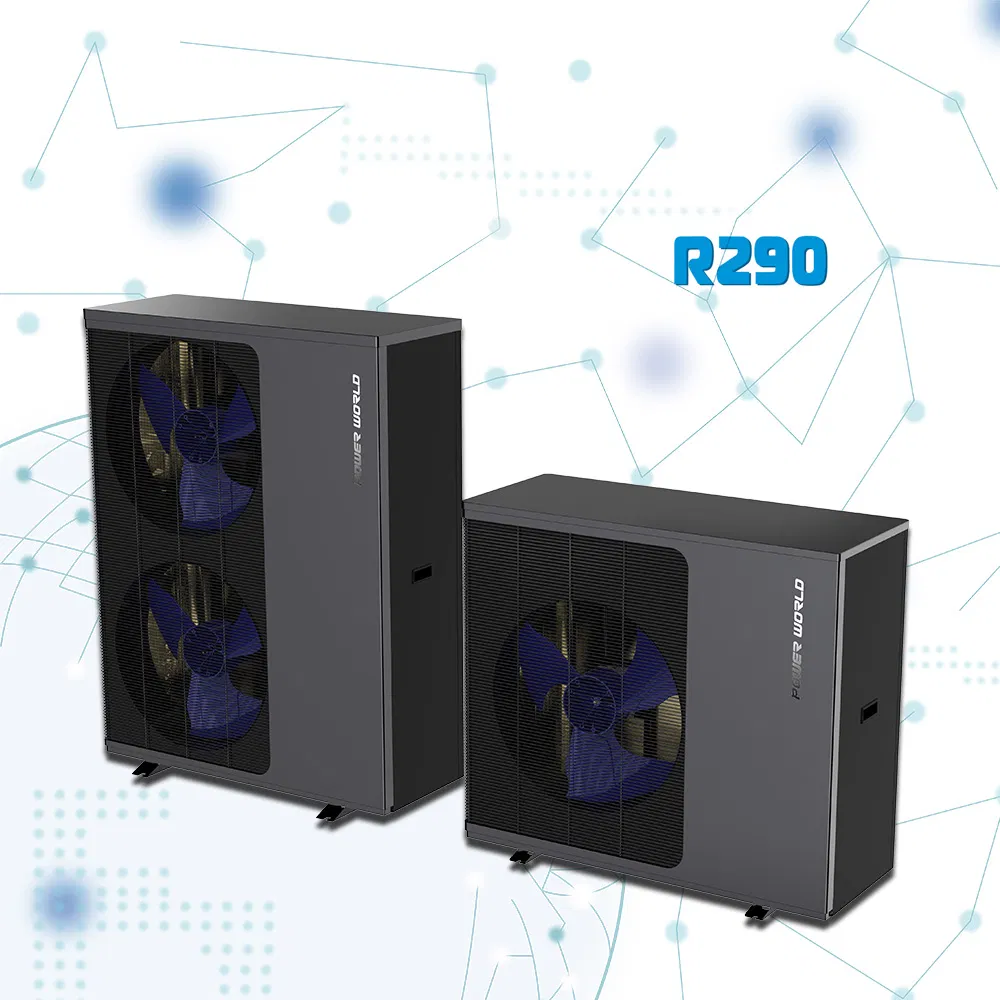

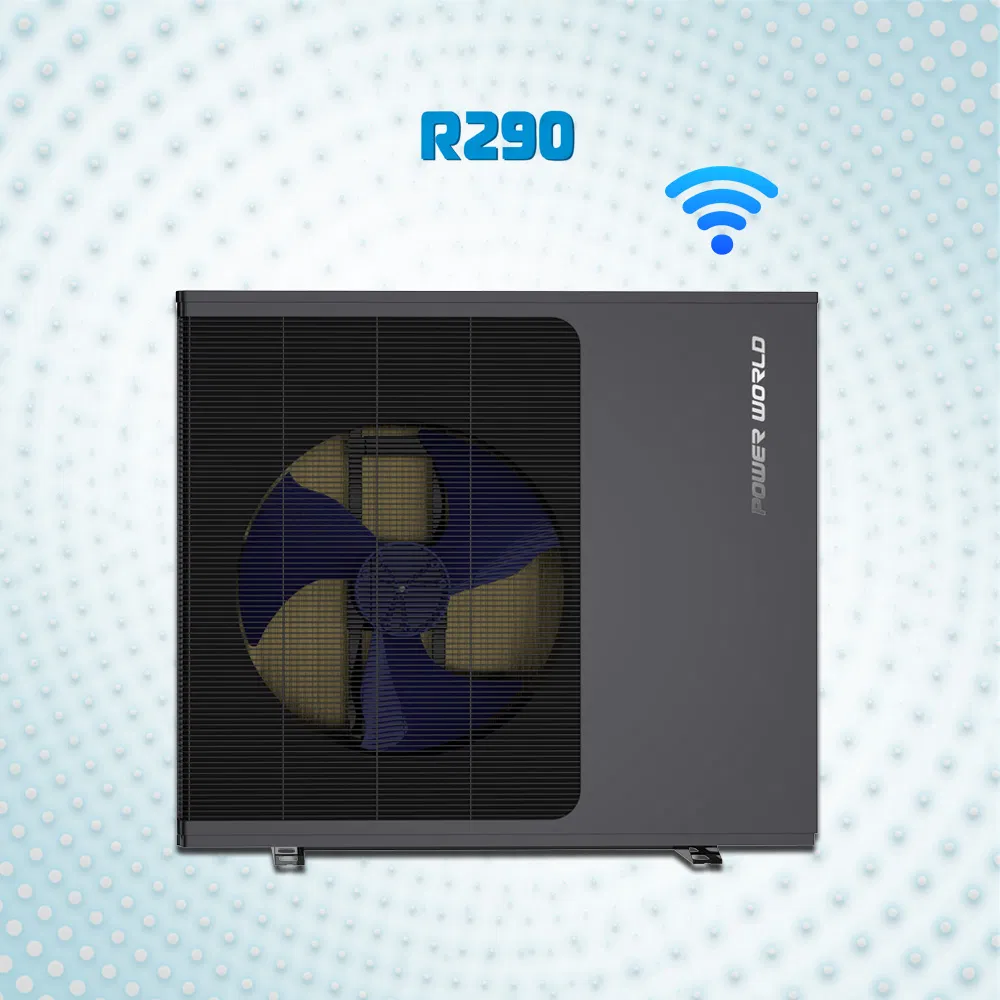

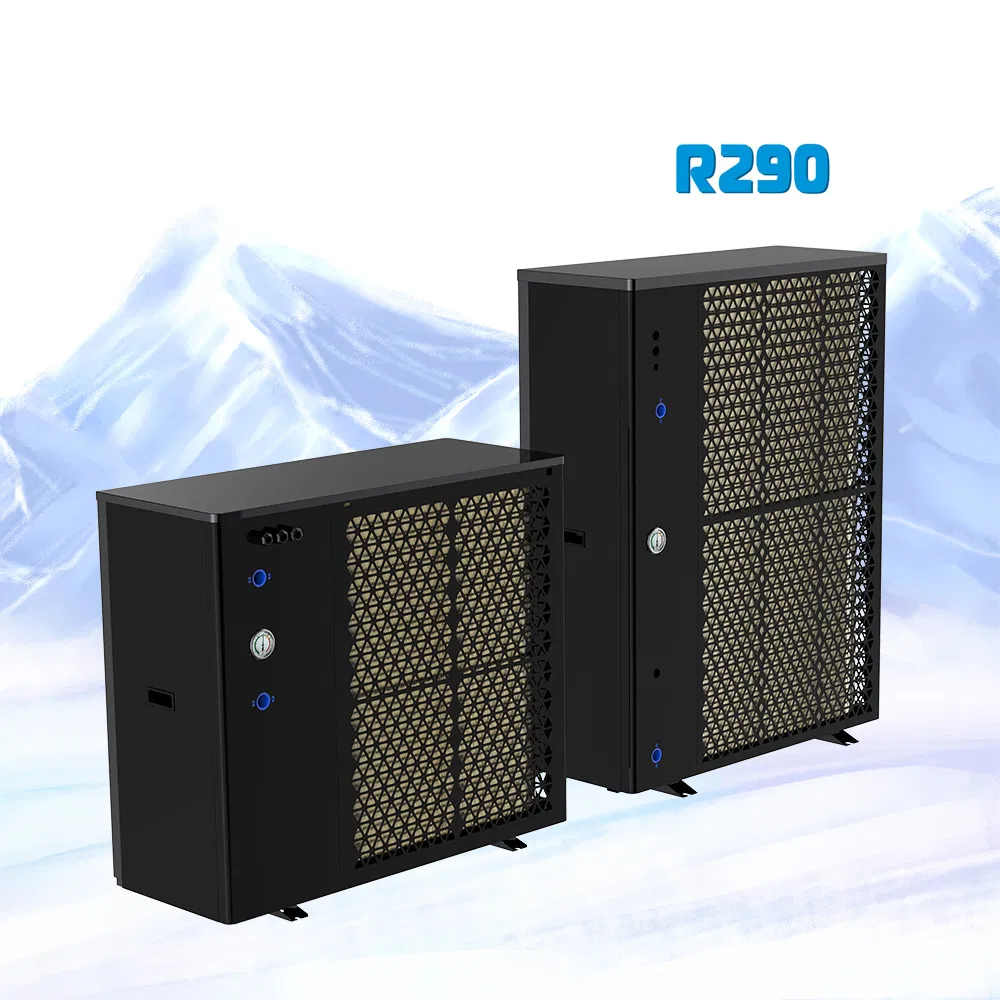

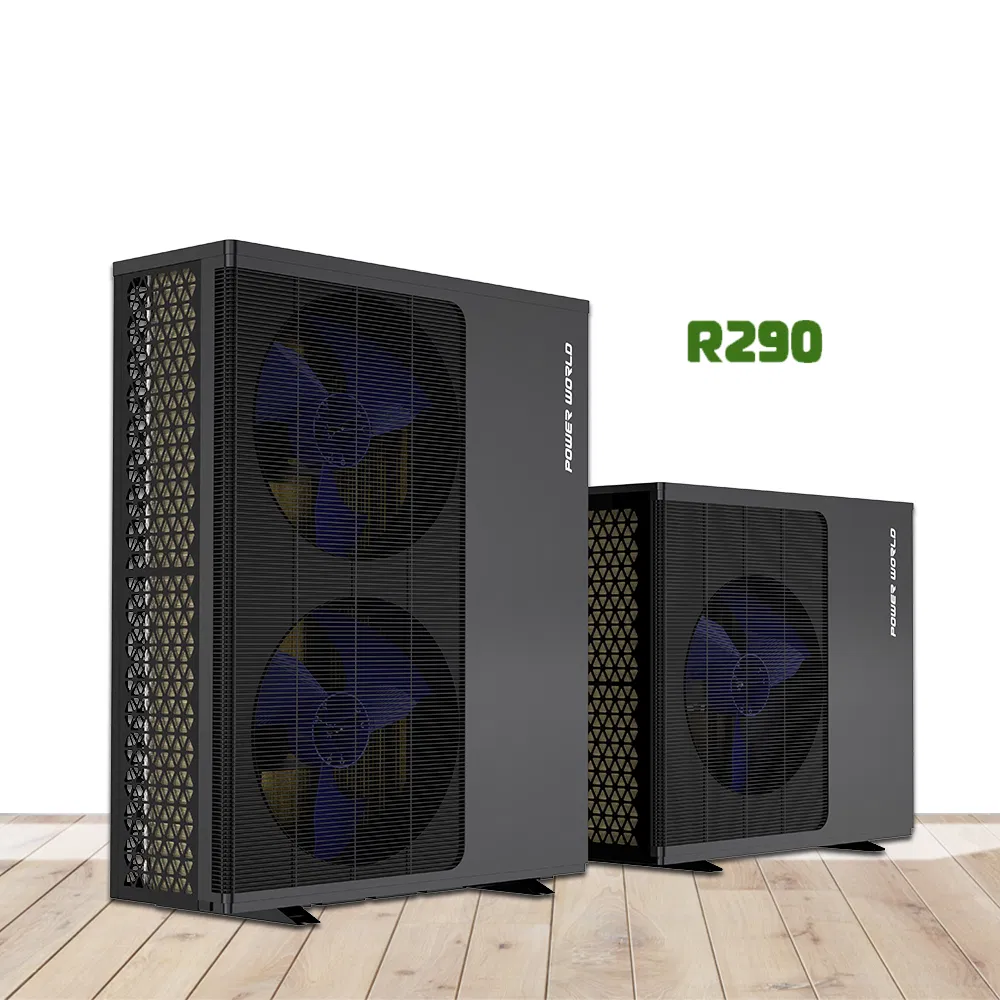

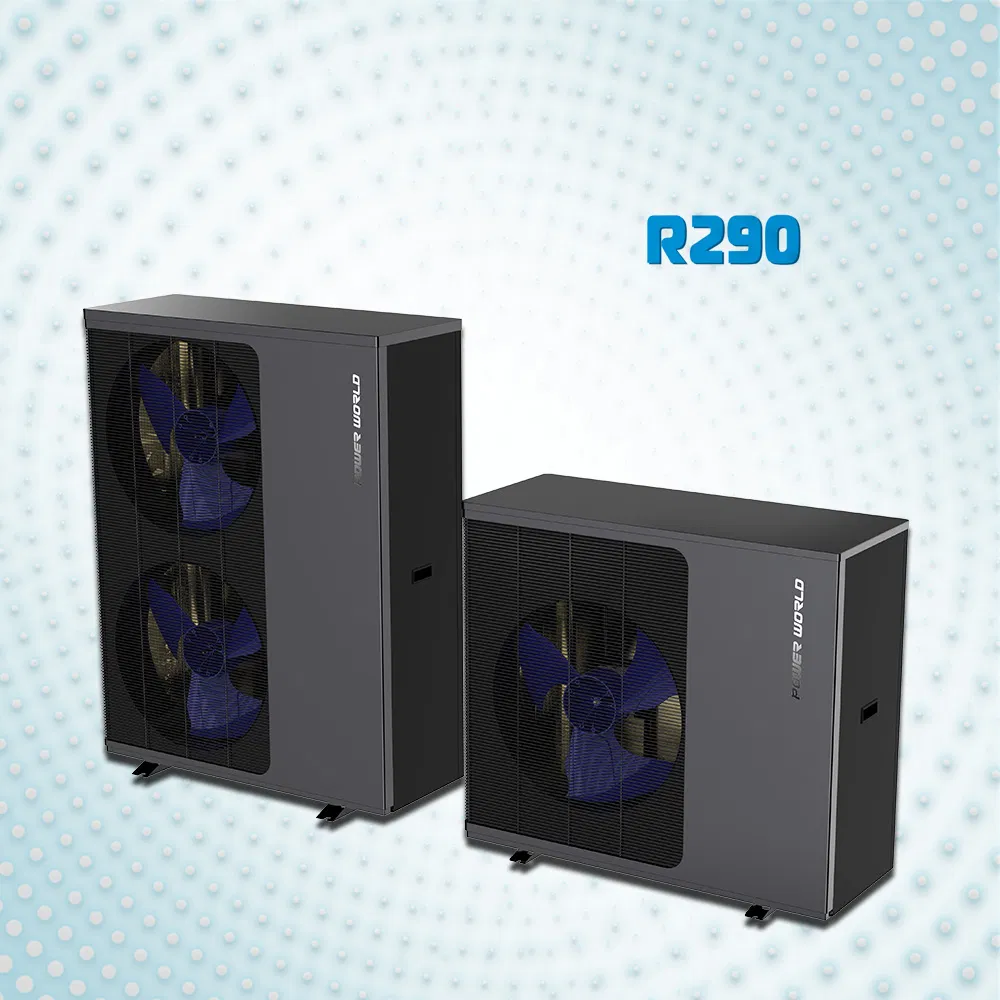

To reduce carbon emissions to the environment and curb global warming, the R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.
Under low ambient temperature, the performance and stability of normal heat pumps are limited. This R290 FULL DC INVERTER heat pump operates efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water.

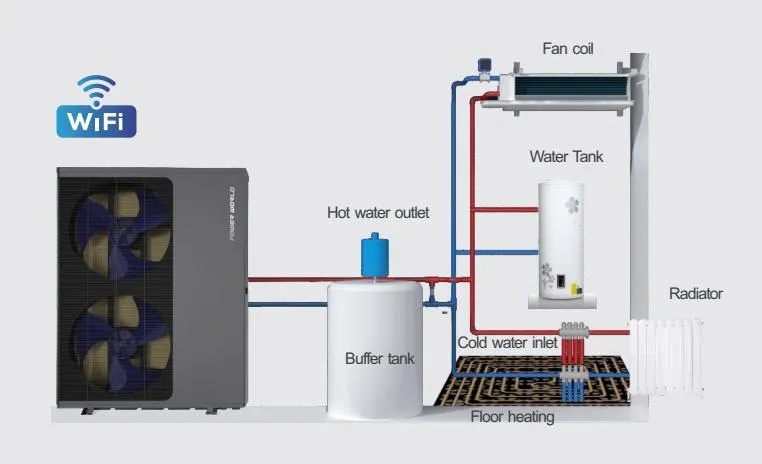

Full DC inverter technology intelligently adjusts the operating frequency and controls water temperature to keep the room constant. It saves up to 50% energy compared to ON-OFF units and up to 75% compared to traditional electric heat pumps.

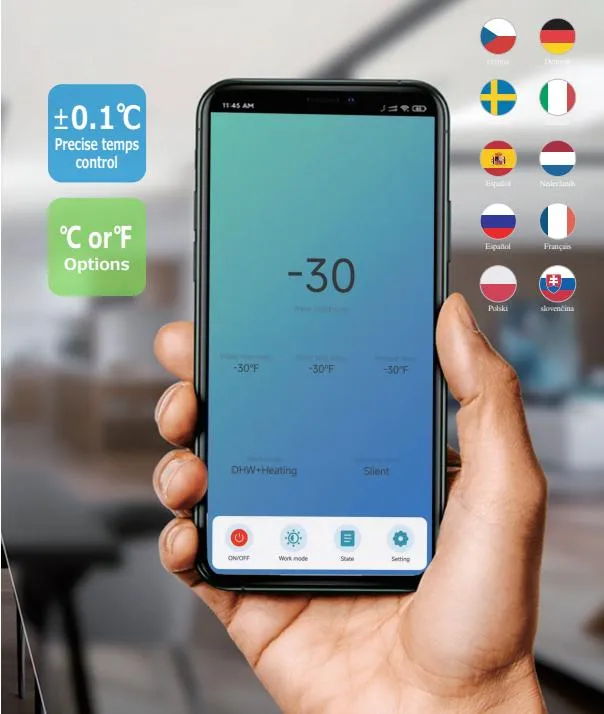

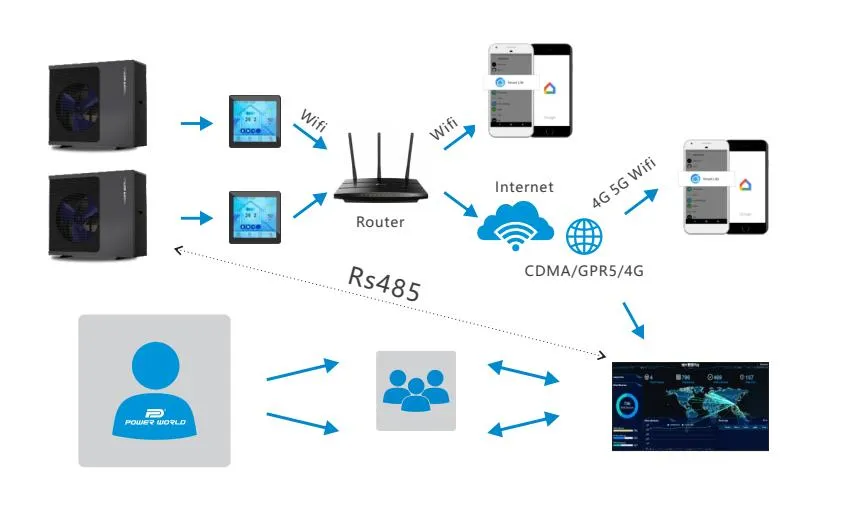

The IoT cloud management platform connects via Wi-Fi or DUT for remote monitoring. It records all operating parameters. If an error occurs, reports are synchronized to the service background for quick solutions, saving communication and time costs.
| Model | PW030-DKZLRS | PW040-DKZLRS | PW050-DKZLRS | PW060-DKZLRS |
| Heating Condition (Ambient 7/6ºC, Water 30/35ºC) | ||||
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| Efficiency & Specs | ||||
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |
| Ambient Temp (ºC) | -25 ~ 43 ºC | |||

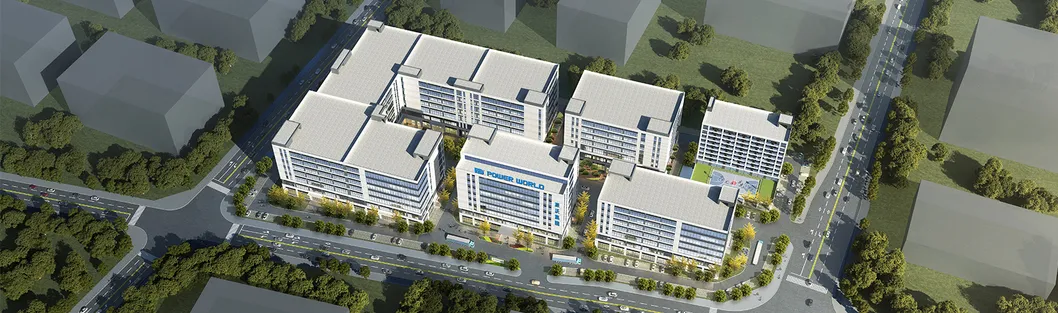

Established in 2004, this high-tech enterprise focuses on the research, development, production, and sales of air source heat pump products. With a complete industry chain, the product range involves swimming pool heat pumps, residential heating/cooling solutions, domestic hot water, and industrial drying solutions.

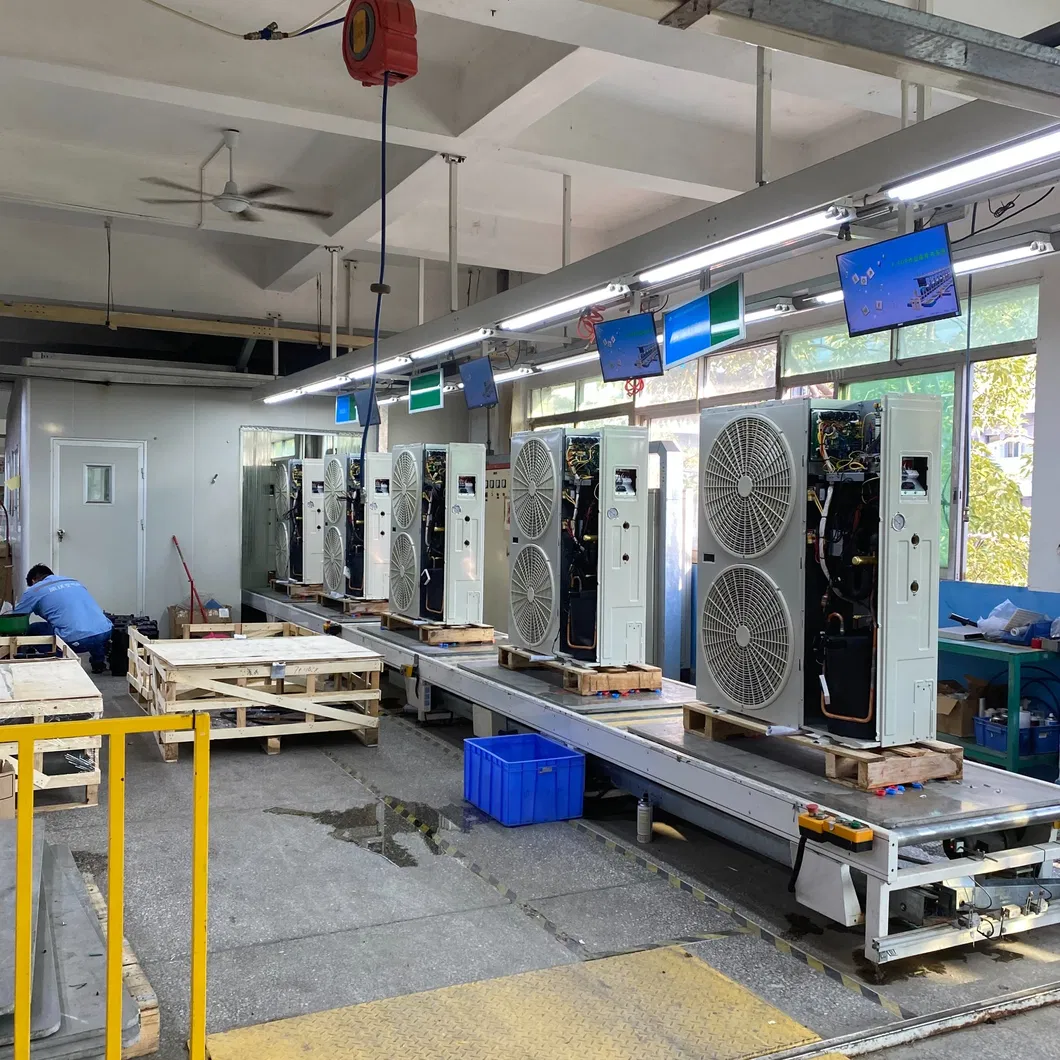

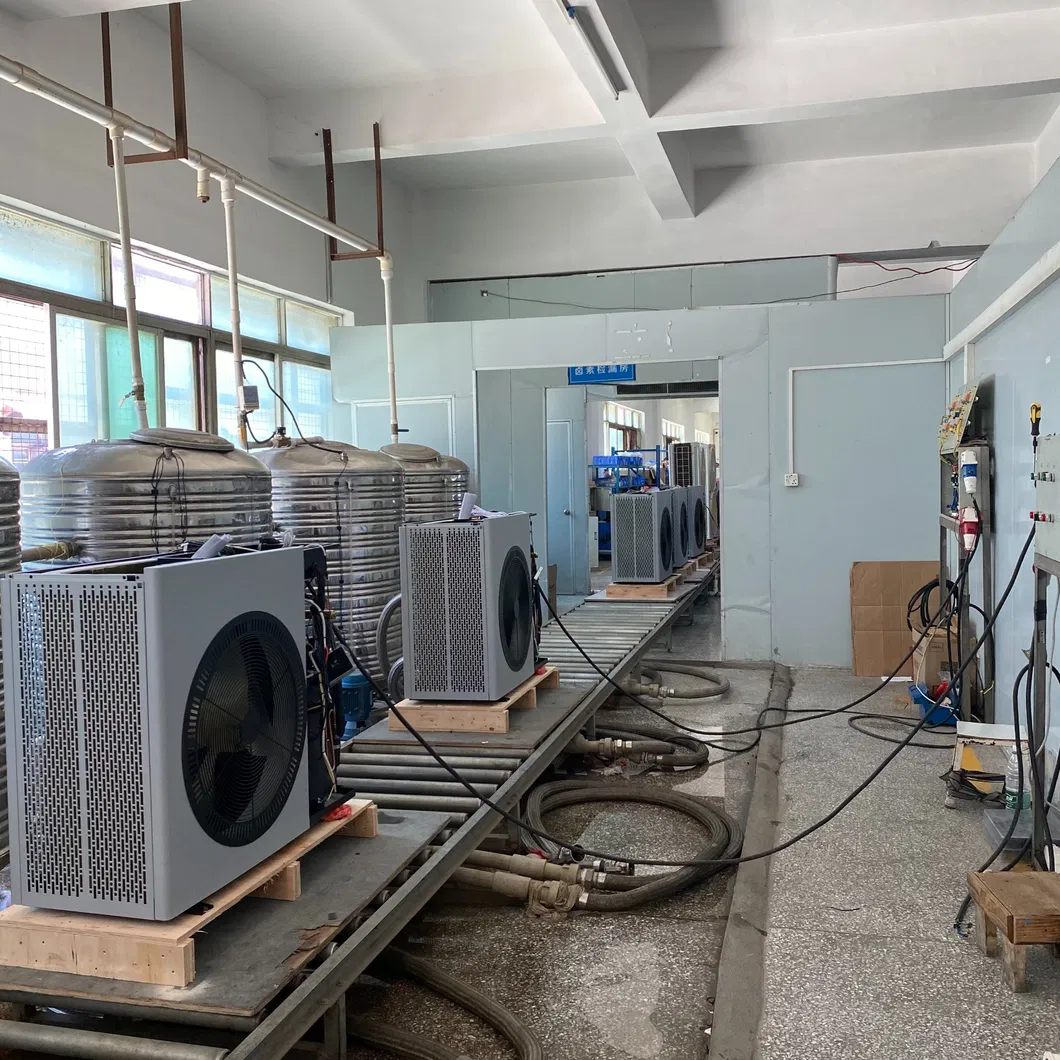

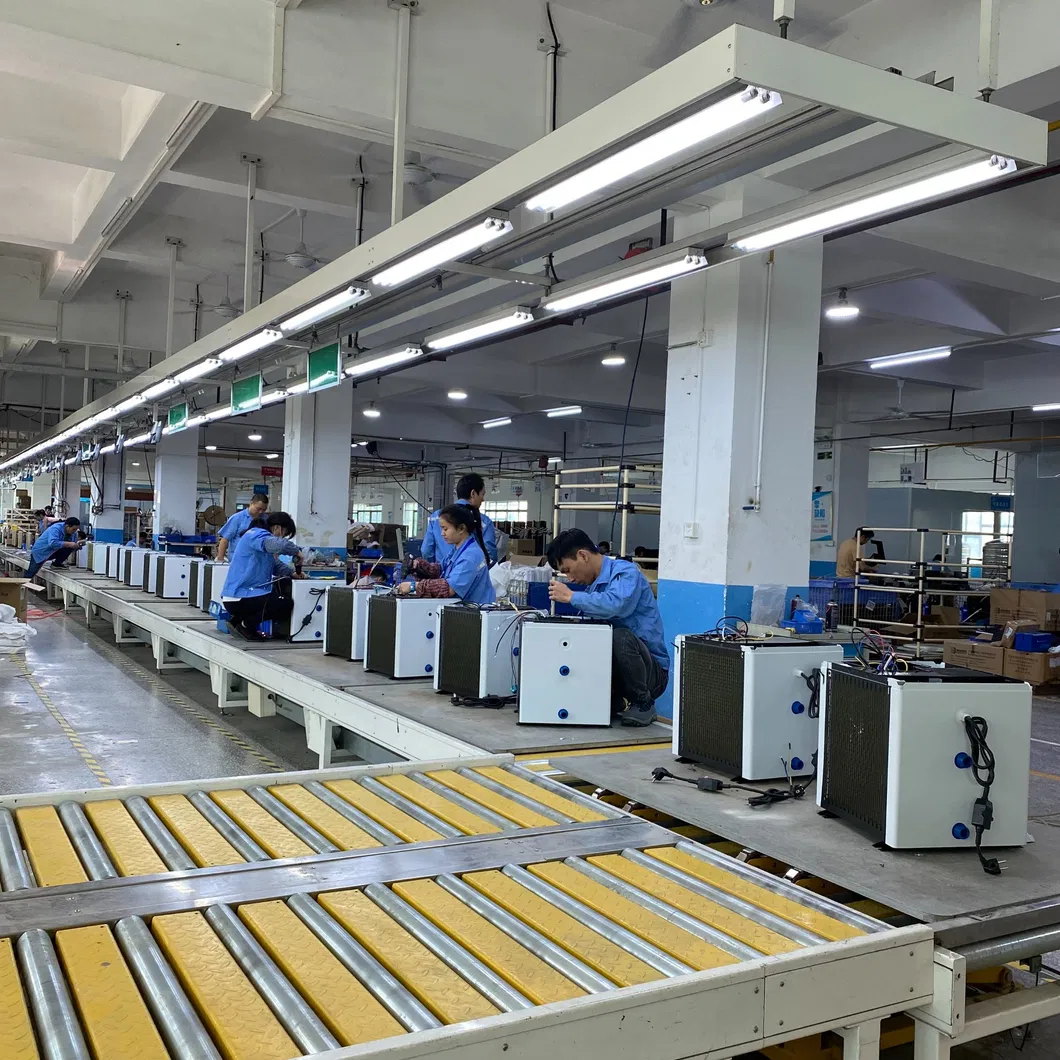

The facility maintains a strong talent structure, including senior engineers and over 500 experienced production personnel. Committed to technical innovation, the manufacturer has obtained more than 80 product patents and is ISO 9001/ ISO 14001, CE, CCC, and ERP certified. The products are exported to more than 60 countries including Sweden, Germany, France, and Spain.
