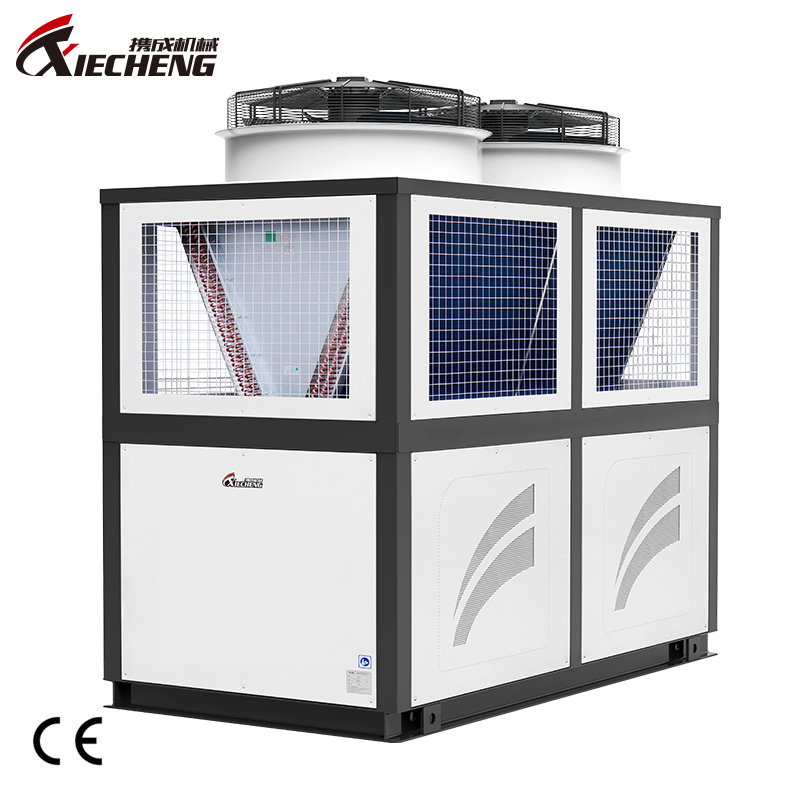

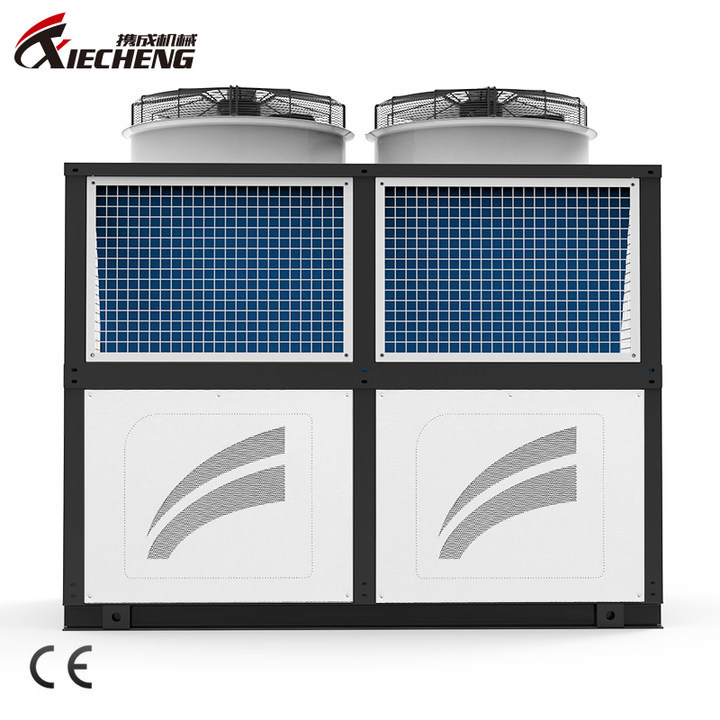

60~90 Degree High Temperature Water Heater R134A R290 Air Cooled Heat Pump Unit Industrial Air Source Heat Pump

Customization:	Available
Certification:	CE
Refrigerating Capacity:	197800kcal/H

Basic Information

Model NO.

XC-HPU30

Input Power

60kw

Refrigrant

R22

Compressor

Semi-Hermetic Screw

Evaporator

Shell and Tube Type

Origin

China

Package Size

2300.00cm * 1300.00cm * 2300.00cm

Gross Weight

800.000kg

Product Description

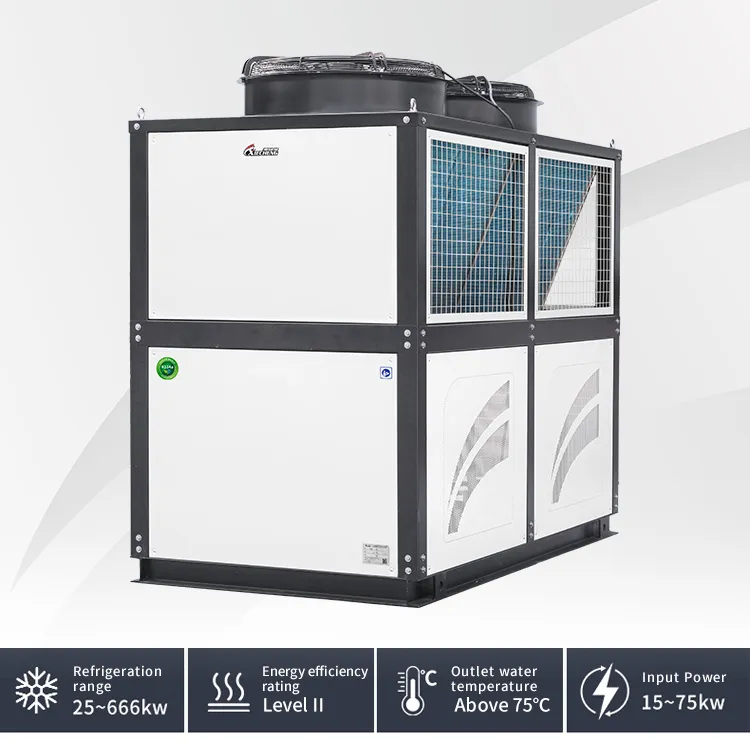

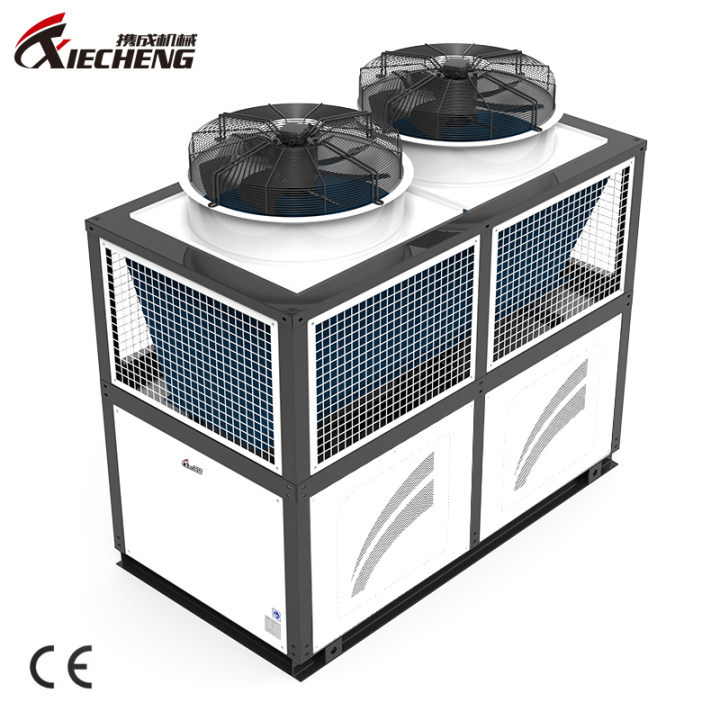

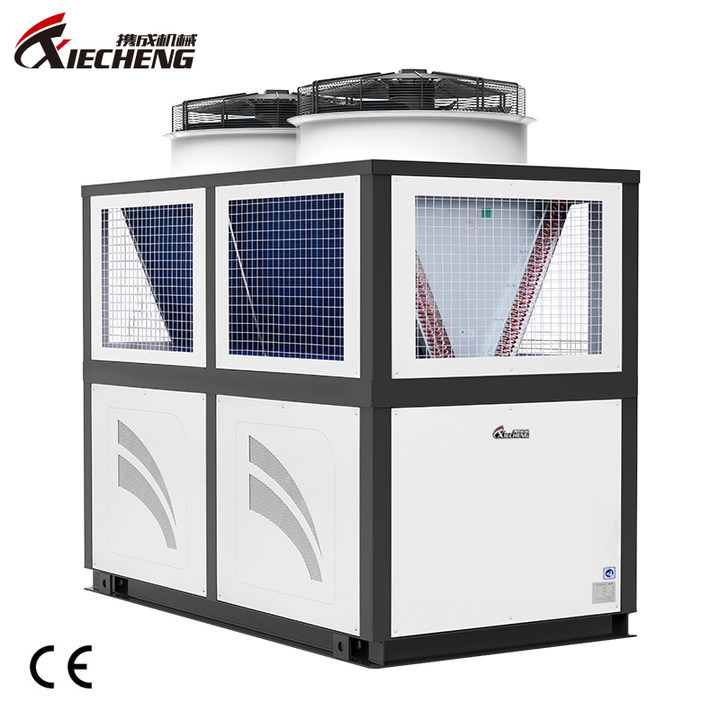

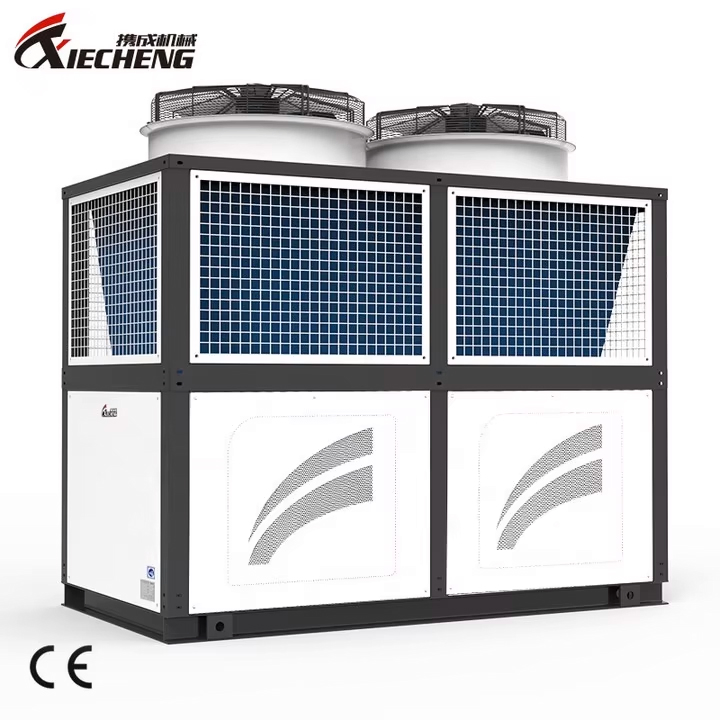

Scroll Type Air Cooled Heat Pump Unit

The scroll-type air-cooled heat pump unit adopts a high-efficiency fully enclosed scroll compressor, a high-efficiency shell-and-tube heat exchanger, and a coil heat exchanger, using R22, R134a, or R407c refrigerants. The energy efficiency rating can reach Level 2, with hot water outlet temperatures up to 75°C. The cooling capacity ranges from 25kW to 118.8kW, and the heating capacity ranges from 25kW to 127.2kW. It is widely used in various small and medium-sized commercial and industrial sites that require hot water for industrial production.

Key Features

● 1. Uses a world-renowned fully enclosed scroll compressor, ensuring stable operation, low noise, and durability.

● 2. Employs independently developed high-efficiency evaporators and finned condensers, achieving a whole machine energy efficiency rating of Level 2.

● 3. The inner-threaded shell-and-tube evaporator offers highly efficient heat transfer.

● 4. The flow device uses a well-known brand thermal expansion valve.

● 5. Can be controlled via microcomputer or PLC control, with optional network capabilities for remote monitoring.

● 6. Uses an external rotor for smooth operation, low noise, and high efficiency.

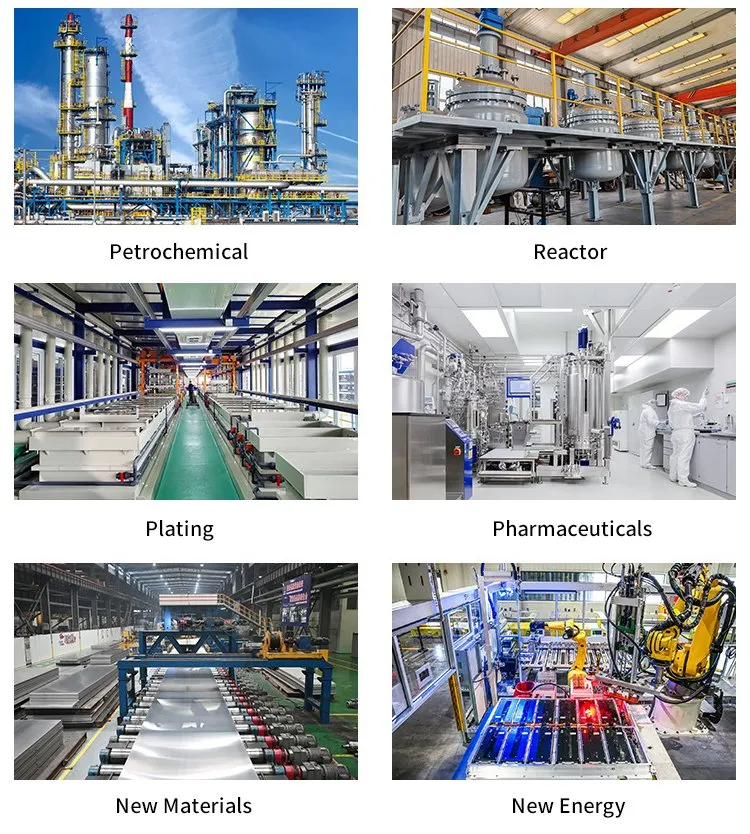

Application Range

Widely applicable in various fields

Petrochemicals, reactors, electroplating, pharmaceuticals, new materials, new energy, etc.

Product Specifications

Model		XC-HPU20	XC-HPU25	XC-HPU30	XC-HPU40	XC-HPU50	XC-HPU60	XC-HPU80	XC-HPU100
Air Cooling Capacity(KW)		77	92.8	114.7	154	185.2	230.4	308	371.4
Compressor	Input(KW)	15	19	22	30	37	45	60	75
Compressor	Rated(HP)	20	25	30	40	50	60	80	100
Power		3PH (380V/220V/415V/440V/480V/575V) 50/60HZ
Evaporator		Finned copper tube + low noise outer rotor fan
Refrigerant Type		R22/R134a
Quantity(KG)		12	15	18	24	30	36	48	60
Safety Protection		High/Low Pressure, Overload, Overtemperature, Phase Sequence Protection, etc.
Dimensions (LxWxH)		2250x1200x2150			3060x1350x2100	3300x1500x2300	3900x1500x2300	2600x2300x1980	4620x2200x2200

Product Details

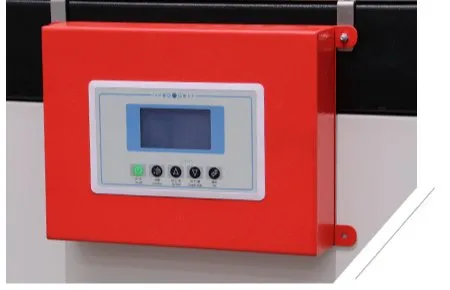

01 Microcomputer Controller: Optional PLC control with remote monitoring.

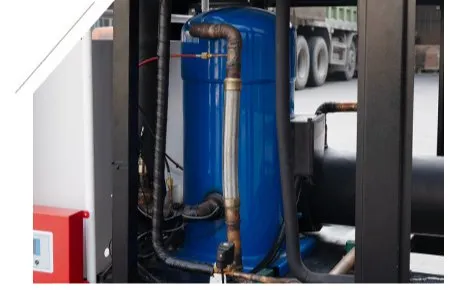

02 Vortex Compressor: Fully enclosed world-renowned brand for durability.

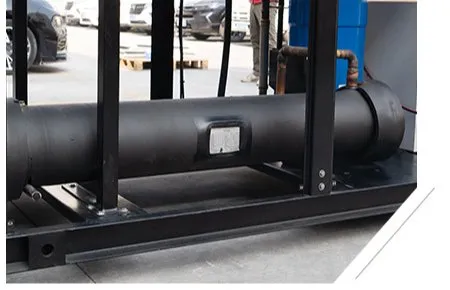

03 Shell and Tube: High-efficiency exchanger reaching Grade II efficiency.

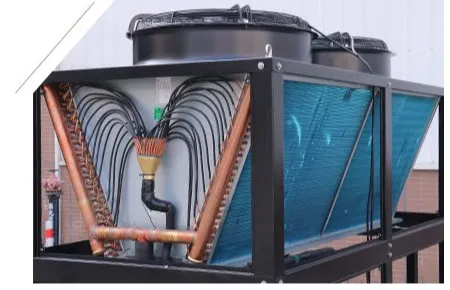

04 Evaporator: Efficient copper tube with aluminum fins and low-noise fan.

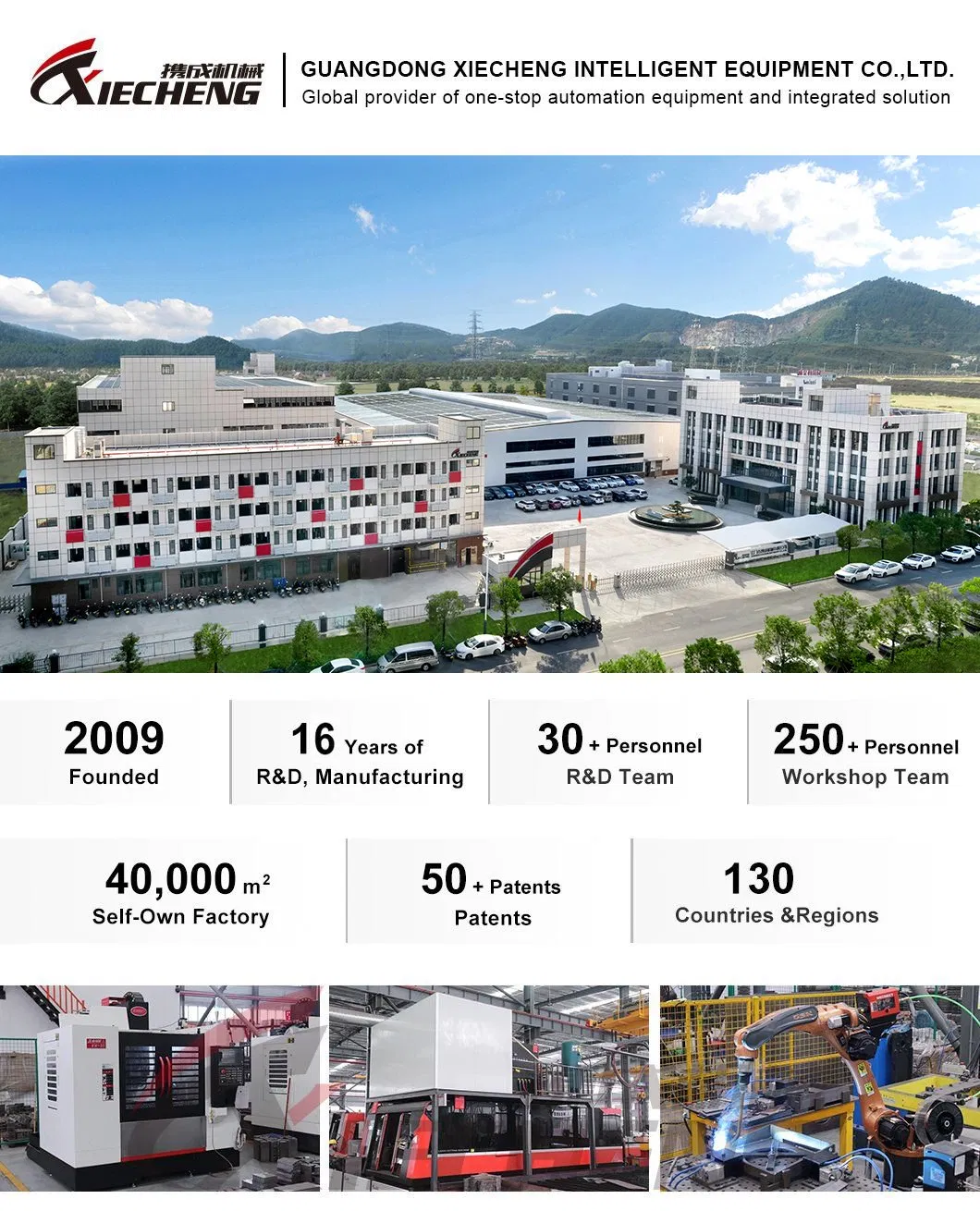

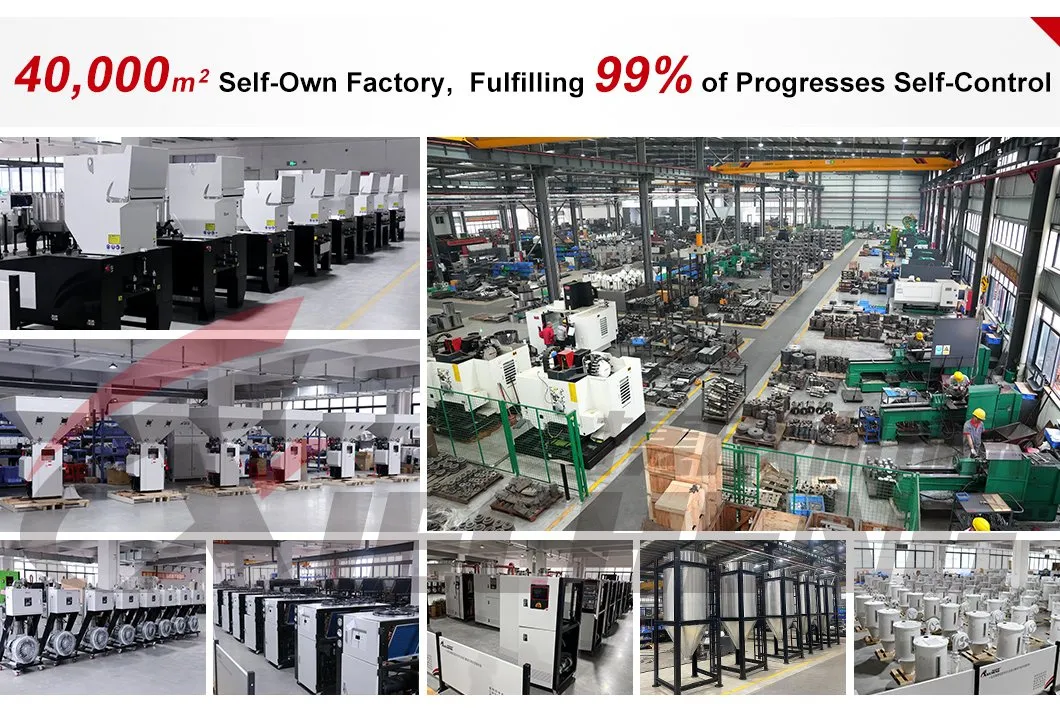

About Us

Frequently Asked Questions

What is the maximum hot water temperature of this heat pump unit?

The unit can reach a hot water outlet temperature of up to 75°C, making it ideal for industrial production processes.

Which refrigerants are compatible with these units?

Our units support R22, R134a, and R407c refrigerants to meet different environmental and performance requirements.

Does the unit come with safety protection features?

Yes, the units include comprehensive safety features such as High and Low Pressure Protection, Overload Protection, Overtemperature Protection, and Phase Sequence Protection.

What kind of compressor is used in the scroll-type unit?

It utilizes a world-renowned fully enclosed scroll compressor, which ensures stable operation, low noise levels, and long-term durability.

Can these heat pump units be monitored remotely?

Yes, the units can be equipped with microcomputer or PLC control systems with optional network capabilities for remote monitoring and after-sales service.

What is the energy efficiency rating of the machine?

Thanks to our high-efficiency evaporators and shell-and-tube heat exchangers, the entire machine achieves a Level 2 Energy Efficiency Rating.
