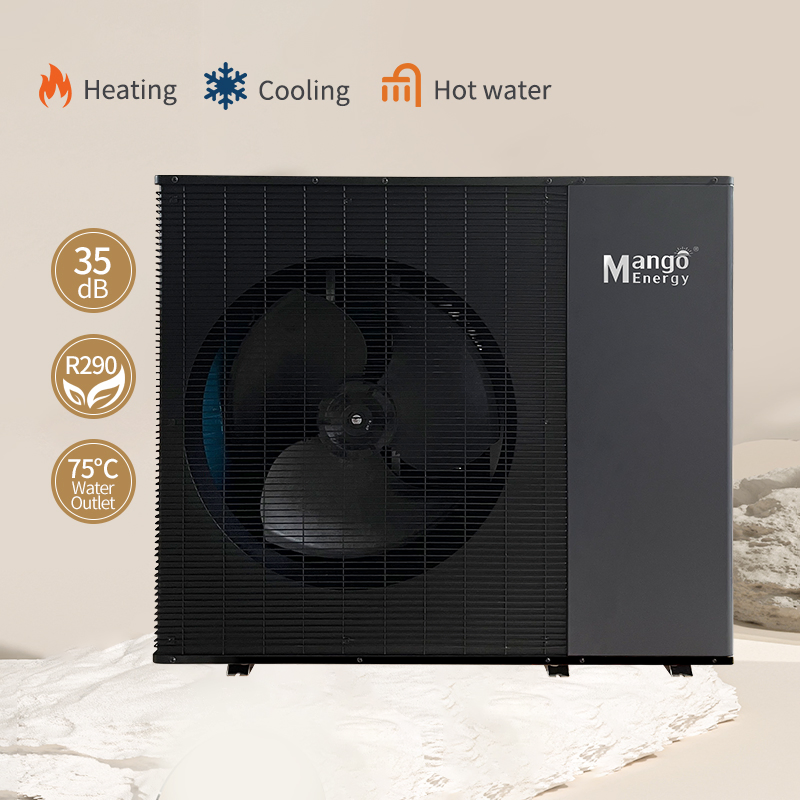

High Temperature R290 Air to Water DC Inverter Heat Pump Water Heater

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	70degree ~ 750degree

Basic Information

Model NO.

MGSDC-080IIC

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source + Water-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments

Certification

CE, TUV, FCC, Erp A+++

Heating Capacity

24kw

Refrigerant

R290

Voltage

220V & 380V

Energy Efficiency

ERP A+++

System

Full Inverter

Warranty

5 years Full Unit

Noise

35dB(a)

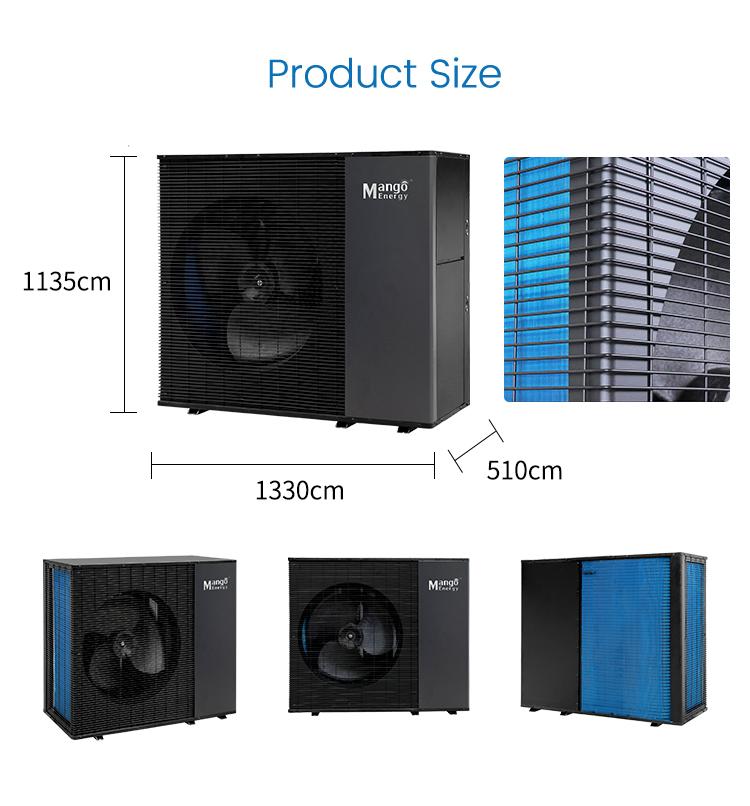

Specification

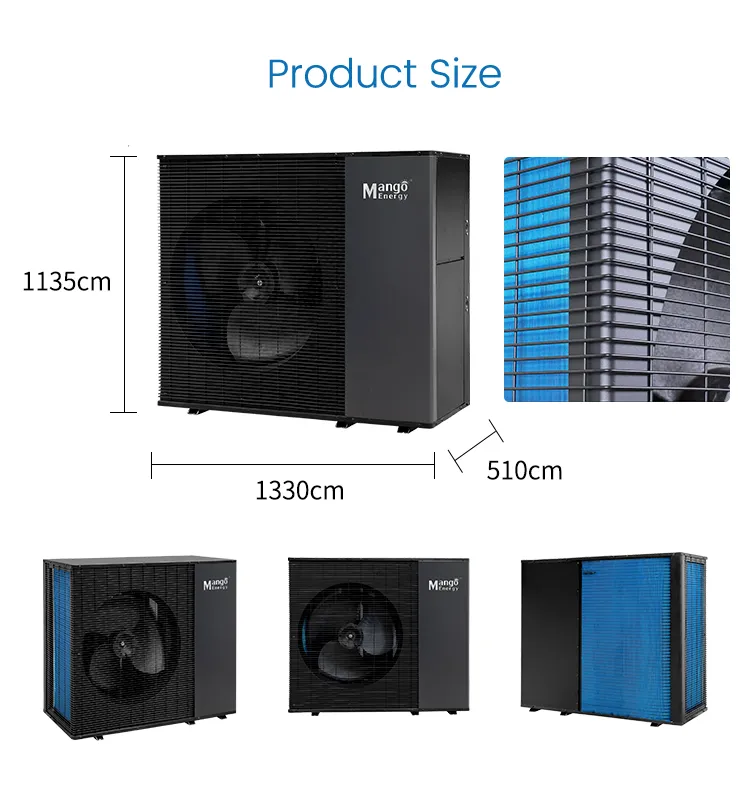

1430*610*1335mm

HS Code

8418612090

Product Description

R290 35dB low noise heat pump 16kw 18kw 20kw Heating Cooling house commercial DC Inverter Air to Water Heat Pump heater

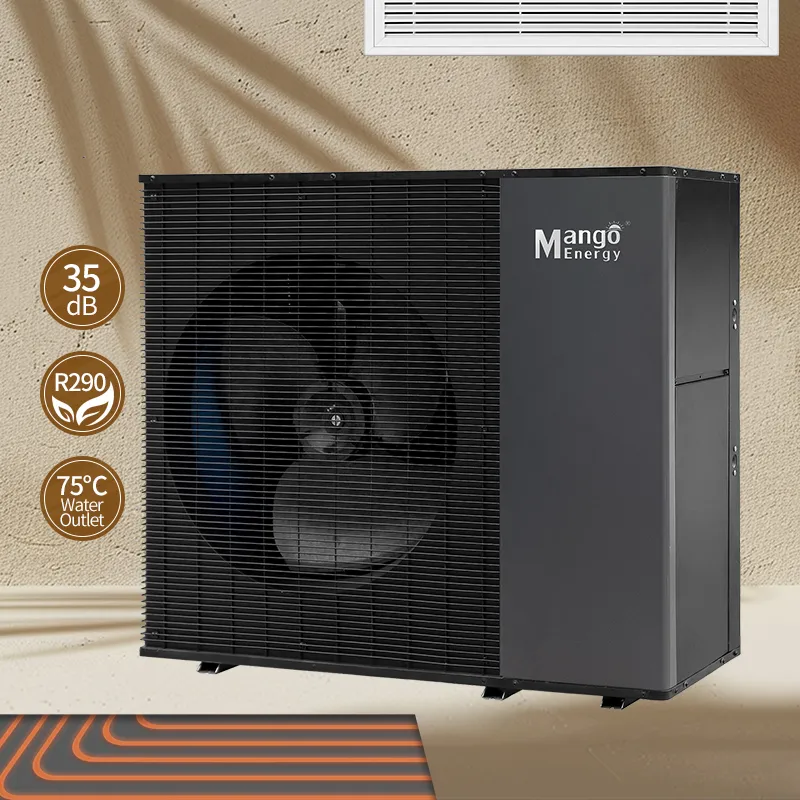

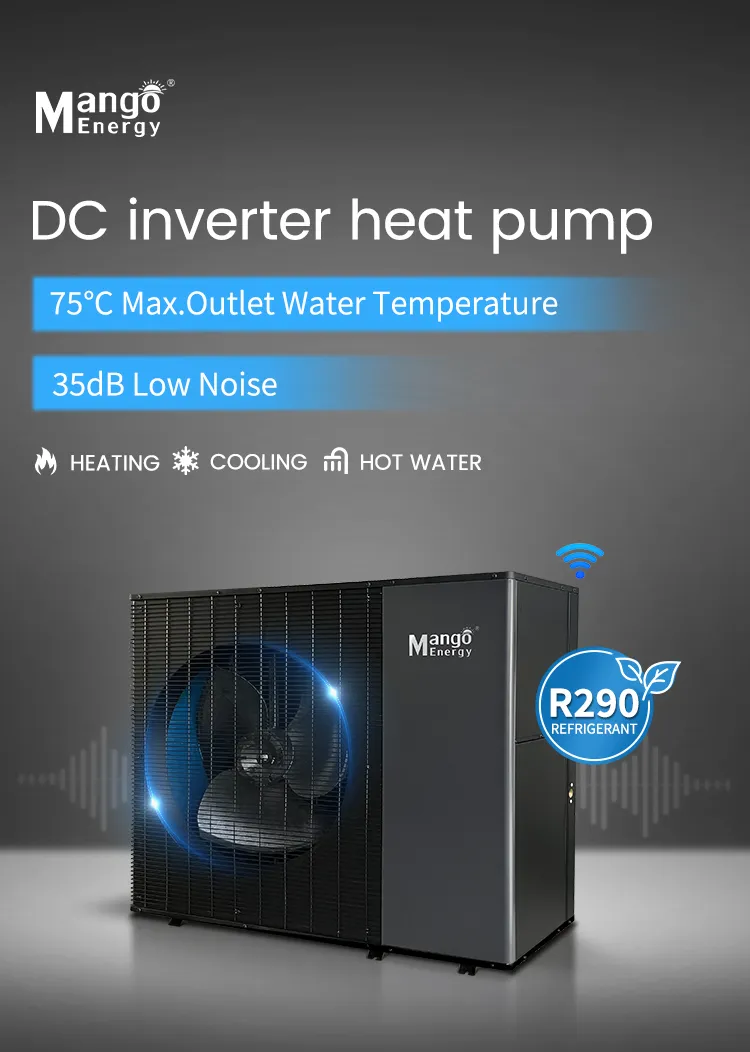

High Temperature R290 Air to Water DC Inverter Heat Pump

Model			MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
Power supply		V/Ph/Hz	220-240/1/50 or 380-415/3/50
Max Heat Capacity		KW	1.8~12.3	4.5~15.2	6.2~19	10~24.4	11~26.5

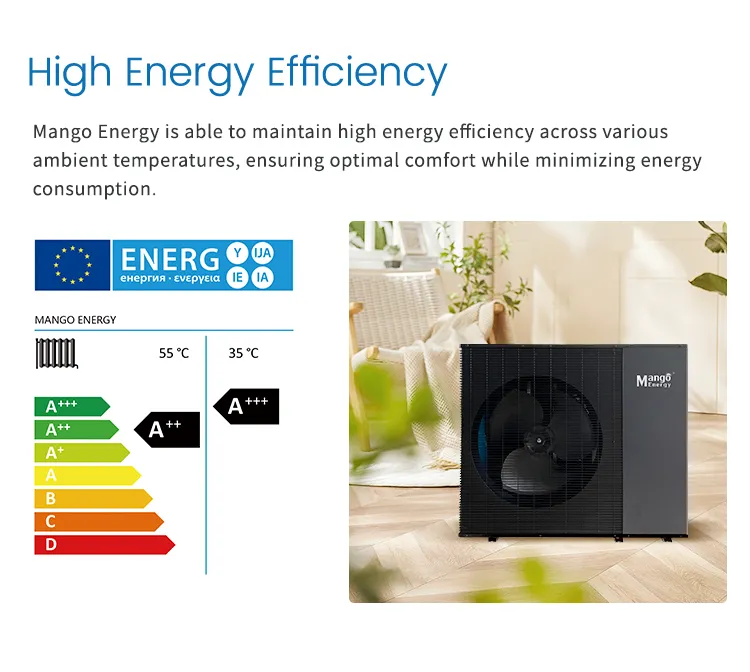

ERP A+++ Energy Efficiency Performance
Heating A7W35	Capacity	W	8000	9500	12100	15500	18200
	COP	-	4.98	4.7	4.7	4.56	4.48
	Sound Level	dB	56	57	58	60	62
Refrigerant Type (GWP)			R290 (3)
Outdoor Temperature Range			Heating: -25 ~ 35°C / Cooling: -5 ~ 46°C / DHW: -25 ~ 46°C
Water Side Connection			DN25

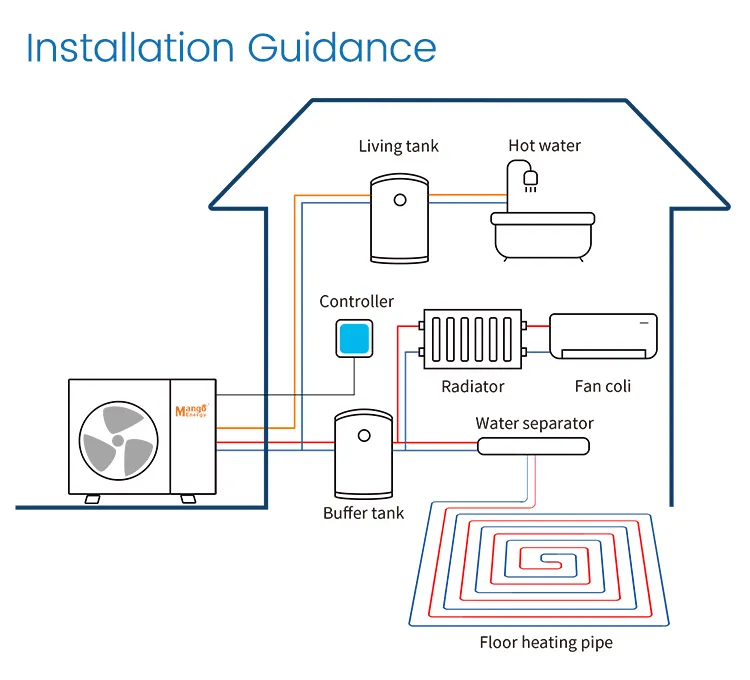

Product Details & Installation

Technical Parameters

Product FAQ

What types of heat pumps are manufactured?

The production line includes ON/OFF heat pumps, DC inverter heat pumps, air source heat pumps, water-to-water heat pumps, swimming pool heat pumps, and high-temperature heat pumps.

What is the daily production capacity?

The facility maintains a daily production capacity of approximately 150 to 255 units per day.

What certifications do the heat pumps hold?

The products hold CE, CB, and EN14511 certificates from TUV Lab. The manufacturing process is ISO9001, ISO18001, and ISO14001 certified, with ERP EN14825 test reports reaching Class A+++ and A++.

Where are these heat pumps currently exported?

Currently, the products are successfully exported to Western Europe, Northern Europe, South Africa, the Middle East, South America, and the Australian market.

What support is offered to business partners?

Partners receive 1%~2% free spare parts based on order quantity, 24-hour online technical service, market protection, and comprehensive product and maintenance training.

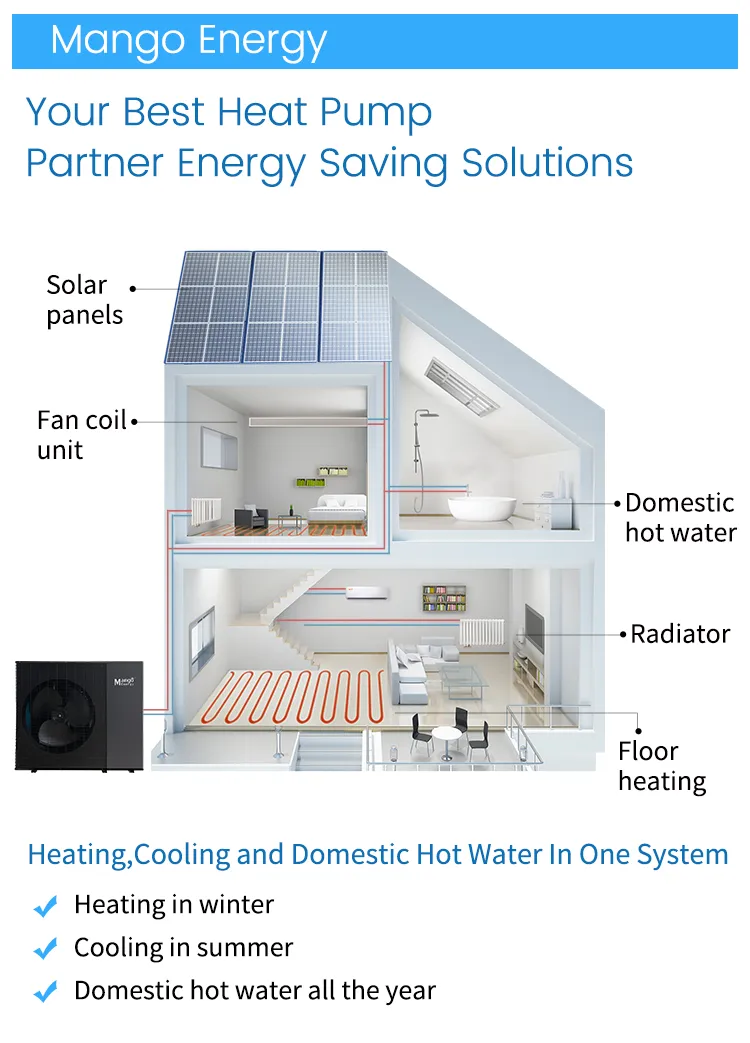

Where are air source heat pumps typically used?

Due to energy savings of around 70%, they are widely used in residential home heating, hotel hot water systems, hospitals, schools, and central heating plants.
