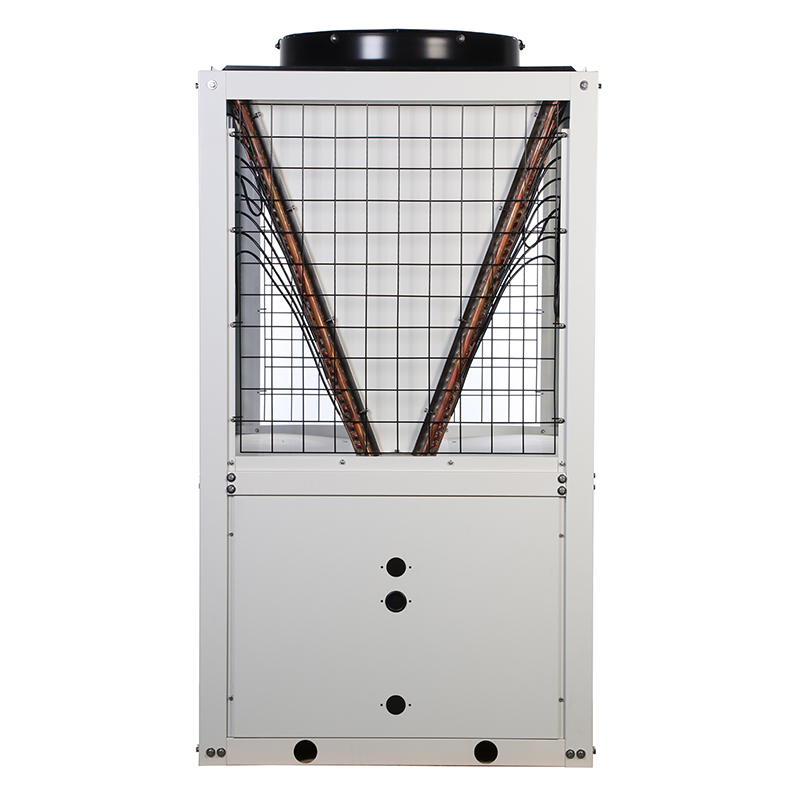

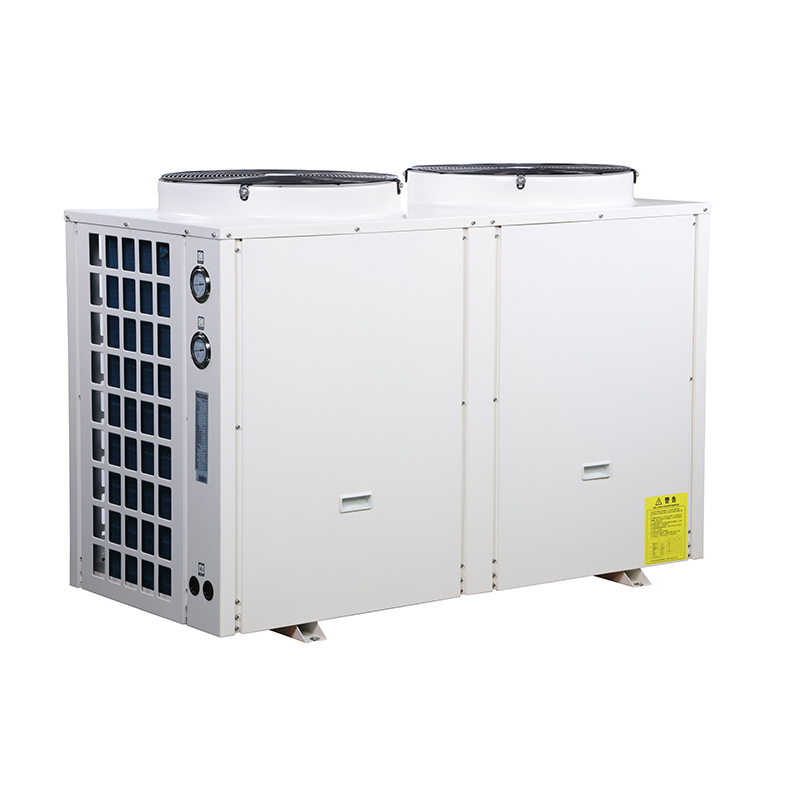

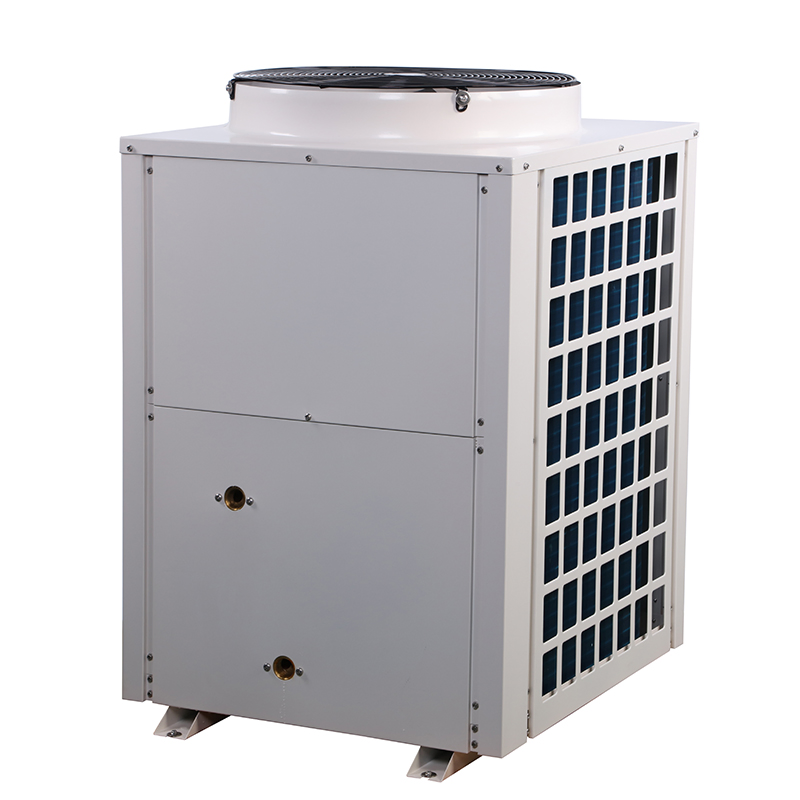

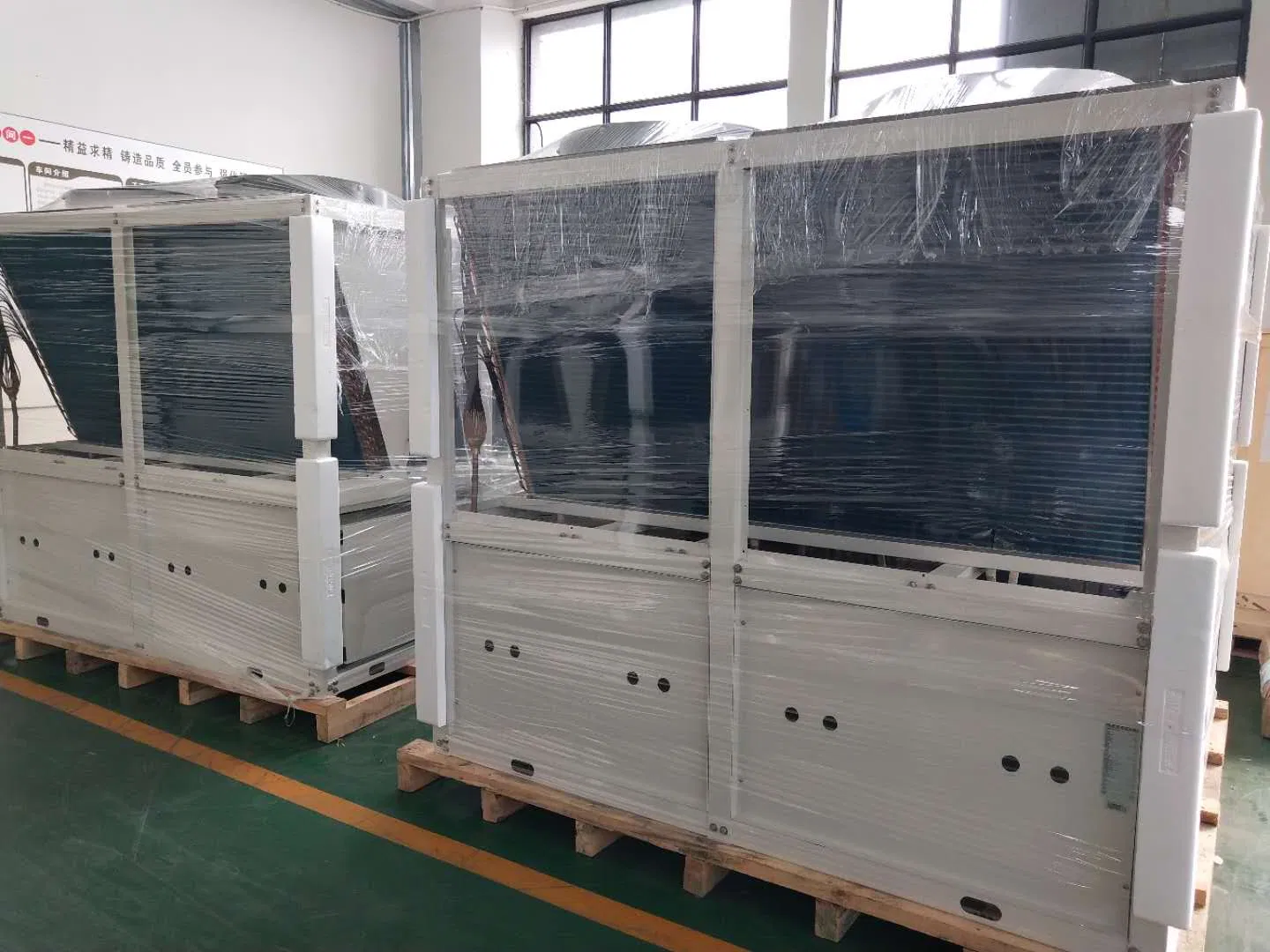

High Temperature Air to Water Heat Pump Water Heater for Middle East

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	80-90°C

ℹ️

Basic Info

Model NO.

HT3P--HT48P

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, SASO, TUV

Compressor

Copeland or Panasonic

Refrigerant

R134A

Heating Capacity

8~130kw

COP

3.65

Rated Hot Water Temp.

75 Celsius Degree

Max. Hot Water Temp.

80 Celsius Degree

📋

Product Features

High-quality Panasonic or Copeland compressor optimized for R134a refrigerant.
Stainless steel 304 fasteners and evaporator side covers for enhanced durability.
Preservative oil coating for copper tubes and critical cabinet components.
Premium "ND" brand shell & tube heat exchanger.
Japanese "Saginomiya" or "Sanhua" electronic expansion valve for precise control.
Equipped with reliable "Sanhua" 4-way valve and "Schneider" AC contactor & Relay.
User-friendly LCD controller for easy operation.
OEM Service available with a standard warranty of 24 months after delivery.

🖼️

Facility & Project Gallery

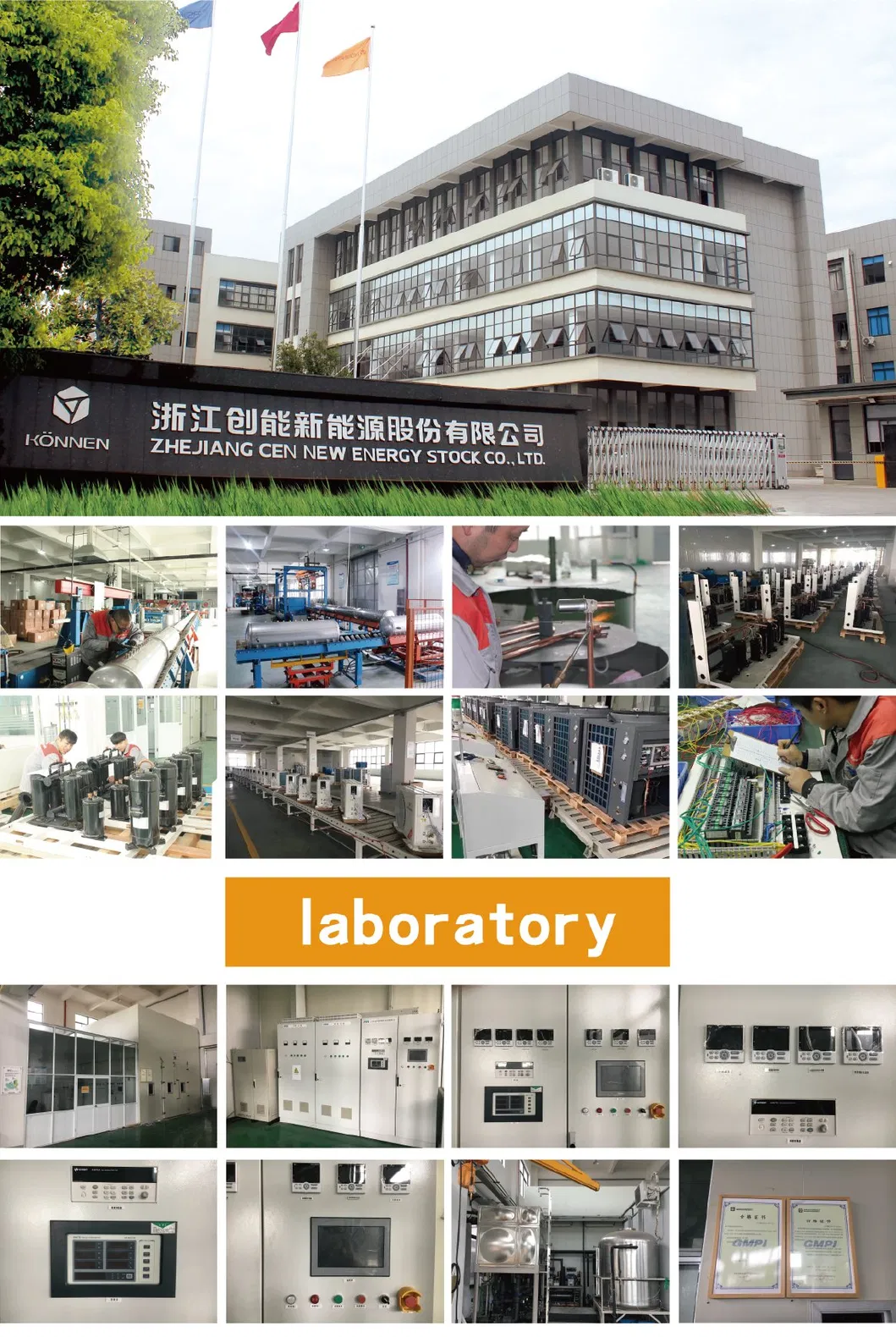

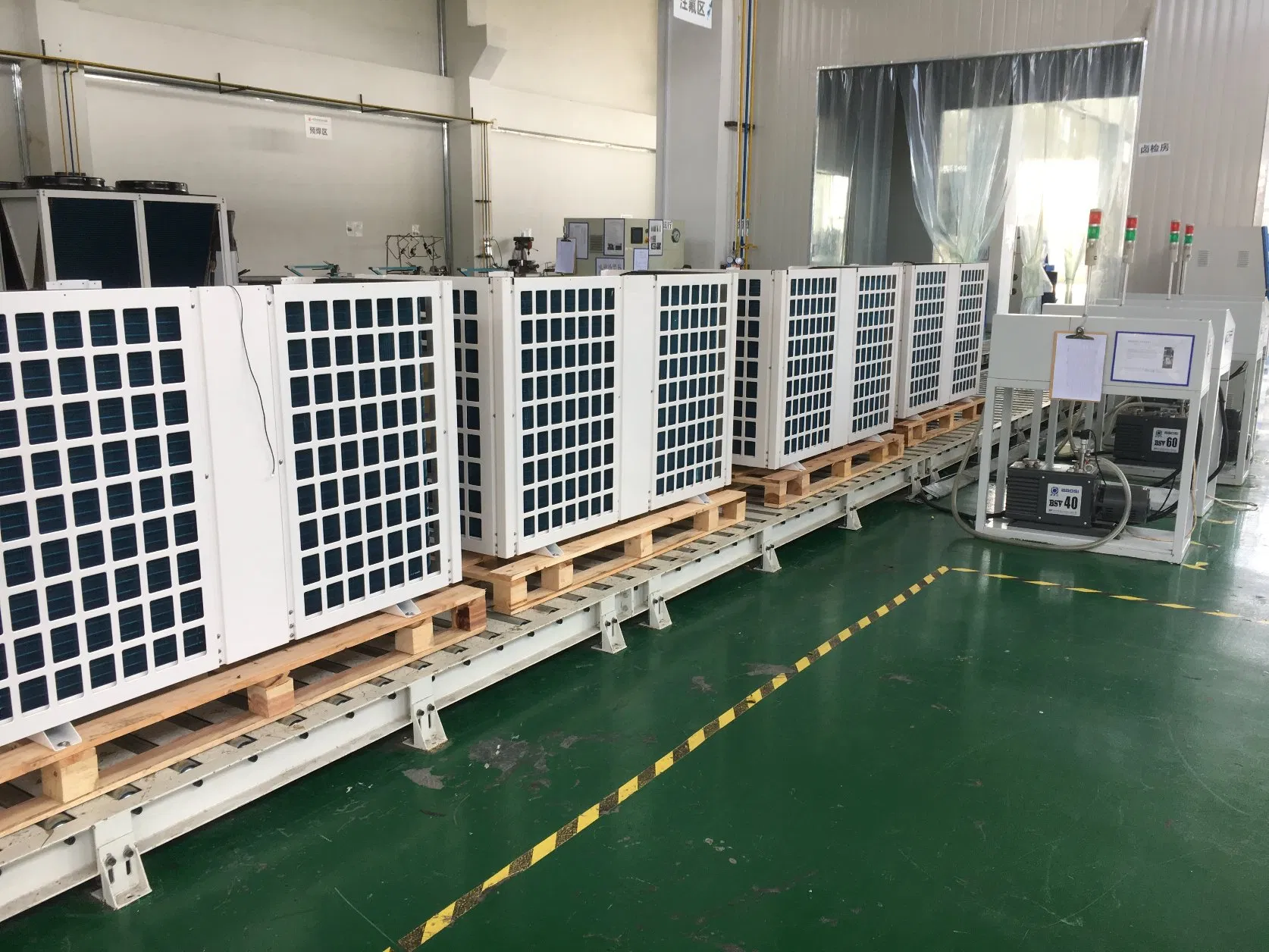

PRODUCTION FACILITY (HEAT PUMP + WATER TANK + CONTROLLER): High Temperature Air to Water Heat Pump Water Heater

CORE ADVANTAGES: Why Choose Our Heat Pump

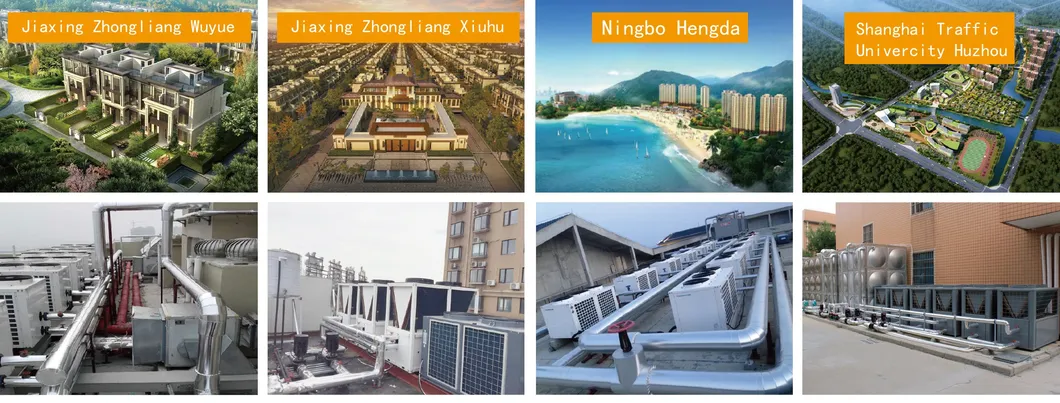

RECENT PROJECTS: High Temperature Project Reference

GLOBAL PARTNER BRANDS: World Famous Brands Cooperation

LOADING & LOGISTICS: Heat Pumps Loading

📊

Technical Parameters

Model Designation			HT3P-T3	HT5P-T5	HT7P-T5	HT10P-C24	HT14P-C24	HT20P-C48	HT24P-C48	HT30P-C48	HT48P-C96
Rated heating capacity		kW	8	13.5	18	26	35	55	65	80	130
Rated input power		kW	2.19	3.66	4.96	7.11	9.62	14.91	17.81	21.98	35.81
COP		/	3.65	3.69	3.63	3.65	3.64	3.69	3.65	3.64	3.63
Rated Water Temp		ºC	75
Max Water Temp		ºC	80
Produce Capacity	△t40	L/H	172.0	290.3	387.0	559.0	752.5	1182.5	1397.5	1720.0	2795.0
Produce Capacity	△t60	L/H	114.7	193.5	258.0	372.7	501.7	788.3	931.7	1146.7	1863.3
Refrigerant		Type	R134a
Noise		DB(A)	≤55	≤63	≤65	≤65	≤68	≤70	≤72	≤73	≤78
Net Weight		kg	100	170	190	310	410	605	650	835	1250

❓

Frequently Asked Questions

What is the maximum hot water temperature this system can provide? The system is designed to provide a rated hot water output temperature of 75°C, with a maximum capability of reaching up to 80°C.

Which brands of compressors are used in these heat pumps? We utilize high-performance, fully closed scroll compressors from world-renowned brands like Copeland or Panasonic.

What safety protections are built into the unit? The units include high/low pressure protection, anti-freezing protection, high-temperature protection, water temperature difference protection, overload protection, and phase sequence protection.

Is the unit suitable for outdoor commercial use? Yes, with a stainless steel 304 cabinet and preservative-treated components, it is ideal for hotels, hospitals, and industrial applications.

What is the warranty period for these heat pumps? The product comes with a standard warranty period of 24 months following delivery.

What type of refrigerant is used? These high-temperature heat pumps primarily use R134a refrigerant, which is efficient for high-temp water production.
