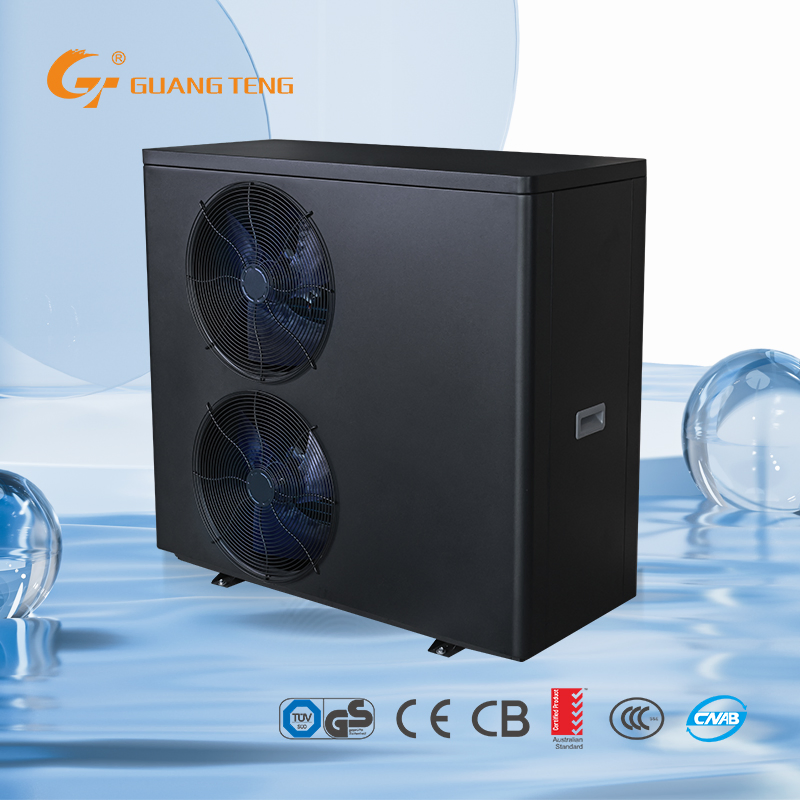

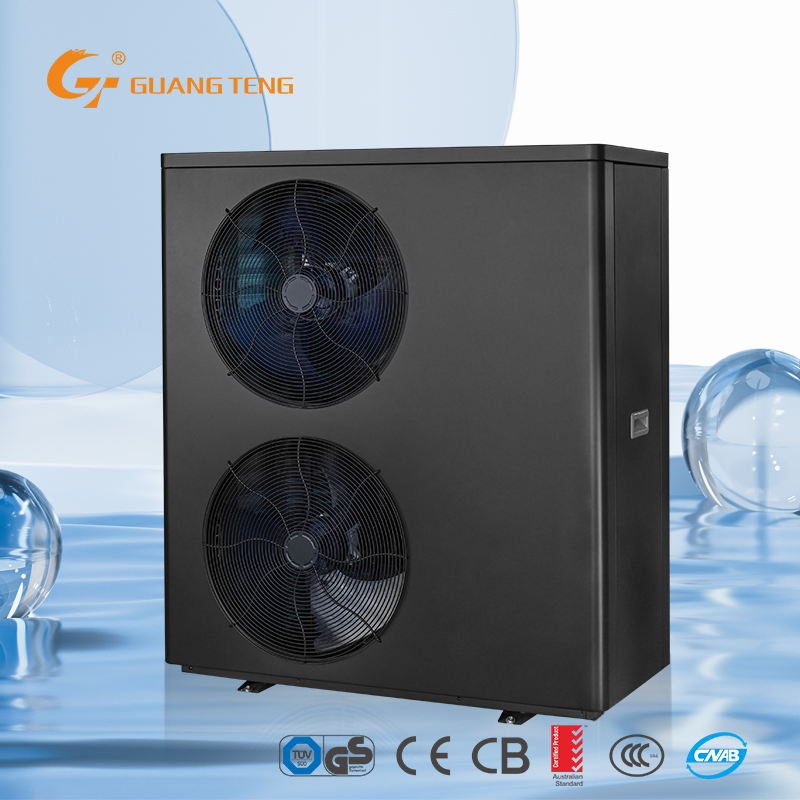

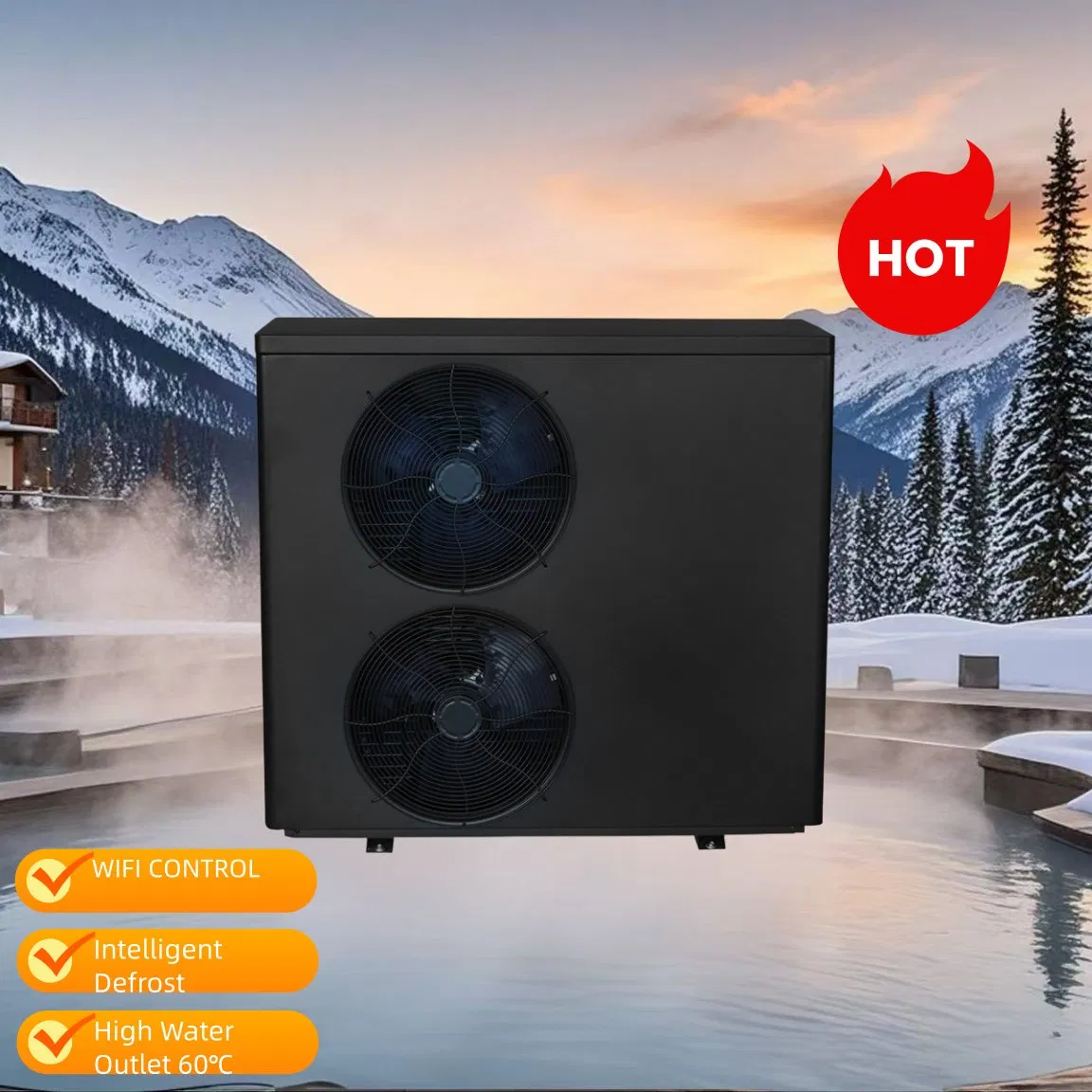

High Efficiency Air Source R32 Eco-Friendly Refrigerant Air to Water Heat Pump DC Inverter Technology for Low Temperature Operation

1 / 5

High Efficiency Air Source R32 Eco-Friendly Refrigerant Air to Water Heat Pump DC Inverter Technology for Low Temperature Operation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

GT-SKR040KBDC-M32

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB

Power Supply

220-240V/1pH/50Hz

Heating Capacity

12.8kw

Refrigerant

R32

Max Heating Temp

60ºC

Compressor

DC Inverter

WiFi Module

Yes

Packaging & Delivery

Package Size

122.00cm * 58.00cm * 115.00cm

Package Gross Weight

130.000kg

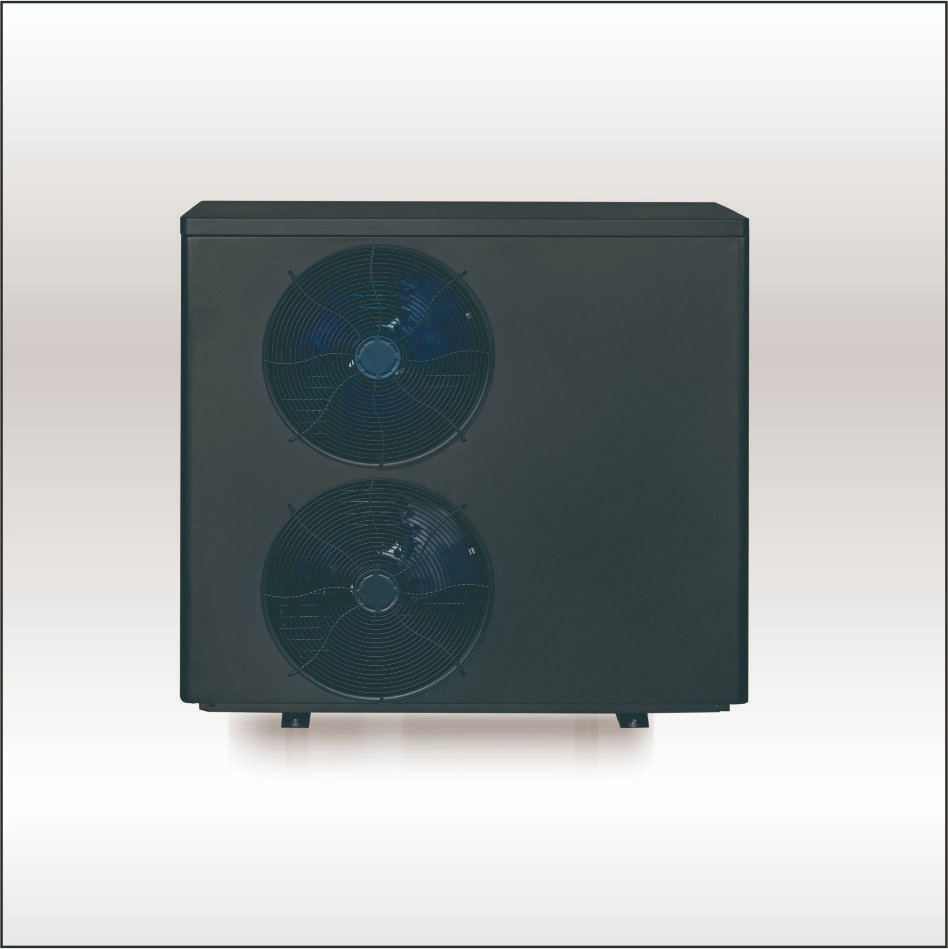

Product Showcase

Product Parameters

Model	Unit	GT-SKR020KBDC-M32	GT-SKR030KBDC-M32	GT-SKR040KBDC-M32	GT-SKR050KBDC-M32
Heating at A7/W35
Heating capacity	KW	6.80 (3.36-7.93)	9.00 (4.50-10.66)	12.80 (6.05-14.30)	17.00 (8.60-20.30)
Power input	KW	1.62 (0.82-1.91)	2.05 (1.07-2.50)	2.97 (1.51-3.52)	3.86 (1.91-4.45)
COP	W/W	4.20	4.40	4.30	4.40
Cooling at A35/W7
Cooling capacity	KW	5.00	6.50	10.20	12.90
EER	W/W	2.80	2.85	2.80	2.90
Net weight	kg	57	72	102	122

Test condition:
1. A7/W35: outdoor air temperature 7ºC DB/6ºC WB, water inlet/outlet temperature 30ºC/35ºC
2. A2/W35: outdoor air temperature 2ºC DB/1ºC WB, water inlet/outlet temperature 30ºC/35ºC
3. A35/W7: outdoor air temperature 35ºC, water inlet/outlet temperature 12ºC/7ºC

Product Description

How does an air-to-water heat pump work?

A heat pump takes energy from the outside air, even at very low temperatures, and transfers it into heat that is then circulated around a heating and hot water circuit. A heat pump uses electricity to power a compressor that boosts the temperature of the water so that is hot enough to warm your home through under-floor heating or radiators as well as fulfill your hot water needs.

Main benefits of heating with heat pumps

Heat pumps extract up to 70% of their energy freely from the air meaning they only use a fraction of the electricity other systems use.
Heat pumps are up to 500% efficient, compared to a traditional boiler that is 92% efficient, reducing energy bills significantly.
Heat pumps are a renewable energy source, ideal for reducing carbon footprints.
Ideal for off-gas areas, offering considerable running cost savings against oil boilers.
Zero fossil fuels used locally, ensuring local air quality is not affected.
Maintenance is simple and low-cost.

Coverage & Capacity

Heat pumps are designed to cover the full thermal requirements of your home. This ensures that even in the coldest winters, the system maintains occupant comfort. These units can continue to provide full capacity at temperatures as low as -20ºC.

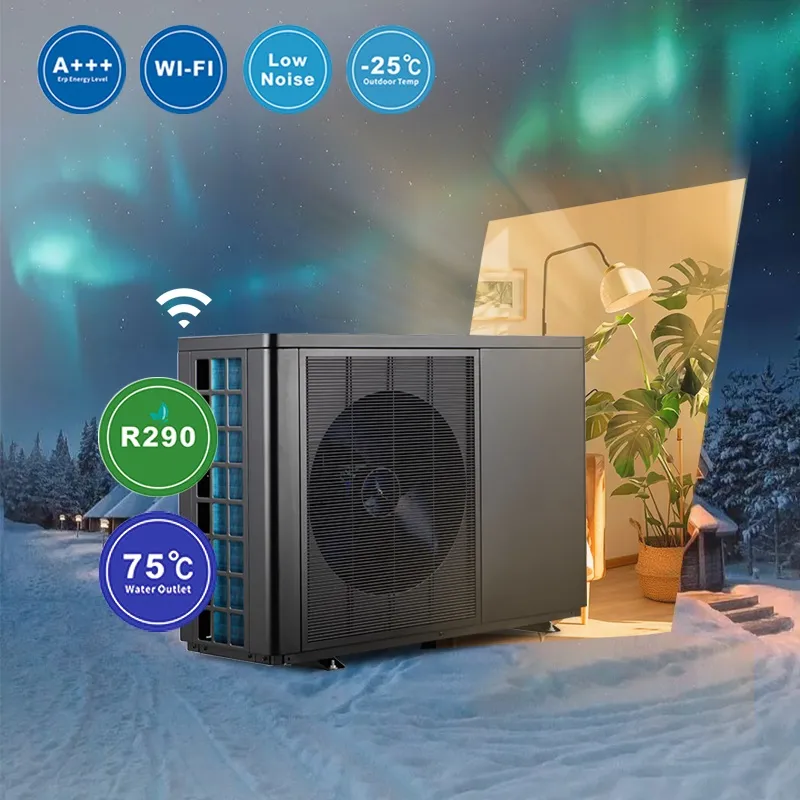

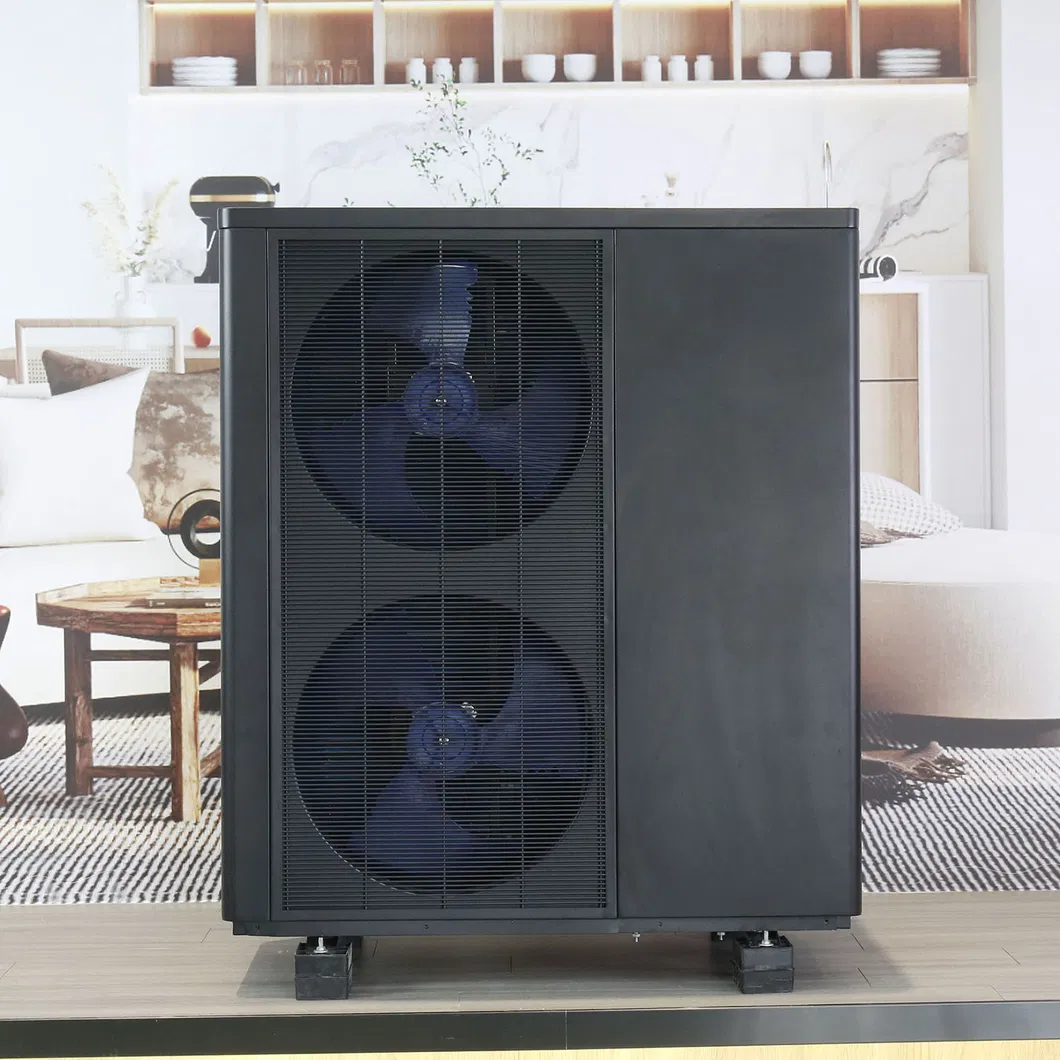

Hot Sale Models

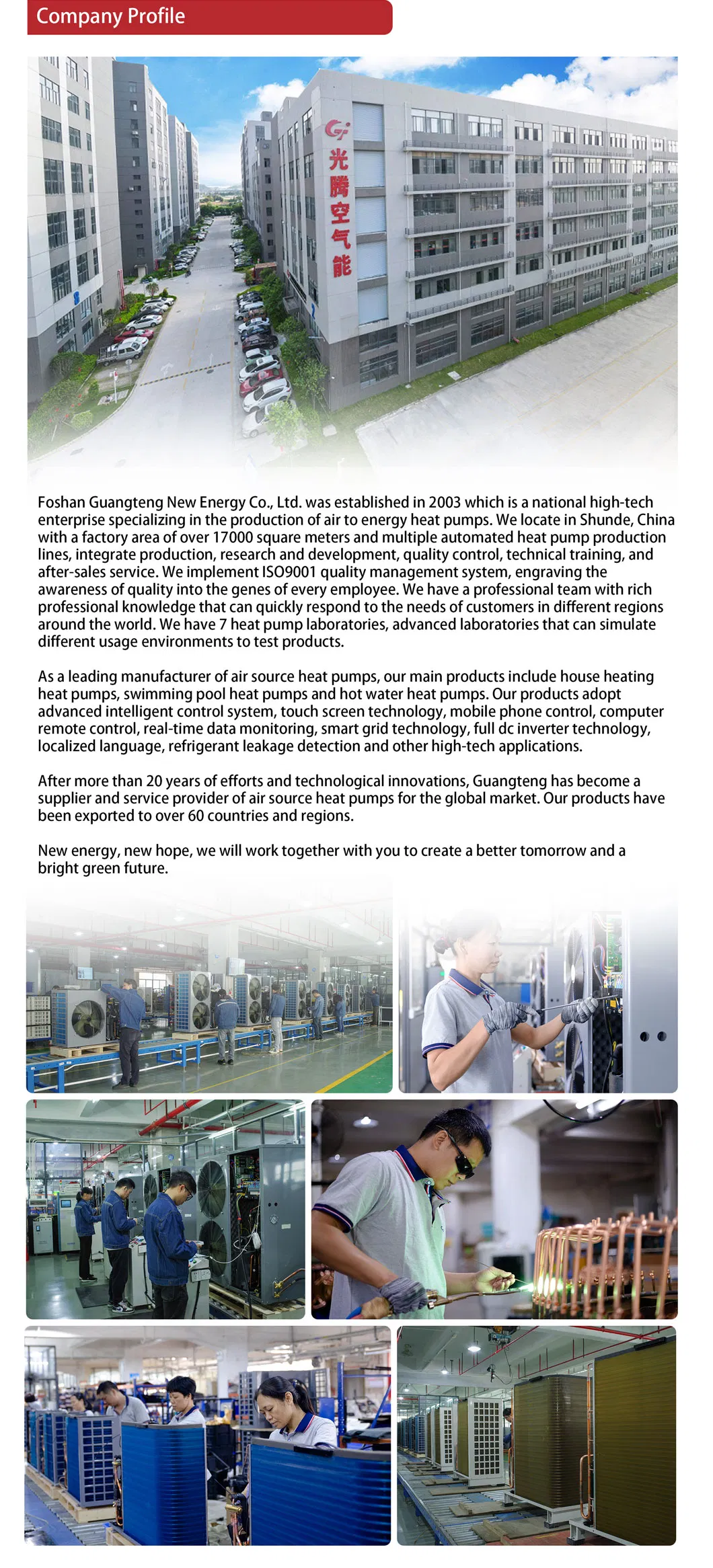

Manufacturing Excellence

Frequently Asked Questions

What can you buy from us?

House heating/cooling heat pump, swimming pool heat pump, domestic hot water heat pump, commercial heat pump, etc.

How about your delivery time?

Generally, it will be within 35 natural days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

What are your terms of packing?

Generally, we pack the heat pump in cartons or plywood cases. If you have a legally registered patent, we can pack in your branded boxes after authorization.

What is your sample policy?

We accept sample orders, but the customers have to pay the sample cost and the courier cost.

Do you test all your goods before delivery?

Yes, we have a 100% test before we pack the goods for delivery to ensure quality.

How long is the guaranteed time?

3-year warranty on the whole unit. Spare parts must be non-humanly damaged; we usually provide 1.5% free spare parts for maintenance with container orders.
