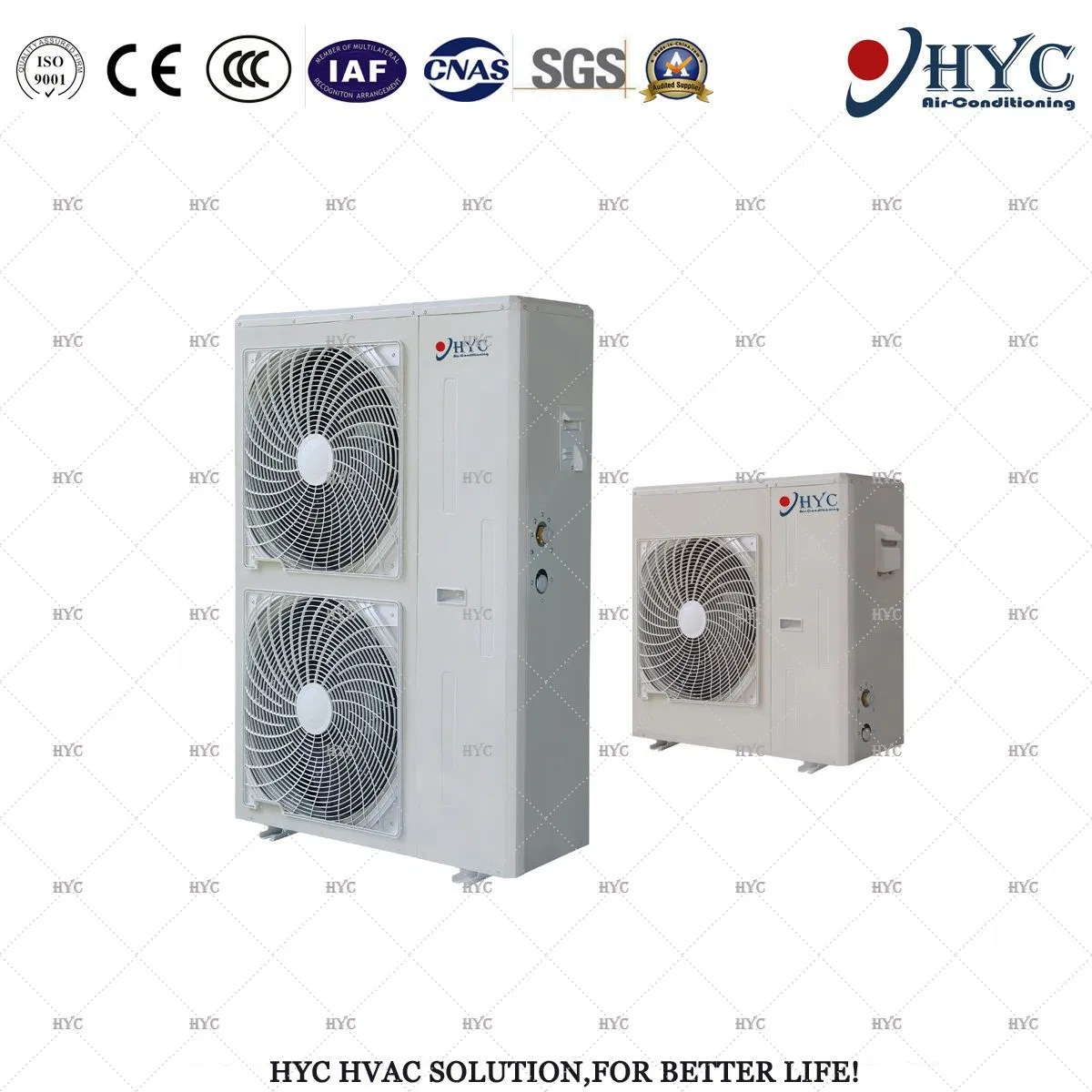

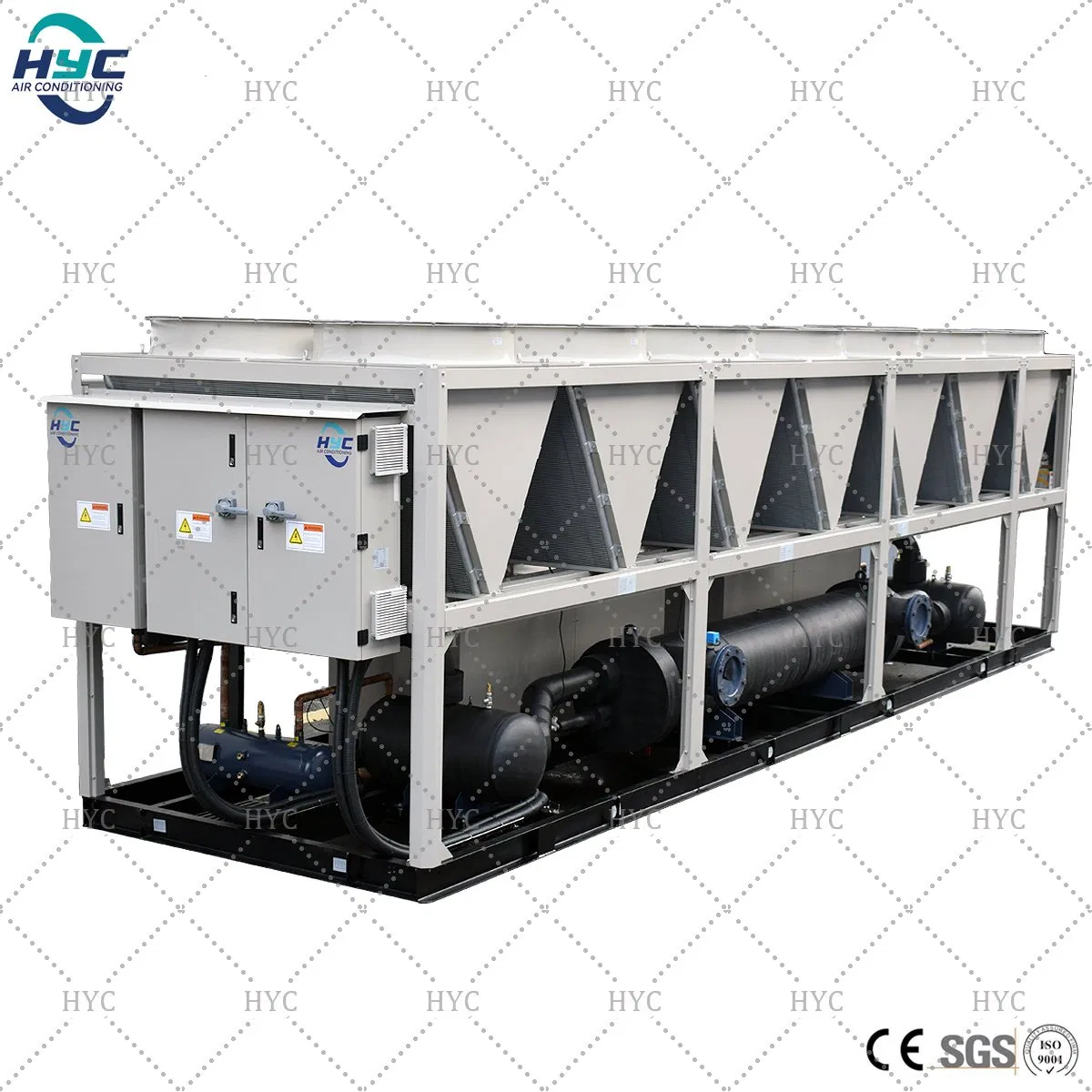

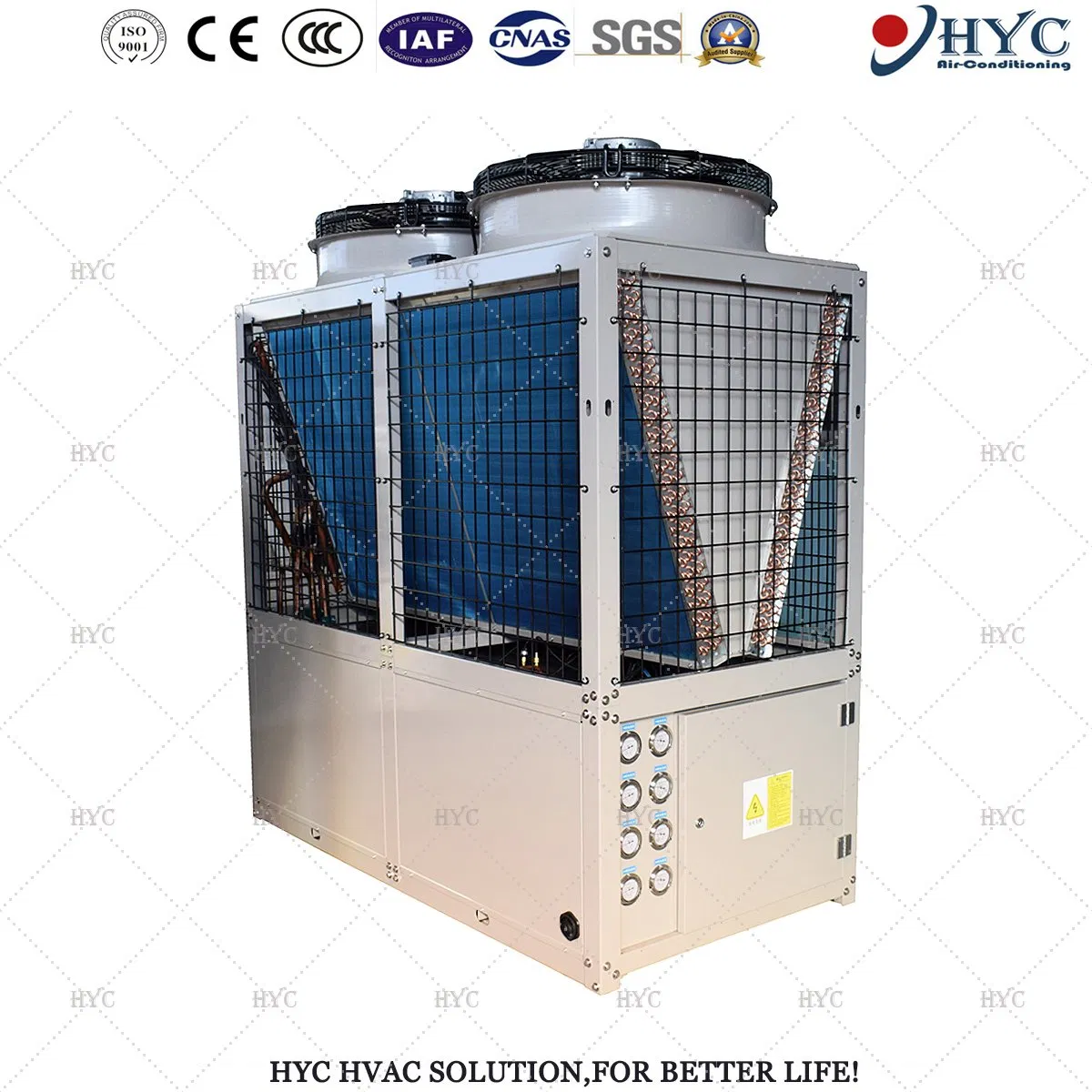

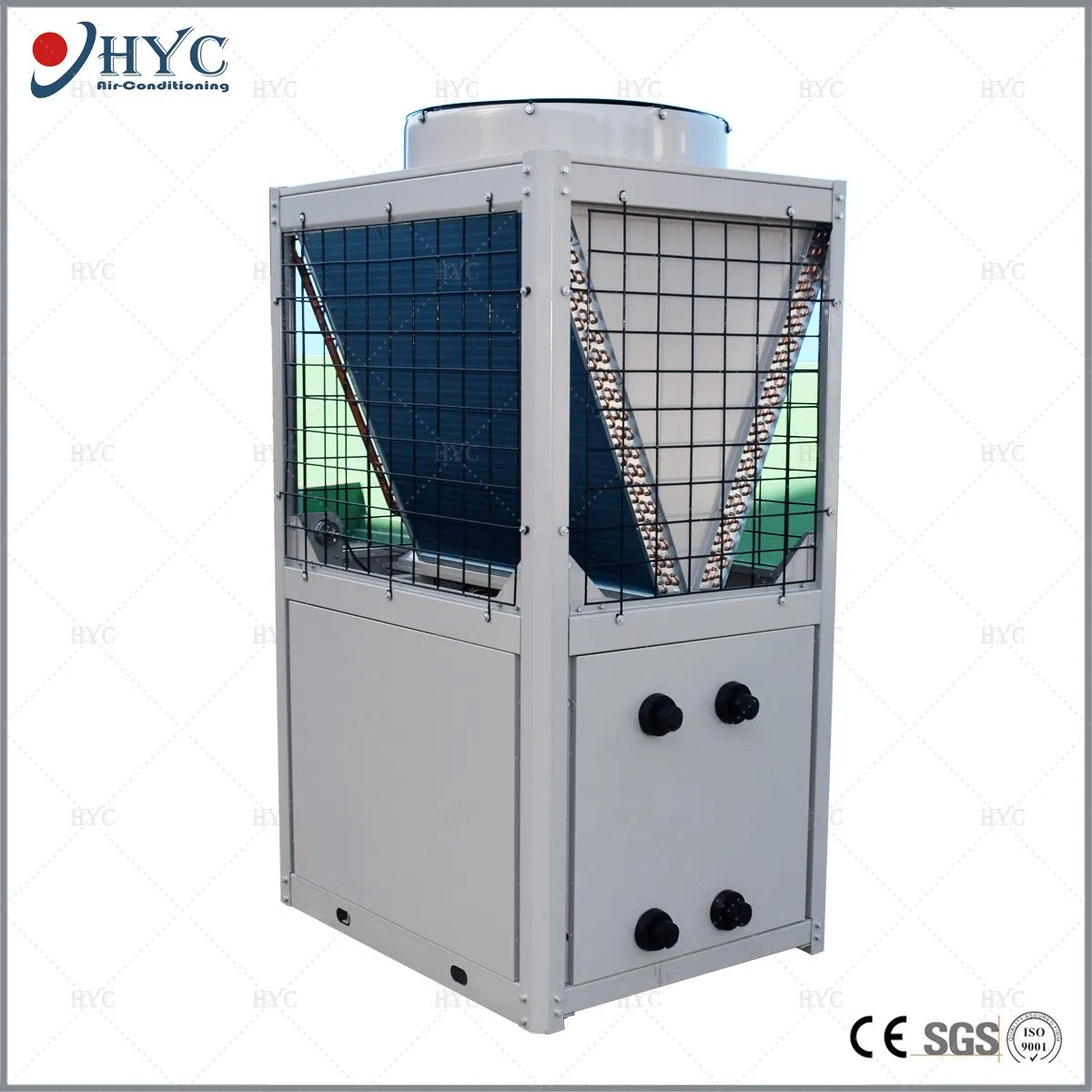

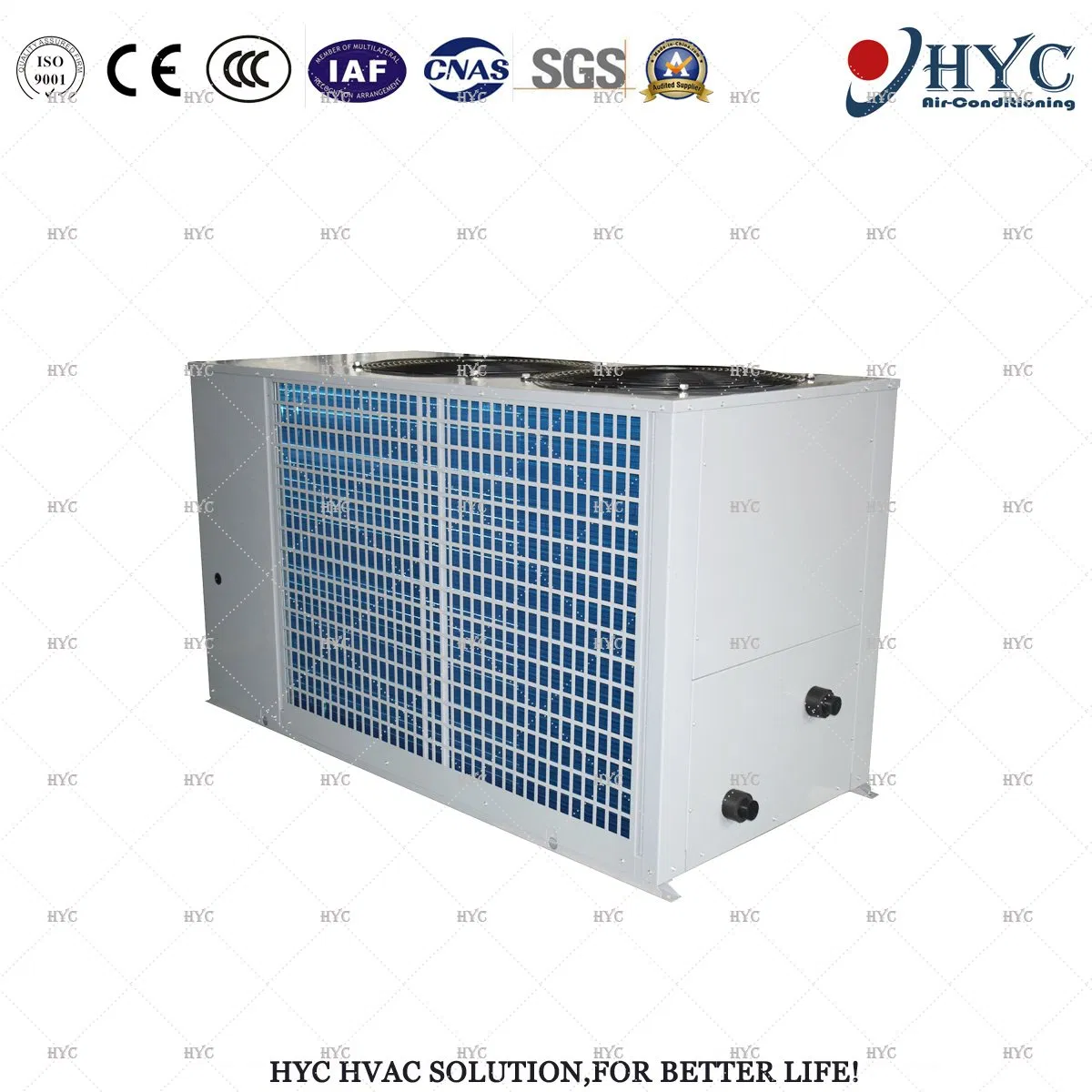

Our heat pump unit delivers year-round comfort with exceptional efficiency. Designed to provide a complete heating and cooling solution for any building, it effectively removes humidity to keep you cool in summer and draws heat indoors to keep you warm in winter.

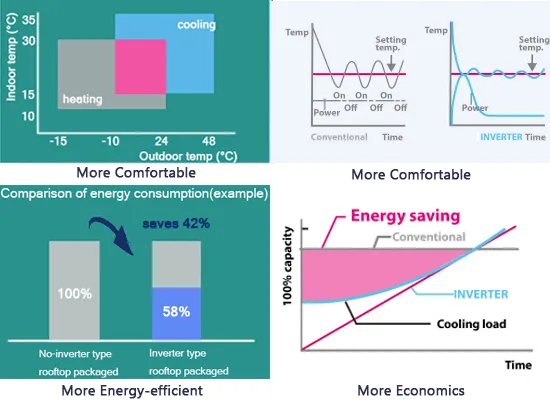

DC Inverter technology utilizes a variable speed compressor. Unlike fixed-speed compressors that run at 100% and stop/start frequently, the inverter compressor adjusts its speed to maintain a consistent temperature. This accuracy provides constant comfort and significantly reduces energy wastage.
Capacity Range: 2.5 Ton to 640 Ton
Performance Range: Cooling: -5~50ºC | Heating: -25~24ºC
Supplied as a complete package ready for operation. Single power point entry and simple connections ensure quick start-up.

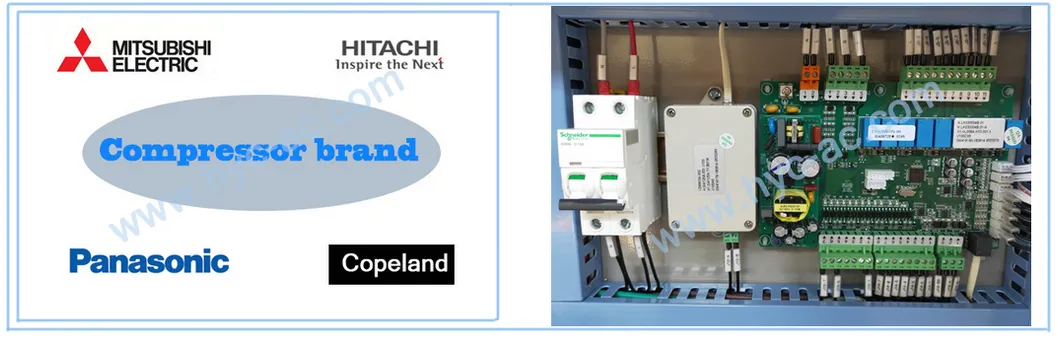

Equipped with DC inverter compressors and world-renowned brand cooling parts for reliable performance.
Galvanized steel panels with polyester powder painting for total resistance to atmospheric agents.
| Model | 8 | 10 | 12 | 14 | 20 | 30 | 40 | 50 |
|---|---|---|---|---|---|---|---|---|
| Cooling Capacity (kW) | 8 | 10 | 12 | 14 | 20 | 28 | 40 | 50 |
| Heating Capacity (kW) | 10 | 12.5 | 14.7 | 16 | 22 | 30 | 44 | 55 |
| Power Supply | 220-240V/1Ph/50Hz | 380-415V/3Ph/50Hz | ||||||
| Net Weight (kg) | 150 | 155 | 150 | 180 | 282 | 339 | 470 | 520 |
| High Capacity Model | 20 | 30 | 40 |
|---|---|---|---|
| Cooling Capacity (kW) | 65 | 97.5 | 130 |
| Heating Capacity (kW) | 68 | 103 | 141 |
| Compressor Qty | 2 | 3 | 4 |
| Water Flow (m3/h) | 11.2 | 16.8 | 22.4 |
