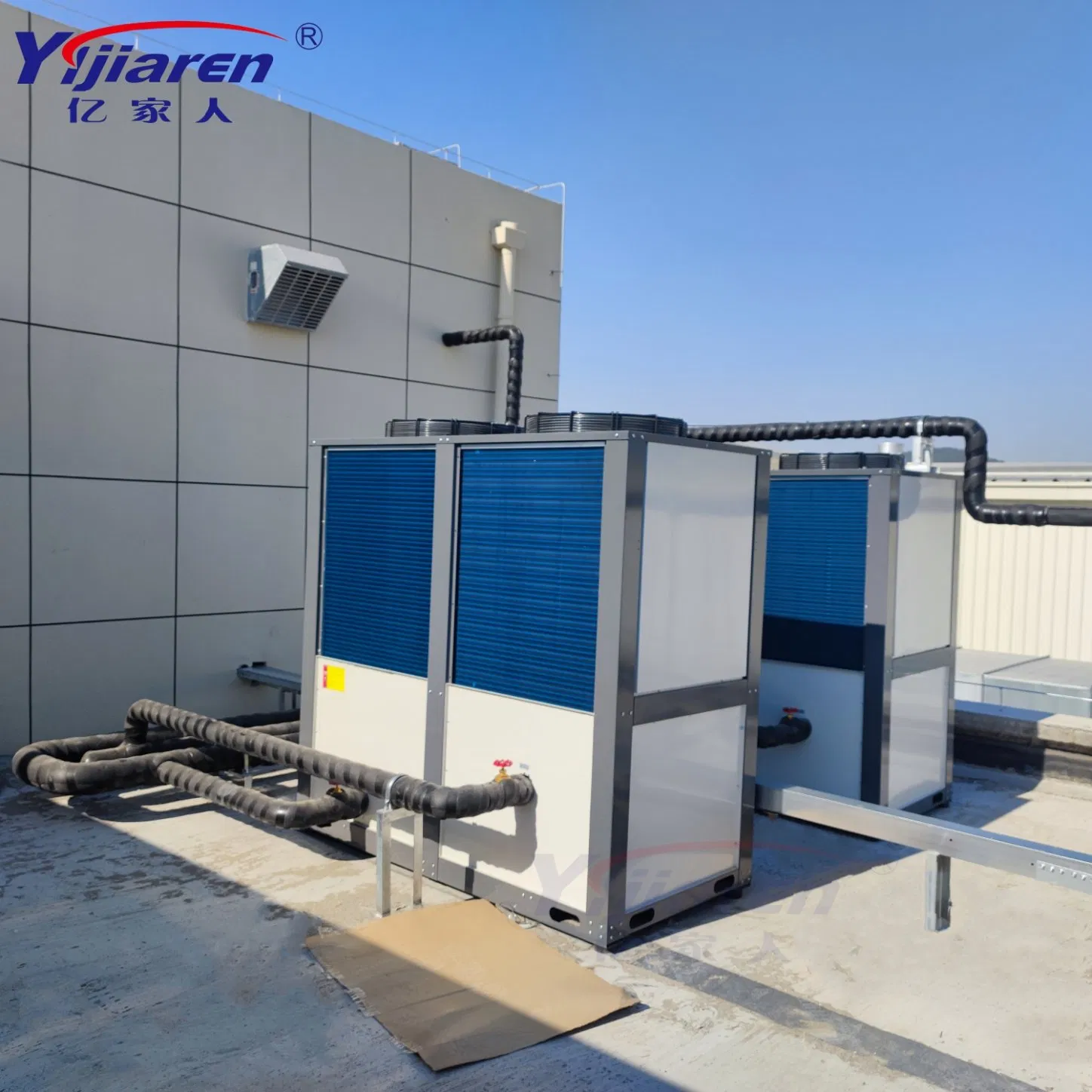

Energy Efficient R290/R410A/R32 Heat Pump for Eco-Friendly Homes

1 / 5

Energy Efficient R290/R410A/R32 Heat Pump for Eco-Friendly Homes

Customization:	Available
Certification:	RoHS, CCC, ISO9001
Working Medium:	R410A/R32/R290

Send Inquiry

Product Description

📊 Basic Info.

Heat Source TypeAir Source Heat Pump

Item NameAir Source Heat Pump

ModelYjr-C-5HP to 30HP

Power3n/380V-50Hz

Water Temp Setting55 Degree (40~60 Adjustable)

Customized DesignAvailable

Package Size171cm * 91cm * 178cm

Gross Weight450.000kg

💡 Product Description

Multiple-Power Energy Saving R290/R410A/R32 Refrigerant Air Source Heat Pump

Model	Heating Capacity (kw)	Water Production (L/h)	Rated Power (kw)	COP	Dimensions (mm)
YJR-C-05HP	22	472	4.58	4.8	8509001100
YJR-C-10HP	40	856	8.85	4.52	9859651960
YJR-C-15HP	60	1289	13.64	4.39	9859651960
YJR-C-20HP	80	1715	18.2	4.4	19609651960
YJR-C-30HP	116	2494	27.6	4.21	19609651960

🌍 Eco-Friendly Refrigerants

Global Warming Potential (GWP) and Ozone Depletion Potential (ODP) are key factors. We offer multiple refrigerant options including R410A, R290, R32, and R134A to meet specific efficiency and environmental needs.

✅ Core Advantages

⚙️ Intelligent Control

Smart water routing system maintaining 7-60 degrees Celsius efficiently.

🔋 High Efficiency

Optimized condensation temperature and low-load compressor operation for longer life.

💧 Energy Saving

Utilizes tap water pressure directly; circulating pumps only run when needed.

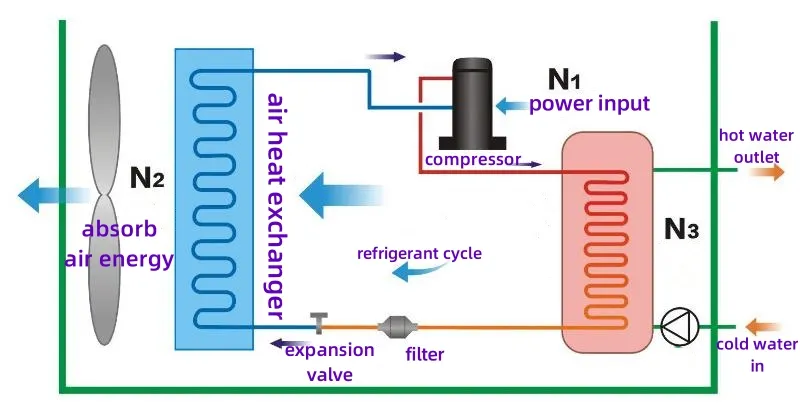

🛠️ Working Principle & Configuration

1. Scroll Compressor: High energy efficiency ZW series scroll technology for reliable performance.

2. Multi-flow Evaporator: Internally threaded copper casing with hydrophilic aluminum foil to prevent frosting.

3. Copper Heat Exchanger: Coaxial spiral design for turbulent heat exchange and scale prevention.

4. Electronic Expansion Valve: Precision throttling for stable operation even in cold winter conditions.

5. Silent Fan: Three-dimensional turbine design that adjusts speed based on ambient temperature.

🏢 Application Scope

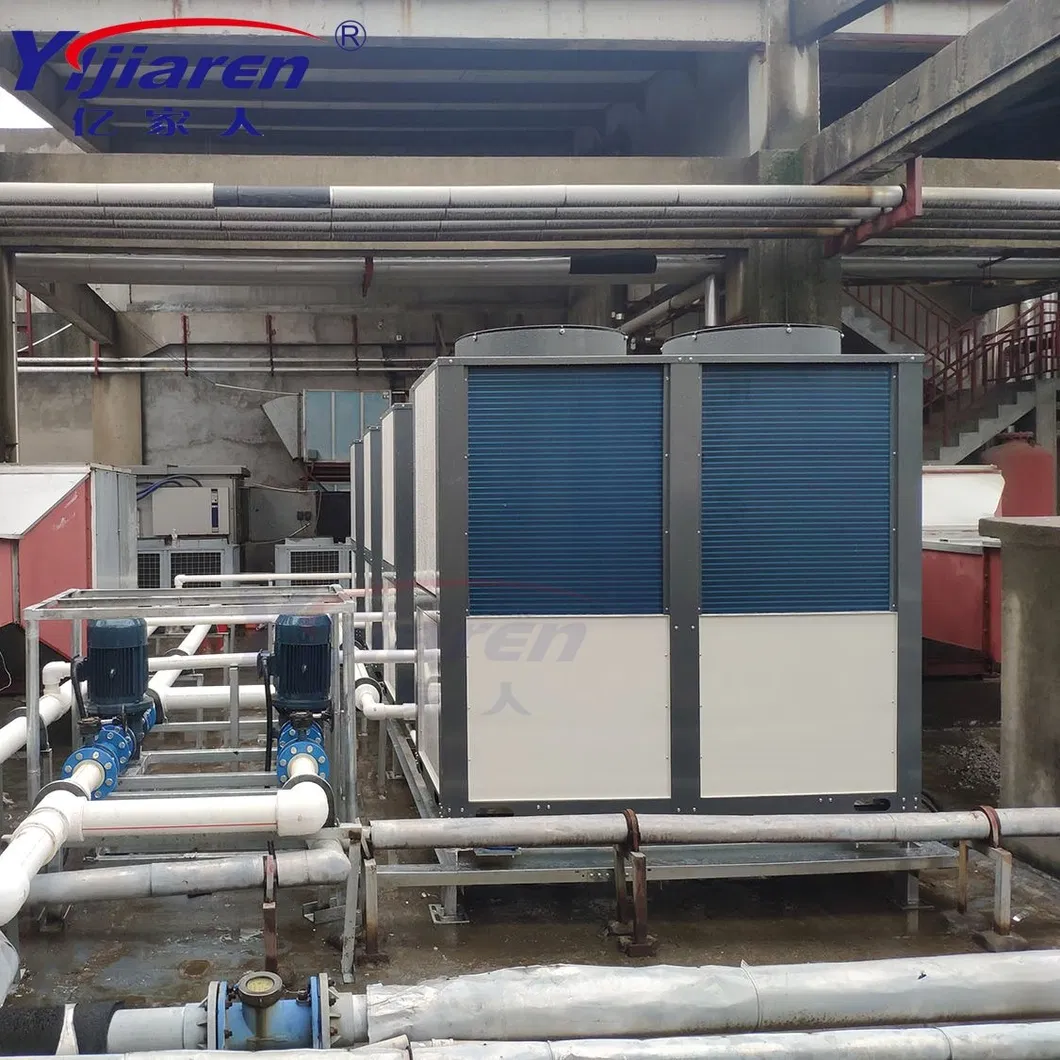

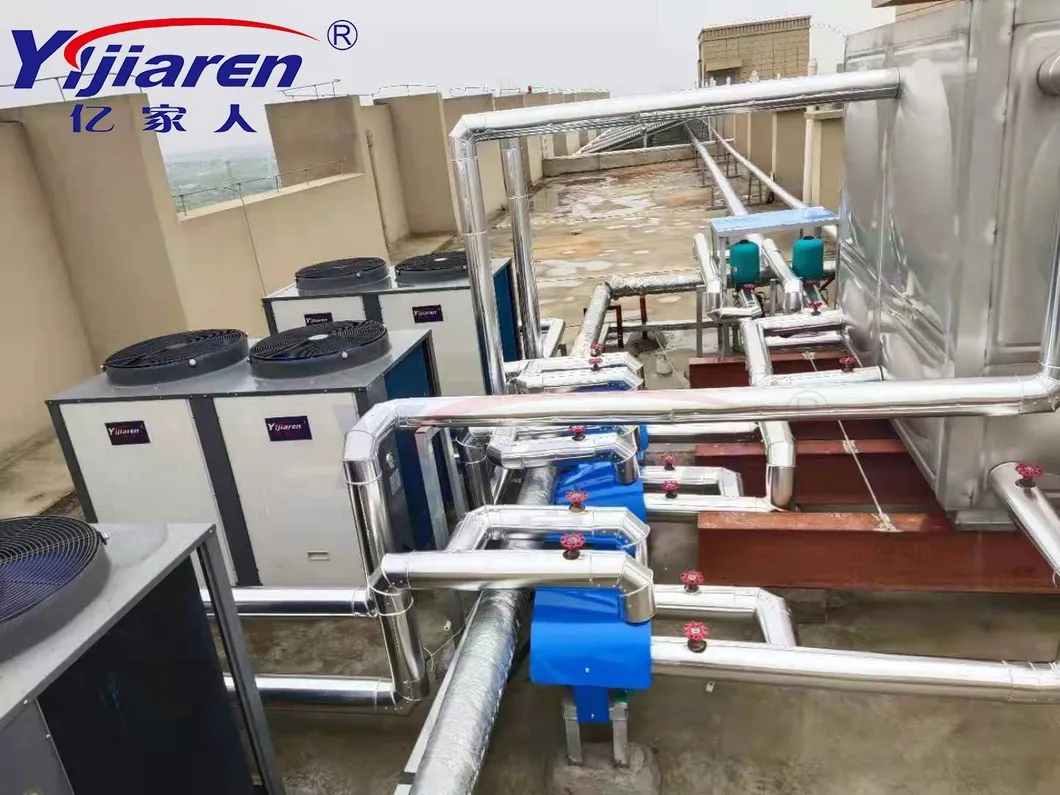

Widely used for Hotels, Schools, Hospitals, Staff Dormitories, Gyms, Salons, and other high-demand hot water locations.

⭐ Why Choose Us?

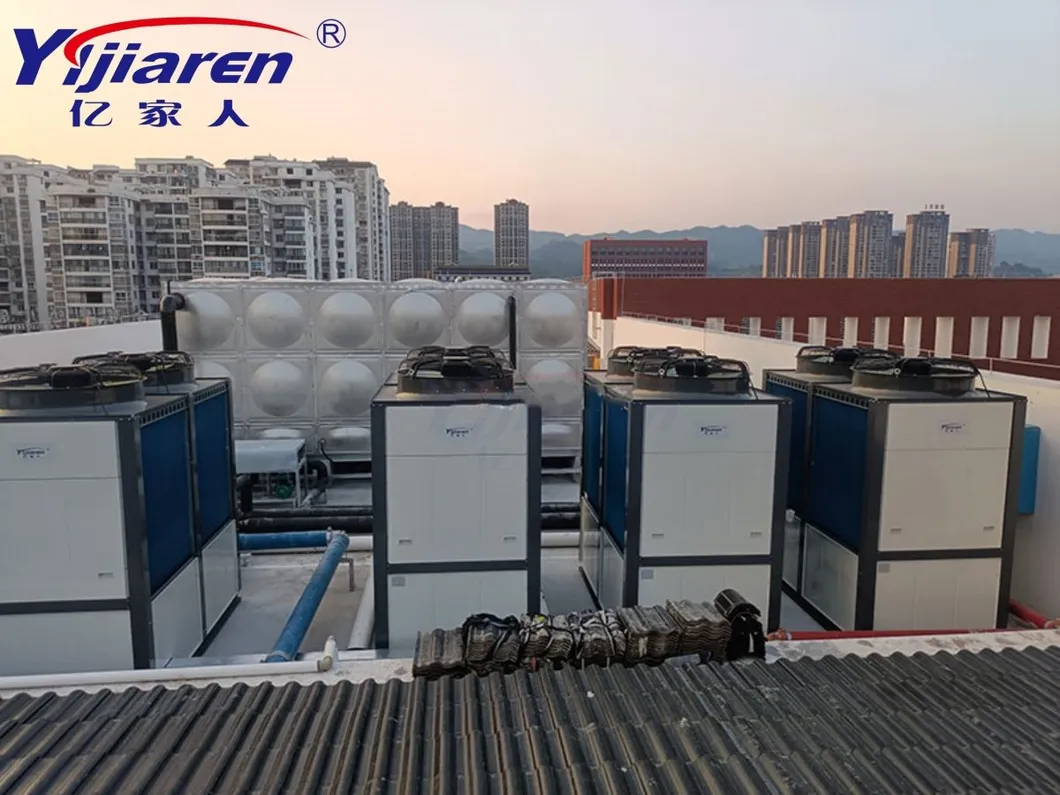

Over 8000 successful engineering projects worldwide.
OEM and ODM customized design services available.
Strict quality control with ISO9001 & ISO14001 certification.
Full stock for short leading times and fast delivery.
Professional technical consulting and system design.
24-month comprehensive warranty service.

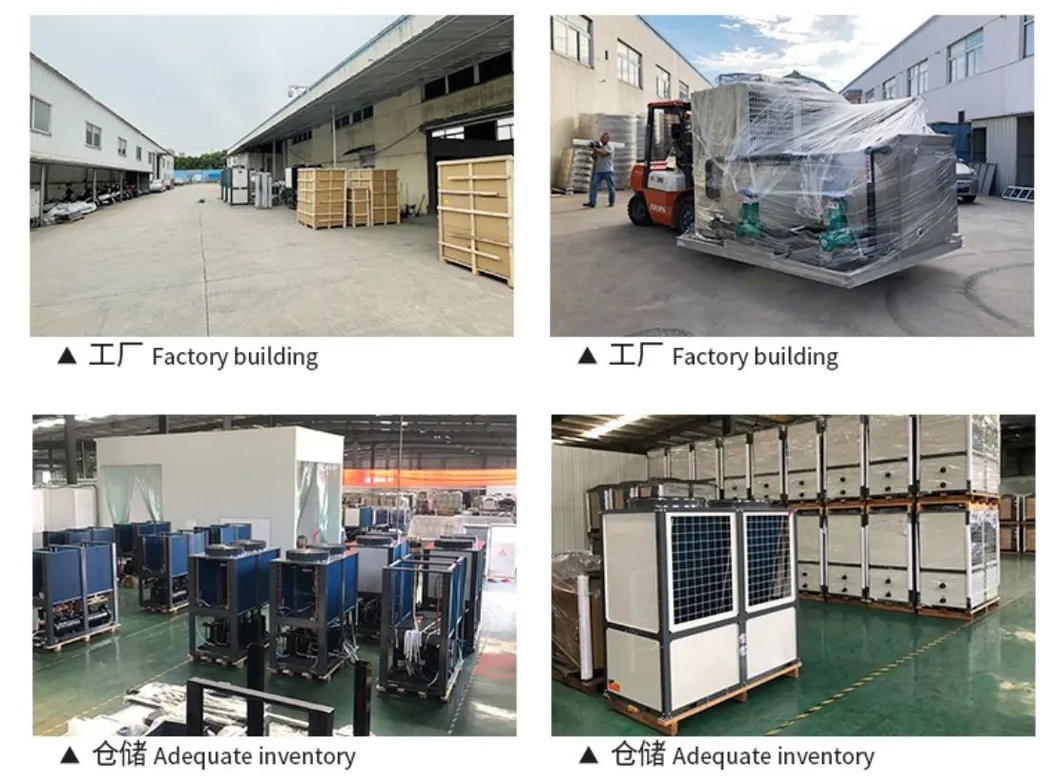

📦 Packaging & Shipping

❓ Frequently Asked Questions

What is your primary product range?

We specialize in the R&D, manufacturing, and maintenance of solar water heater systems, air source heat pumps, and related heating/cooling components.

Do you provide OEM or ODM services?

Yes, we offer comprehensive OEM and ODM services, including logo printing and customized system design tailored to your engineering needs.

What certifications do your products hold?

Our production processes and products are certified under ISO9001 and ISO14001 international standards.

What is the typical production lead time?

For in-stock items, lead time is 3-7 working days. For custom or out-of-stock orders, it generally ranges from 15-25 working days depending on quantity.

What kind of after-sales support do you offer?

We provide a 24-month warranty on our units and offer professional technical consulting to ensure stable system operation.

Why should we choose your heat pump solutions?

With over 15 years of expertise and 8,000+ successful projects, we provide customized, high-quality, and energy-efficient solutions for any commercial or industrial scale.
