Technical Parameters
| Model |
MGBD-300II |
MGBD-500II |
MGBD-600II |
| Rated heating (A7/W45ºC) |
Heating capacity |
kW |
108 |
160 |
215 |
| Power |
kW |
33.0 |
46.8 |
65.7 |
| COP |
/ |
3.12 |
3.42 |
3.12 |
| Nominal heating (A-12/W41ºC) |
Heating capacity |
kW |
70 |
106 |
140 |
| Power |
kW |
26.9 |
43.8 |
53.7 |
| COP |
/ |
2.42 |
2.42 |
2.42 |
| Energy efficiency rating |
/ |
Level 1 |
| Nominal cooling (A35/W7ºC) |
Cooling capacity |
kW |
69 |
140 |
140 |
| Power |
kW |
20.8 |
46.4 |
47.3 |
| EER |
/ |
3.12 |
3.02 |
2.75 |

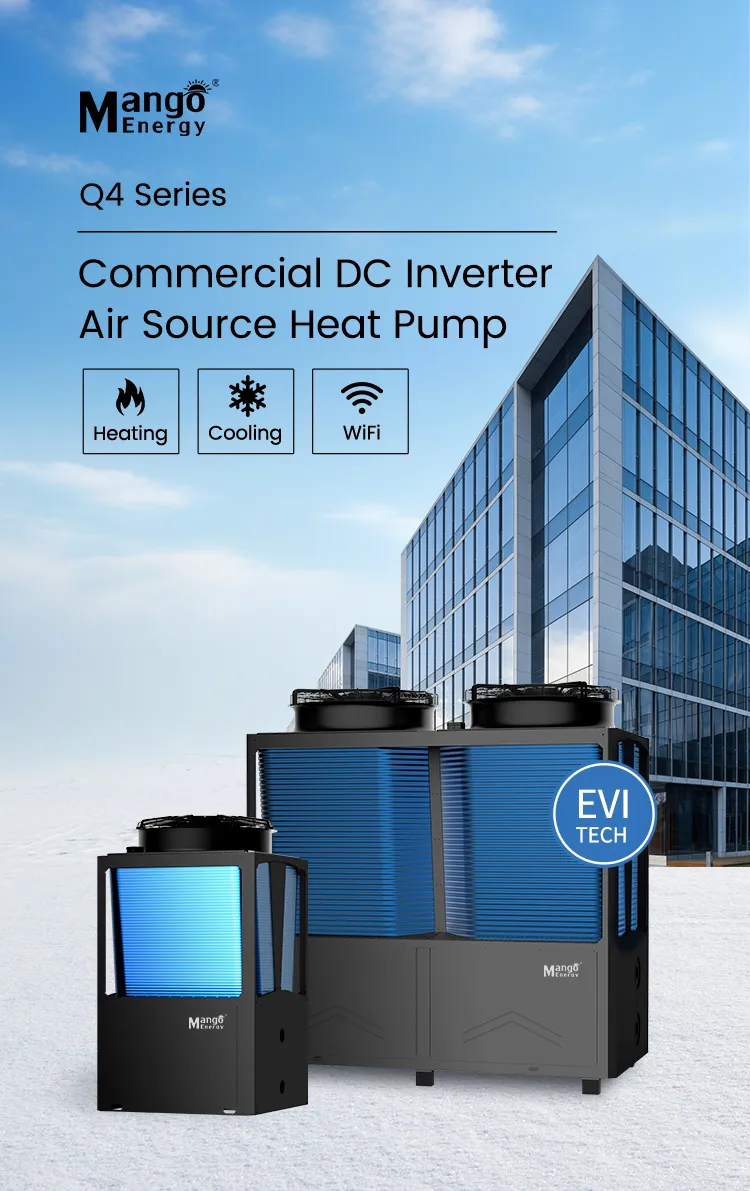

| Compressor Form |
/ |
DC Inverter EVI Compressor |
| Refrigerant |
/ |
R32/R410A |
Notes:
1. Rated heating: outdoor 7/6ºC, inlet/outlet water 40/45ºC.
2. Nominal heating: outdoor -12/-13.5ºC, outlet water 41ºC.
3. Low temp heating: outdoor -20ºC, outlet water 41ºC.
4. Hot water: outdoor 20/15ºC, initial water 15ºC, target 55ºC.
5. Standards: GB/T 25127, GB/T 18430, GB/T 21362.
❓
Frequently Asked Questions
Q1: What types of heat pump solutions are available?
We provide an extensive range of heat pumps including ON/OFF, DC inverter, air source, water-to-water, swimming pool, and high-temperature variants to cater to diverse heating and cooling needs.
Q2: What certifications do the heat pumps hold?
Our products are distinguished by esteemed certifications including SGS, CE, CB, IEC60335-2-40, and EN14511 from TUV Lab. Manufacturing follows ISO9001, ISO18001, and ISO14001 standards.
Q3: Where are these heat pumps commonly utilized?
These systems find widespread use in home heating, hotels, restaurants, hospitals, schools, bath centers, and comprehensive residential central heating and hot water projects.
Q4: What is the daily production capacity?
The facility impressively produces between 150 to 255 heat pump water heaters daily, ensuring a consistent supply of top-tier products to meet global demand.
Q5: How are business partners supported?
We offer comprehensive support including sales training, product knowledge, after-sales service, and maintenance training. Partners also receive 1% to 2% free spare parts based on order volume.
Q6: What energy savings can be expected?
Our Air Source Heat Pumps deliver an astounding energy savings of approximately 70% compared to traditional heating methods, representing a major efficiency revolution.
