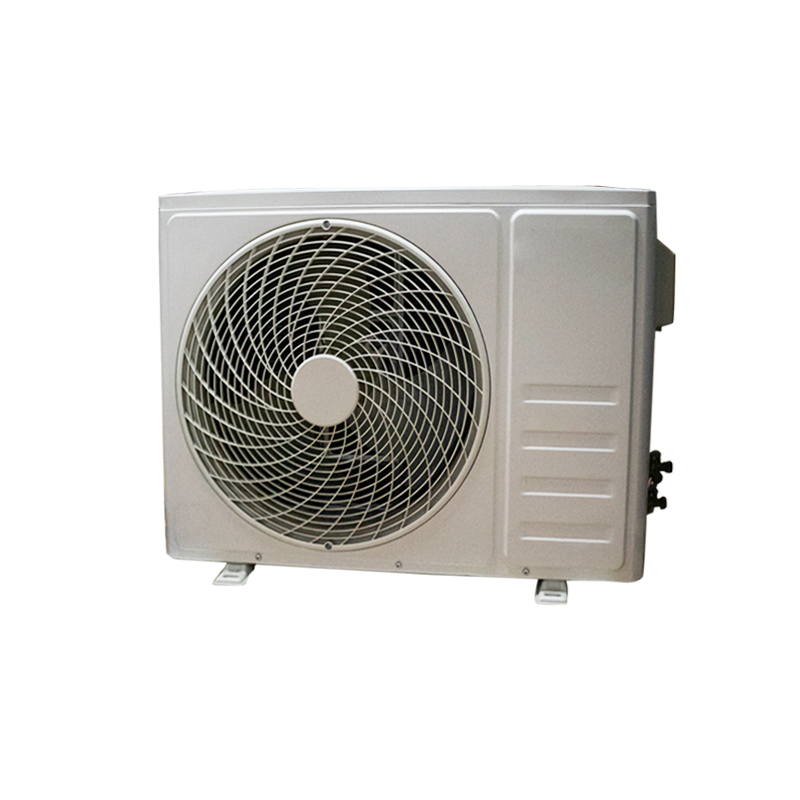

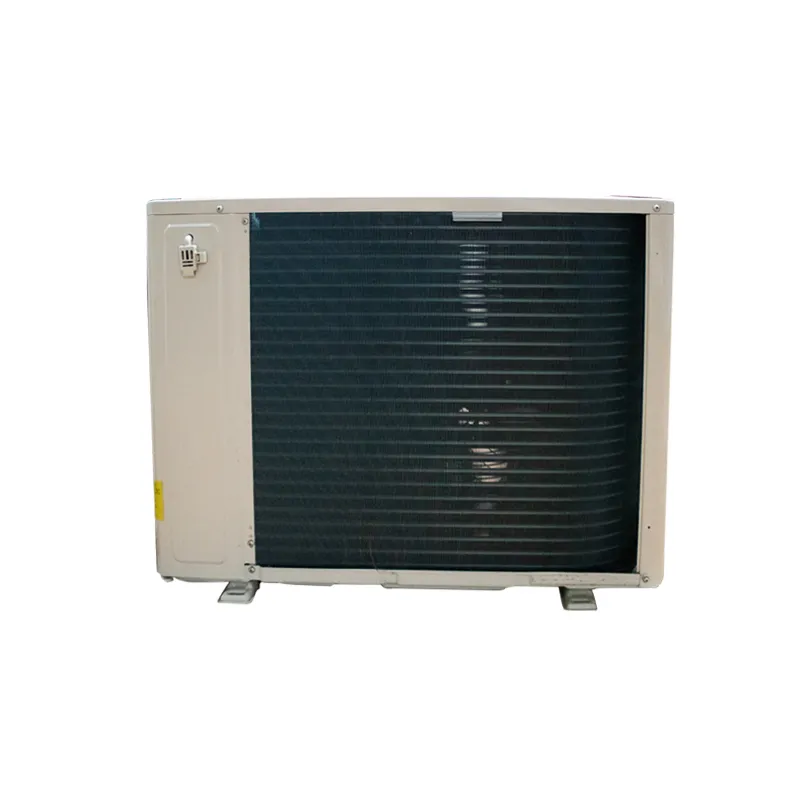

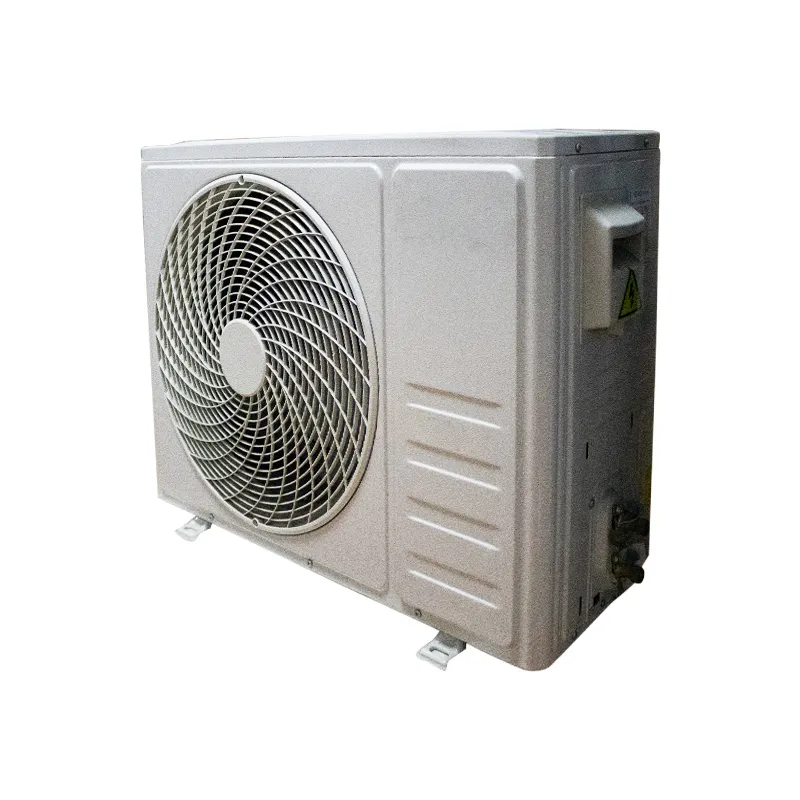

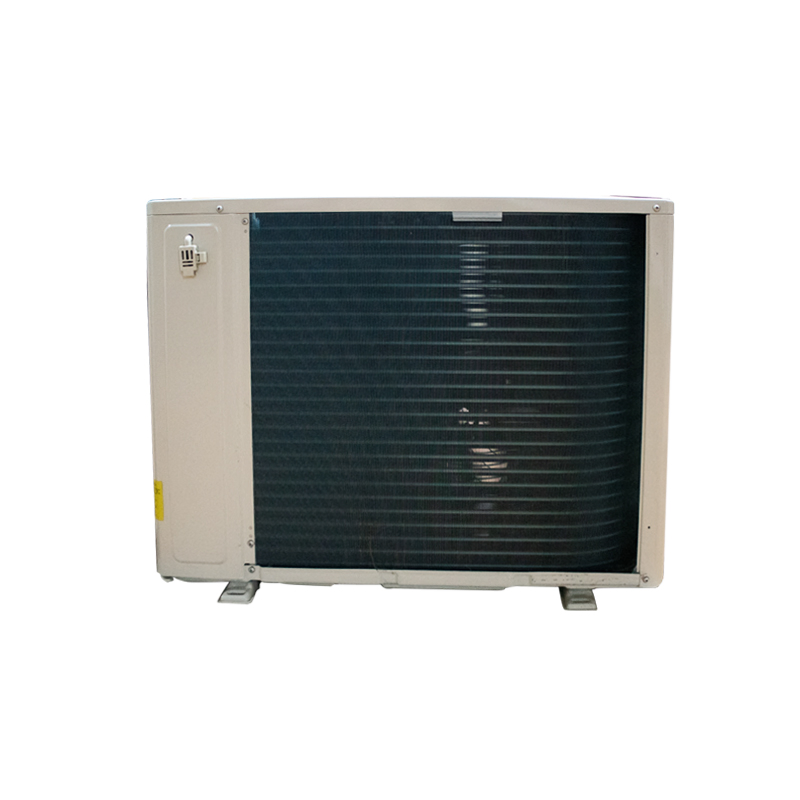

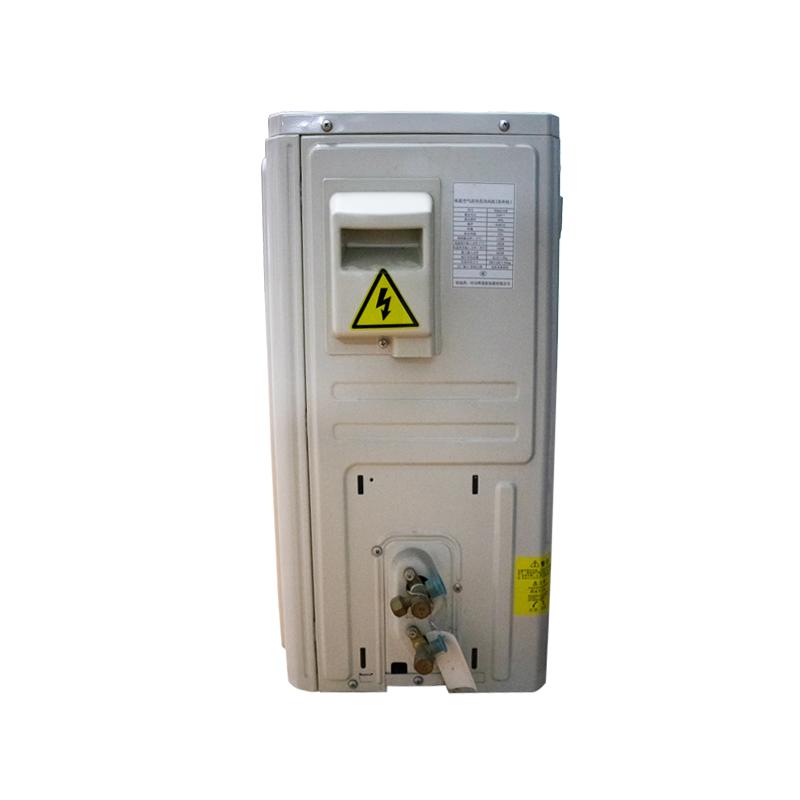

The Monoblock R32 Gas Heat Pump is an advanced, high-performance solution designed for efficient heating, cooling, and domestic hot water supply. Featuring a Monoblock design, this heat pump is easy to install and offers high flexibility, making it ideal for both residential and commercial applications. The R32 refrigerant ensures lower environmental impact, while the advanced inverter technology and extended heat exchanger provide maximum energy efficiency. It is capable of heating up to 60°C even in outdoor temperatures as low as -20°C without the need for electric auxiliary heating.
| Split Type Series Data | 10kW | 15kW | 18kW | 25kW | 30kW | ||
|---|---|---|---|---|---|---|---|
| Power Supply | V/Hz | 220-240/50 | 220-240/50 | 380-415/50 | 380-415/50 | 380-415/50 | |
| ErP Level (35°C) | - | A+++ | A+++ | A+++ | A+++ | A+++ | |
| Heating Capacity (A7/W35) | kW | 10 | 15 | 18 | 25 | 30 | |
| Heating (A7/W35) | Capacity Range | kW | 3.45-10.15 | 5.29-15.65 | 5.58-17.89 | 9.31-25.12 | 11.02-29.94 |
| COP Range | w/w | 4.70-4.16 | 4.75-4.22 | 4.70-4.16 | 4.72-4.21 | 4.66-4.01 | |
| Refrigerant Type | kg | R32 /1.6 | R32 /2.4 | R32 /2.4 | R32 /3.6 | R32 /3.9 | |
| Compressor Type | - | DC Inverter + EVI | |||||
| Operating Temp Limit | °C | -30 to 45 | |||||
