Basic Specifications
Model:BREEZE / DSP Series
Heat Source:Air-source
Refrigerant:R32 (Eco-Friendly)
Compressor:GMCC Twin Rotary Inverter
Application:Swimming Pool, Villa, Hotels
Certification:CE, ISO9001, CB, RoHS
Heating Capacity:2.72kw ~ 31.73kw
Environment:-5℃ to 43℃
Control System:DC Inverter
Fan Motor:DC Brushless

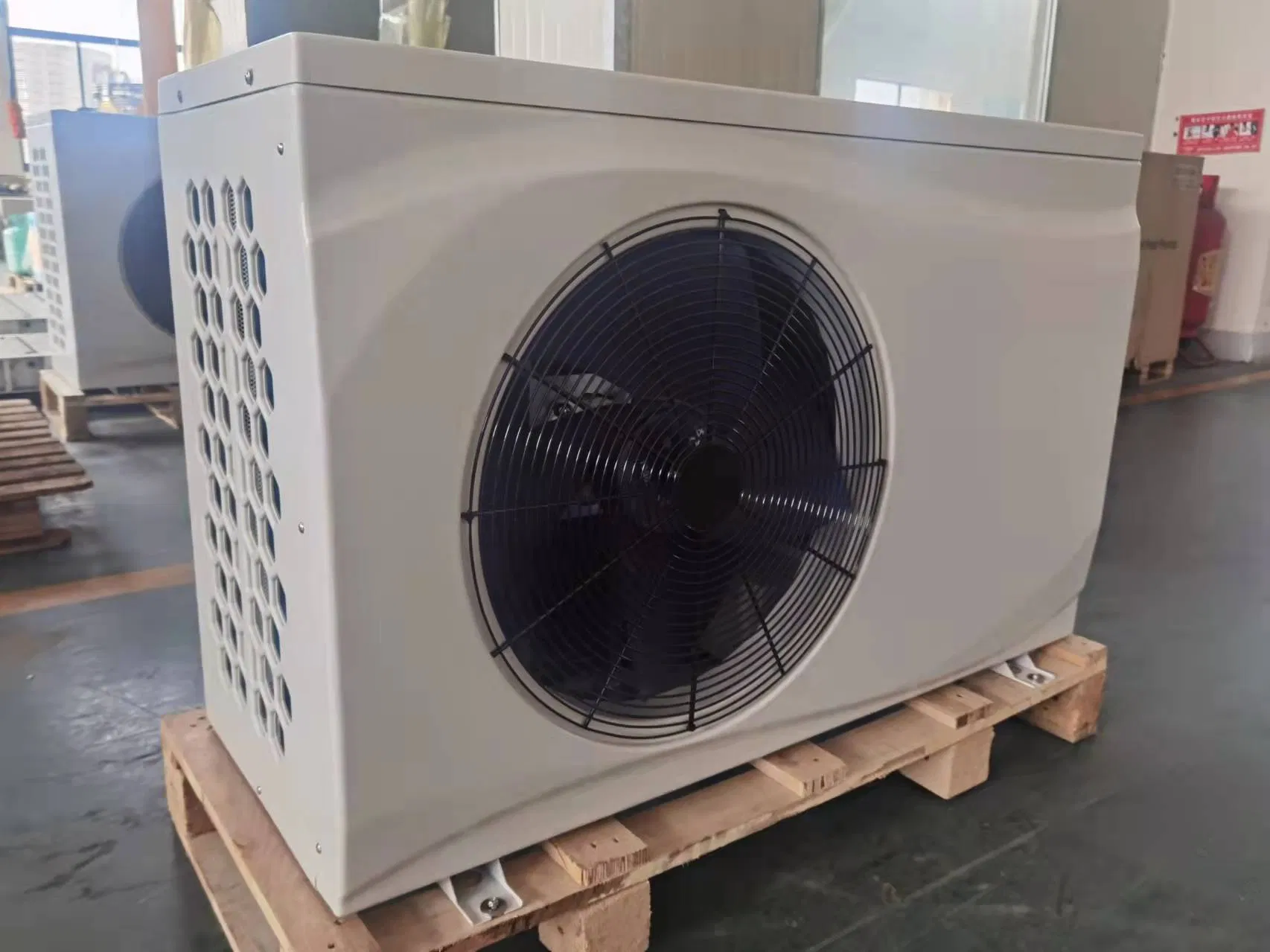

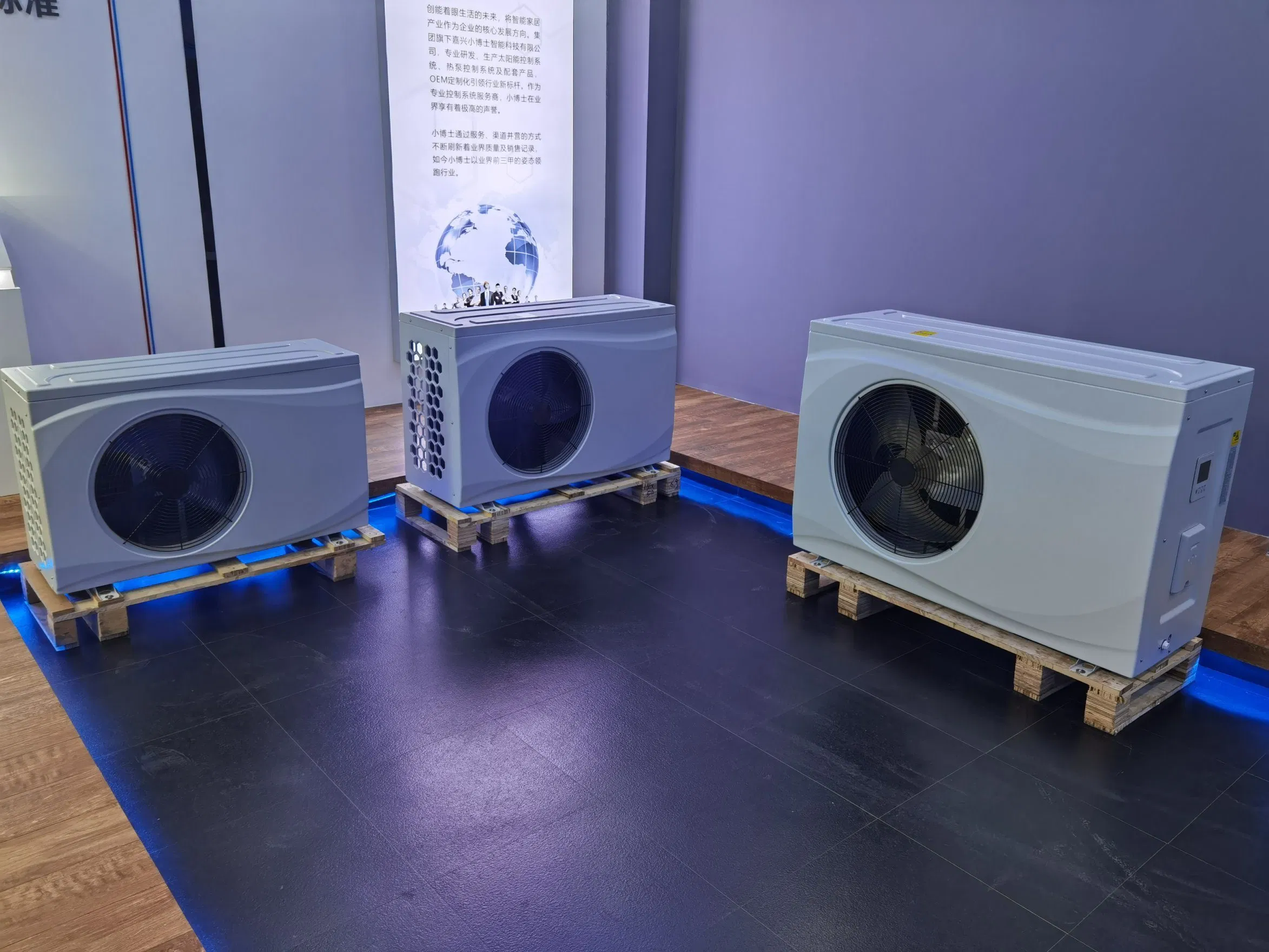

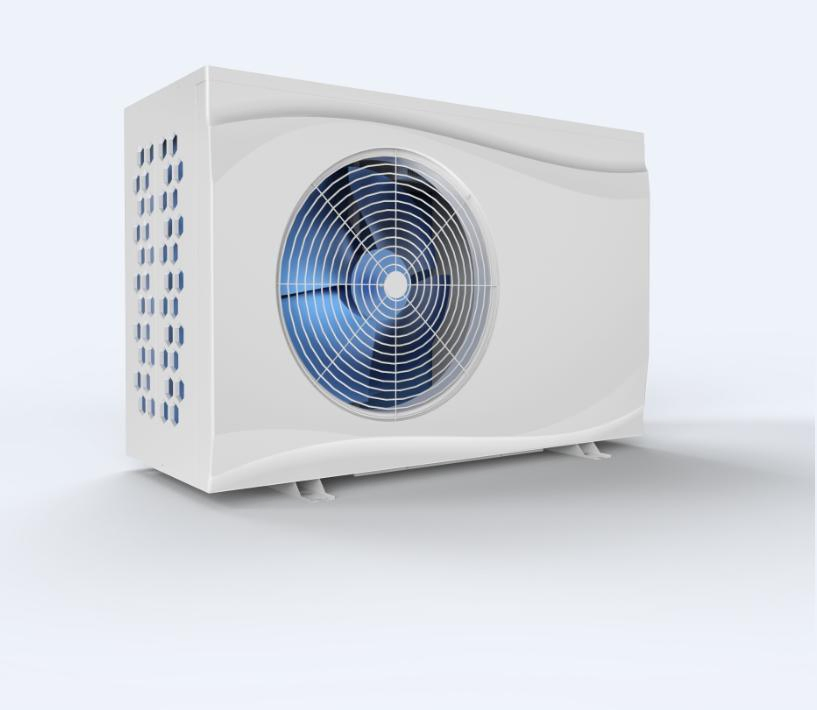

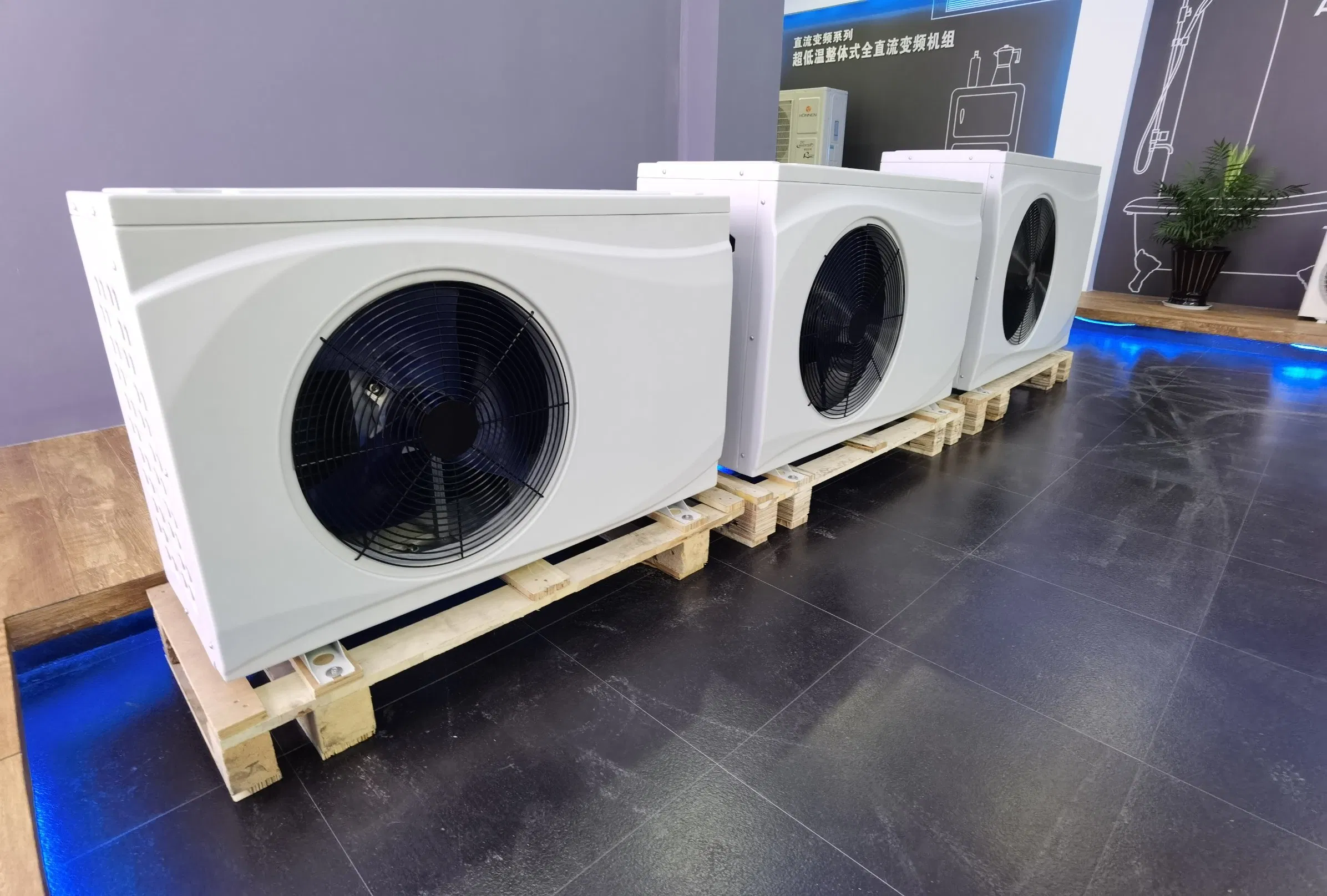

DC Inverter Swimming Pool Heat Pump

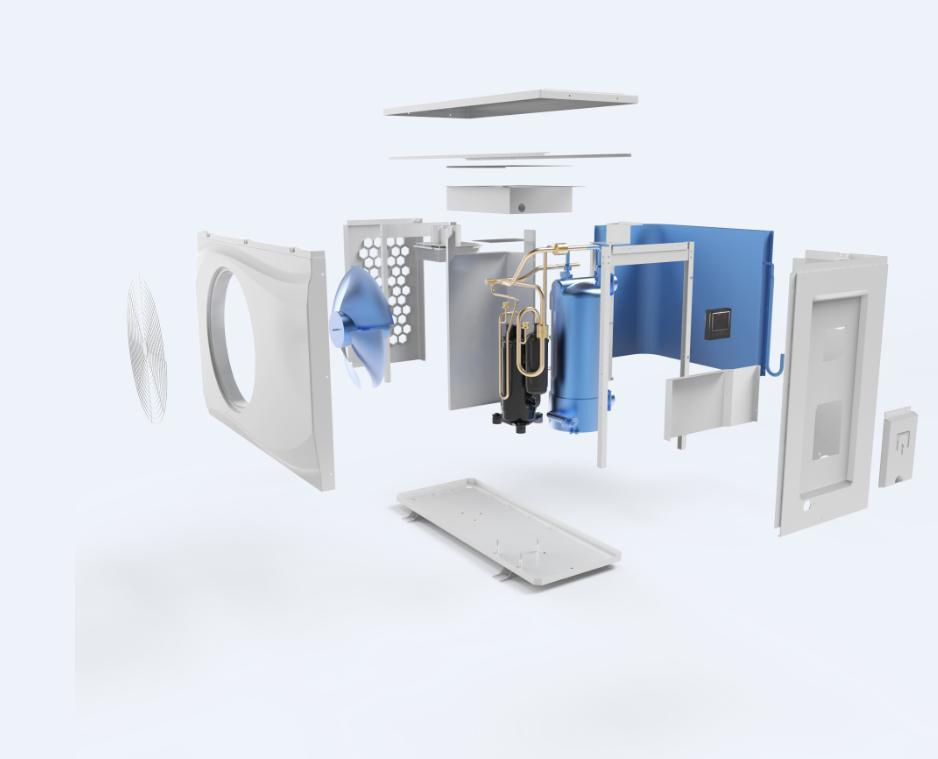

Premium Build & Eco-Technology
- ABS Plastic Casing: Featured with ASA film, ensuring 5 years of color stability without fading.
- R32 Refrigerant: Zero Ozone Depletion Potential (ODP) and 675 GWP (1/3 of R410A).
- GMCC Compressor: Renowned twin-rotary DC inverter technology for high efficiency and low noise.
- Brushless DC Fan: Newly designed CFD airflow technology with outlet grills for ultra-quiet operation.
- Precise Control: Sanhua electronic expansion valve for accurate refrigerant management.
Three Intelligent Operation Modes
Boost Mode
20% - 100% Capacity
Fast heating for late spring or early autumn.
Smart Mode
20% - 80% Capacity
Balanced efficiency for standard seasonal use.
Silent Mode
20% - 50% Capacity
Ideal for night use or hot summer maintenance.
Technical Parameters Table
| DC Inverter Swimming Pool Heat Pump (R32) |
| Model |
DSP02PS |
DSP03PS |
DSP04PS |
DSP05PS |
DSP06PS |
DSP07PS |
DSP08PS |
| Advised Pool Volume (m³) |
25-50 |
30-60 |
35-70 |
60-100 |
65-110 |
70-130 |
80-150 |
| Heating Capacity (kW) |
2.72-11.0 |
3.50-14.2 |
4.24-17.4 |
5.75-23.2 |
6.22-25.1 |
6.62-29.0 |
7.71-31.7 |

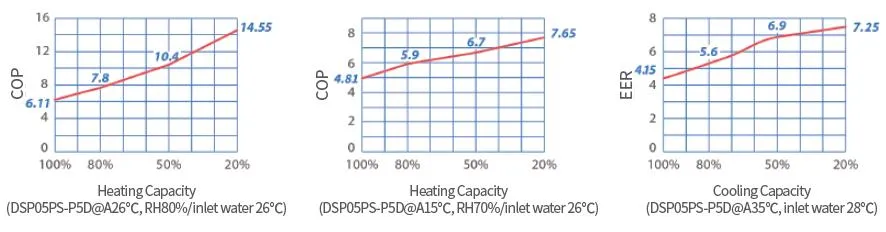

| COP Range |
6.3-14.8 |
6.1-14.6 |
6.0-14.5 |
6.1-14.5 |
6.2-14.5 |
6.1-14.5 |
6.1-14.6 |
| Refrigerant |
R32 |
| Power Supply |
230V~, 1Ph, 50Hz |
| Net Weight (kg) |
44 |
46 |
56 |
70 |
72 |
90 |
98 |
* Notes: Advised pool volume for pools with isothermal covers. Specifications subject to change for product improvement.
Frequently Asked Questions
What are the benefits of R32 refrigerant in this heat pump?
R32 is an eco-friendly refrigerant with zero Ozone Depletion Potential (ODP) and a much lower Global Warming Potential (GWP) compared to traditional R410A, making it more efficient and environmentally sustainable.

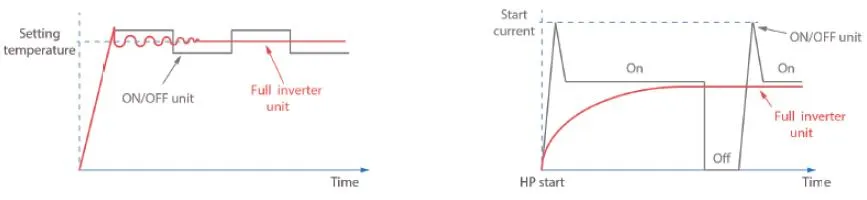

How does the DC Inverter technology help with energy savings?
The DC Inverter technology allows the GMCC compressor to adjust its speed based on the heating demand, reaching high COP values up to 14.84, which significantly reduces electricity consumption.
Is the unit durable for outdoor installation?
Yes, the unit features an ABS plastic casing with ASA film protection, ensuring the exterior is UV resistant and maintains its color for at least 5 years under various weather conditions.
What is the noise level of the heat pump?
Thanks to the GMCC twin-rotary inverter compressor, brushless DC fan motor, and CFD airflow design, the unit operates very quietly, especially in "Silent Mode" during nighttime.
Can this heat pump be used for cooling as well?
Yes, the technical parameters indicate cooling capacities (EER), allowing the unit to maintain comfortable water temperatures even during extremely hot summer months.
What is the operating temperature range?
The unit is designed to operate efficiently in ambient temperatures ranging from -5℃ to 43℃, covering most seasonal swimming requirements.
