Basic Specifications
Heating Type
Circulating Heat
Application
Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Certification
CE, Keymark, ERP, Mcs
Heating Capacity
15kw, 18kw, 22kw, 25kw
Power Supply
220-240V/1/50Hz | 380-415V/3/50Hz
Function
Space Heating + Cooling + DHW
Production Capacity
5000 Sets Per Month
Packaging & Delivery
Package Size
140.00cm * 54.00cm * 155.00cm
Package Gross Weight
230.000kg

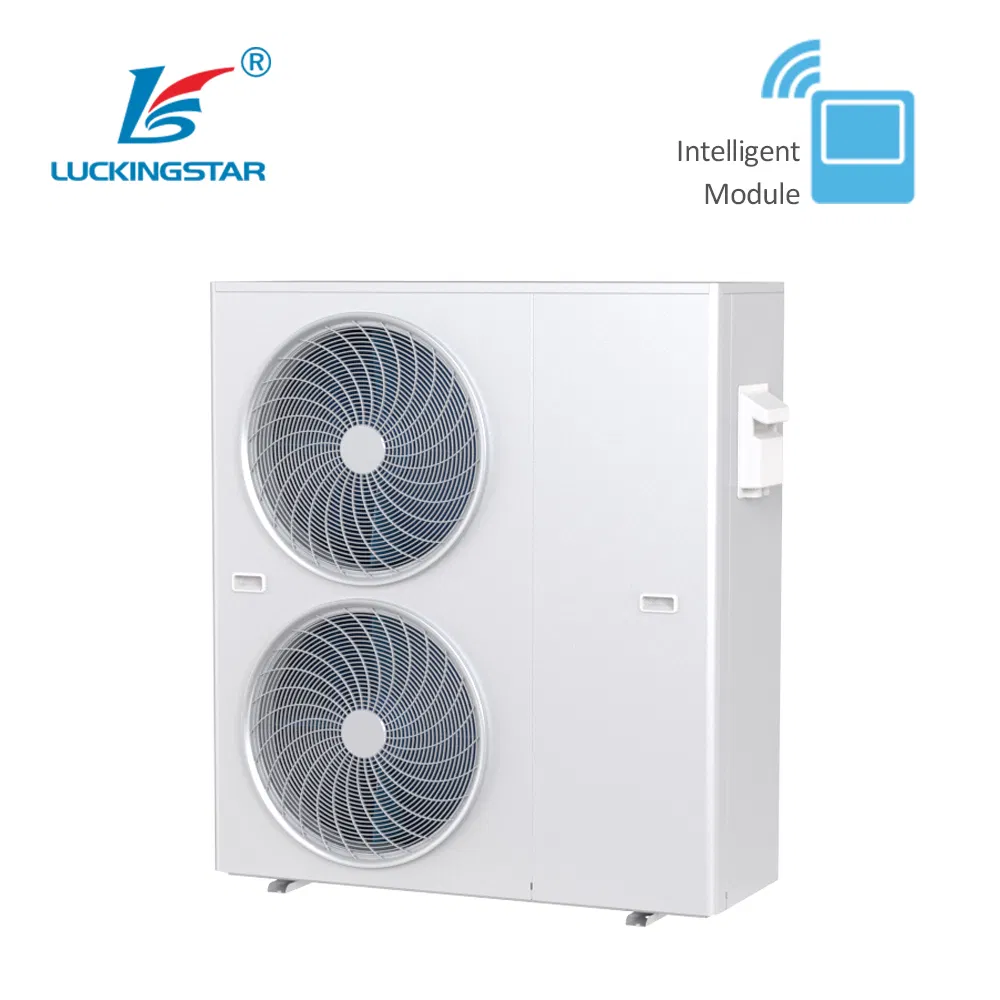

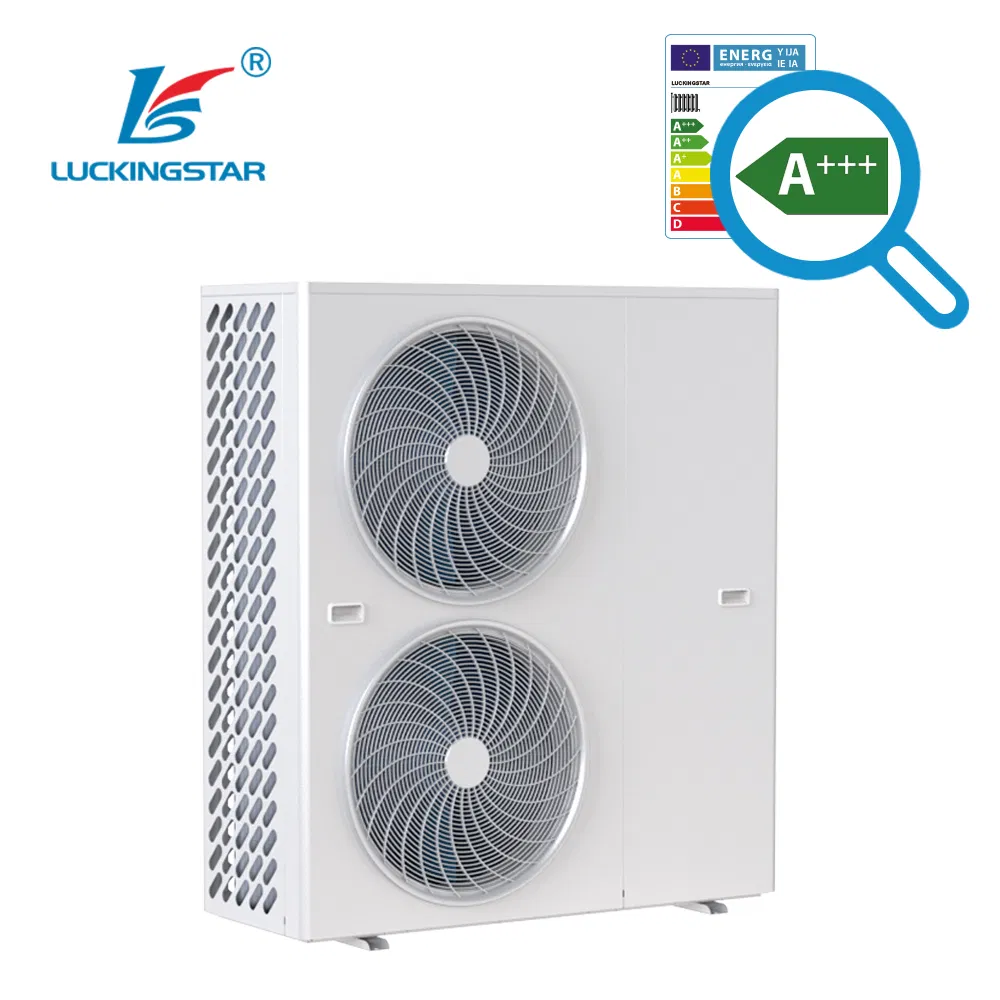

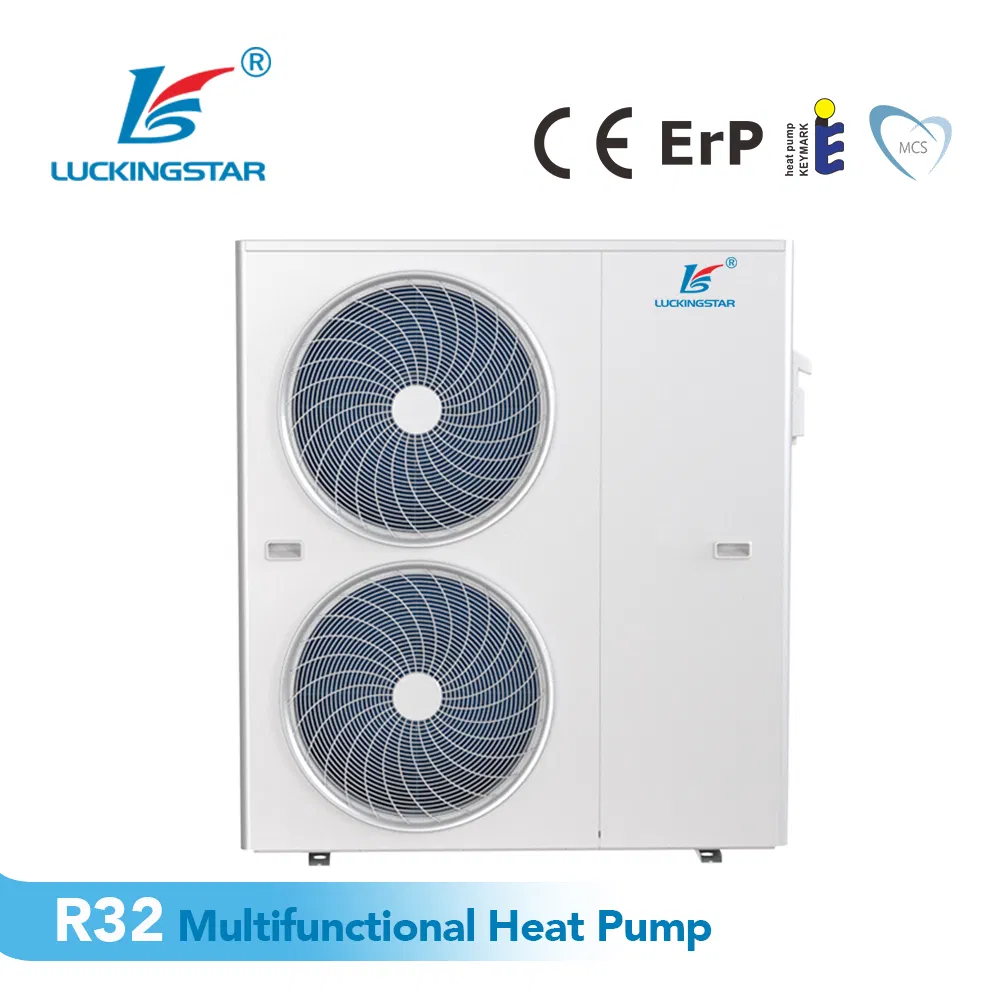

R32 Monoblock Heat Pump Overview
Core Advantages
✓EFFICIENT AND ENERGY-SAVING: Saves about 75% energy compared to traditional electric or gas heating.
✓ENVIRONMENTALLY FRIENDLY: Zero toxic emissions (No CO or CO2).
✓SAFE AND RELIABLE: No risk of electric leakage, explosion, or poisoning.
✓WIDE ADAPTABILITY: Functional in all weather conditions, including rain and snow.
✓LONG SERVICE LIFE: Over 15 years service life with low maintenance requirements.
Advanced Technologies
1. R32 Low GWP Refrigerant
R32 has a significantly lower Global Warming Potential than R-410A, making it the eco-friendly choice for modern homes.
2. Multiple Operating Modes
Full DC inverter performance with six working modes via a three-way valve:
- • Heating Only / Cooling Only
- • Domestic Hot Water (DHW) Only
- • Heating + DHW (Priority)
- • Cooling + DHW (Priority)
- • AUTO Mode

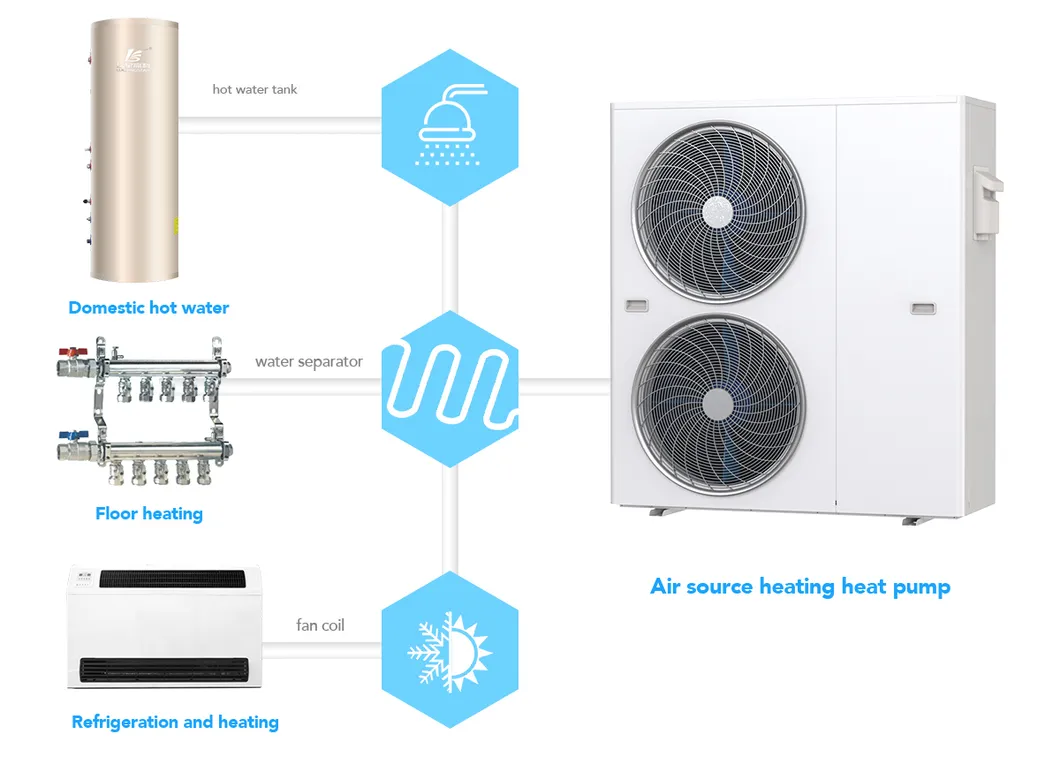

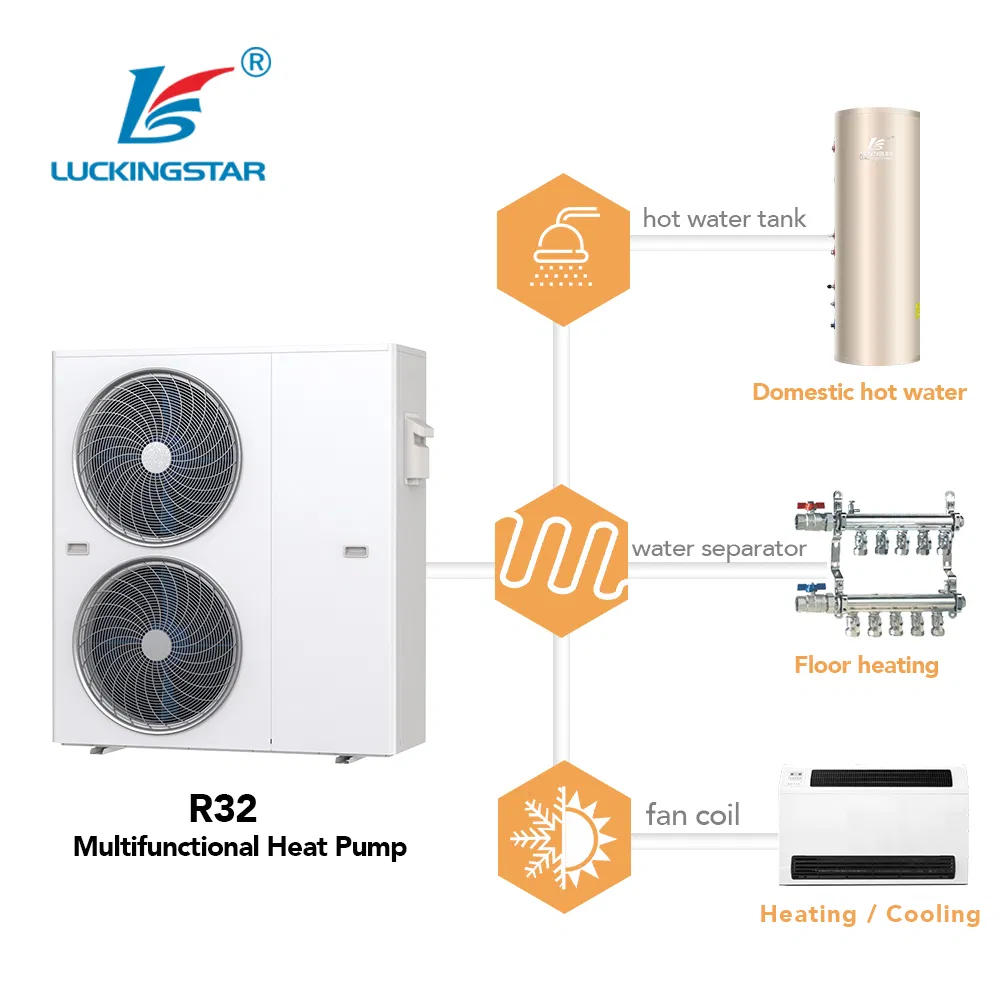

3. Integrated All-in-One System

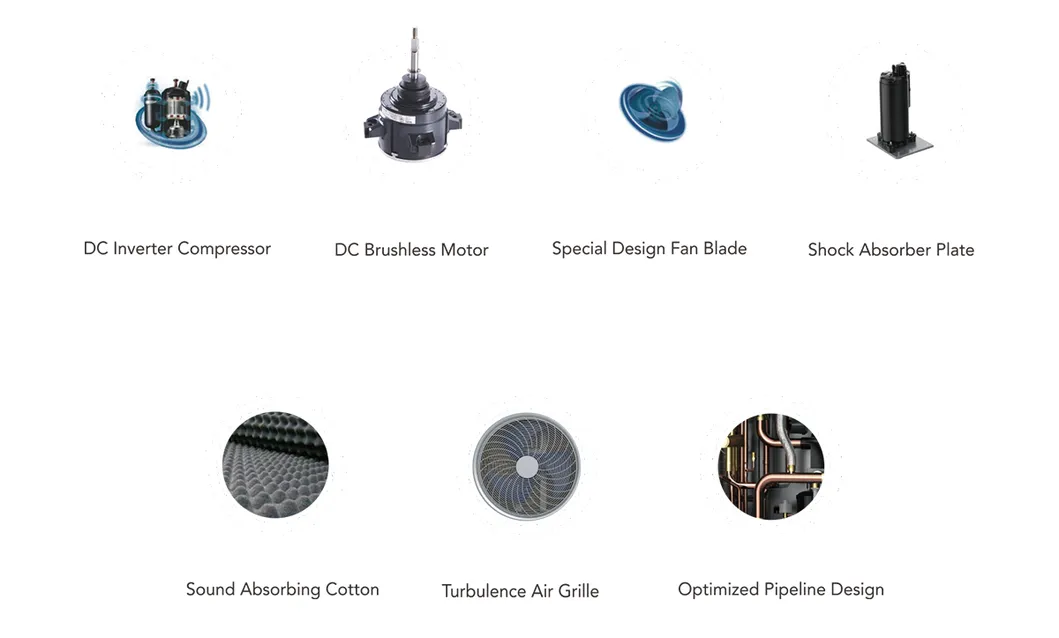

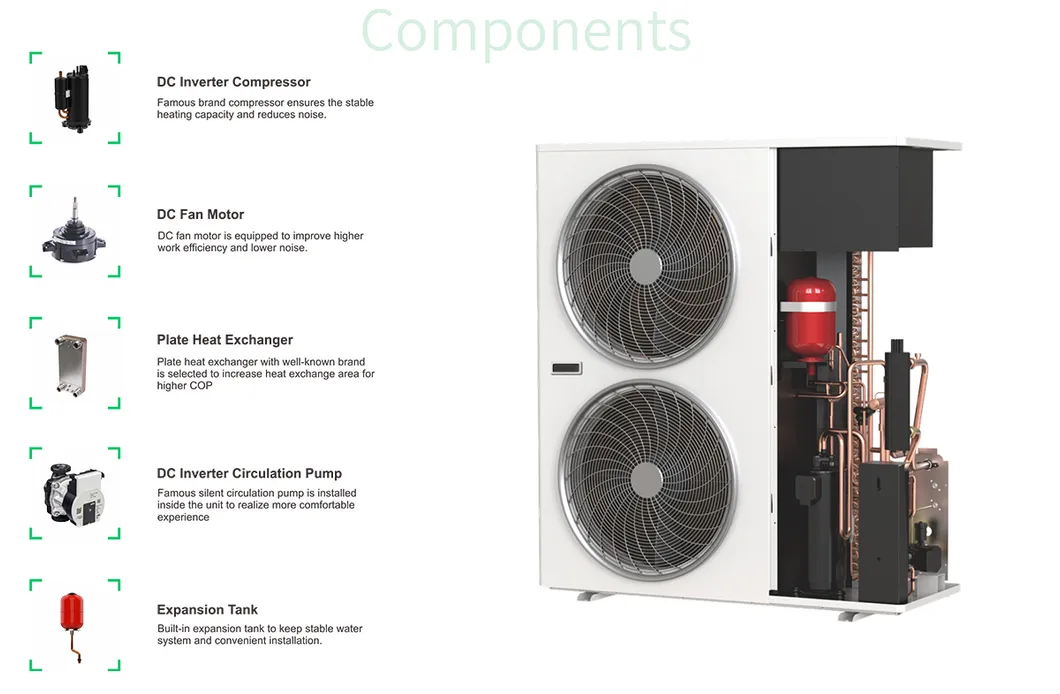

Core Components
■Fin Heat Exchanger: Hydrophilic gold foil for better drainage and salt spray resistance.
■Plate Heat Exchanger: High-efficiency fluorine and water countercurrent exchange.
■Brushless DC Inverter Motor: Low noise, stepless frequency conversion.
■SHIMGE DC Inverter Pump: High water flow with low power consumption.

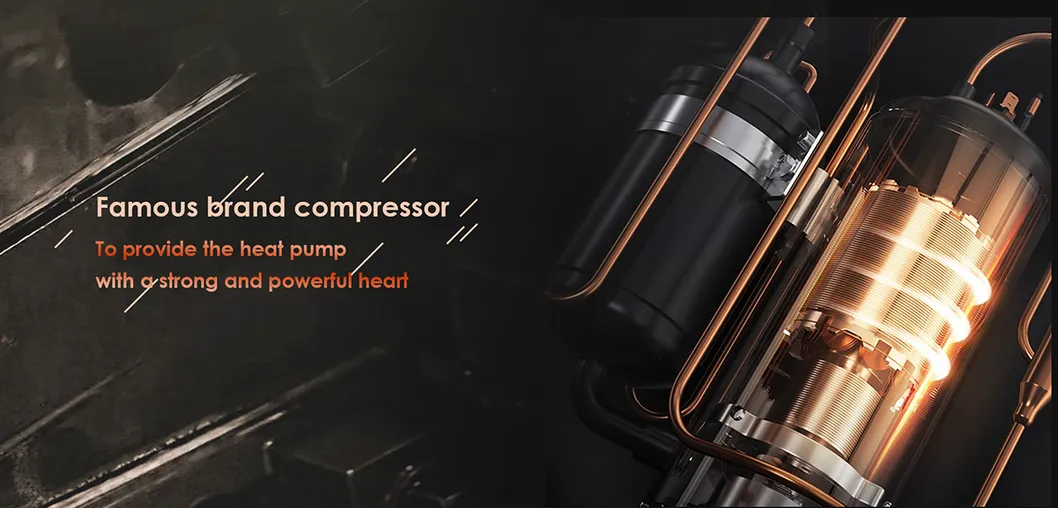

■DC Inverter Compressor: Enhanced capacity by 10-30% in ultra-low temperatures.

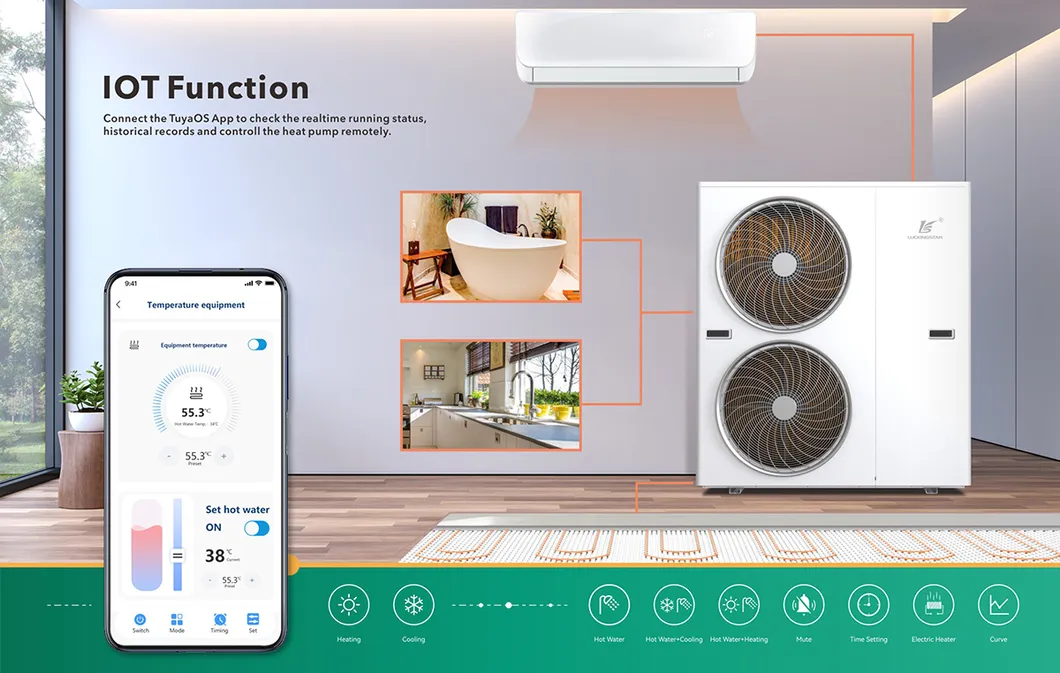

Smart Home & IoT Connectivity
The electronic controller acts as the brain, allowing for schedule settings, mode switching, and monitoring of energy consumption through a dedicated App and remote service platform.

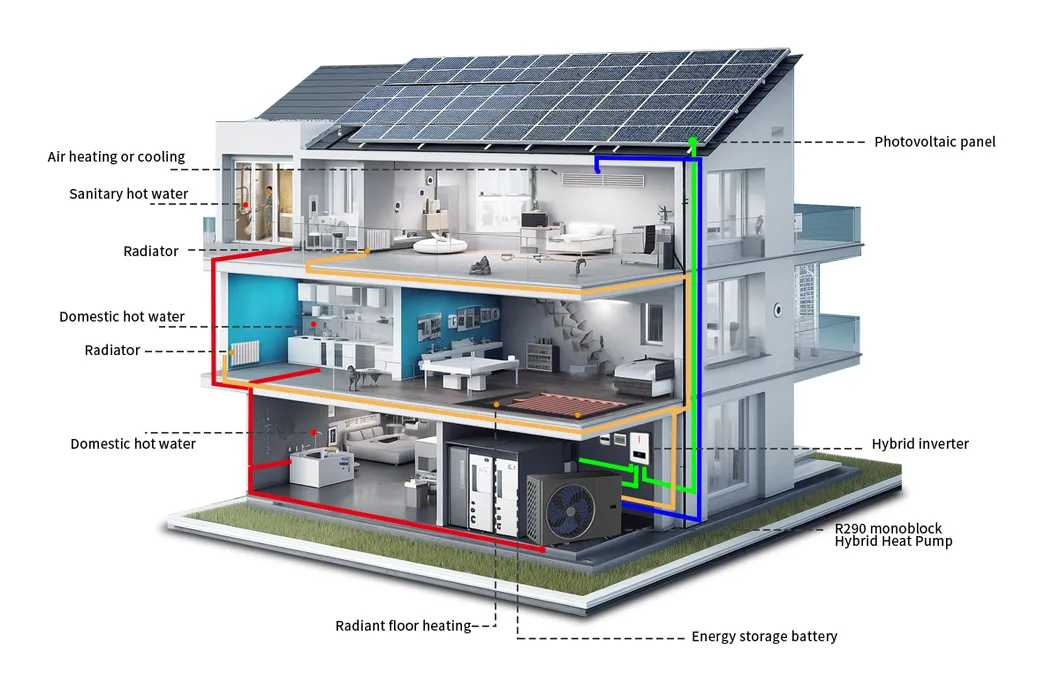

Dual Zone Control
Set independent temperatures for two different zones, such as floor heating for the living room and radiators for upstairs.

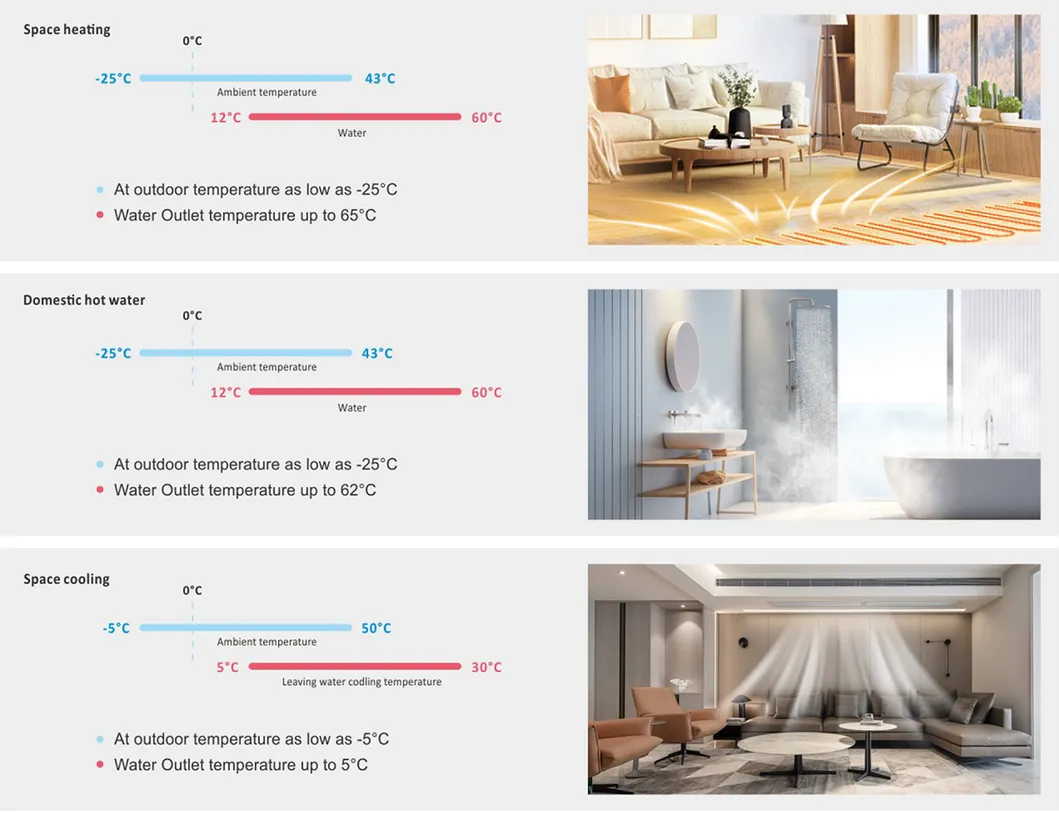

Extreme Performance

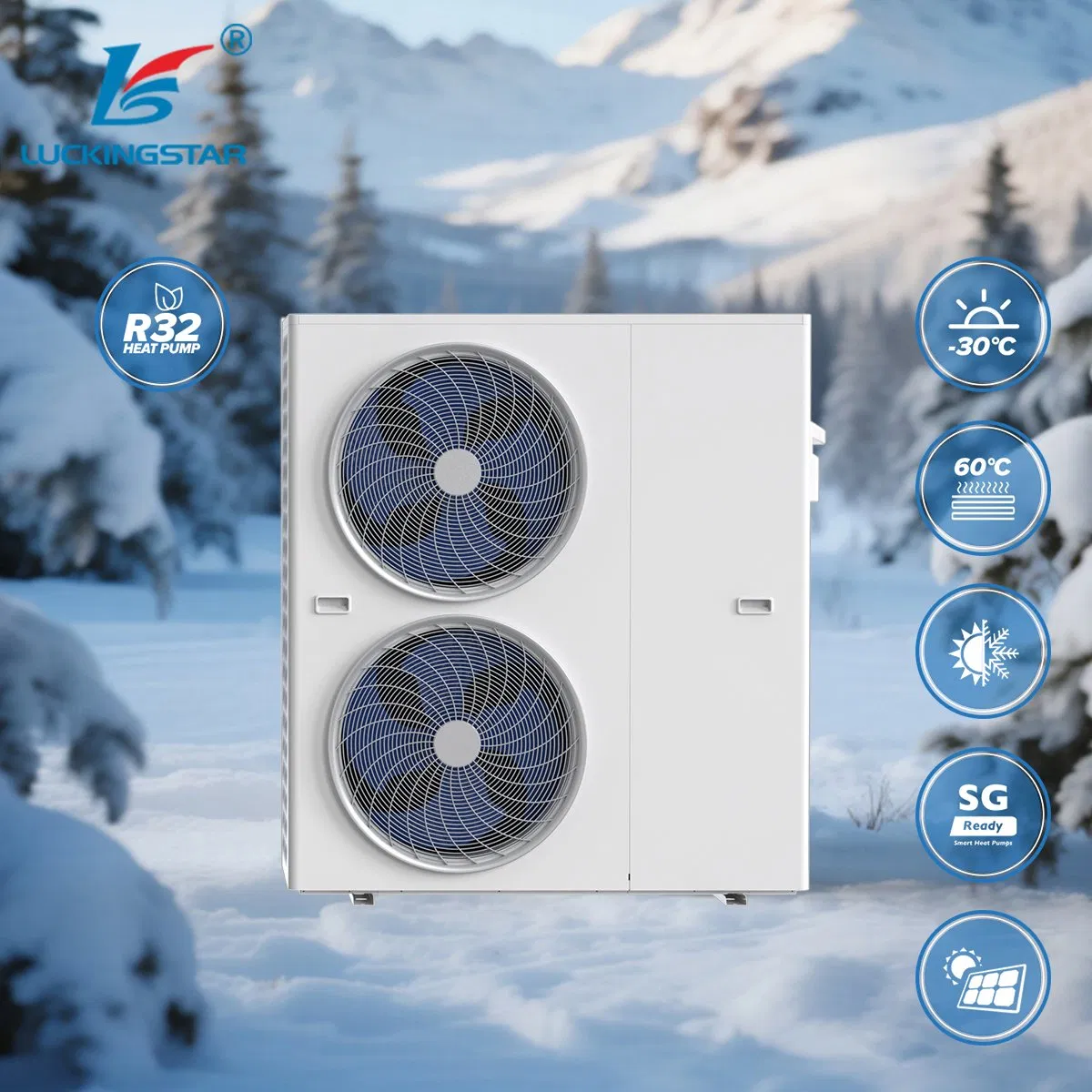

EVI Technology: Stable operation down to -30°C and maximum LWT reach 60°C without additional electrical support.
Certified Quality
Frequently Asked Questions
Q: What is your primary business model?
A: We are a professional heat pump manufacturer with advanced R&D. We provide high-quality heat pump solutions for global suppliers.
Q: Do you support customized manufacturing (OEM/ODM)?
A: Yes, we provide OEM, ODM, and OBM services tailored to your specific market requirements.
Q: What is the Minimum Order Quantity (MOQ)?
A: For official orders, our standard MOQ is a full 40-foot container load.
Q: What is the typical lead time for an order?
A: Samples take approximately 10-20 days. For mass production orders, the timeline is roughly 30-35 days depending on the specifications.
Q: What are your standard payment terms?
A: Typically, for mass orders, we require a 30% down payment with the balance paid before shipment. Sample orders require 100% payment upfront.
Q: What kind of warranty do you offer on heat pumps?
A: We offer 24 months for complete units and 36 months for core components like compressors and heat exchangers. Extended warranties are available upon request.
