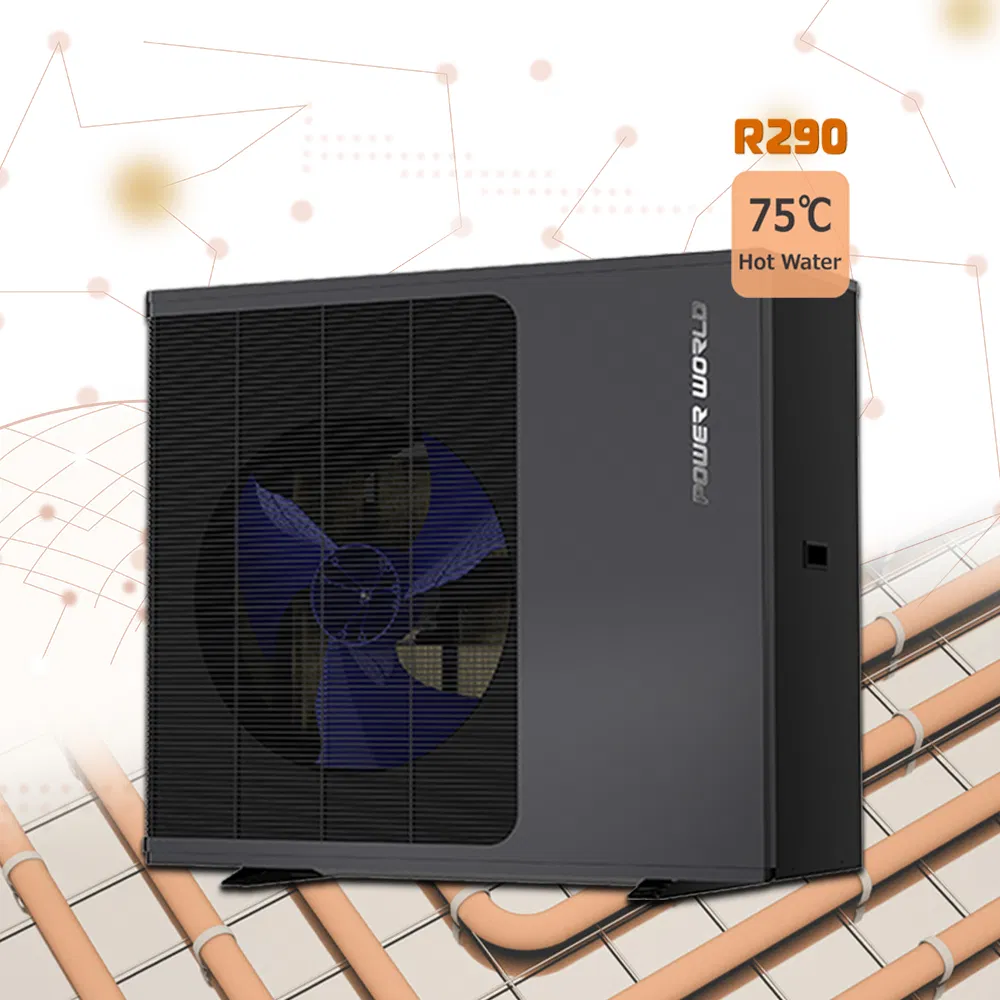

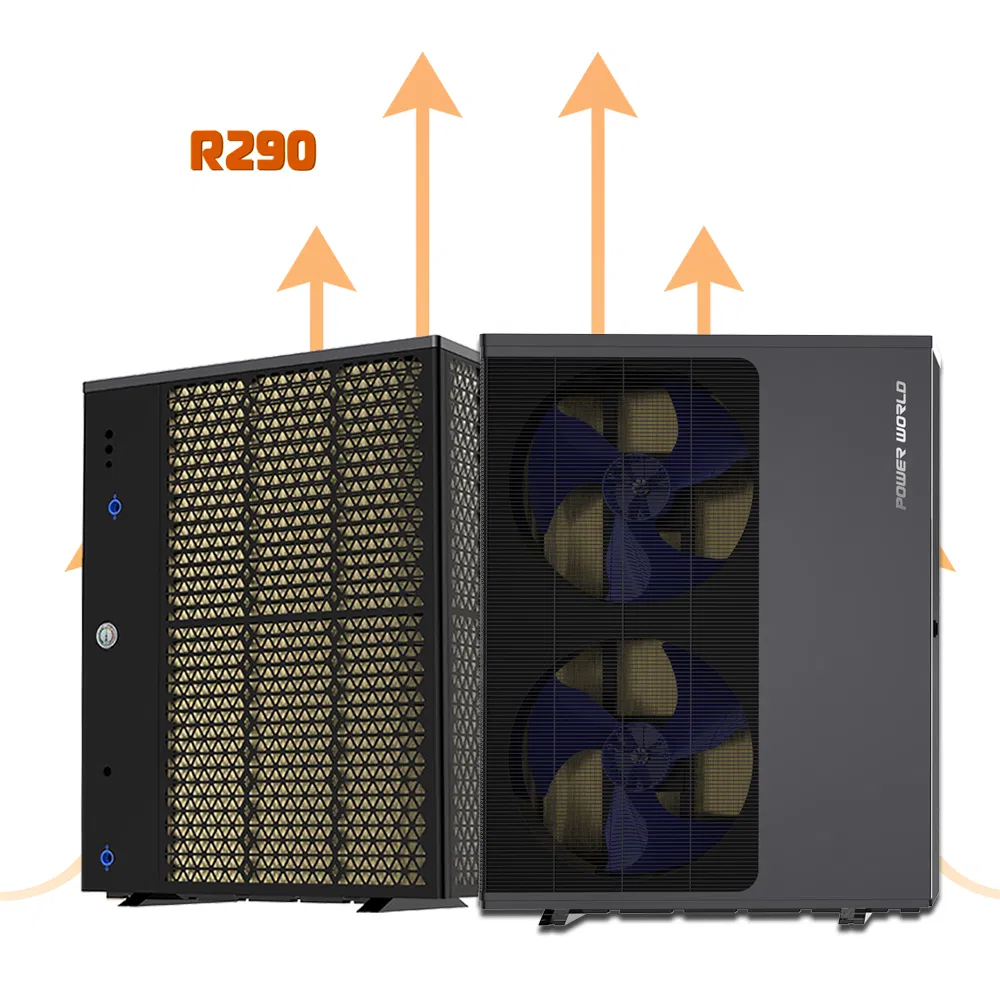

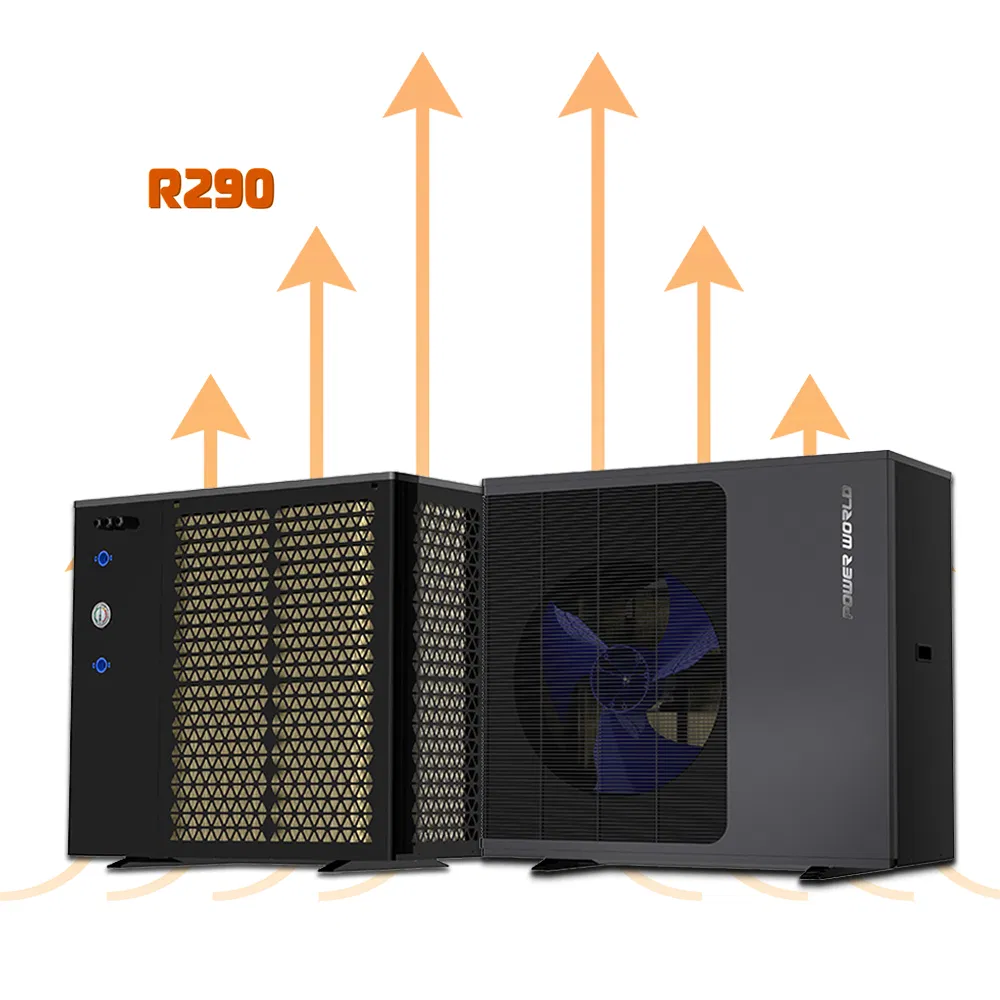

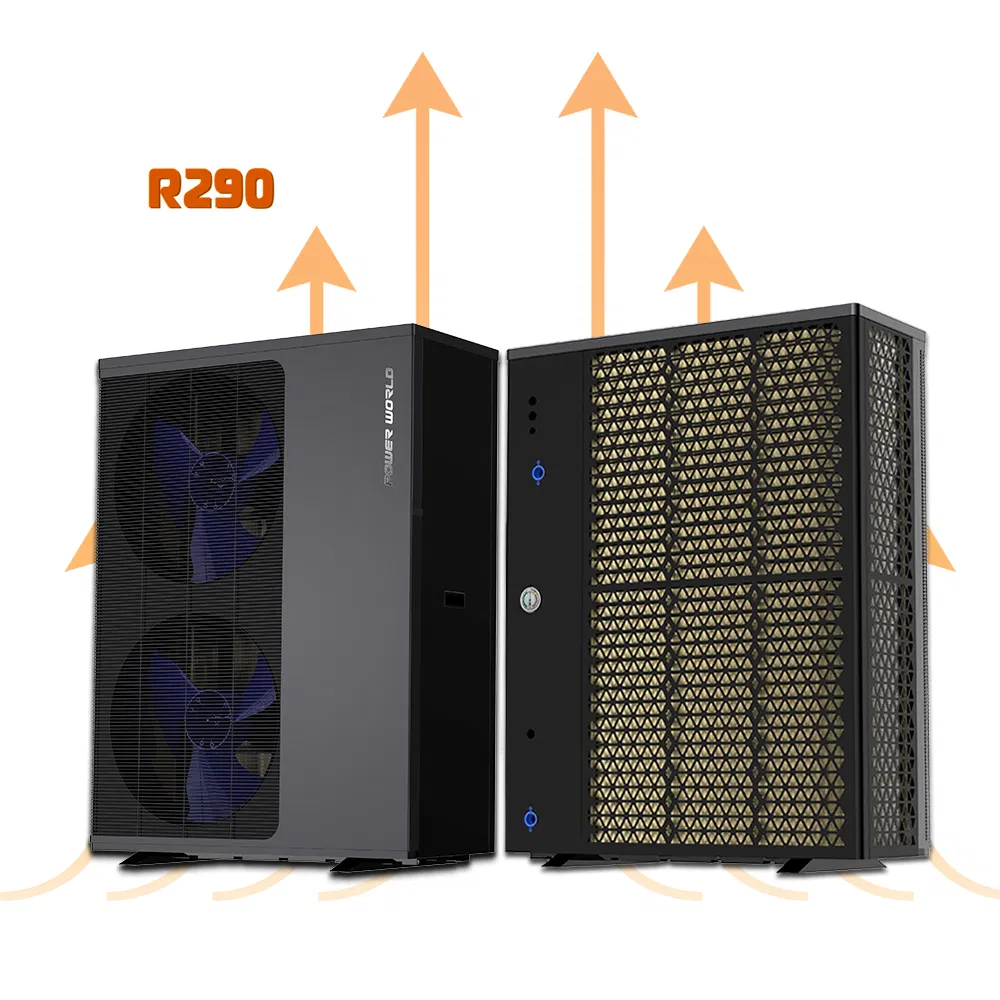

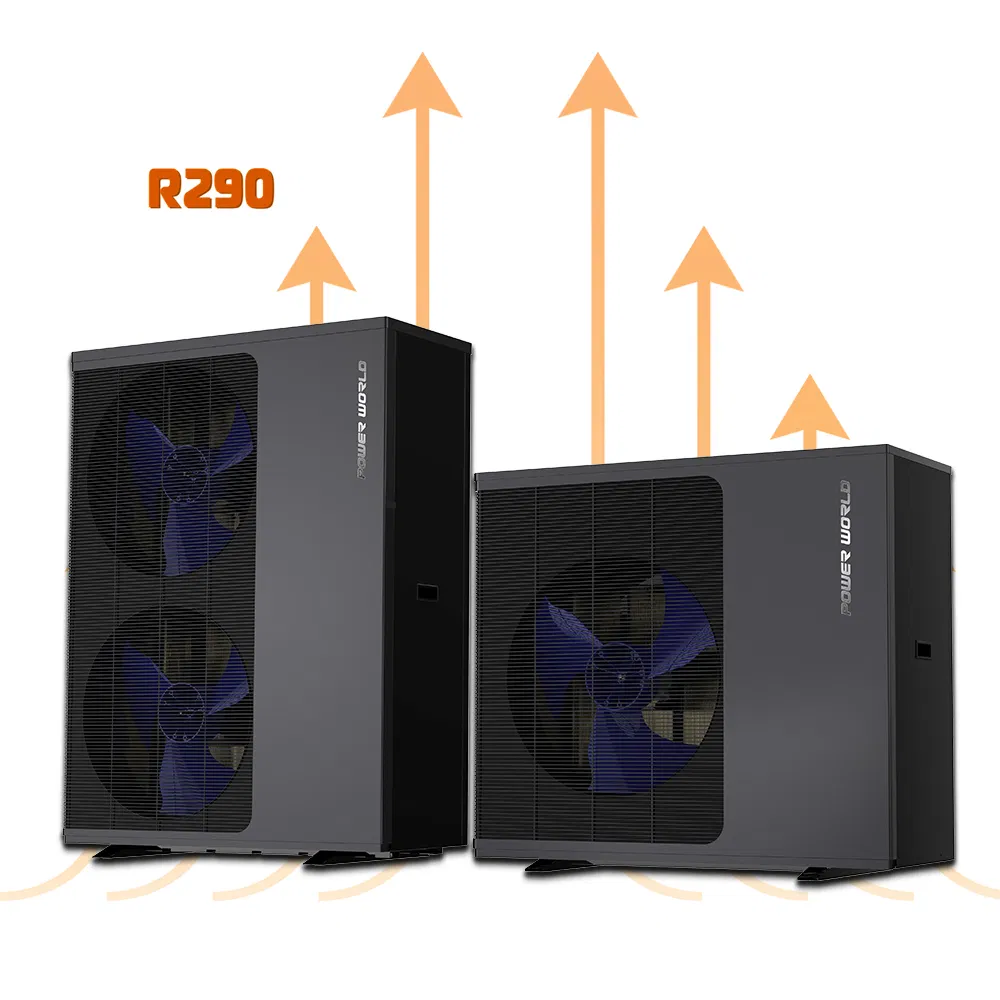

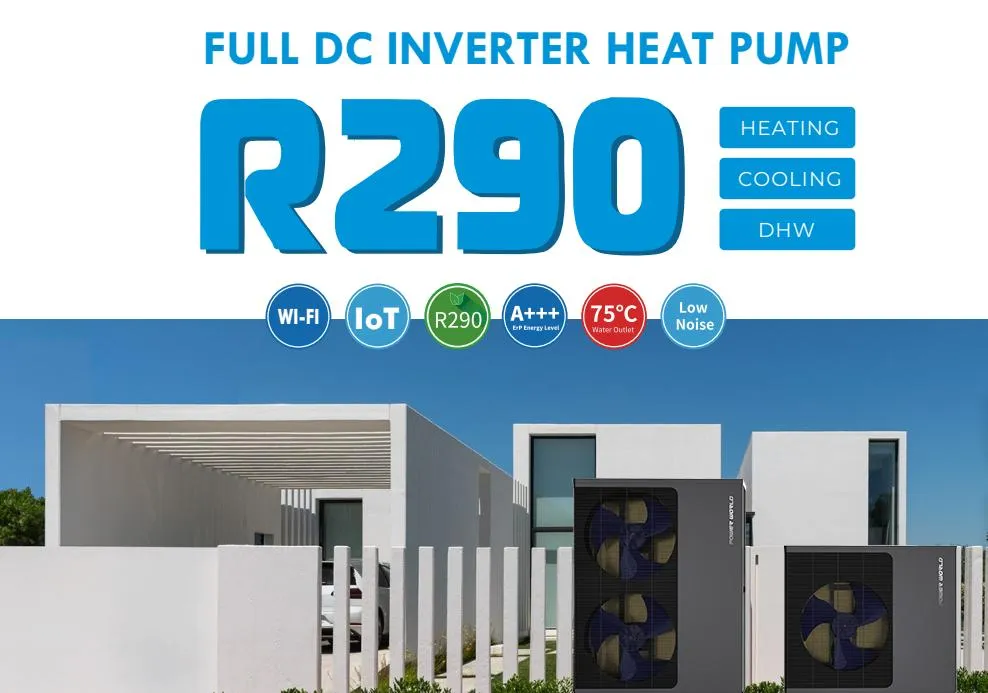

To reduce carbon emissions to the environment and curb global warming, the R290 Full DC Inverter Heat Pump has been developed. Compared to R410A (GWP 2100) and R32 (GWP 675), R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant with the highest development potential in the industry.

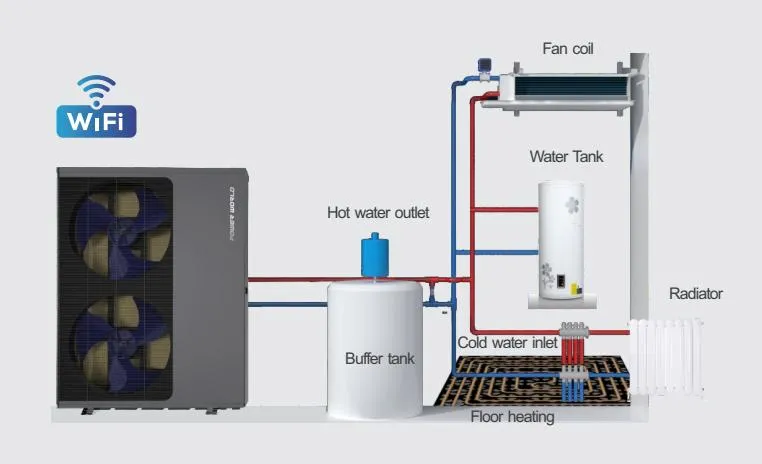

The R290 FULL DC INVERTER Heat Pump meets all-year house needs via a 3-way valve:
The unit operates stably and efficiently in extremely cold regions down to -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water for comprehensive home climate control.
Utilizing full DC inverter technology, the unit intelligently adjusts operating frequency and water temperature. It saves up to 50% energy compared to ON-OFF units and up to 75% compared to traditional electric heat pumps.

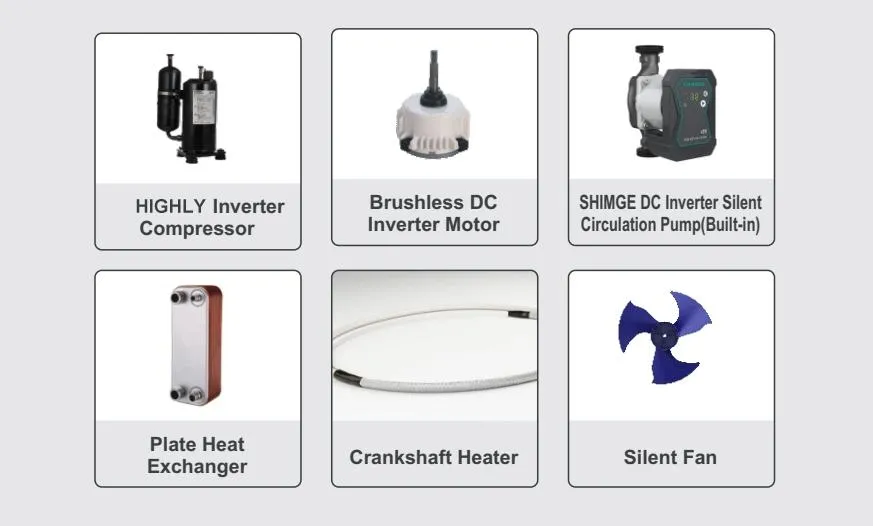

Key Components: DC Inverter Compressor, Stepless DC Fan Motor, DC Water Circulation Pump.

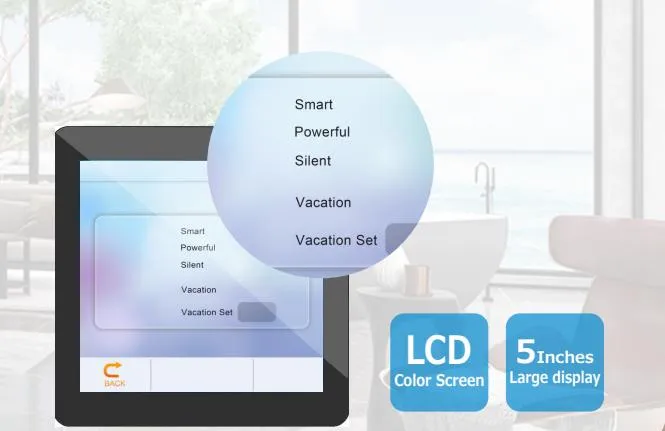

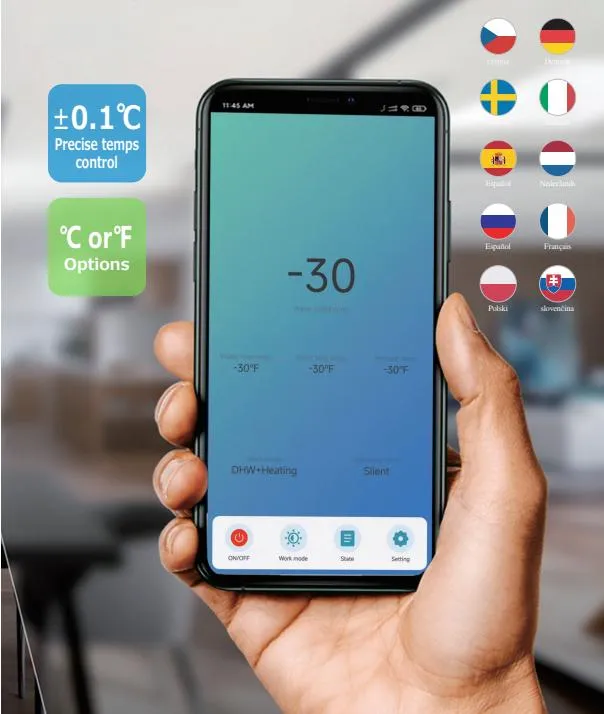

5-Inches large LCD touch screen and "Smart Life" Wi-Fi App support multiple languages. This user-friendly design facilitates easy local operation and remote management.
Choose between Powerful, Smart, Silent, and Vacation modes to optimize energy consumption based on your specific daily needs.

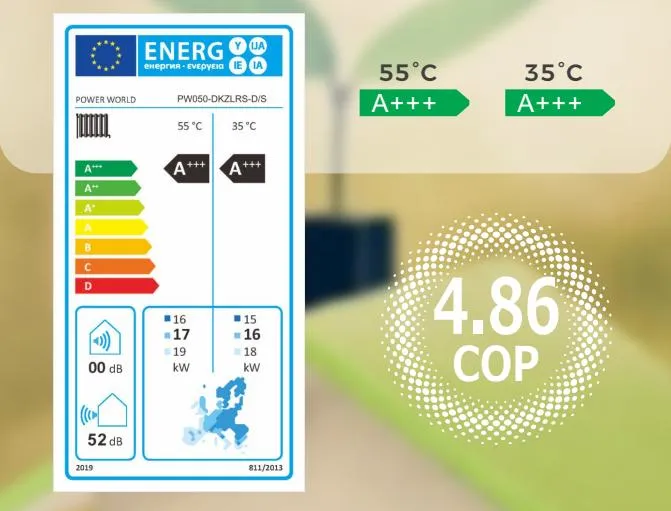

Passed the TUV energy class test, reaching A+++ at both 35°C and 55°C. With an SCOP as high as 4.86, it ensures ultra-high efficiency.
Featuring three-layer sound insulation cotton combined with advanced noise reduction technology, the unit operates smoothly and quietly without mechanical disturbance.

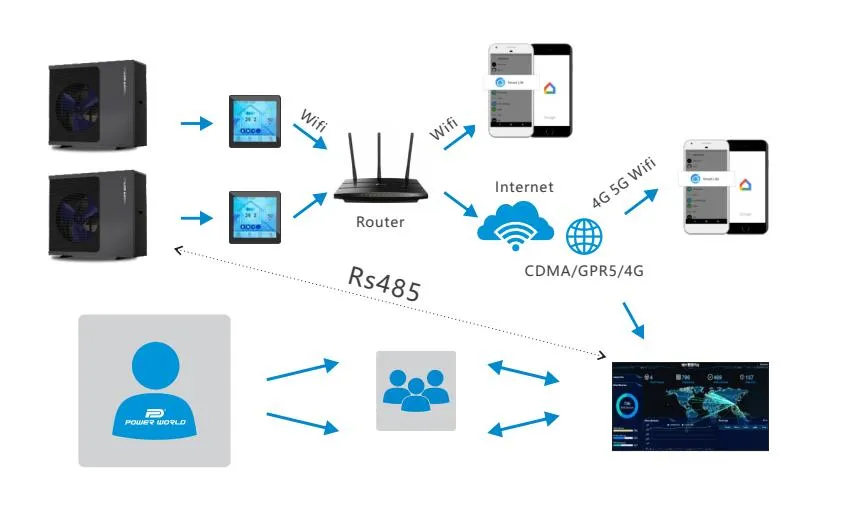

Remote monitoring via Wi-Fi or DUT allows for real-time data tracking. Error reports are synchronized for rapid solutions, saving maintenance costs and time.
| Model | PW030-D/S | PW040-D/S | PW050-D/S | PW040-D | PW050-D | PW060-D |
|---|---|---|---|---|---|---|
| Heating (Ambient 7/6ºC, Water 30/35ºC) | ||||||
| Capacity Range (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| DHW (Ambient 7/6ºC, Water 15/55ºC) | ||||||
| Capacity Range (kW) | 2.5~7.2 | 3.3~9.4 | 4.5~12.8 | 3.3~9.4 | 4.5~12.8 | 6.2~17.6 |
| COP Range | 3.37~3.82 | 3.41~3.85 | 3.46~3.92 | 3.41~3.85 | 3.46~3.92 | 3.48~3.96 |
| Cooling (Ambient 35/24ºC, Water 12/7ºC) | ||||||
| Capacity Range (kW) | 2.1~5.8 | 2.9~8.2 | 4.5~12.8 | 2.9~8.2 | 4.5~12.8 | 5.4~15.3 |
| EER Range | 2.65~3.04 | 2.67~3.06 | 2.71~3.10 | 2.67~3.06 | 2.71~3.10 | 2.73~3.12 |
| General Specifications | ||||||
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||||
| Power Supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤52 | ≤53 |
| Net Weight (kg) | 105 | 115 | 160 | 115 | 160 | 165 |

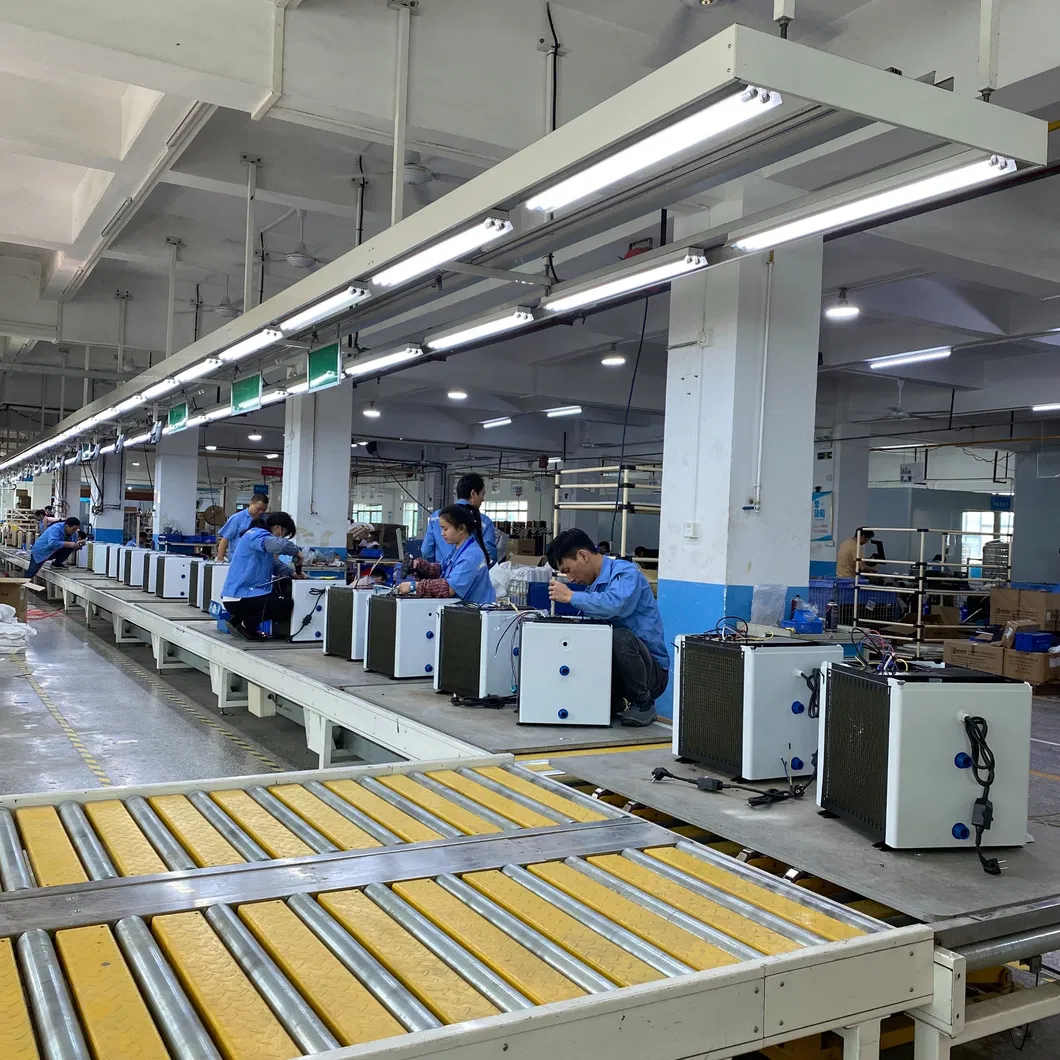

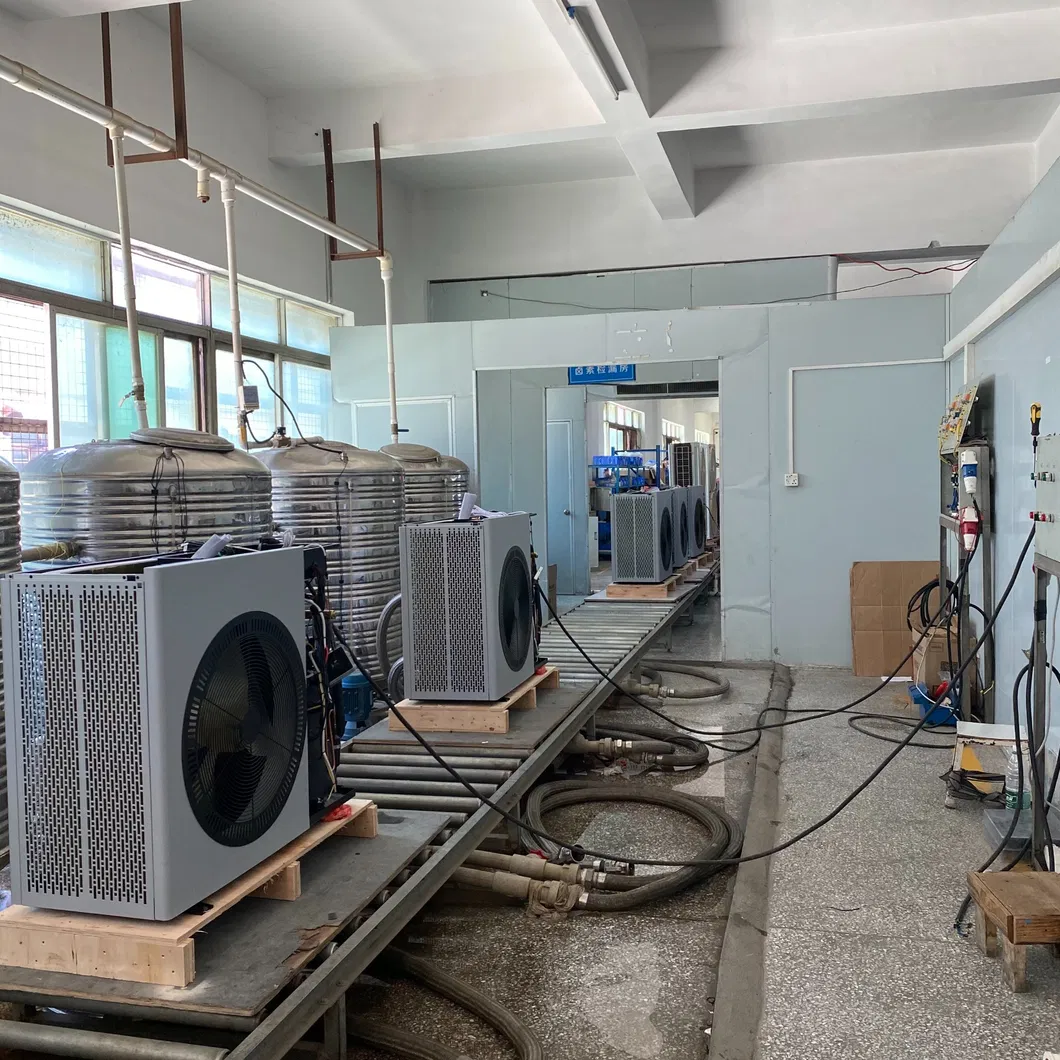

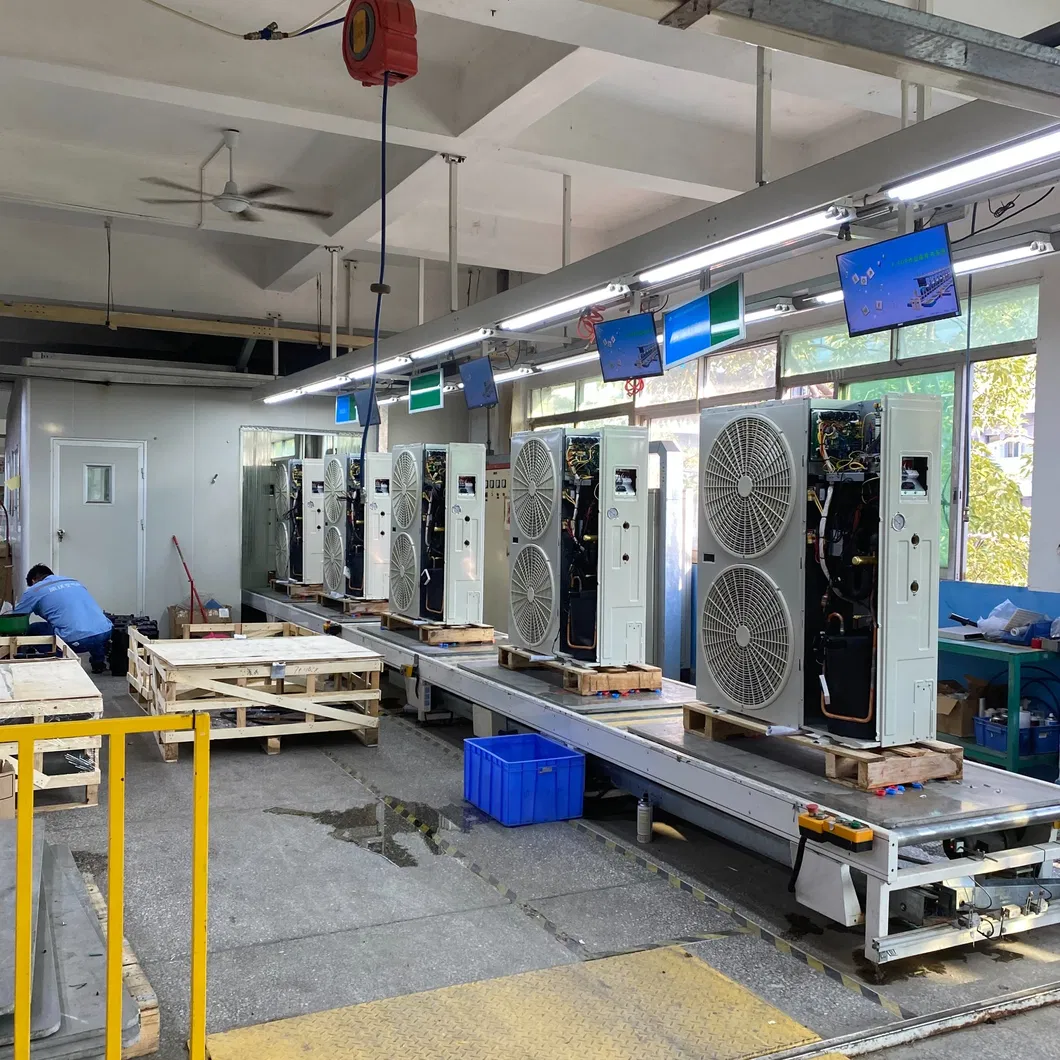

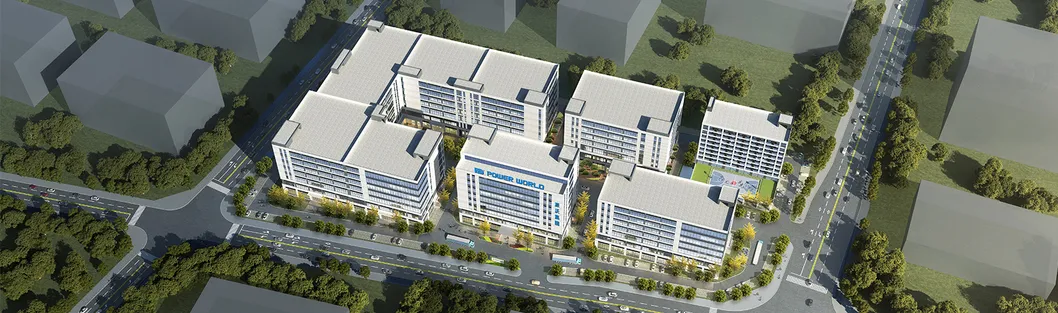

Established in 2004, the enterprise focuses on the research, development, production, and sales of high-tech air source heat pump products. With a complete industry chain, the manufacturer produces swimming pool heat pumps, residential climate solutions, and industrial high-temperature hot water systems. The export volume of inverter heat pumps has consistently ranked among the top in the region, serving over 60 countries including Germany, France, Poland, and Sweden.
With more than 80 product patents and ISO 9001/14001, CE, and ERP certifications, the company employs a robust technical team including senior engineers and over 500 production personnel. The commitment remains focused on delivering quality and technological innovation to global markets.
