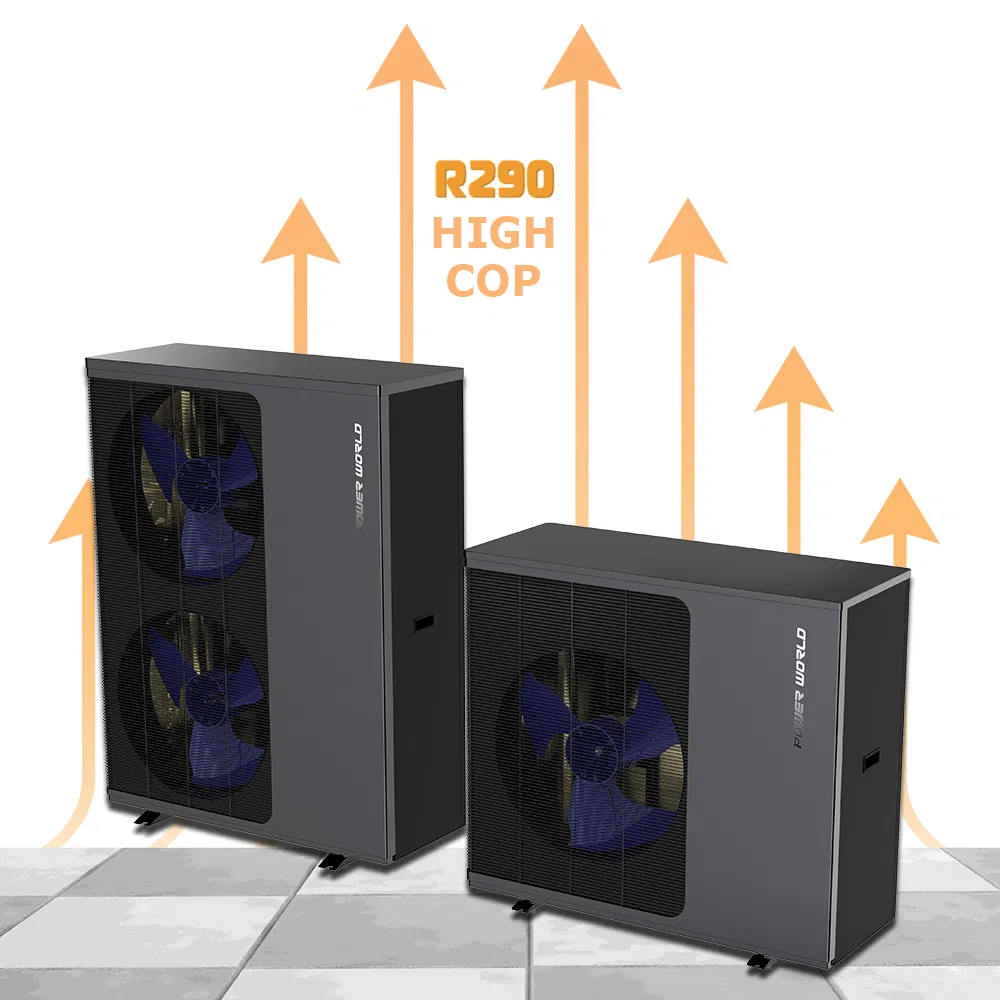

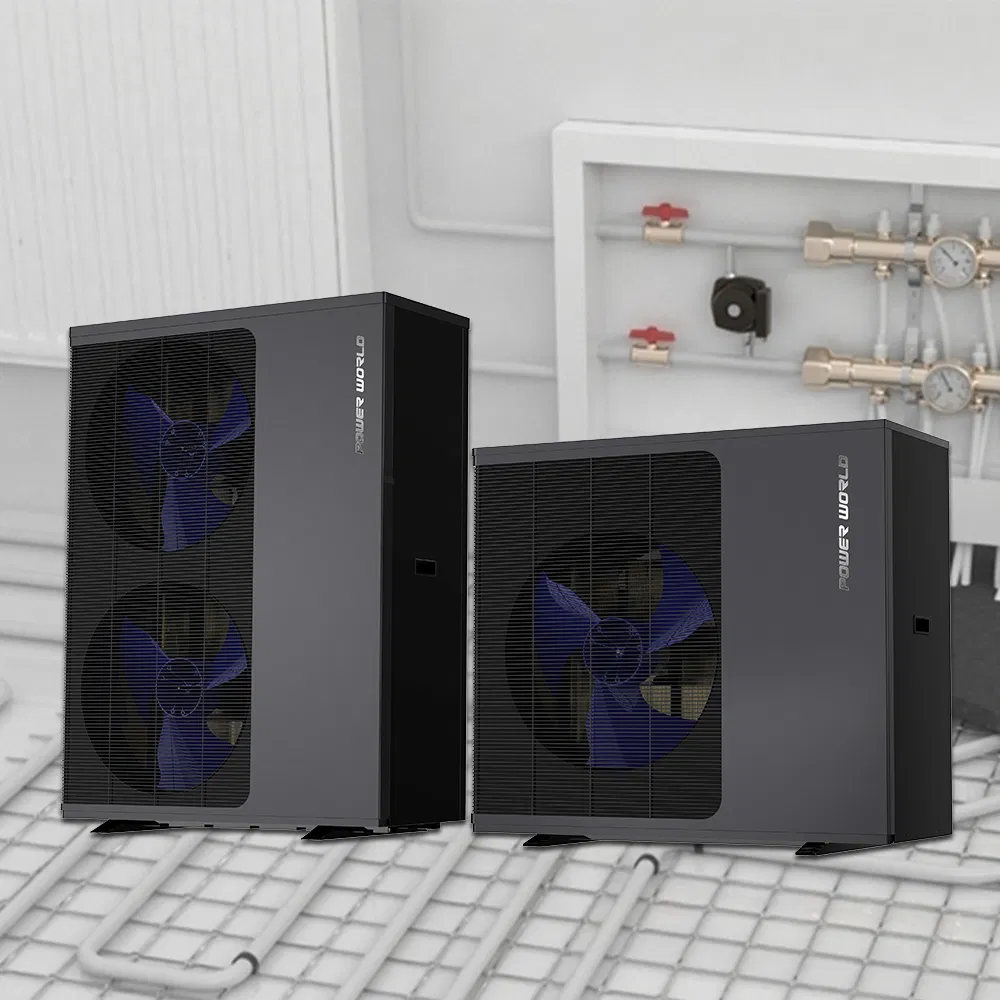

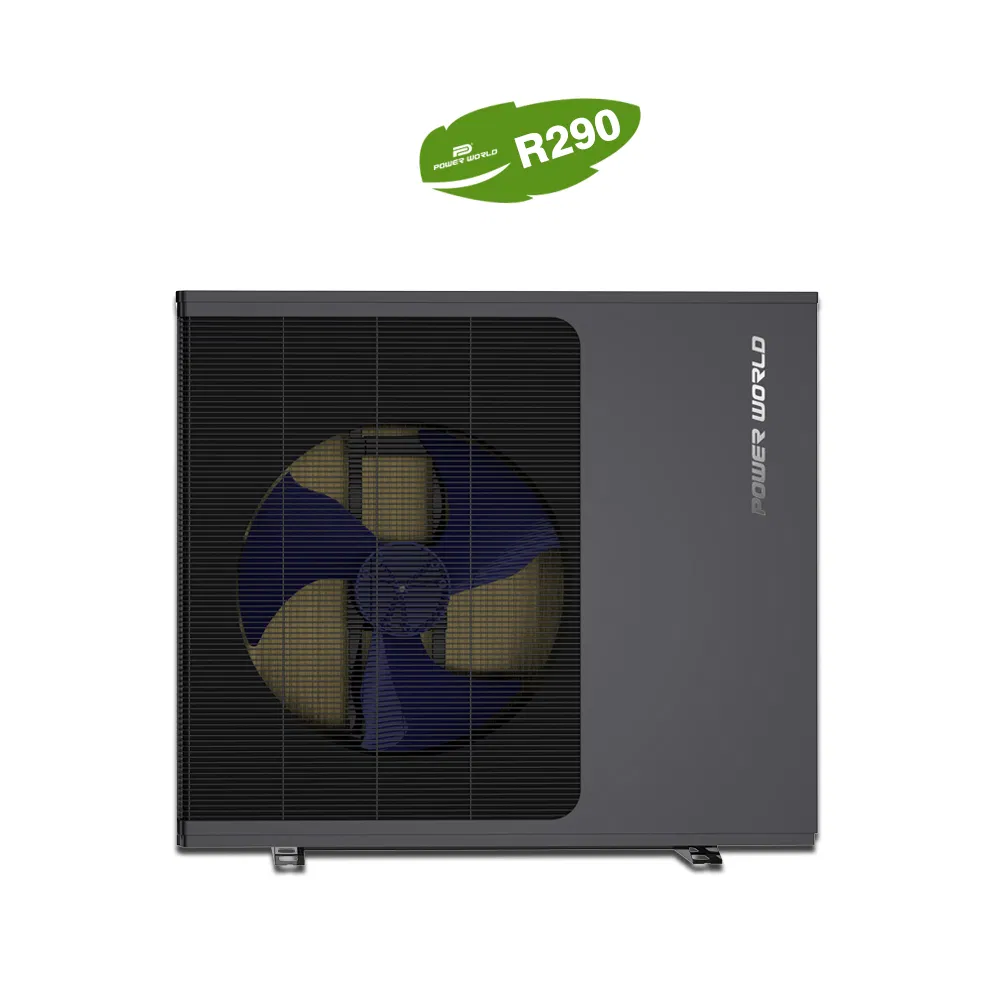

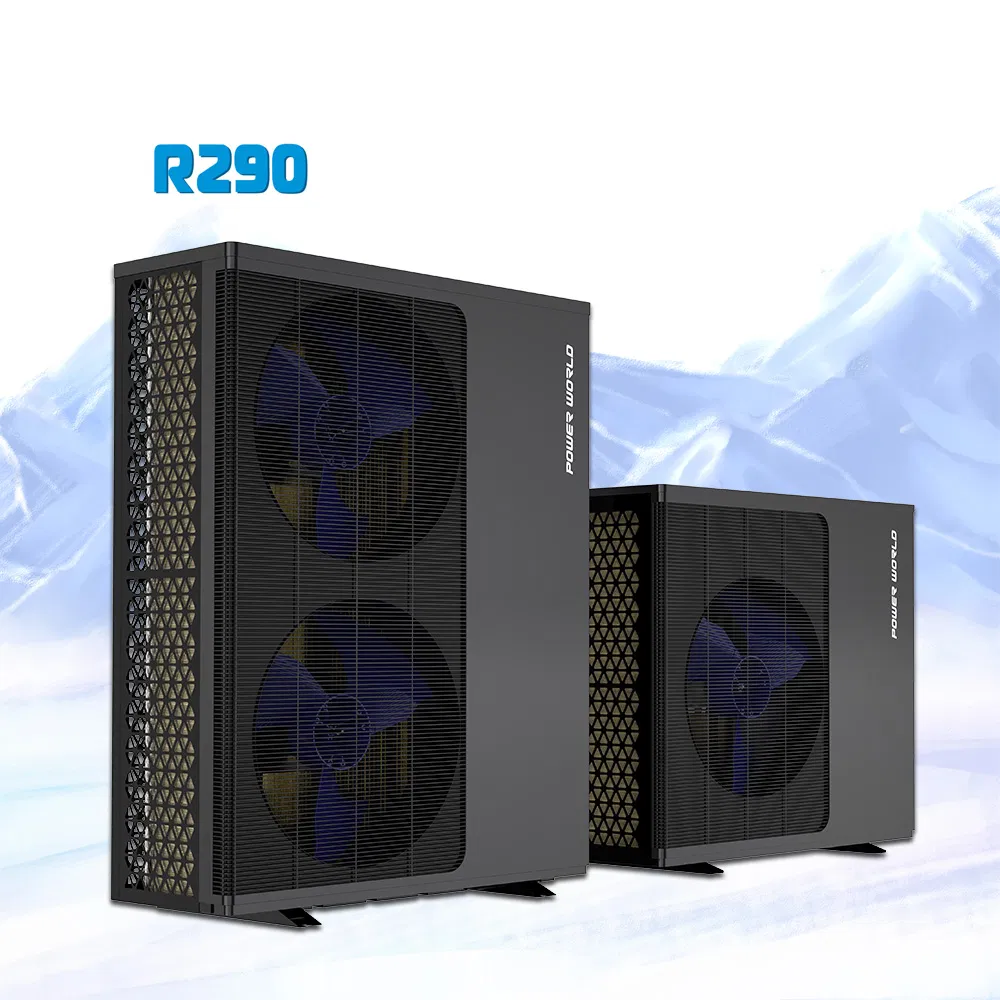

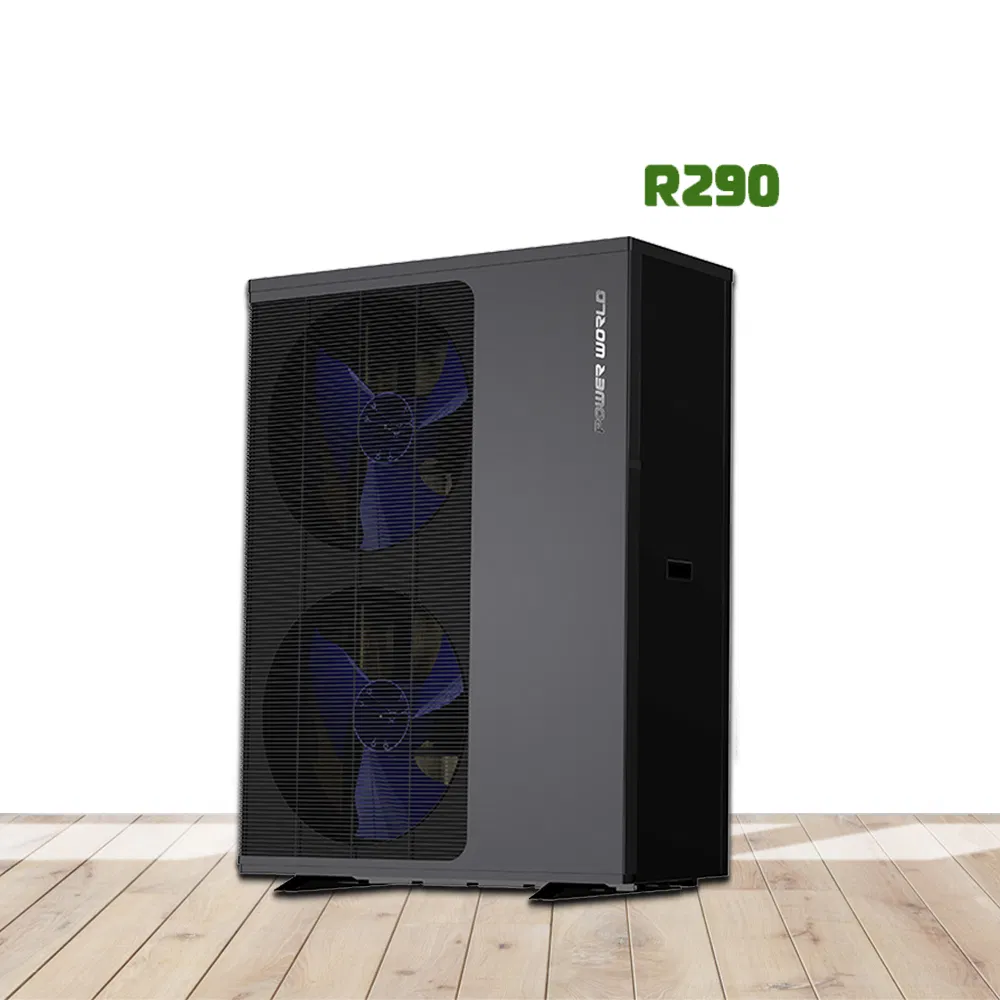

To reduce carbon emissions and curb global warming, the R290 Full DC Inverter Heat Pump has been developed. Compared to R410A (GWP 2100) and R32 (GWP 675), R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant in the industry.

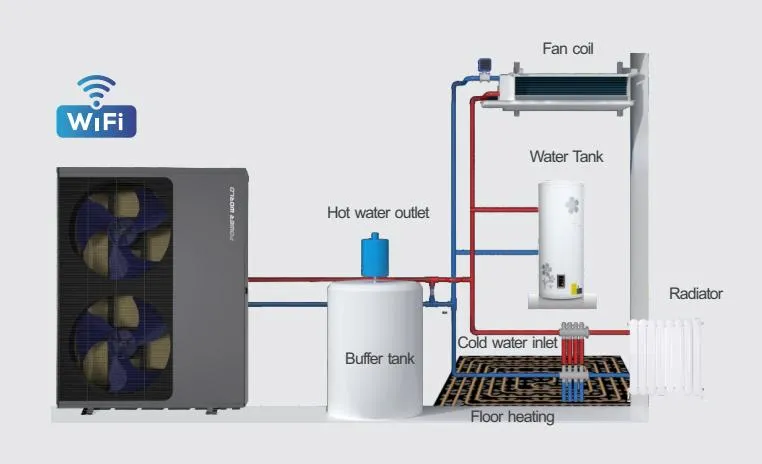

The perfect performance of the R290 FULL DC INVERTER Heat Pump meets house heating, cooling, and domestic hot water needs throughout the year via a 3-way valve:
Under low ambient temperatures, normal heat pumps are limited. This R290 FULL DC INVERTER heat pump operates stably in extremely cold regions down to -25ºC without EVI technology, maintaining high COP and outputting 75ºC hot water.

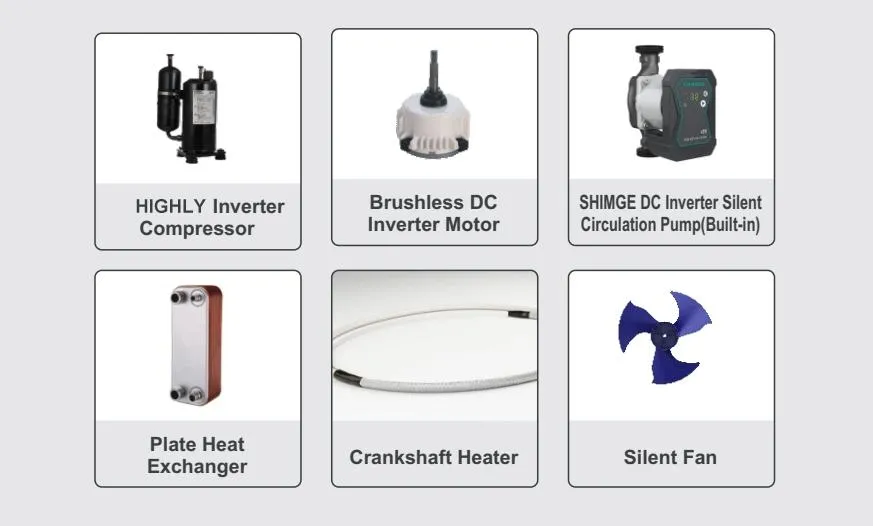

Intelligently adjusts operating frequency and water temperature. Save up to 50% energy compared to ON-OFF units and up to 75% compared to traditional boilers. Features Panasonic DC Inverter Compressor and Stepless Fan Motor.
Passed ERP A+++ energy class test by TUV. Reaches A+++ at both 35°C and 55°C water temperatures with a SCOP as high as 4.86.

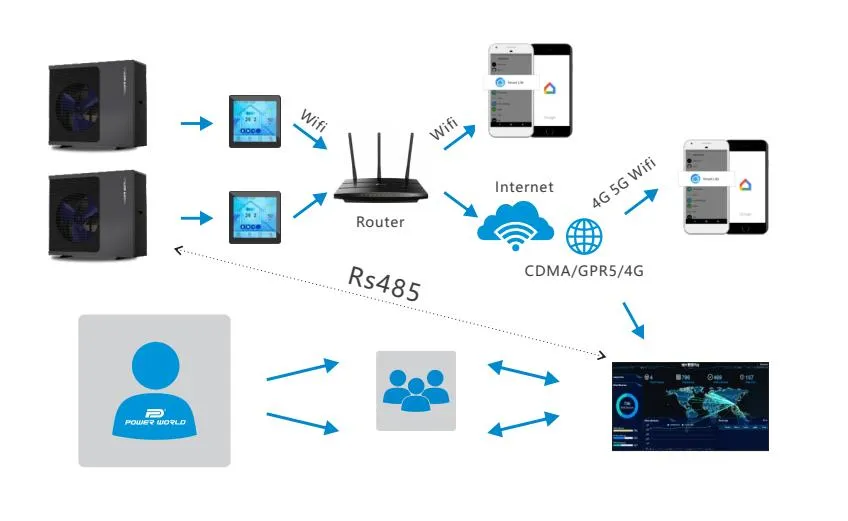

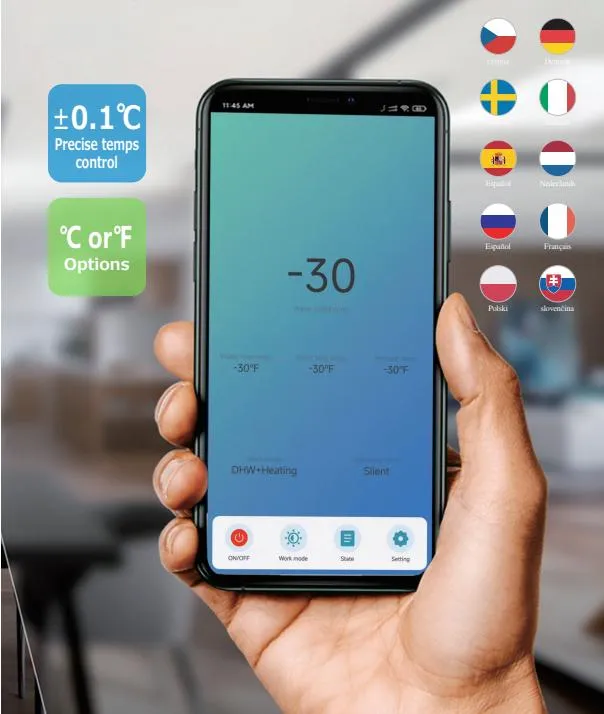

Connect via Wi-Fi or DUT for remote monitoring. Operating parameters are recorded, allowing for quick error diagnosis and synchronization with service backgrounds to reduce maintenance costs.
| Model | PW030-DKZLRS | PW040-DKZLRS | PW050-DKZLRS | PW040-DKZLRS-D | PW050-DKZLRS-D | PW060-DKZLRS-D |
|---|---|---|---|---|---|---|
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤52 | ≤53 |
| Net Weight (kg) | 105 | 115 | 160 | 115 | 160 | 165 |

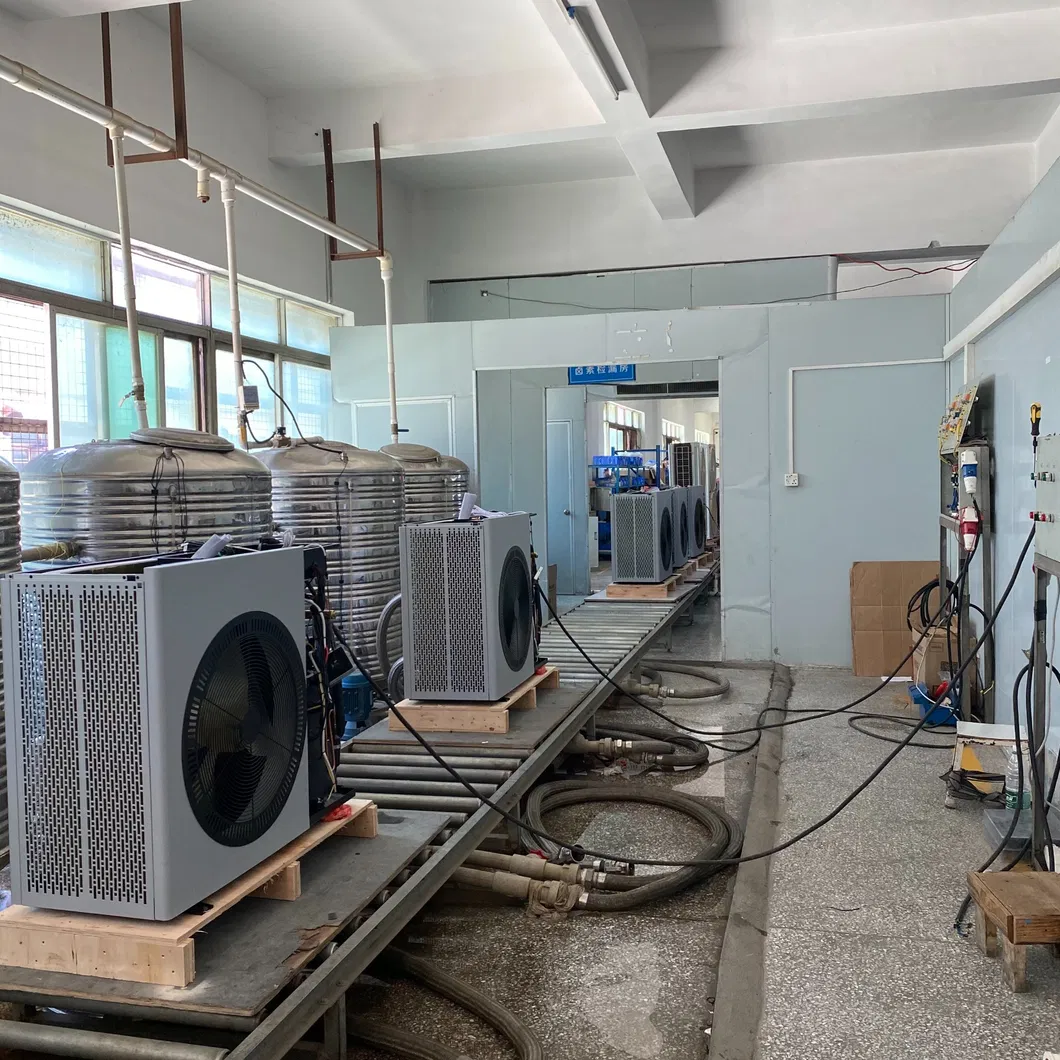

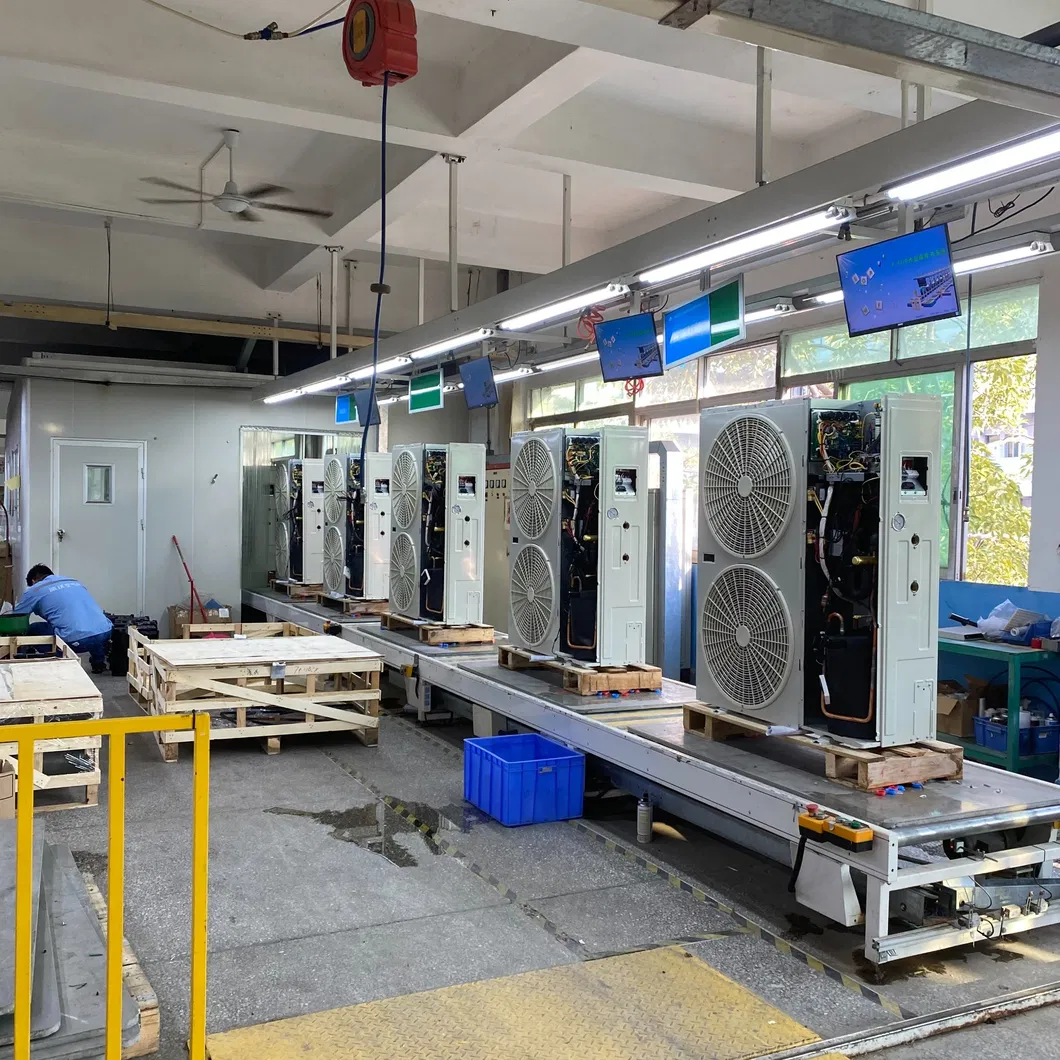

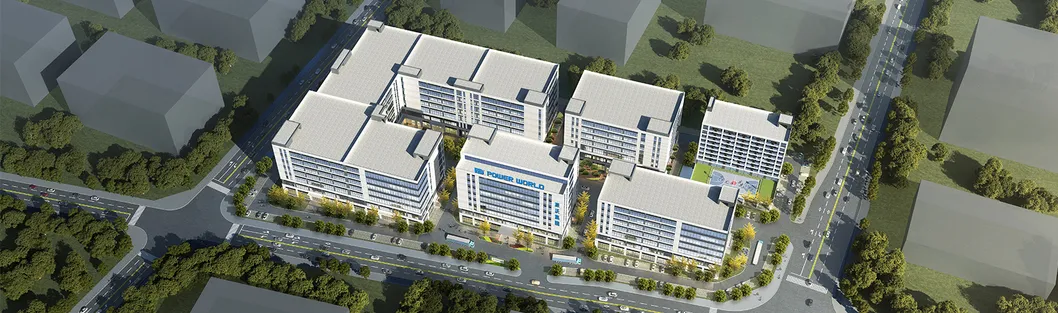

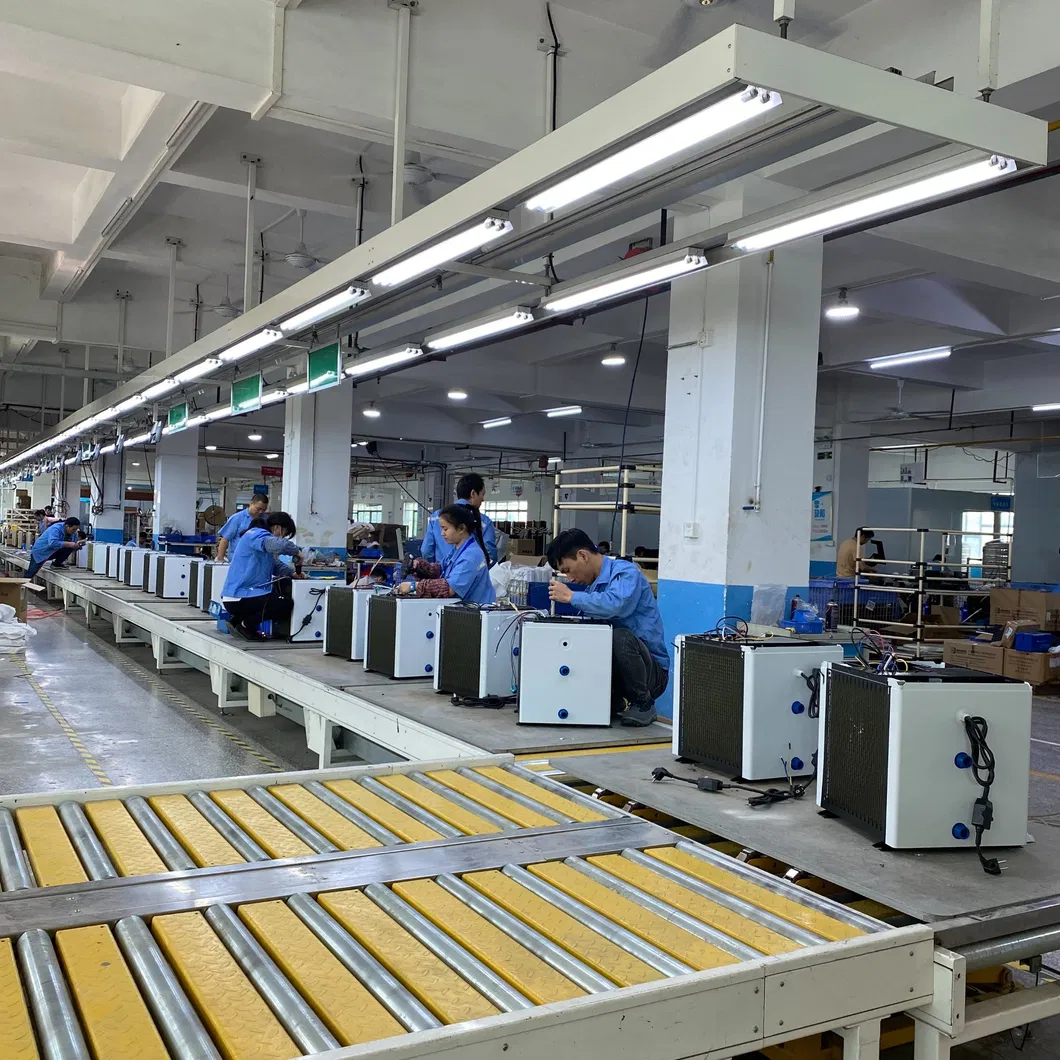

Established in 2004, this high-tech enterprise focuses on the R&D and production of air source heat pumps. With a complete industry chain, the product range includes residential heating/cooling, swimming pool heat pumps, and industrial hot water solutions. The company has a strong R&D backbone with more than 80 patents and certifications including ISO9001, CE, and ERP.
