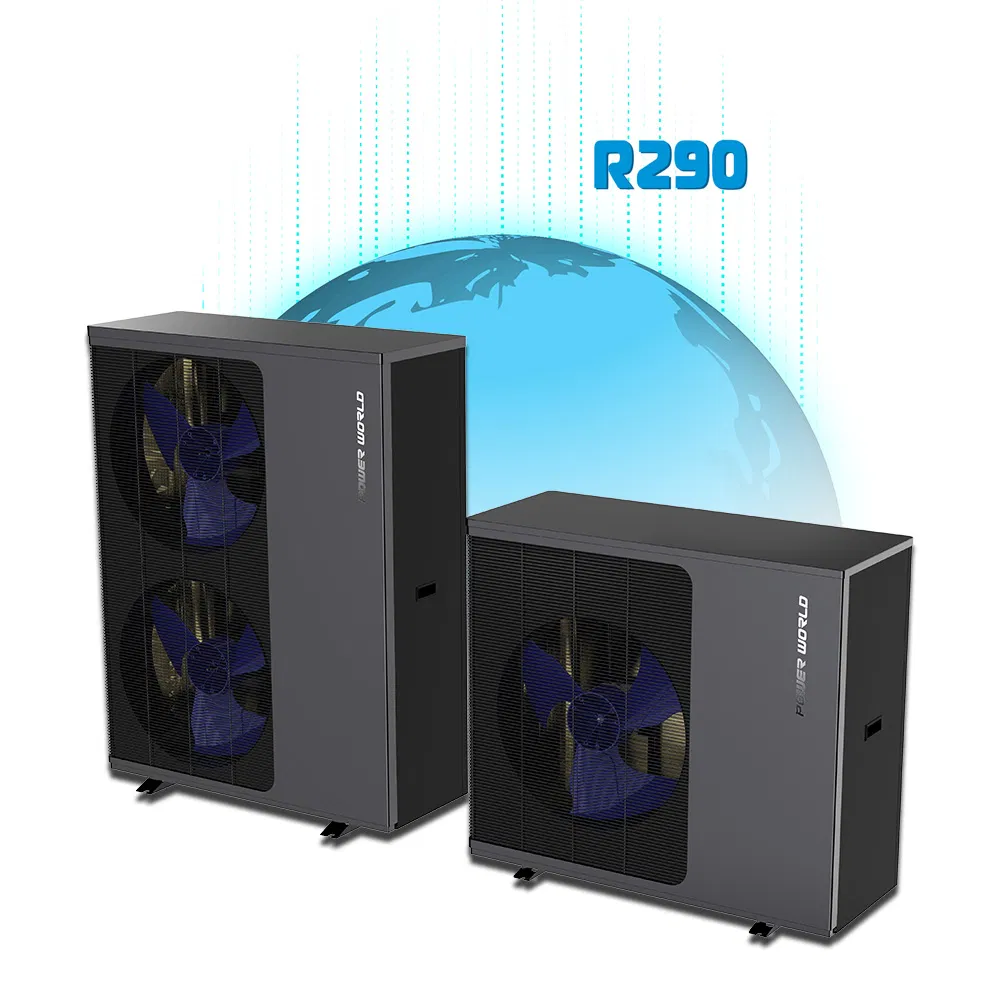

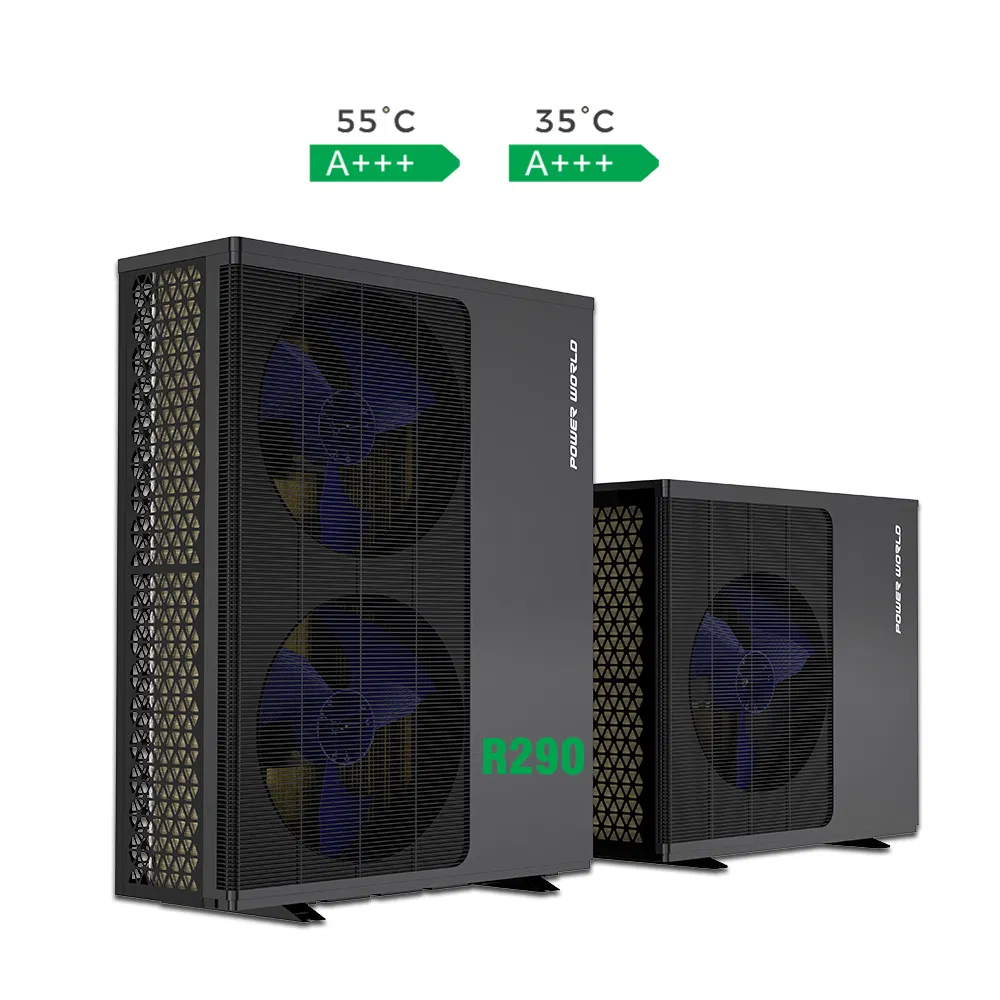

To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most eco-friendly refrigerant with significant development potential.

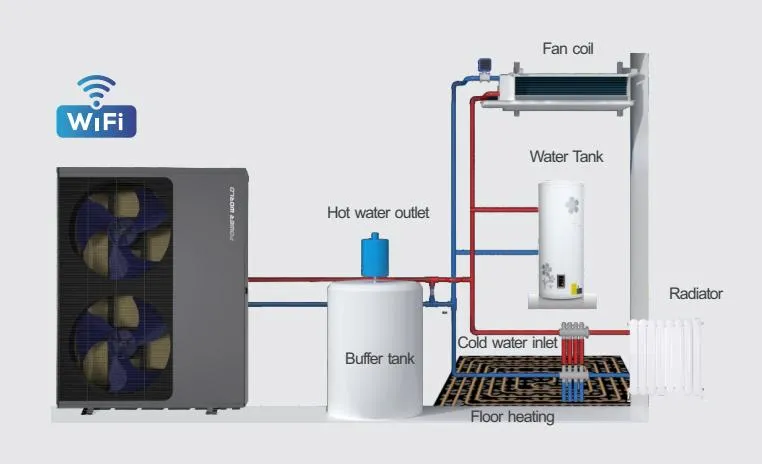

The R290 FULL DC INVERTER Heat Pump meets diverse needs throughout the year, including house heating, cooling, and domestic hot water (via 3-way valve):

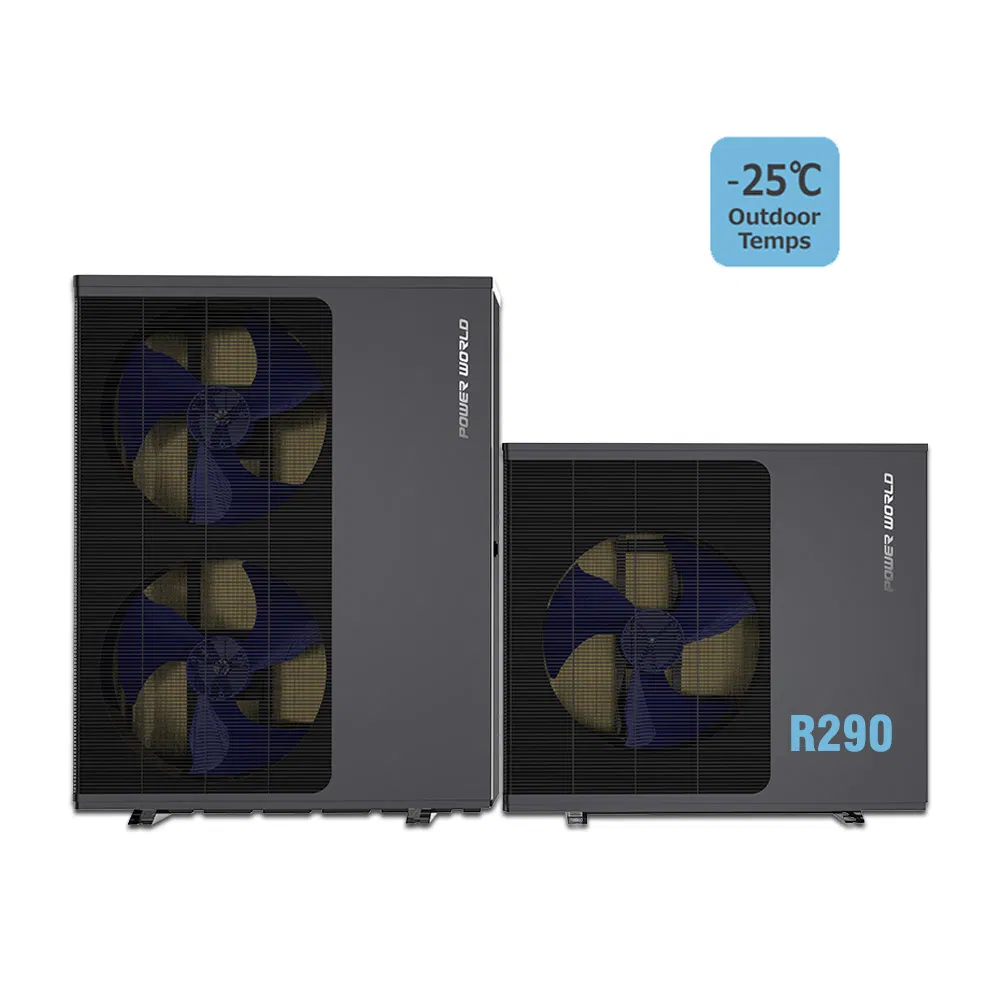

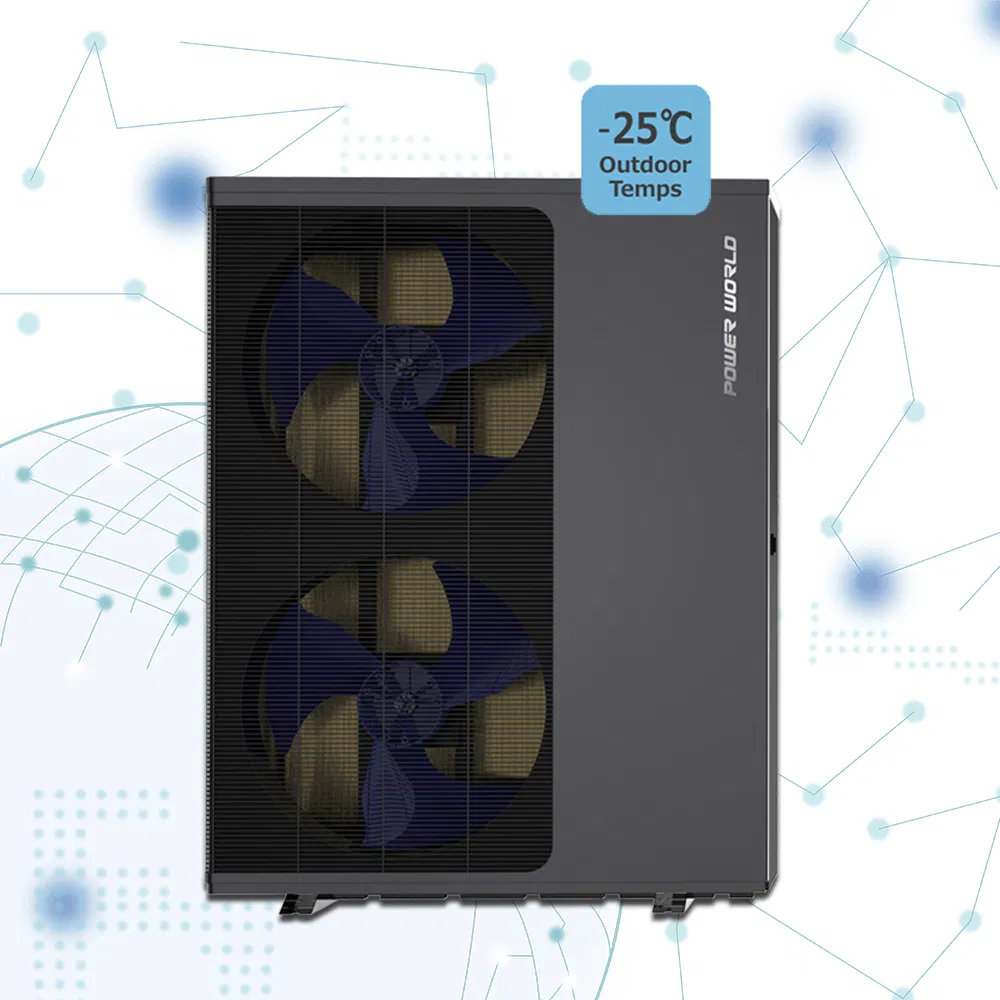

Under low ambient temperatures, normal heat pump performance is often limited. Our R290 FULL DC INVERTER heat pump operates stably and efficiently in extreme cold regions down to -25ºC without EVI technology, maintaining high COP and outputting 75ºC hot water.
Full DC inverter technology allows the unit to intelligently adjust operating frequency and control water temperature. It can save up to 50% energy compared to ON-OFF units and up to 75% compared to traditional electric heat pumps.

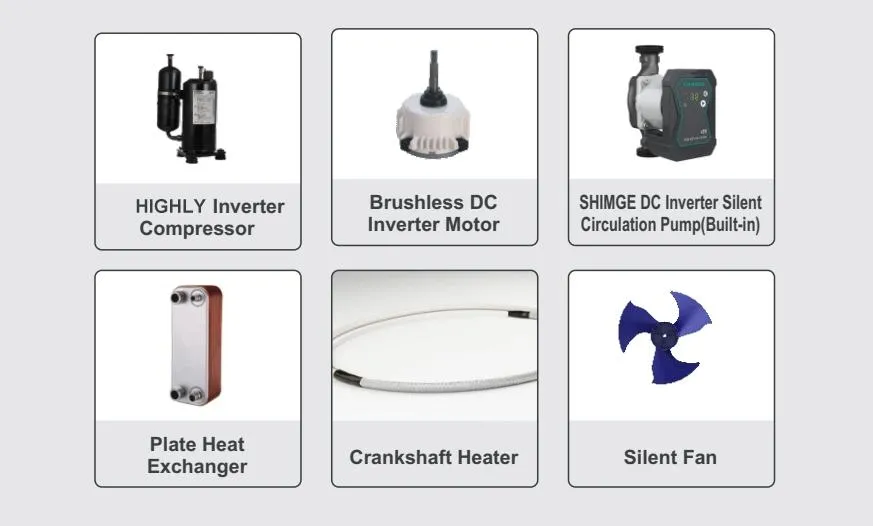

Key Components: DC Inverter Panasonic Compressor, Stepless DC Inverter Fan Motor, DC Inverter Water Circulation Pump.

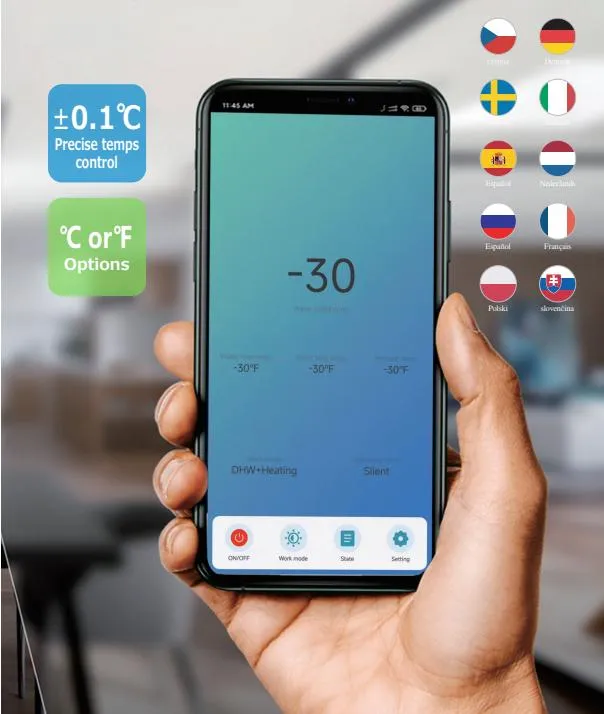

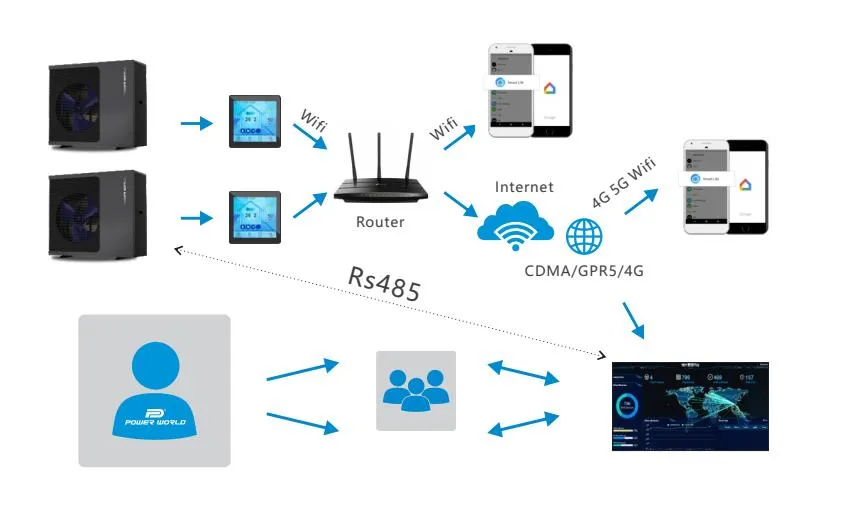

Equipped with three-layer sound insulation and noise reduction technology, the unit runs smoothly and quietly. The integrated IoT cloud platform allows for remote monitoring of data via Wi-Fi, facilitating quick technical support and reducing maintenance costs.
| Model | PW030-DKZLRS-D/S | PW040-DKZLRS-D/S | PW050-DKZLRS-D/S | PW040-DKZLRS-D | PW050-DKZLRS-D | PW060-DKZLRS-D |
| Heating Condition - Ambient Temp. 7/6ºC, Water Temp. 30/35ºC | ||||||
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤52 | ≤53 |
| Net Dimension (mm) | 970×475×820 | 1080×475×970 | 1050×480×1380 | 1080×475×970 | 1050×480×1380 | 1050×480×1380 |

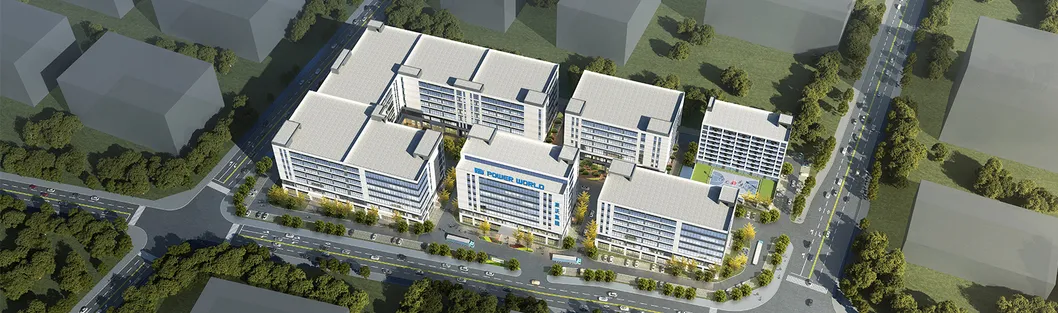

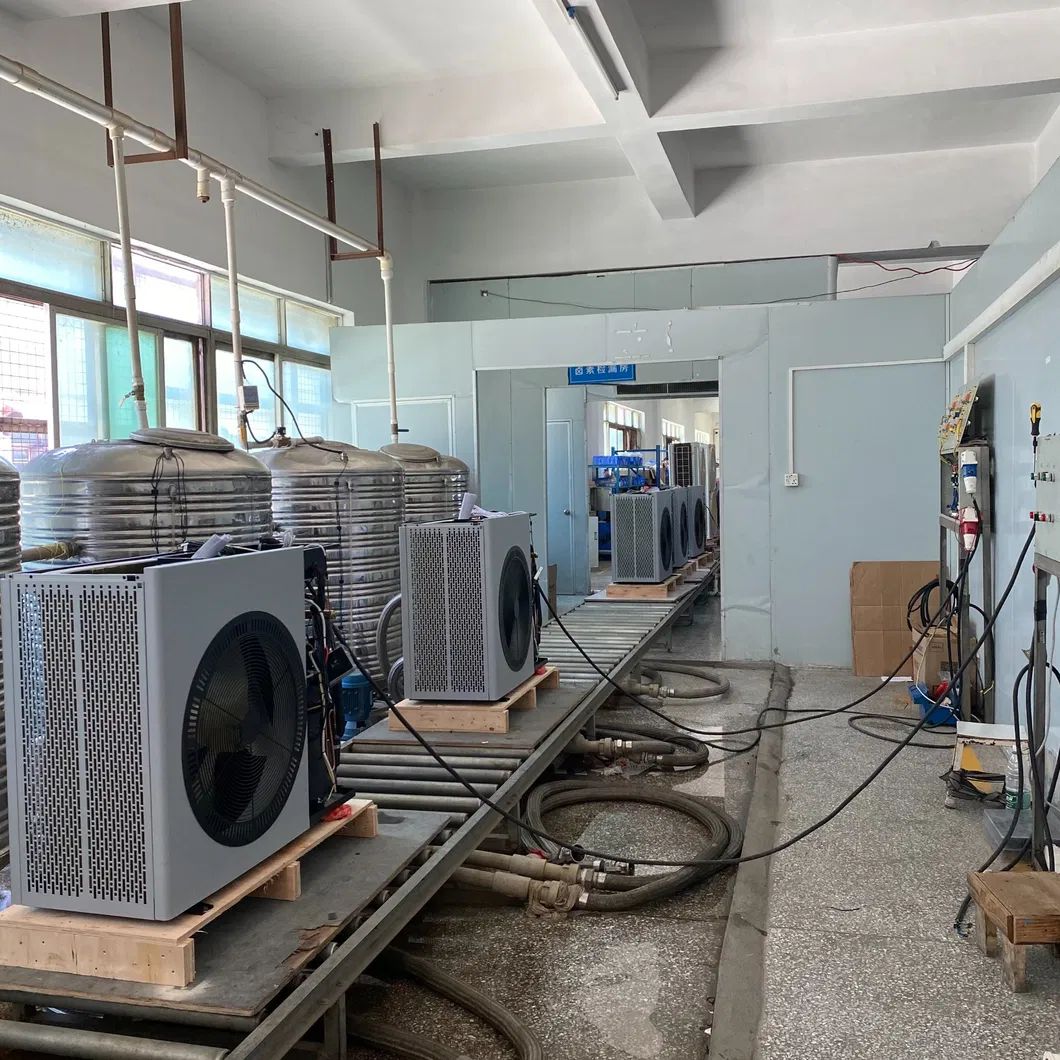

Established in 2004, we are a high-tech enterprise focusing on the research, development, production, and sales of air source heat pump products. With a complete heat pump industry chain, our production covers swimming pool heat pumps, residential heating/cooling solutions, and industrial high-temperature hot water systems. Our export volume for inverter heat pumps has consistently ranked among the top in the industry.

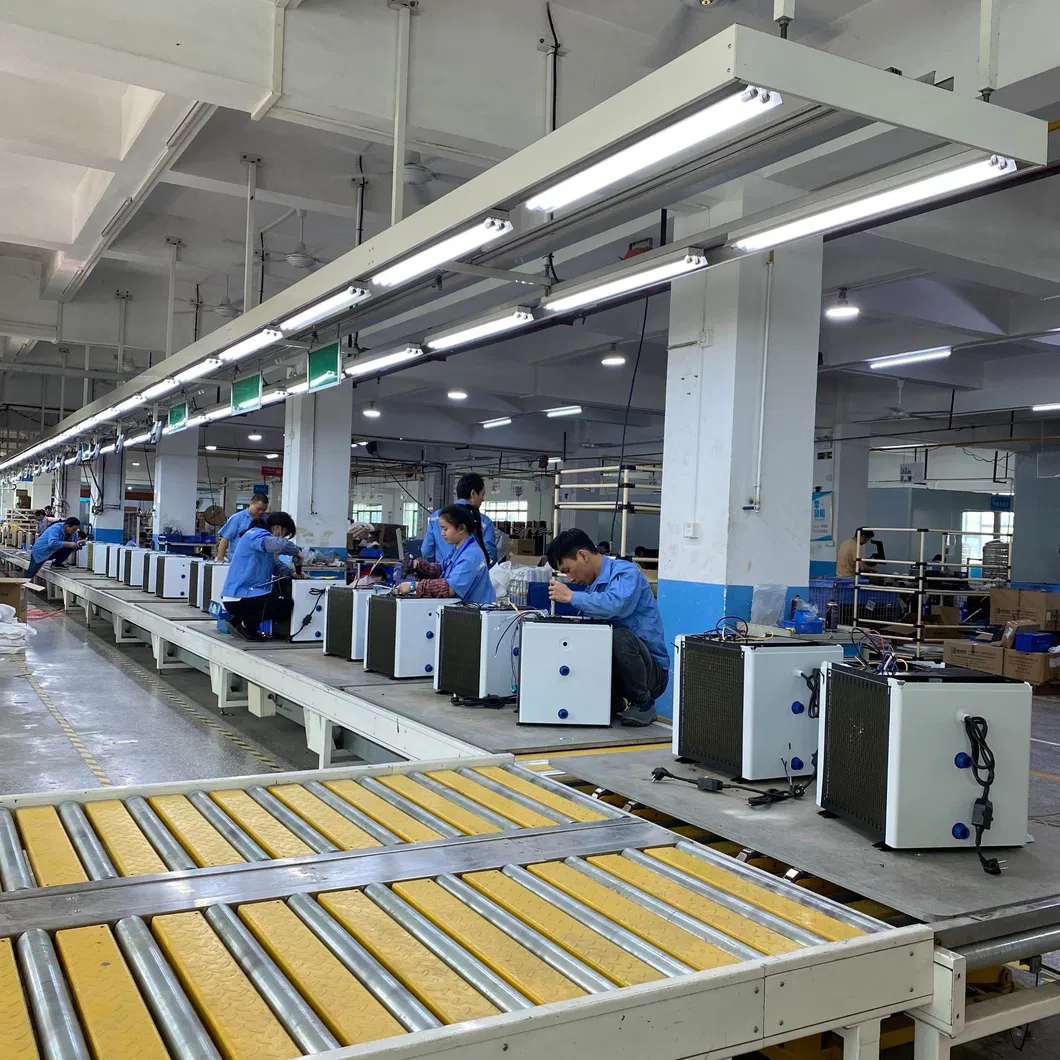

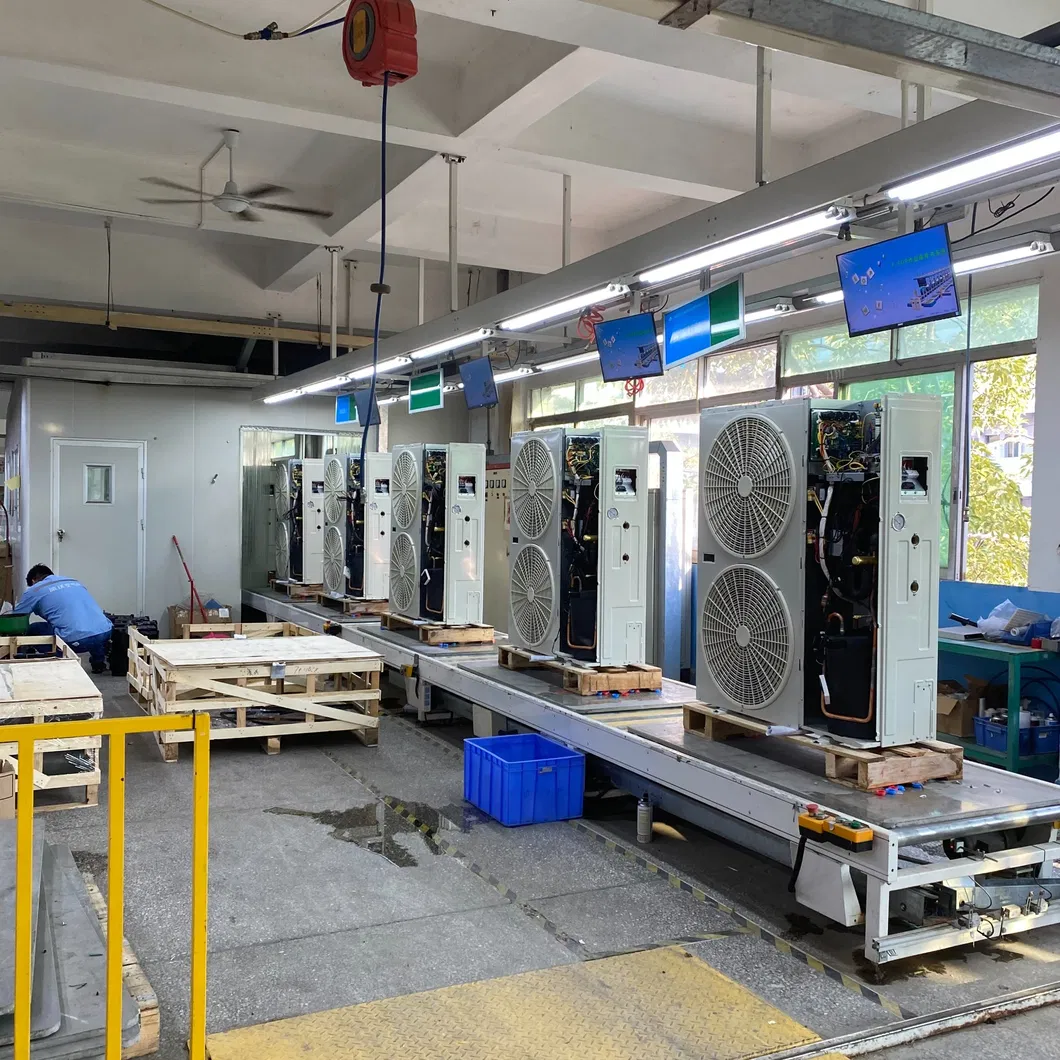

We maintain a professional talent structure with senior engineers and over 500 experienced production personnel. Committed to innovation, we have obtained over 80 product patents and our units are ISO 9001, ISO 14001, CE, and ERP certified. We strive to provide the best quality and service to our global partners.
