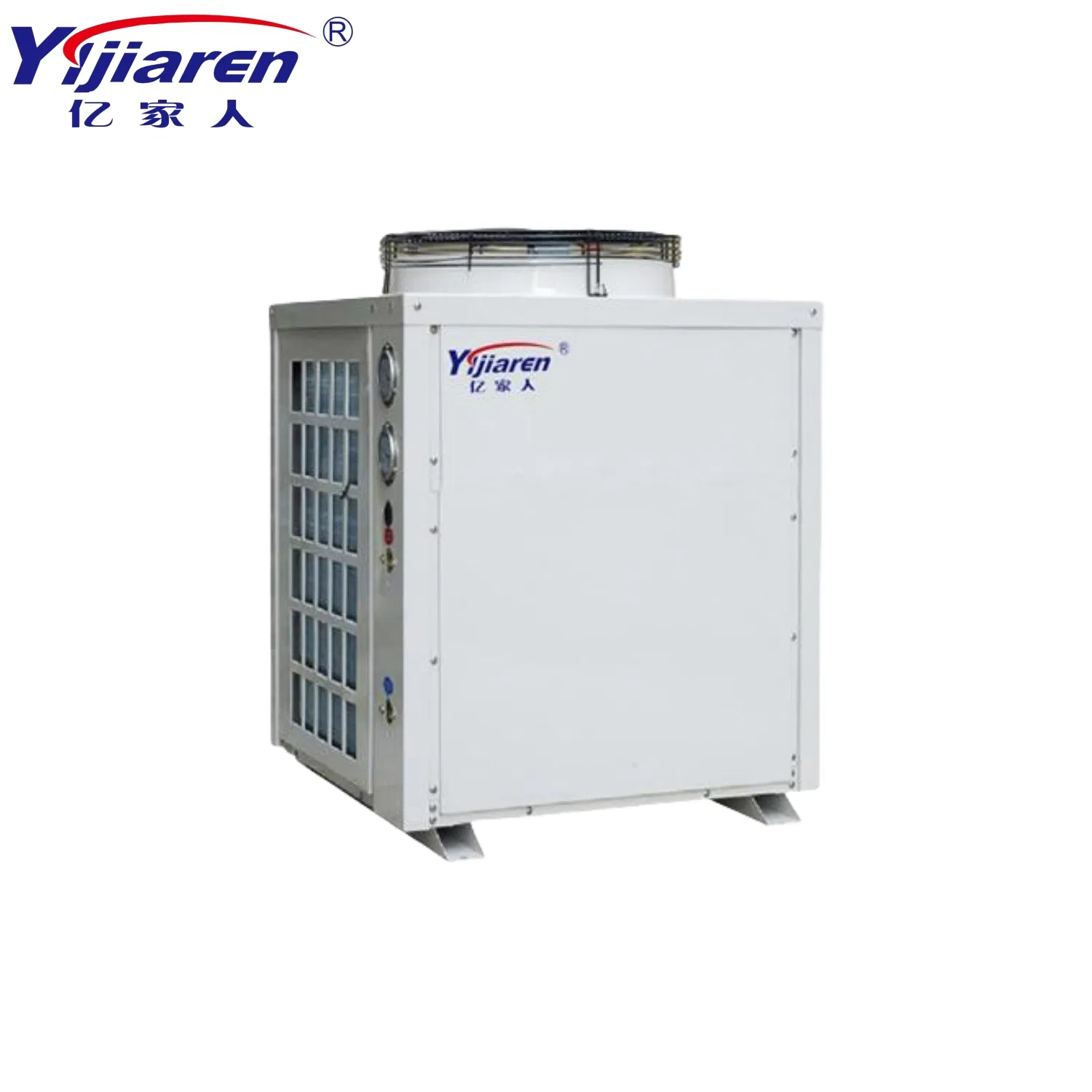

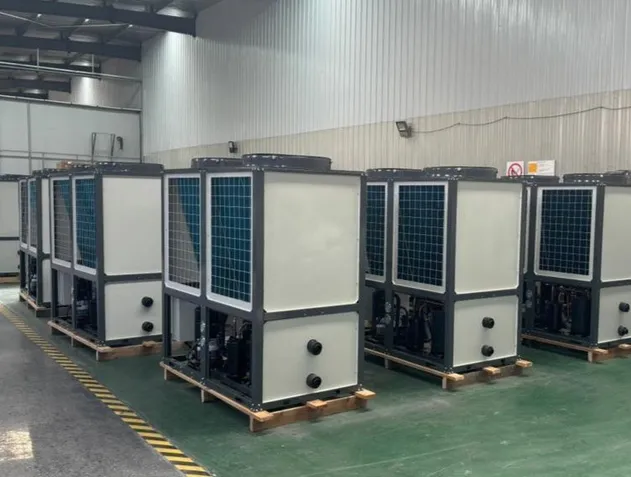

The scroll-type air-cooled heat pump unit adopts a high-efficiency fully enclosed scroll compressor, a high-efficiency shell-and-tube heat exchanger, and a coil heat exchanger. The energy efficiency rating can reach Level 2, with hot water outlet temperatures up to 75°C. Cooling capacity ranges from 25kW to 118.8kW, and heating capacity ranges from 25kW to 127.2kW.

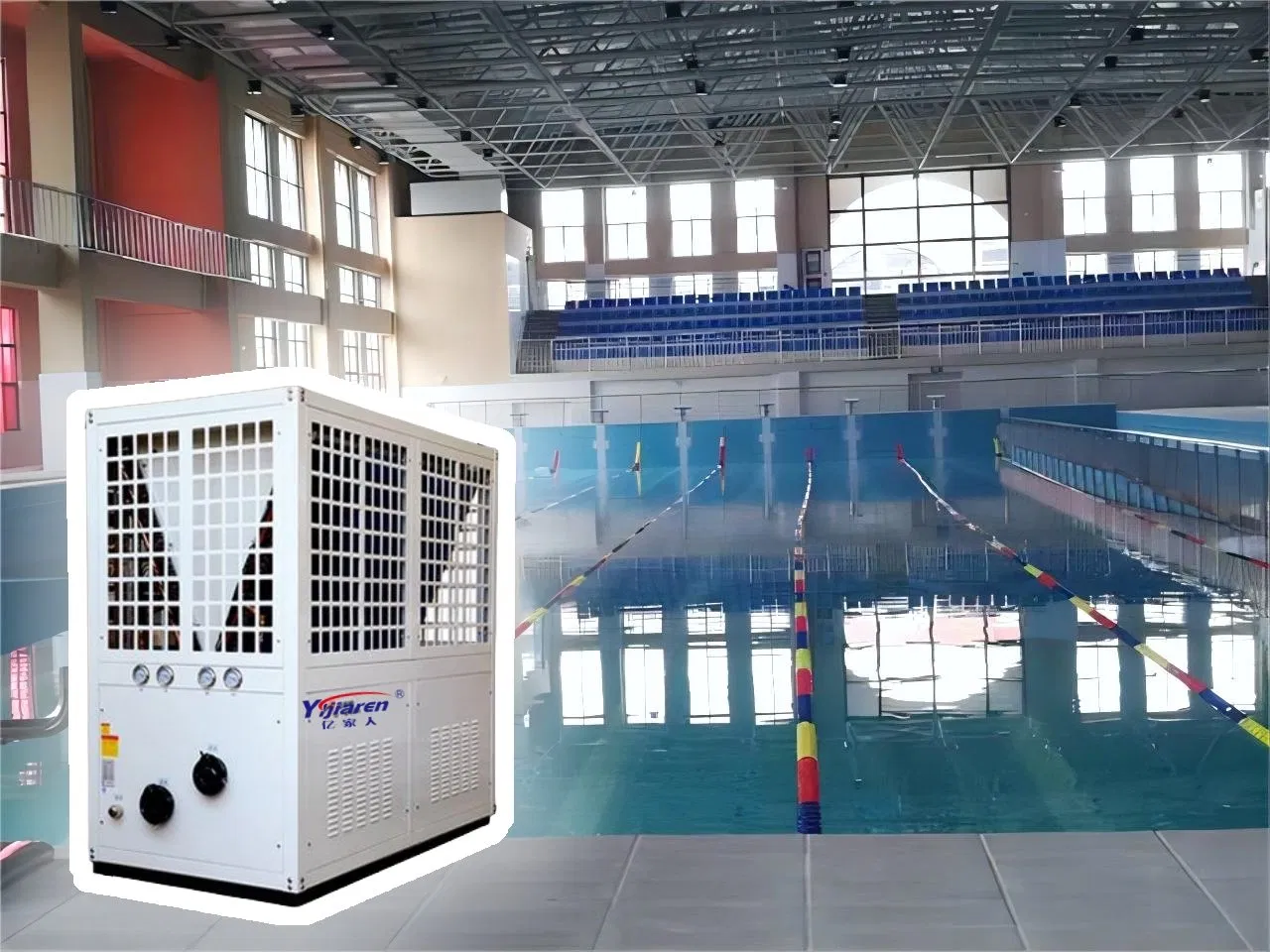

| NORMAL TEMPERATURE AIR SOURCE HEAT PUMP | |||||
|---|---|---|---|---|---|
| TYPE | Unit | HP-10p | HP-12p | HP-15p | HP-20p |
| Heating Capacity | KW | 36 | 48 | 60 | 80 |
| Water Yield | L/H | 773 | 1030 | 1289 | 1715 |
| Power Supply | - | 3N/400V/50Hz | |||
| Rated Power | KW | 9.12 | 10.65 | 13.64 | 18.2 |
| COP | - | 3.94 | 4.5 | 4.39 | 4.39 |
| Refrigerant | - | R410A | |||
| Noise | dB(A) | <60 | ≤60 | ≤62 | ≤65 |
EVI Low-Temperature Technology: Adopts enhanced vapor injection technology, achieving a COP of 2.0 even at -25°C ambient temperature. Ideal for cold northern regions.
Space-Saving Design: Highly integrated structure with minimal footprint, eliminating the need for cooling towers or dedicated refrigeration rooms.

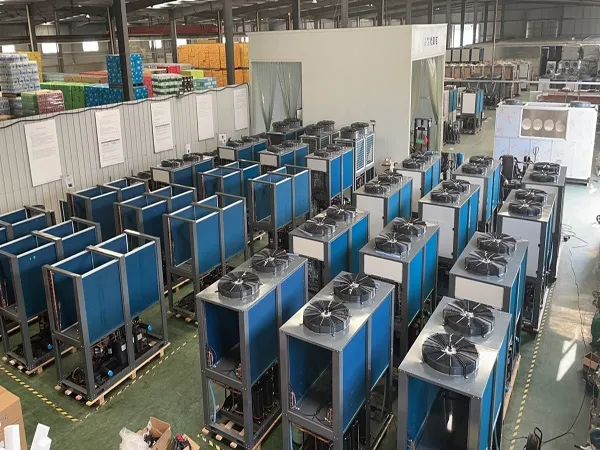

We are an integrated industrial and trading enterprise specializing in the design, production, and service of solar and heat pump products. With ISO and CCC certifications, we provide energy-saving intelligent manufacturing solutions for global clients in over 50 countries.
