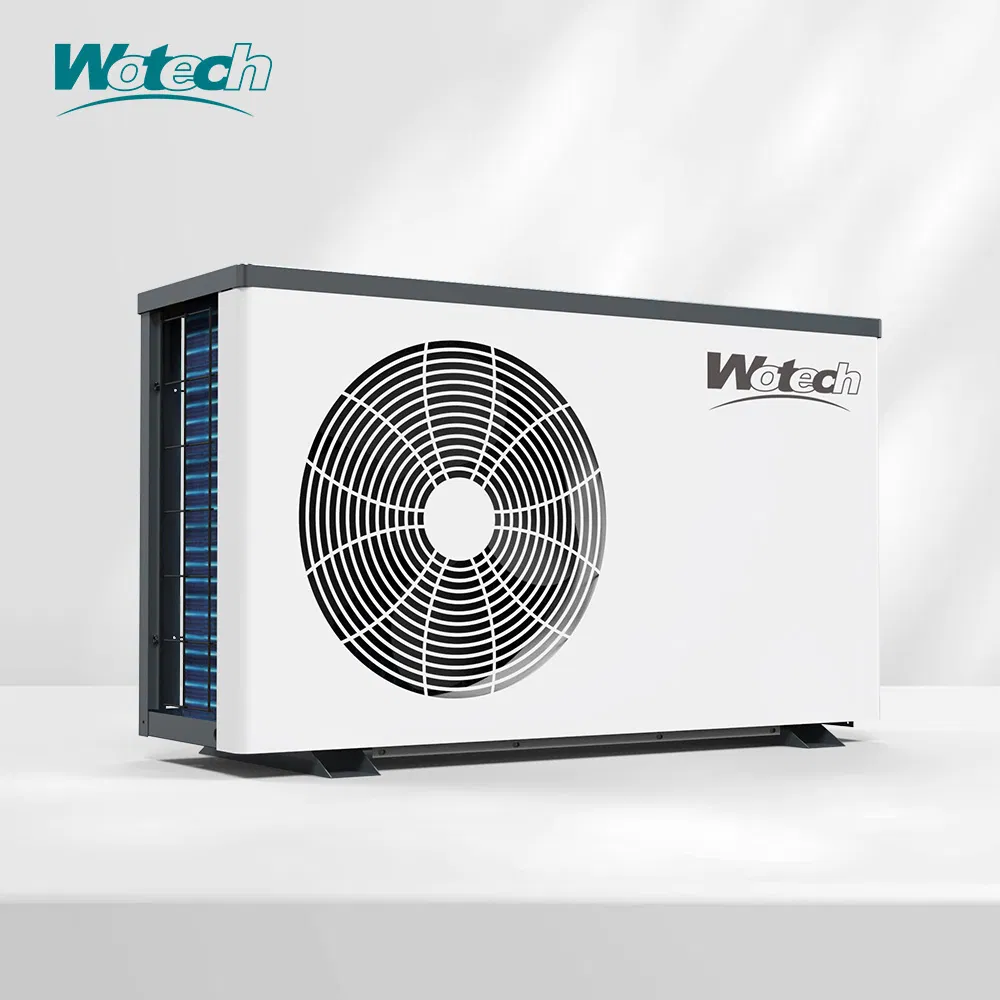

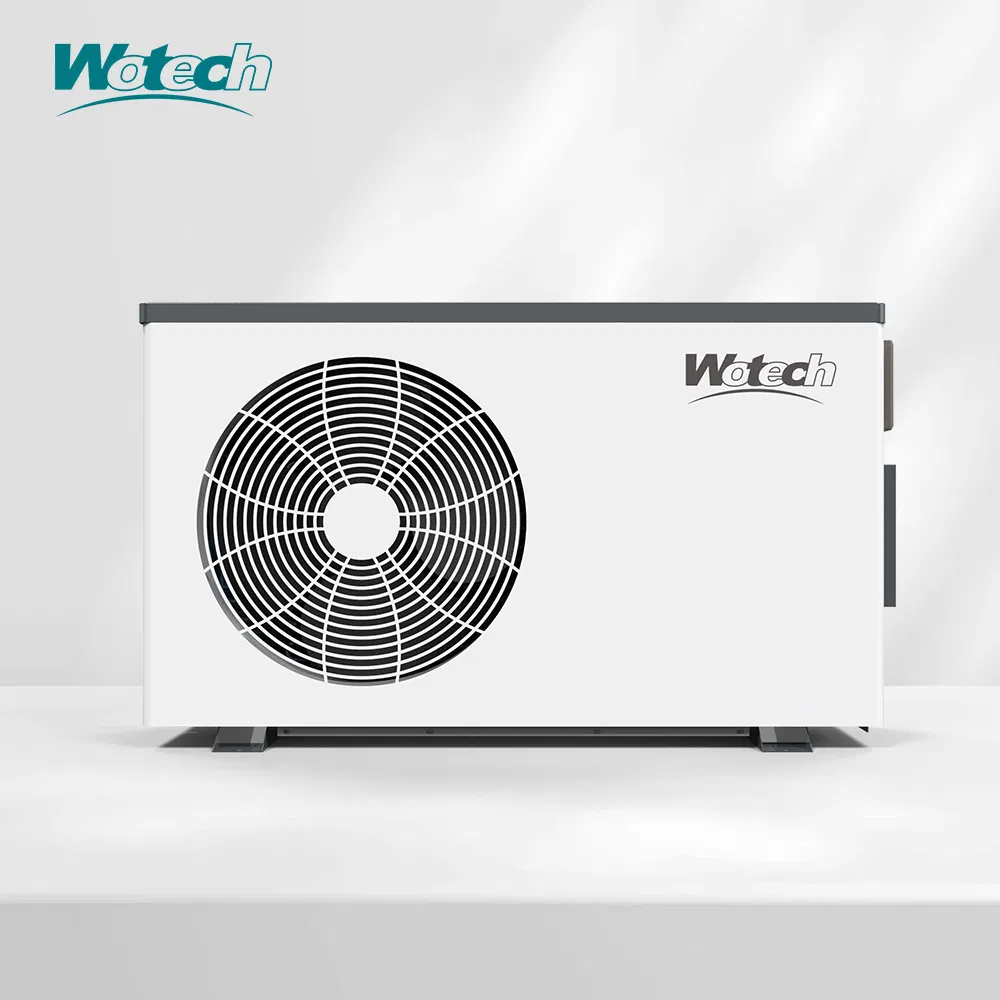

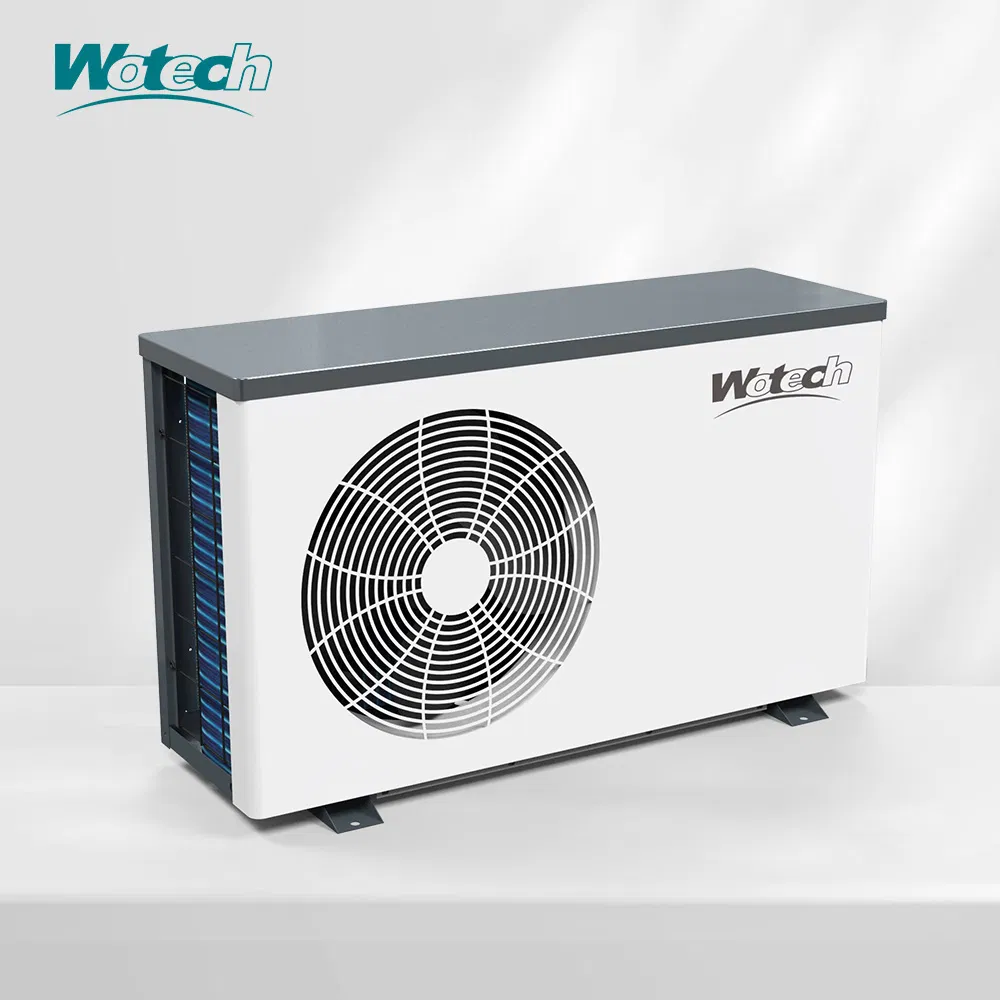

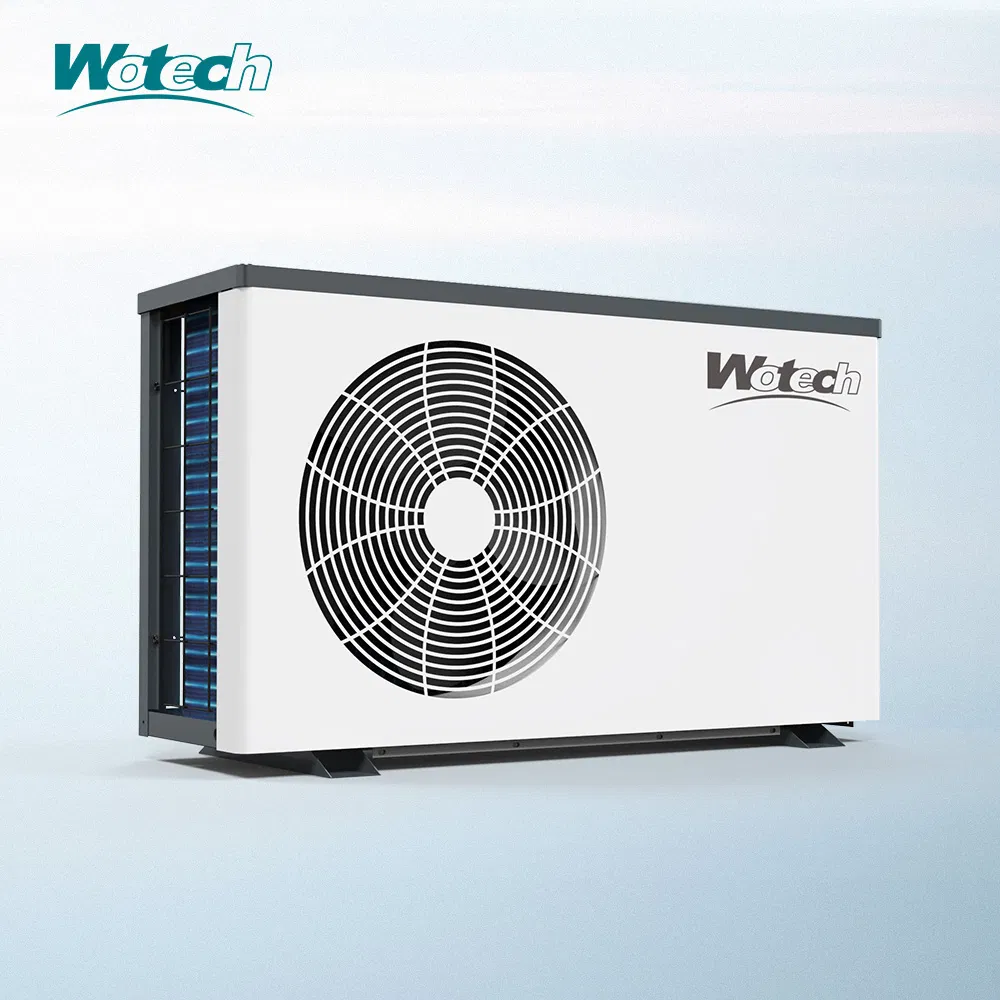

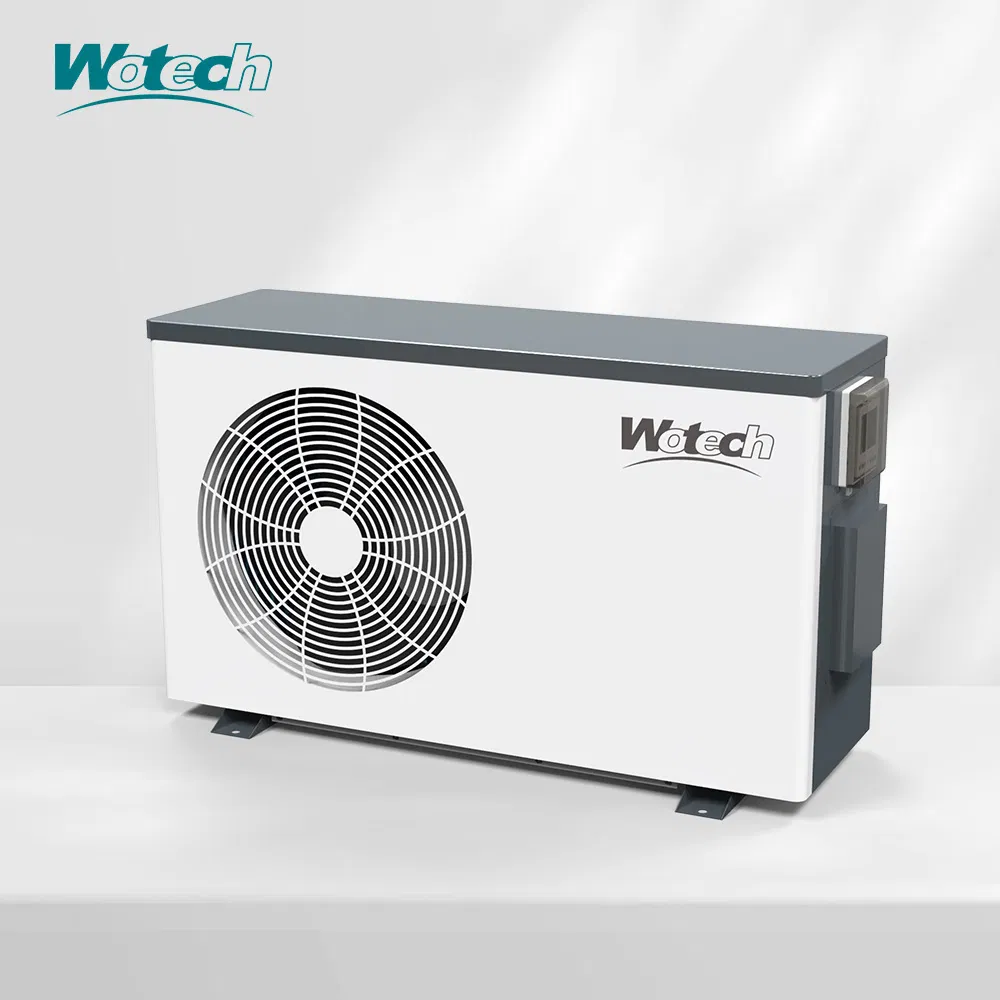

8KW Eco-friendly R32 Residential Full Inverter Swimming Pool Heat Pump
| CODE | WP06EV | WP08EV | WP10EV | WP12EV | WP17EV | WP19EV | WP21EV |
|---|---|---|---|---|---|---|---|
| Heating Performance: Air 27ºC, Water 27ºC | |||||||
| Max Capacity (KW) | 5.7 | 7.1 | 9 | 11.5 | 16.3 | 18.9 | 20.7 |
| COP | 5.7~11.2 | 5.8~12.5 | 5.9~12.5 | 5.7~11.9 | 5.5~11.0 | 5.2~11.2 | 5.3~11.8 |
| Heating Performance: Air 15ºC, Water 26ºC | |||||||
| Max Capacity (KW) | 4.5 | 5.8 | 7.2 | 8.4 | 12.4 | 14.2 | 15.2 |
| COP | 4.5~5.6 | 4.7~6.2 | 4.6~5.7 | 4.6~6.2 | 4.5~5.9 | 4.4~6.6 | 4.3~6.5 |
| Operating Air Temp | -15~43ºC | ||||||
| Power Supply | 220-240V/1PH/50HZ | ||||||
| Sound level 1m (dB(A)) | 40~51 | 40~51 | 40~51 | 40~51 | 41~52 | 44~54 | 45~55 |
| Dimension (mm) | 965*305*560 | 970*360*585 | 970*360*585 | 970*360*585 | 1045*370*625 | 1100*370*710 | 1100*370*710 |
| CODE | WP21EVT | WP26EV | WP31EV |
|---|---|---|---|
| Heating Performance: Air 27ºC, Water 27ºC | |||
| Heating Capacity (KW) | 21.2 | 26.4 | 30.5 |
| COP | 5.5~11.3 | 5.4~11.5 | 5.4~11.6 |
| Heating Performance: Air 15ºC, Water 26ºC | |||
| Heating Capacity (KW) | 16.1 | 20.5 | 23.3 |
| COP | 4.4~6.4 | 4.4~6.4 | 4.5~6.5 |
| Operating Air Temp | -5~43ºC | ||
| Power Supply | 380V/3PH/50HZ | ||
| Sound level 1m (dB(A)) | 45~55 | 48~58 | 49~59 |
| Dimension (mm) | 1100*370*710 | 1110*410*960 | 1110*410*960 |

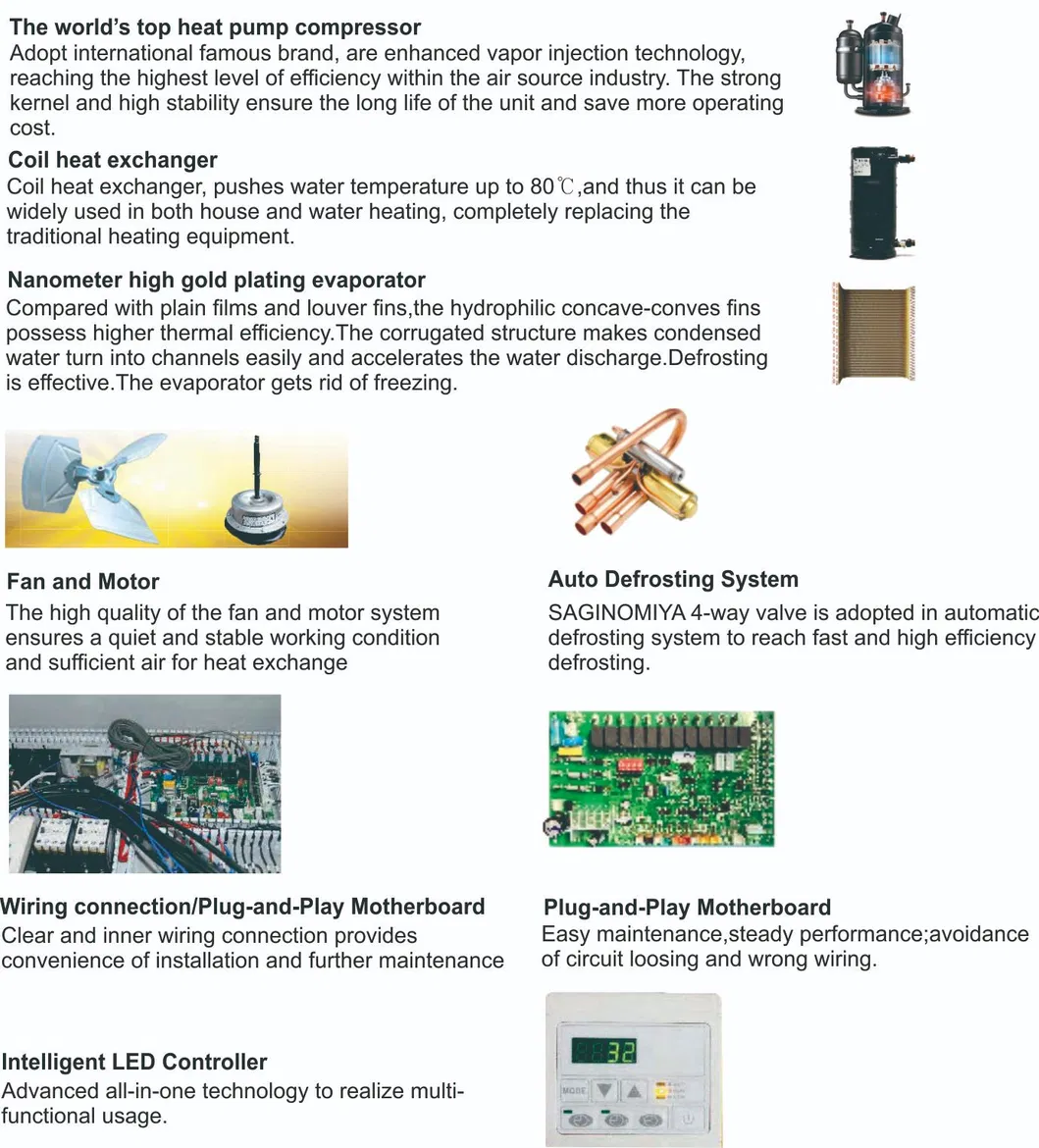

Internal Component Structure:

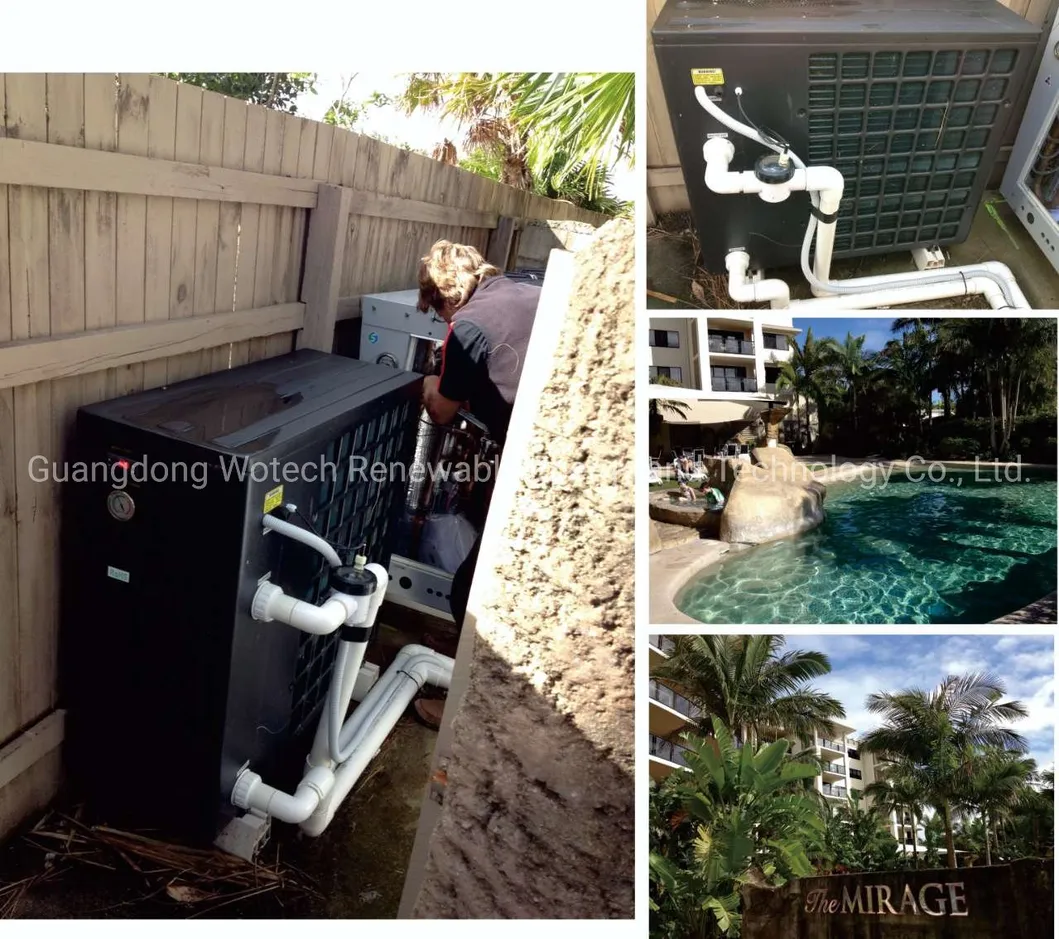

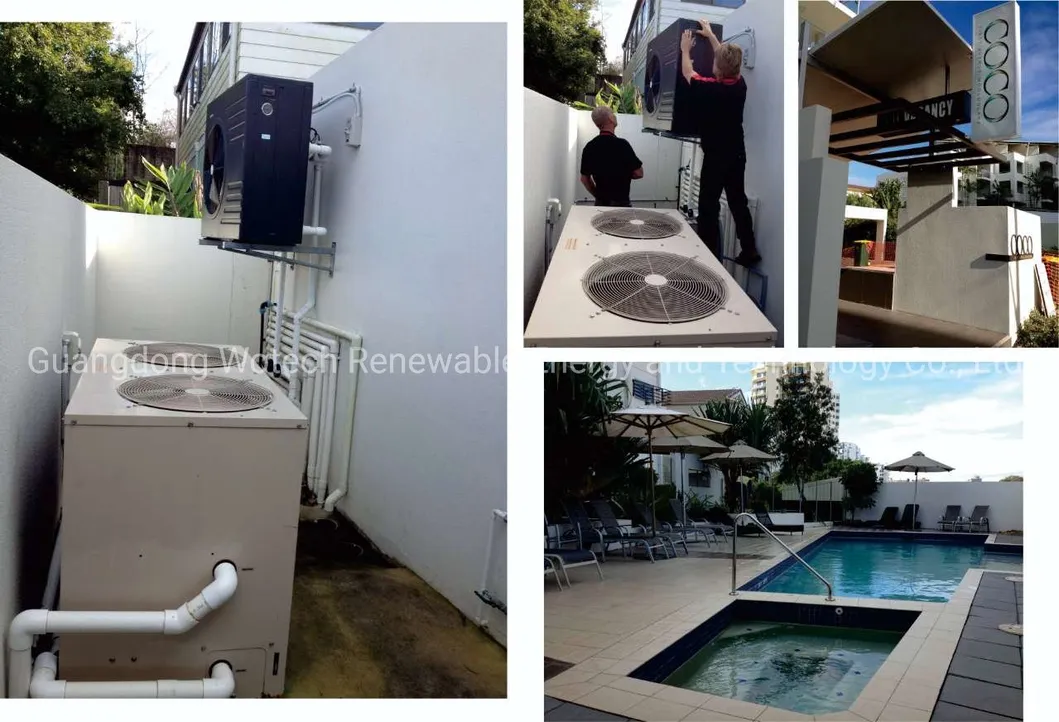

Project Cases:

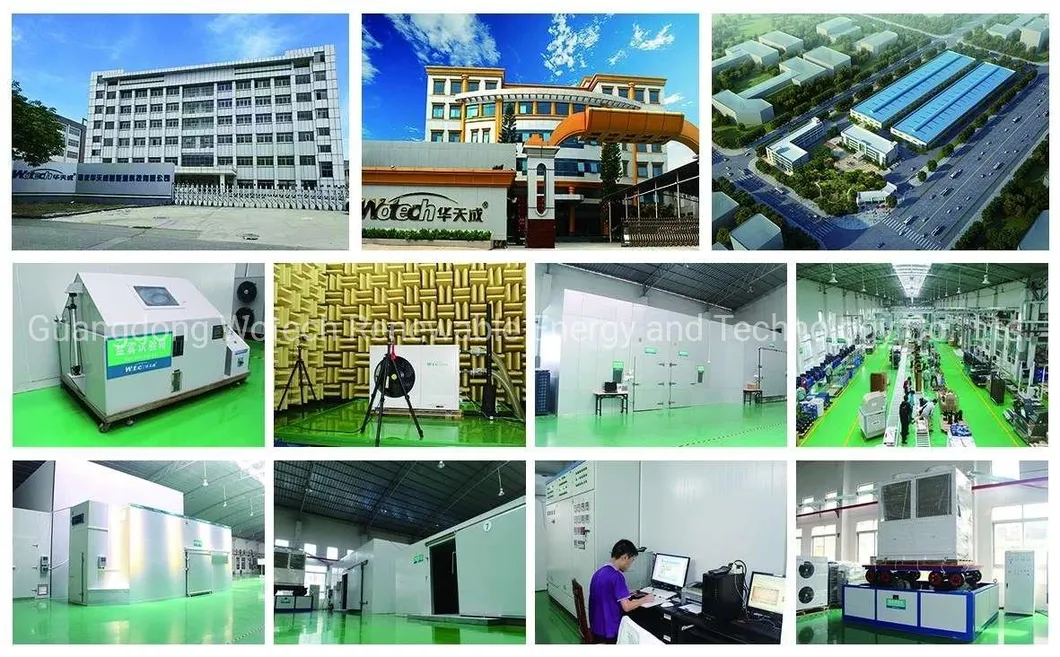

Manufacturing & Laboratories:
