60Hz High Temperature Air Source Heat Pump Water Heater

1 / 5

60Hz High Temperature Air Source Heat Pump Water Heater

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	65~80 C

Send Inquiry

Product Description

Basic Information

Model NO.

GCAHP-9AH/b (9~72KW)

Heat Source

Air-source

Work Environment

Common Heat Pump

Heating Type

Circulating Heat

Certification

CE, ISO9001, CCC, CB, RoHS

Refrigerant

R134A

Cooling Capacity

7.2~ 57.6 Kw

Power Supply

220V/60Hz or 380V/60Hz

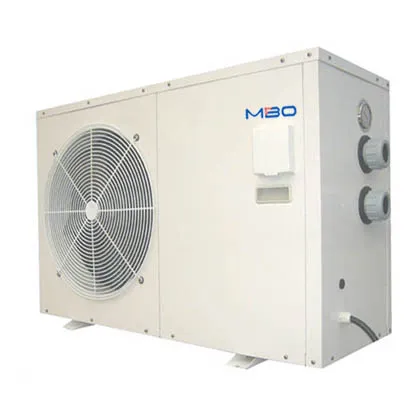

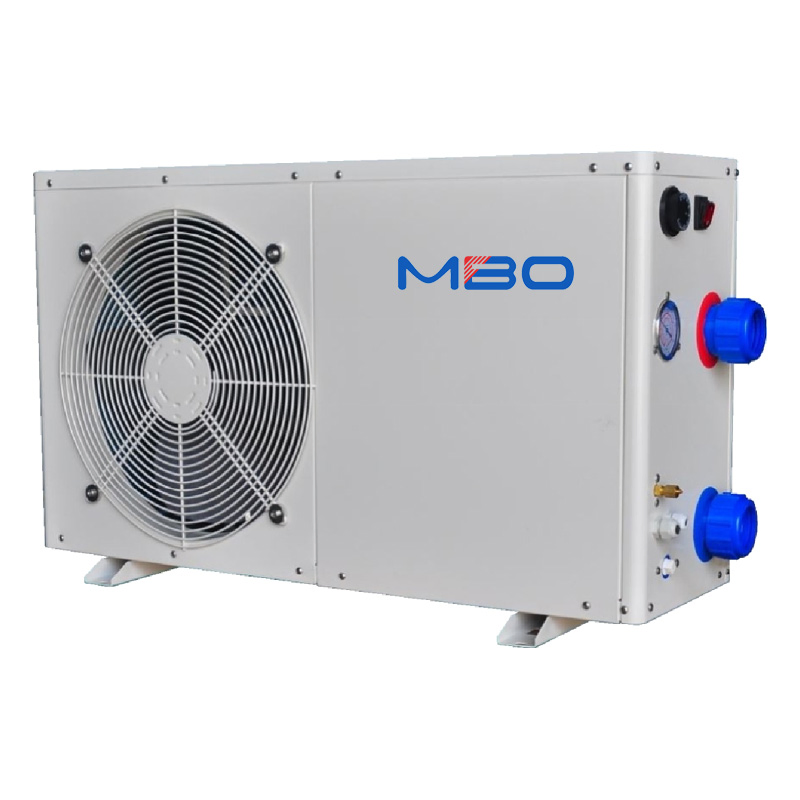

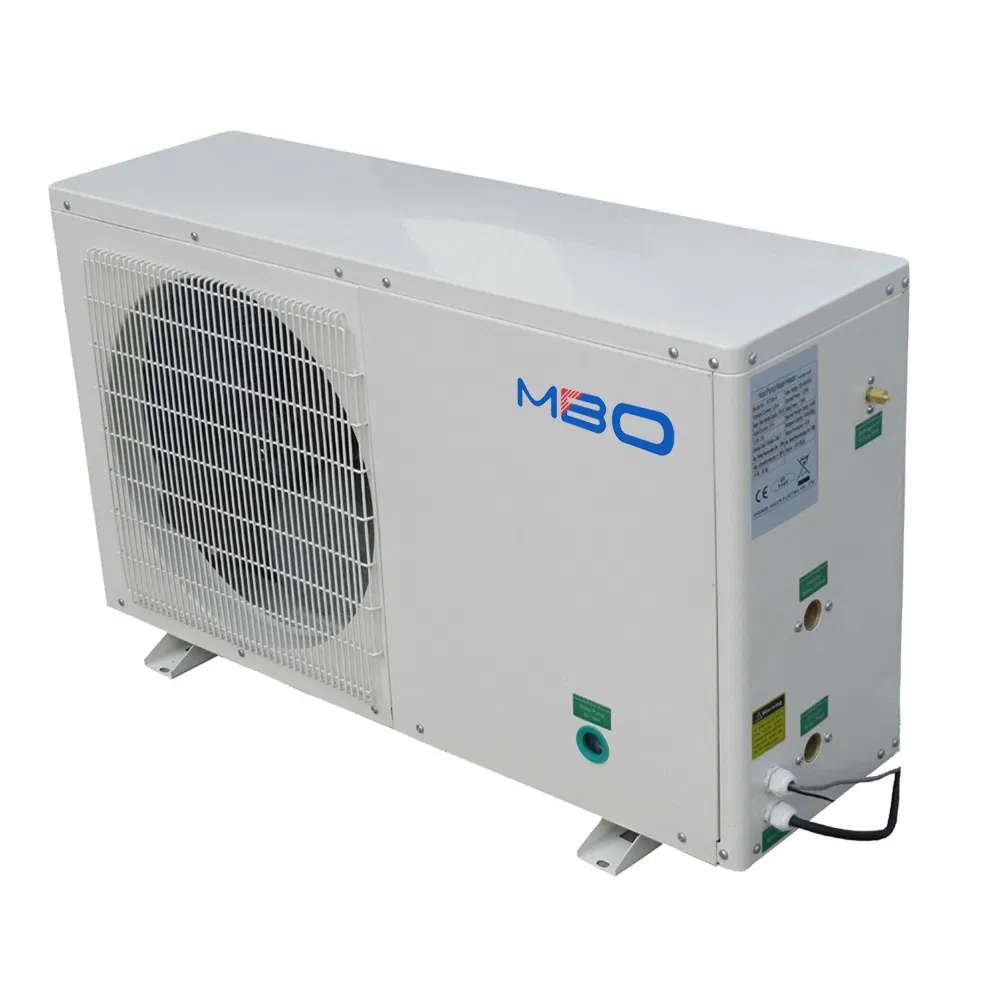

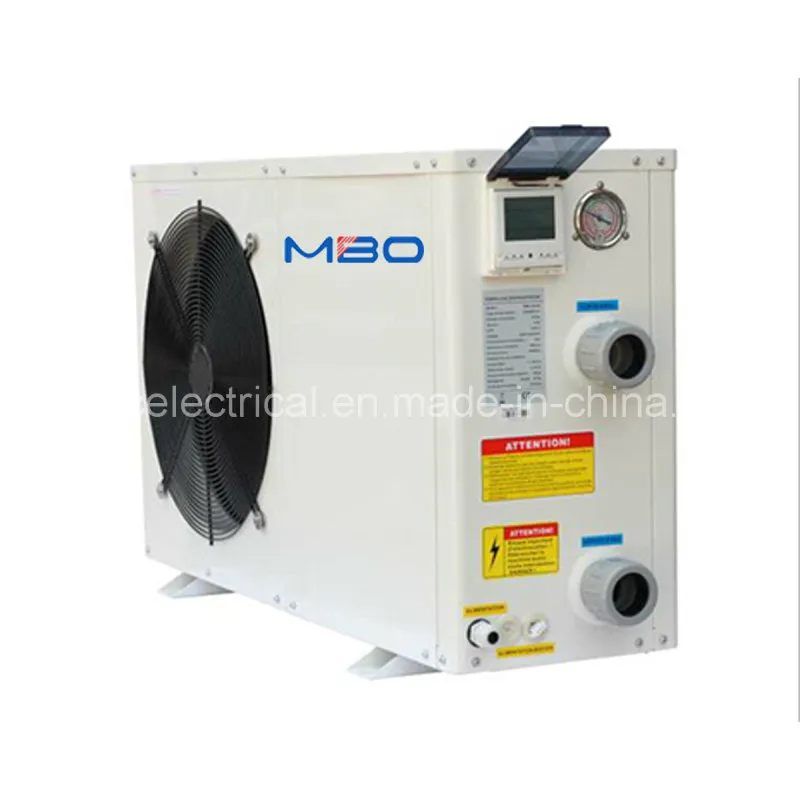

Detailed Photos

Key Features & Functions

🚀

High Efficiency
Equipped with famous brand compressors for rapid heating and cooling.

🛡️

Reliable Quality
Strict quality control ensuring stable and steady unit performance.

🕒

Fast Delivery
Optimized production cycles for quick turnaround and delivery times.

💎

Long Warranty
2 years for the whole unit, 3 years for main components, and 6 years for compressors.

🌱

Eco-Friendly
Utilizes R134a environmentally friendly refrigerant.

⚡

Versatile Voltage
Available in 230V/60Hz or 380V/60Hz configurations.

Technical Parameters

Model		GCAHP-9AH/b	GCAHP-16AH/b	GCAHP-32AH/b	GCAHP-16AH/c	GCAHP-32AH/c	GCAHP-64AH/c	GCAHP-72AH/c
Water Heating Capacity (KW)		9.00	16.00	32.00	16.00	32.00	64.00	72.00
Water Cooling Capacity (KW)		7.20	12.80	25.60	12.80	25.60	51.20	57.60
COP		3.80	3.80	3.80	3.80	3.80	3.80	3.80
Rated Input	KW	2.37	4.21	8.42	4.21	8.42	16.84	18.95
Max. Water Outlet Temp	ºC	80°C
Power Supply	V/PH/HZ	220V/1PH/60HZ			380~415V/3PH/60HZ
Sound Level	dB(a)	65	65	68	65	68	68	68
Net Weight	KG	100	130	260	130	260	560	700

Frequently Asked Questions

What is the maximum water outlet temperature for this heat pump?

The GCAHP series high-temperature air source heat pump can reach a maximum water outlet temperature of 80°C, with a rated outlet temperature of 65°C.

What type of compressor is used in these units?

These units are equipped with high-efficiency Copeland Scroll compressors to ensure rapid heating and long-term reliability.

Which refrigerant is used in the GCAHP models?

The system uses R134a refrigerant, which is environmentally friendly and specifically suited for high-temperature heat pump applications.

What are the primary applications for this air source heat pump?

This series is ideal for villa families, saunas, swimming pools, hotels, factory hospitals, student apartments, and beauty salons.

What is the warranty coverage for the product?

We provide a comprehensive warranty: two years for the whole unit, three years for main components, and six years specifically for the compressors.

Does the unit support automatic defrosting?

Yes, the unit includes an integrated defrosting function and intelligent control with a 5-meter signal wire for efficient operation in various environments.
