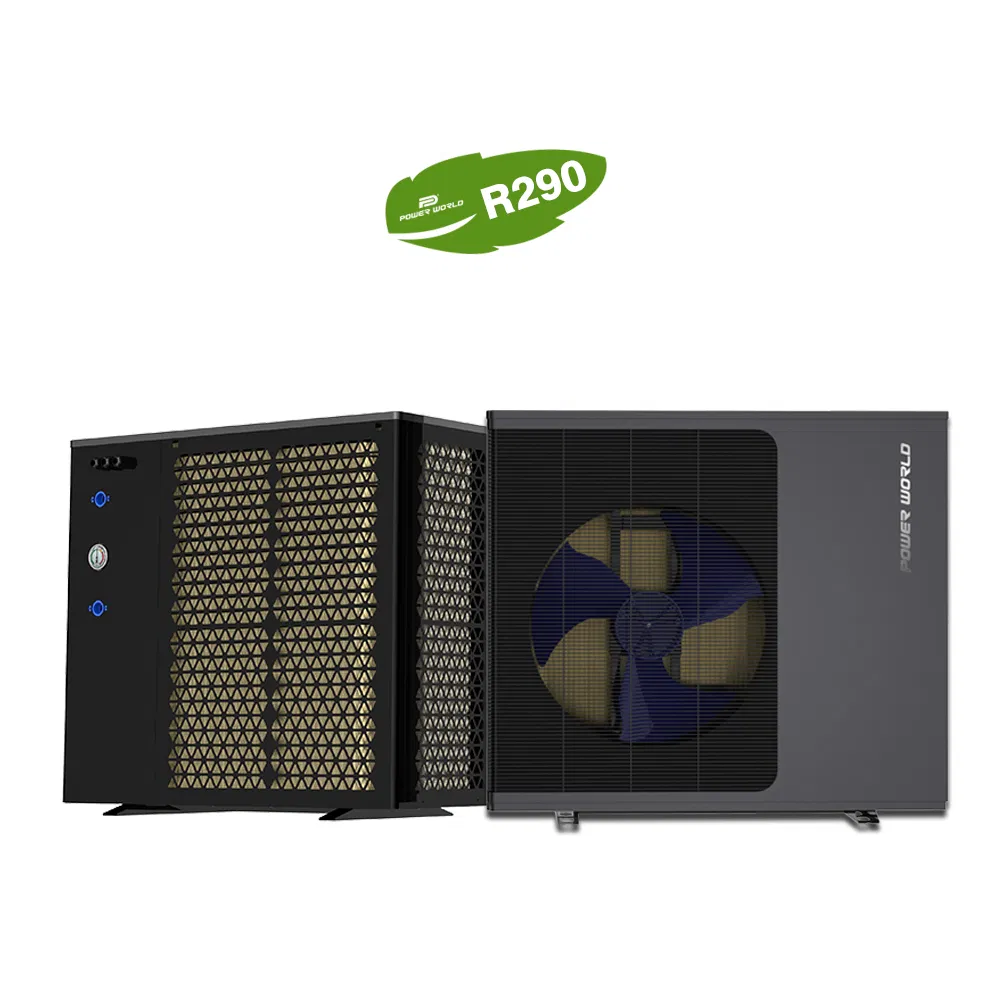

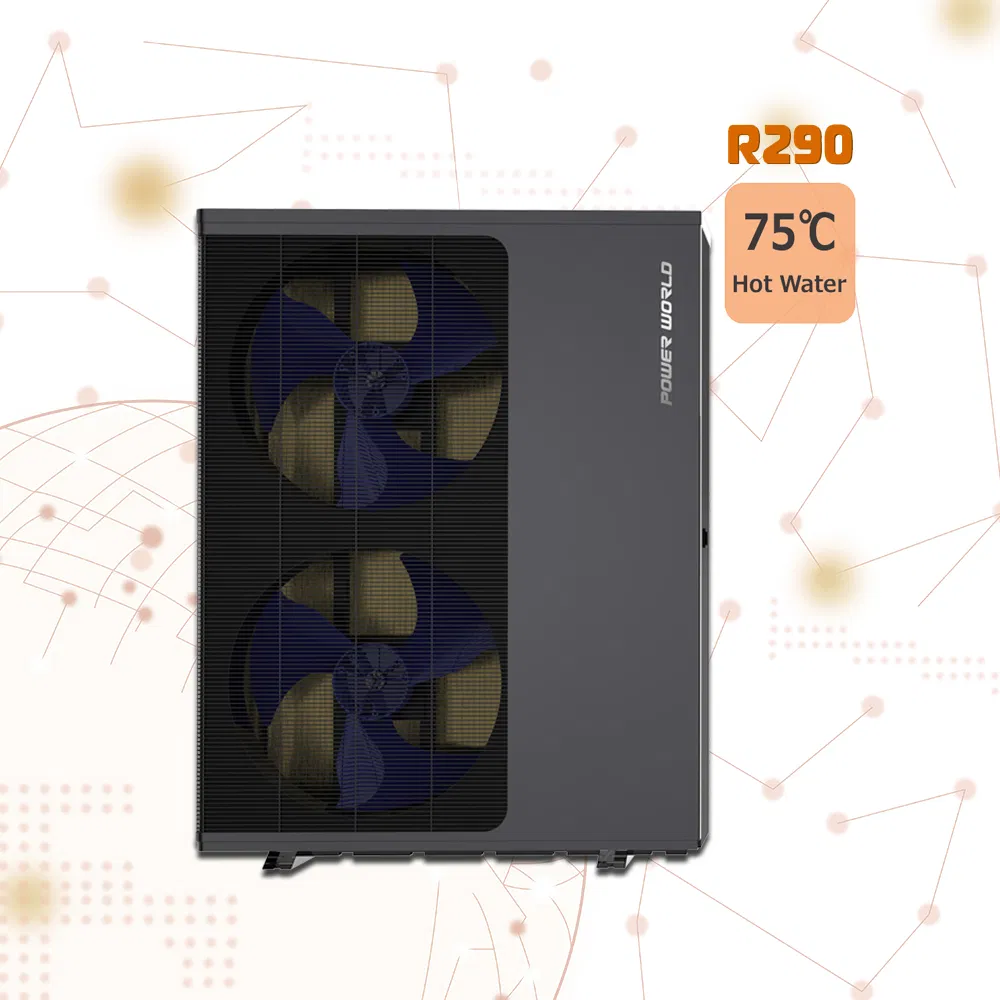

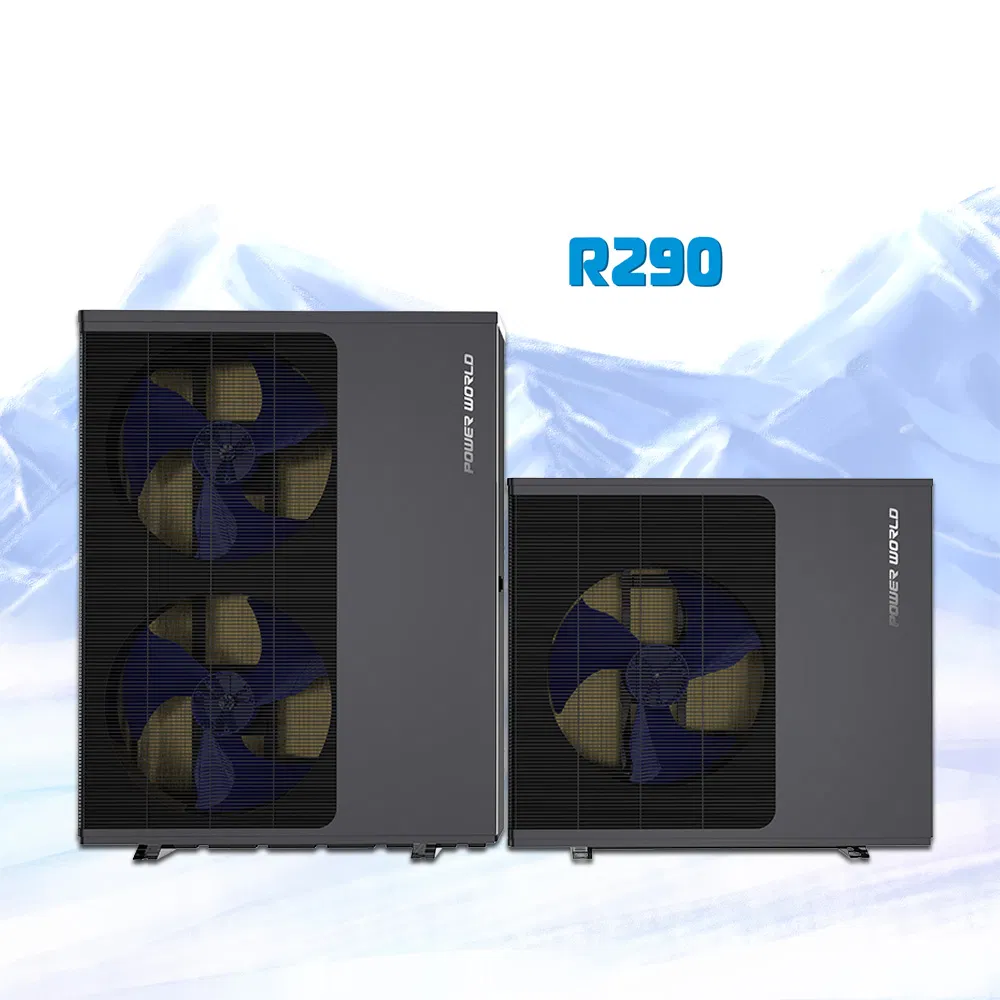

To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most eco-friendly refrigerant.

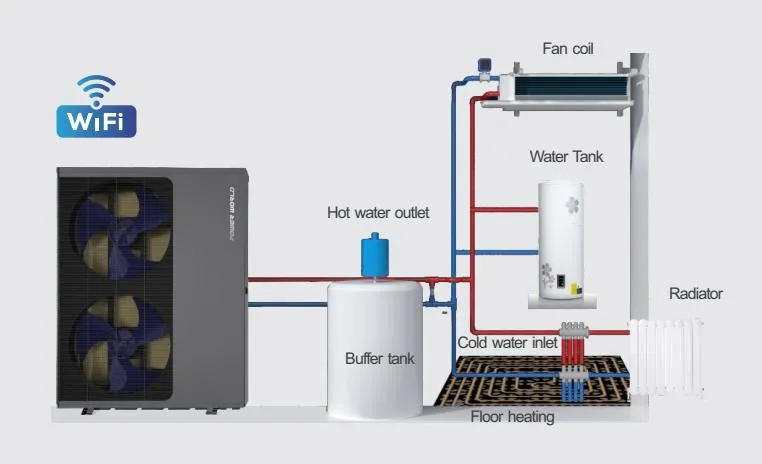

The R290 FULL DC INVERTER Heat Pump meets house heating, cooling, and domestic hot water needs throughout the year via a 3-way valve:

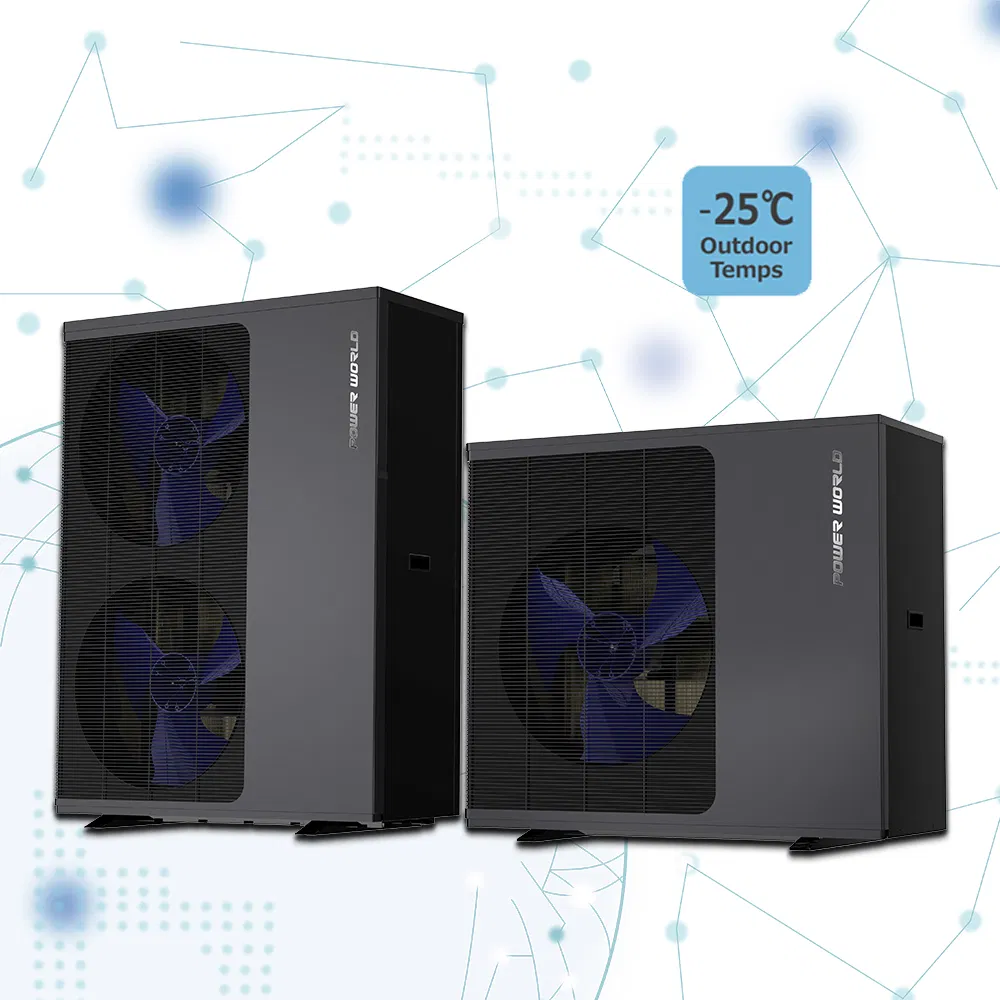

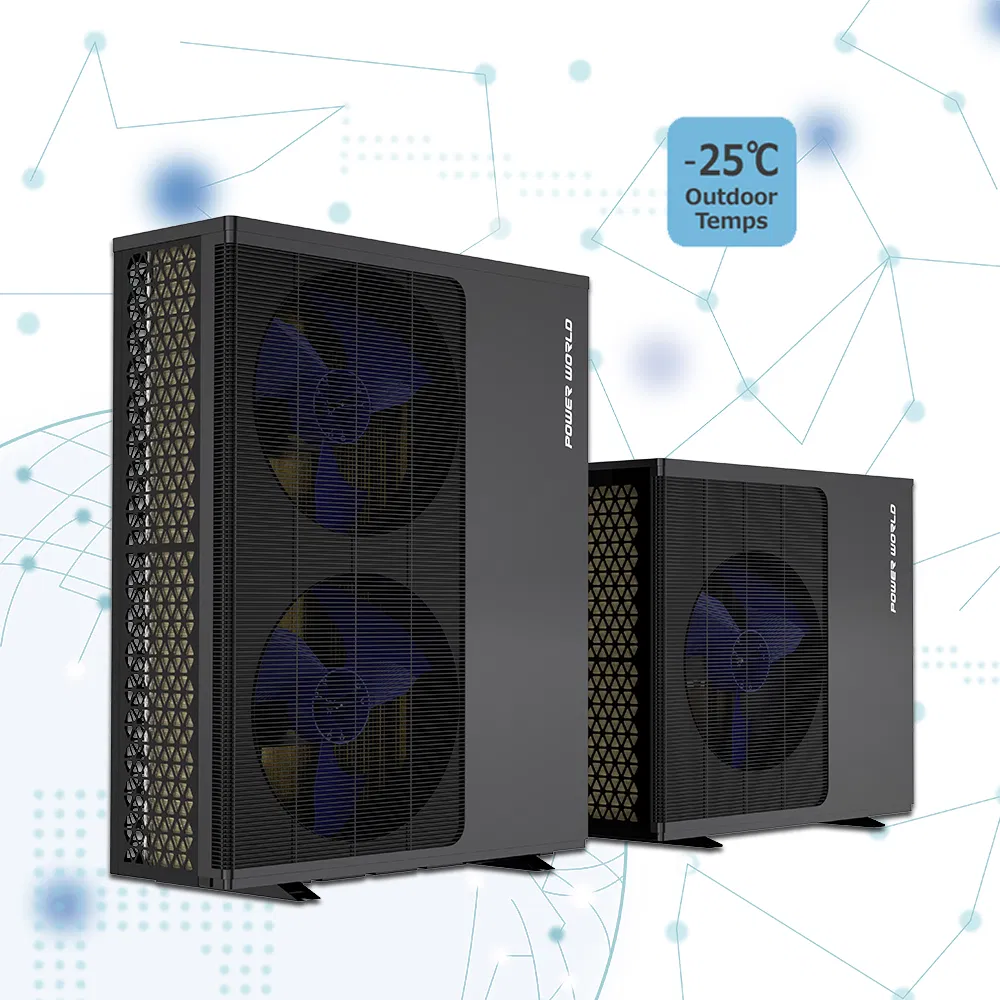

Under low ambient temperatures, performance is often limited. This R290 FULL DC INVERTER heat pump operates stably in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water.

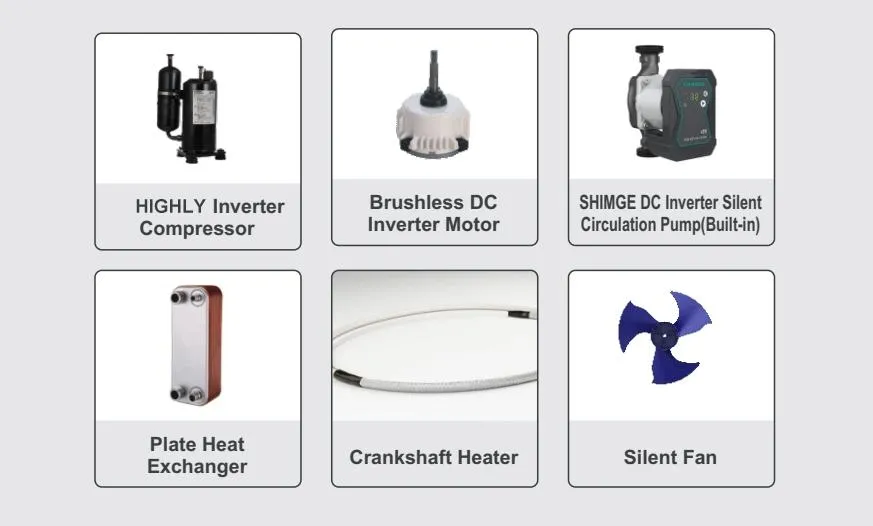

Full DC inverter technology allows the unit to intelligently adjust operating frequency and control water temperature. It can save up to 50% energy compared to ON-OFF units and up to 75% compared to traditional boiler electric heat pumps. Components include a DC Inverter Compressor, Stepless Fan Motor, and Water Circulation Pump.

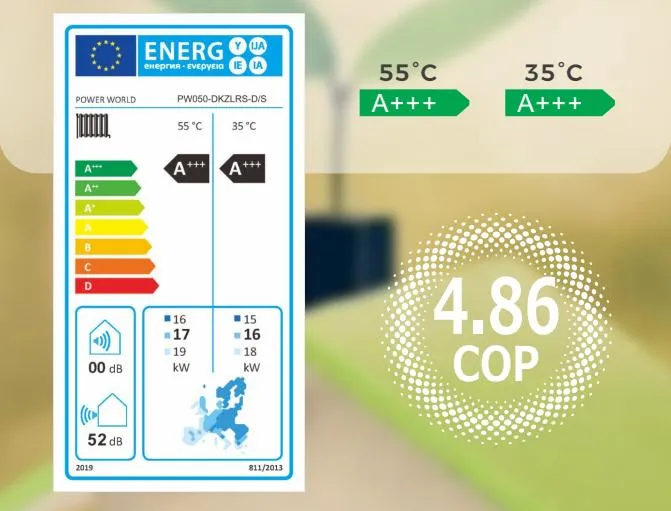

Passed the ERP A+++ energy class test. The SCOP can be as high as 4.86, ensuring ultra-high energy efficiency at both 35°C and 55°C water temperatures.

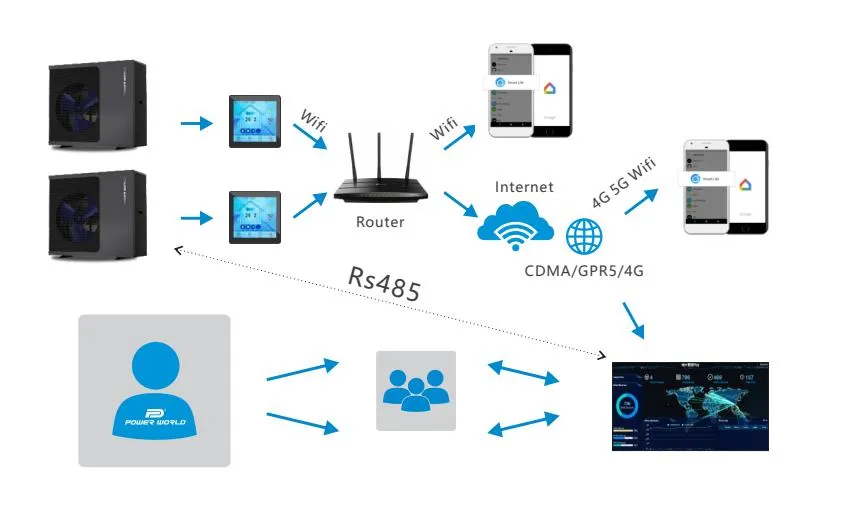

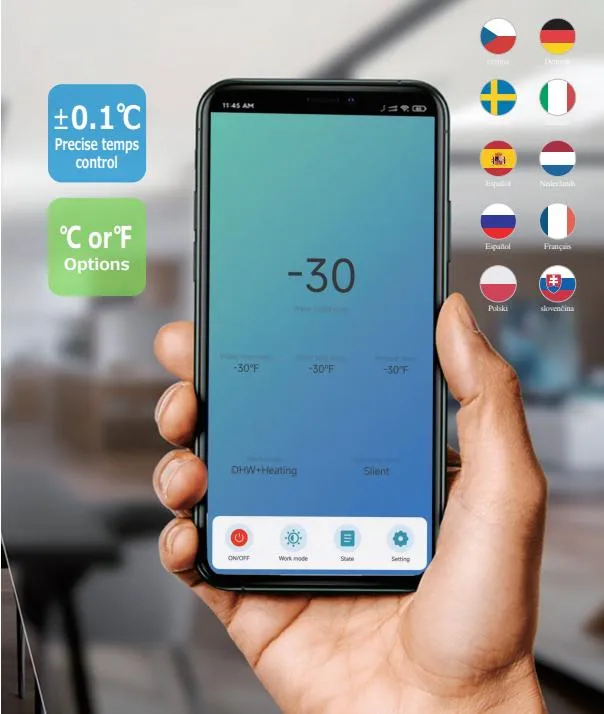

The IoT cloud platform allows remote monitoring via Wi-Fi or DUT. It records all operating parameters. If an error occurs, reports are synchronized to the background for quick solutions, saving after-sales costs.
| Model | PW030 | PW040 | PW050 | PW060 |
|---|---|---|---|---|
| Heating Condition (Ambient 7/6ºC, Water 30/35ºC) | ||||
| Capacity Range (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| Technical Specs | ||||
| Refrigerant | R290 | |||
| ErP Level (35°C) | A+++ | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |

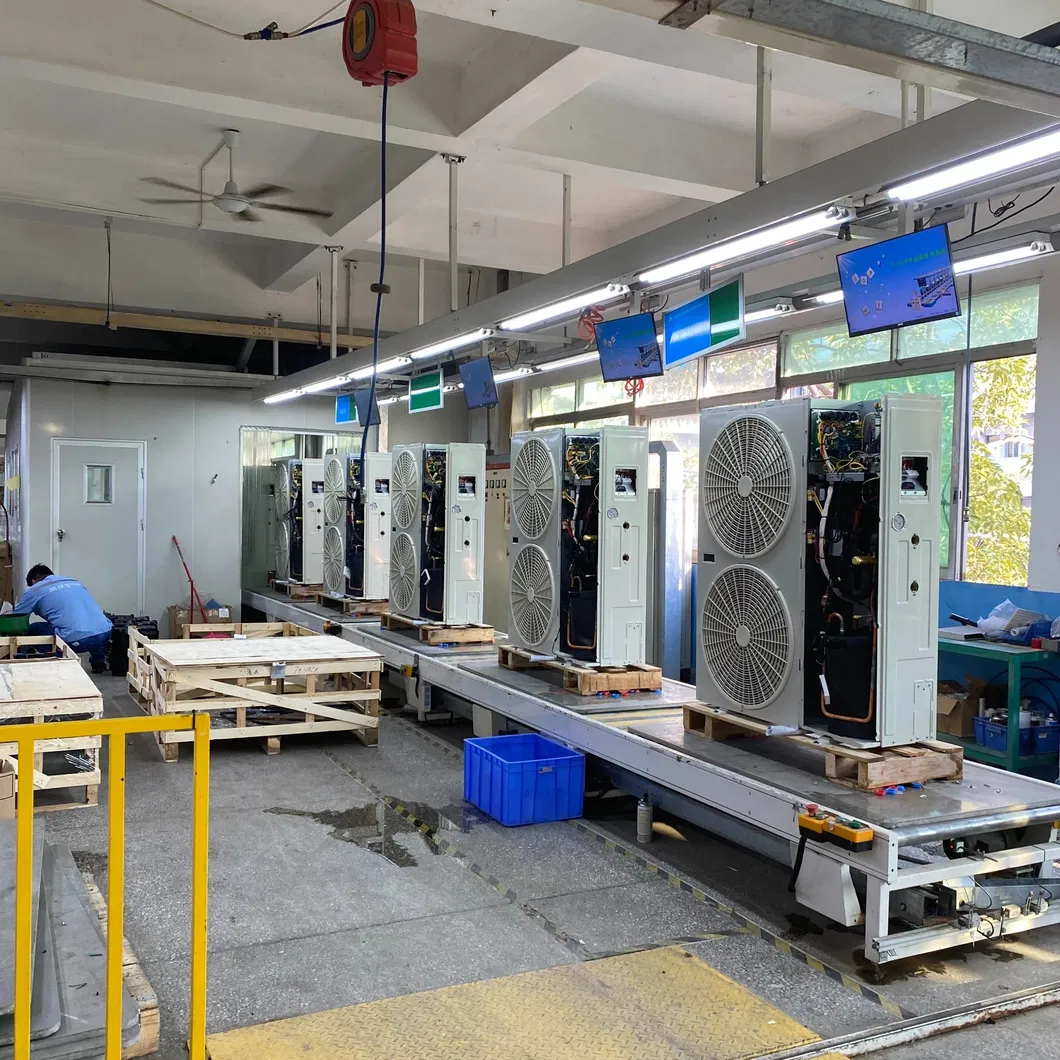

Established in 2004, this high-tech enterprise focuses on the research, development, production, and sales of air source heat pump products. With a complete industry chain, the product range includes swimming pool heat pumps, residential heating/cooling solutions, and industrial high-temperature hot water systems.

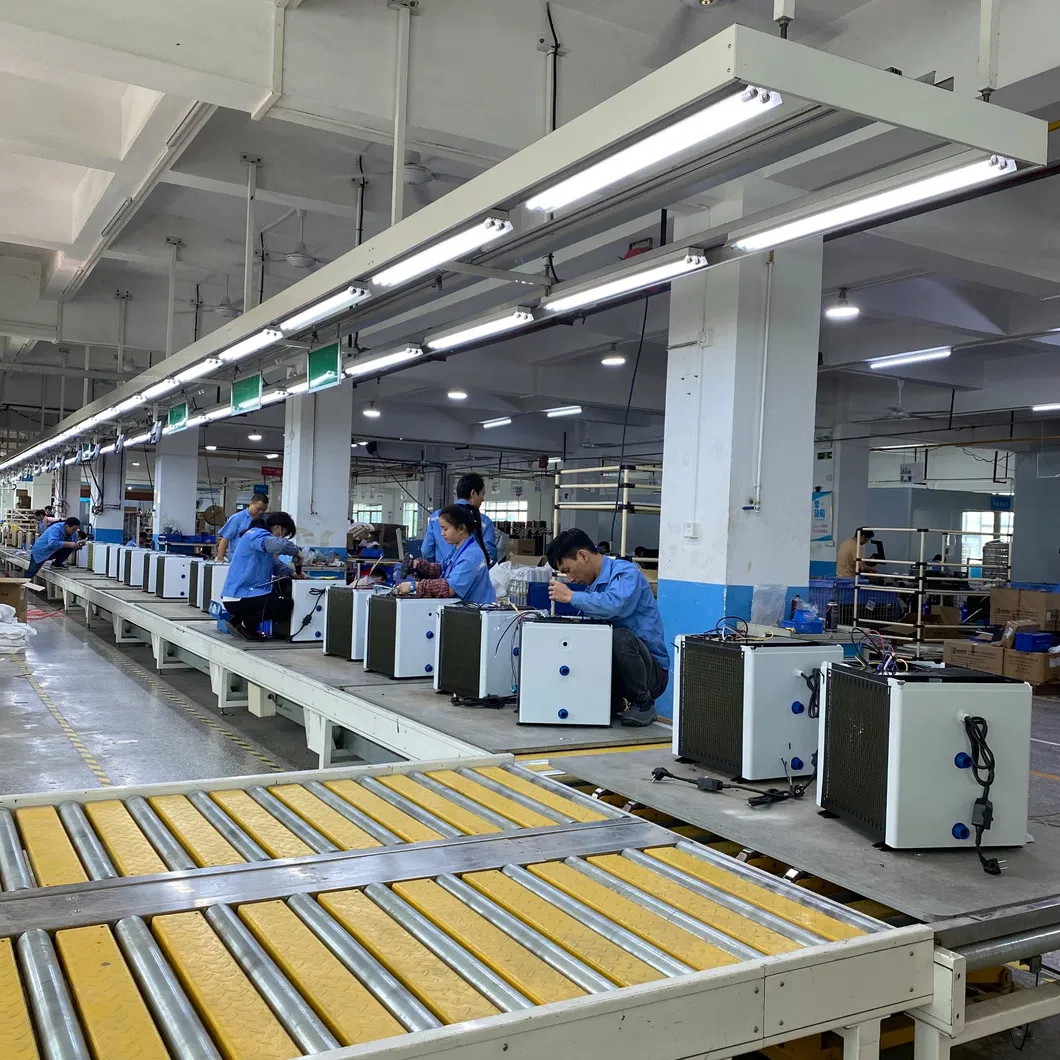

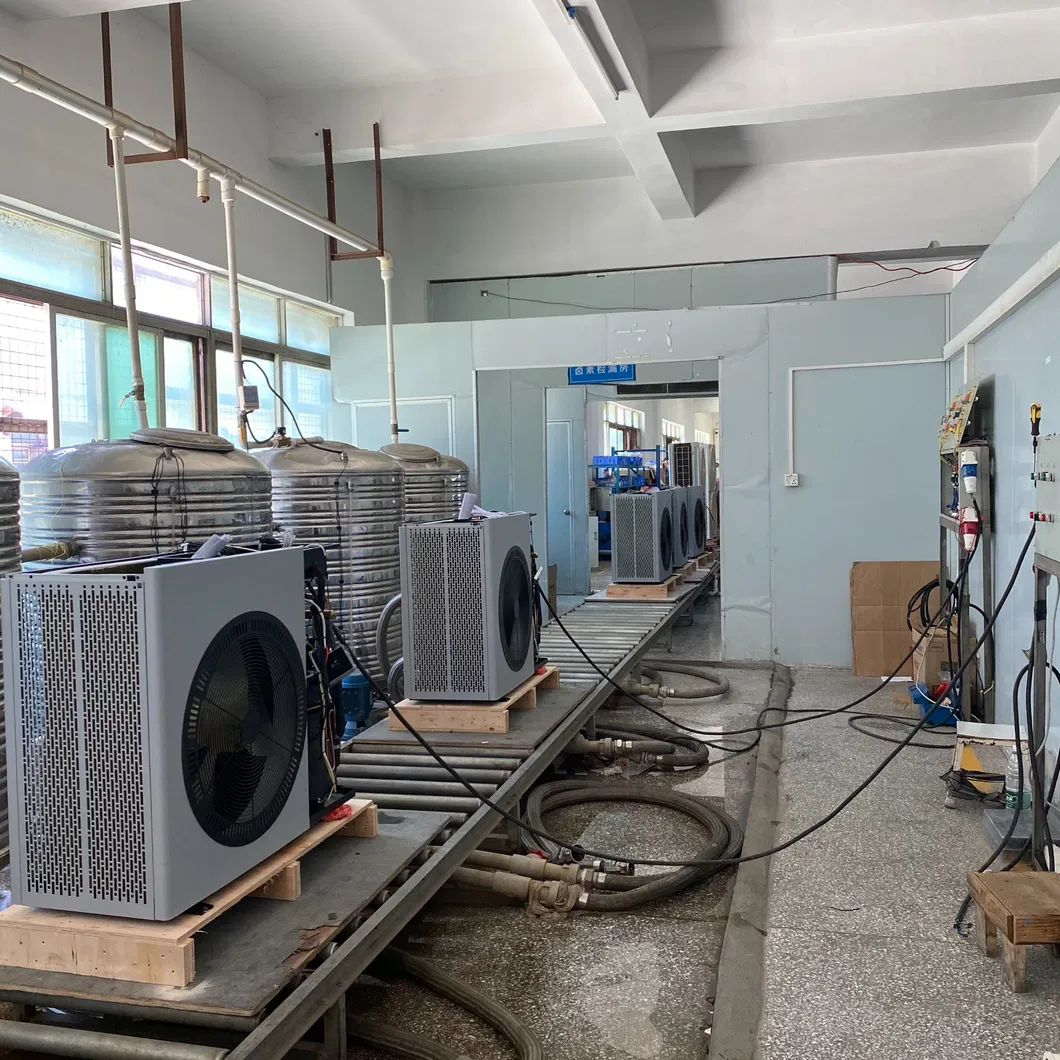

The company maintains a strong technical backbone with senior engineers and over 500 experienced production personnel. Committed to innovation, it has obtained more than 80 product patents and is ISO 9001/14001, CE, and ERP certified.
