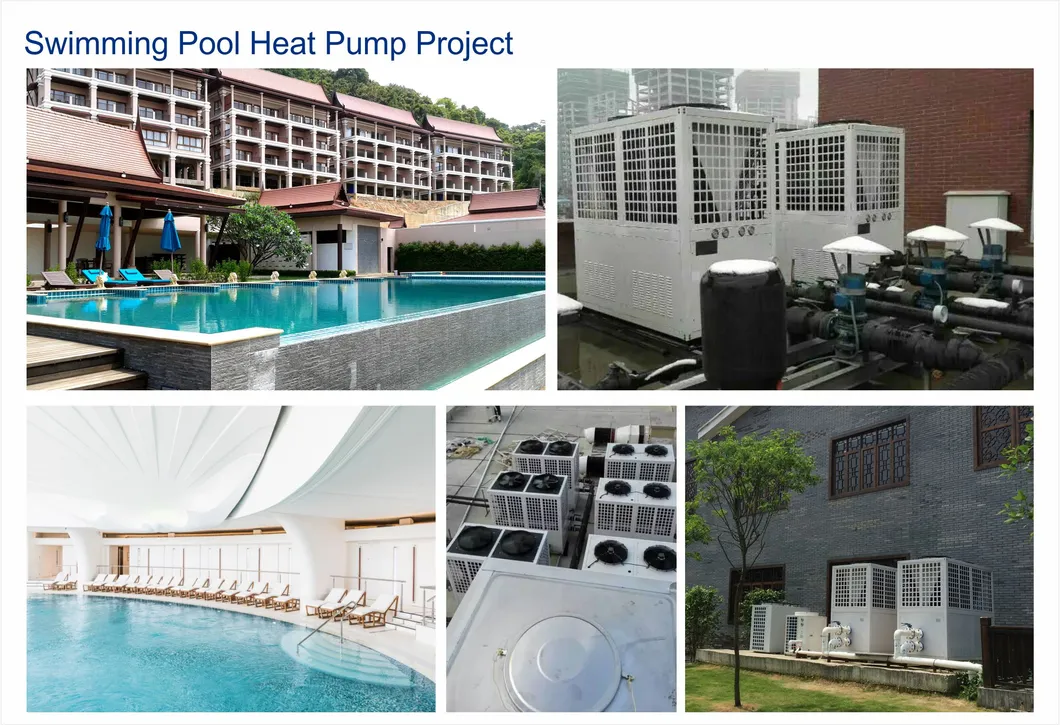

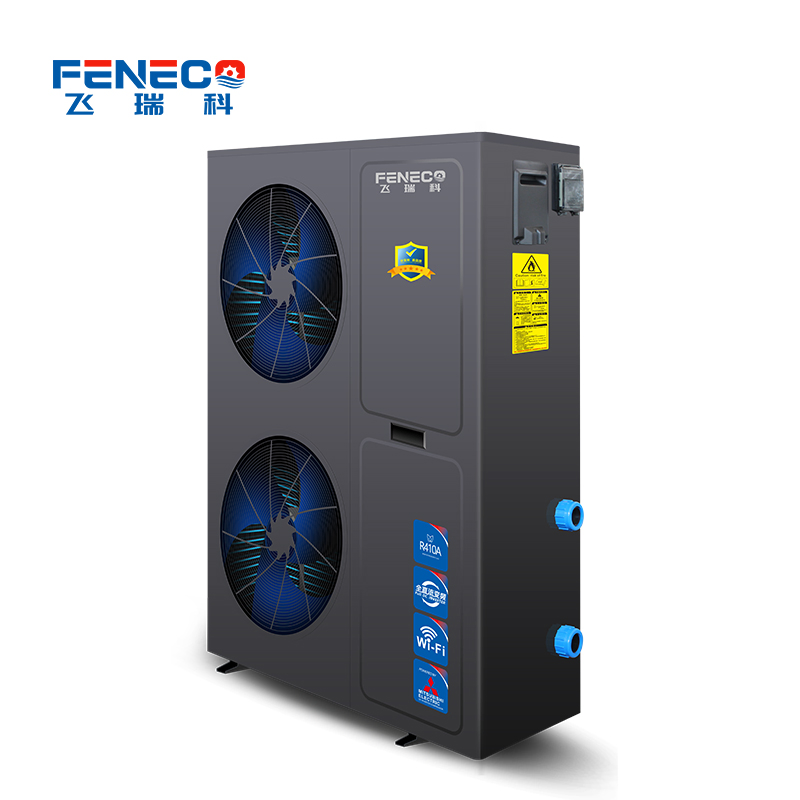

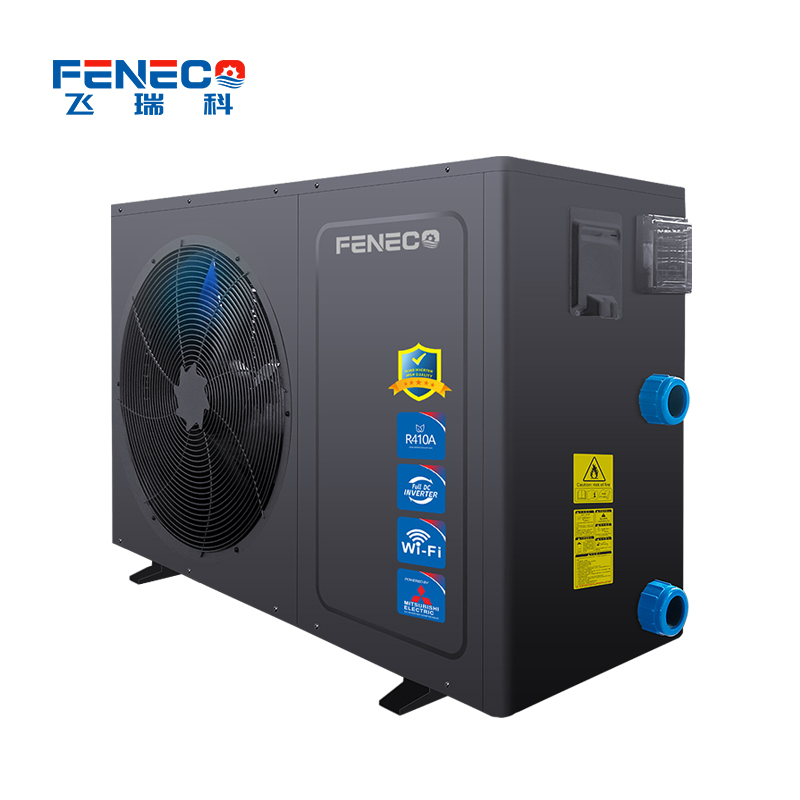

This Commercial Swimming Pool Heat Pump is specially developed for precise water temperature control in large pools or spas. Featuring an intelligent control system, these units offer high efficiency and stable performance. The COP can reach as high as 5.4 at 20/15(DB/WB) working conditions, saving at least 80% energy compared to traditional electric heating equipment. It is ideal for hotels, public parks, schools, gyms, and house spas.
| Model | XD-BKR015YBP | XD-BKR03YBP | XD-BKR05YBP | XD-BKR08YBP | XD-BKR10YBP(380) |
| Heating (Air 24ºC/19ºC, Water 26/28ºC) | |||||
| Heating Cap. (kW) | 5(0.8~6.8) | 10(1~11) | 21(2~22) | 35(3~36) | 44(3~46) |
| COP (W/W) | 6.7(3~13) | 6(3~12) | 6.2(3-11) | 6(3-12) | 6(3-11) |
| Heating (Air 15/12ºC, Water 26ºC) | |||||
| Heating Cap. (kW) | 4.5 | 7.2 | 14 | 24 | 24 |
| COP (W/W) | 4.7 | 4.7 | 4.8 | 4.8 | 4.8 |
| General Info | |||||
| Compressor | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Sound Level dB(A) | 50 | 50 | 52 | 52 | 58 |
| Net Weight (kg) | 55 | 62 | 80 | 120 | 120 |

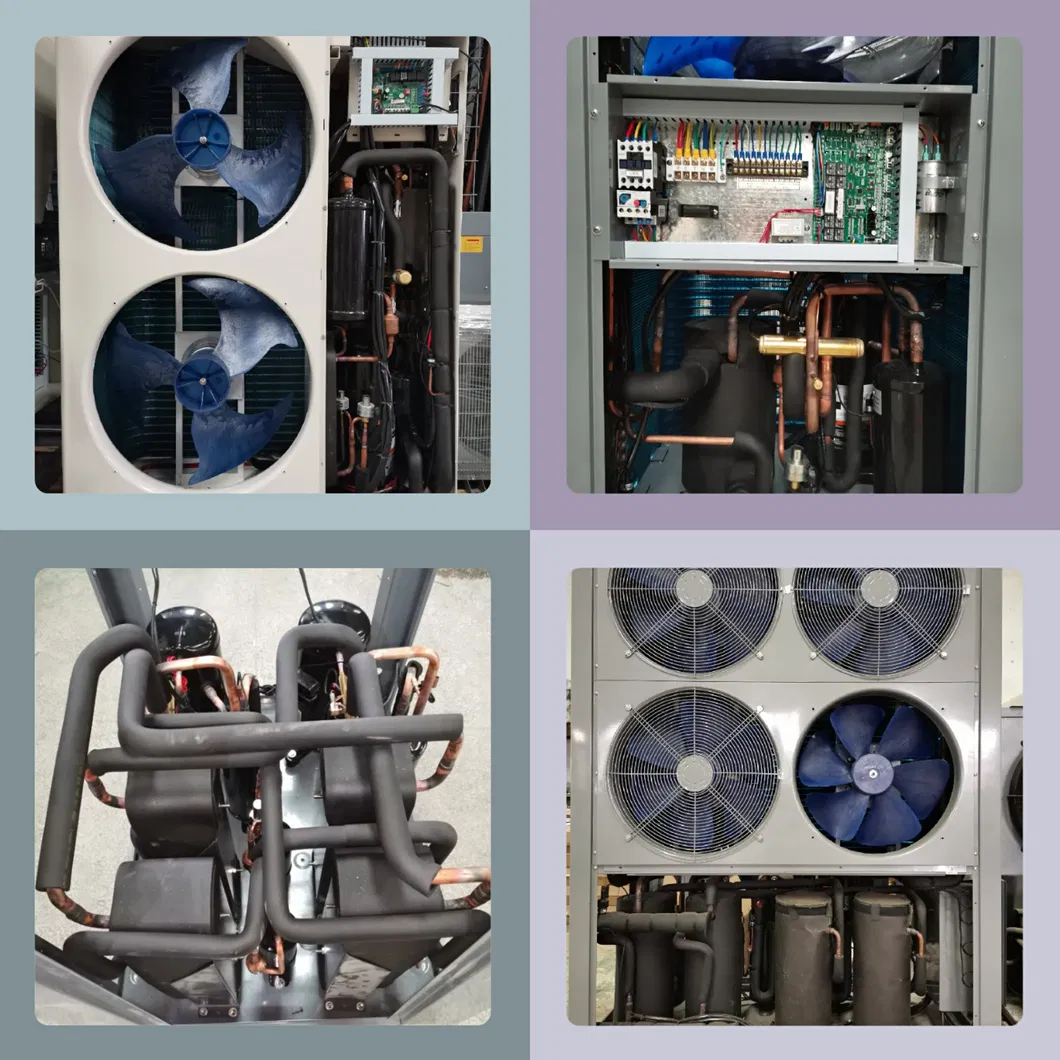

The pipeline design effectively avoids stress vibration points and resonances, ensuring a long system lifespan and reduced noise. The circuit layout is neat, with clear distinction between strong and weak electric lines for easy maintenance. Heat exchange components are covered with thick insulation cotton to minimize heat loss.
