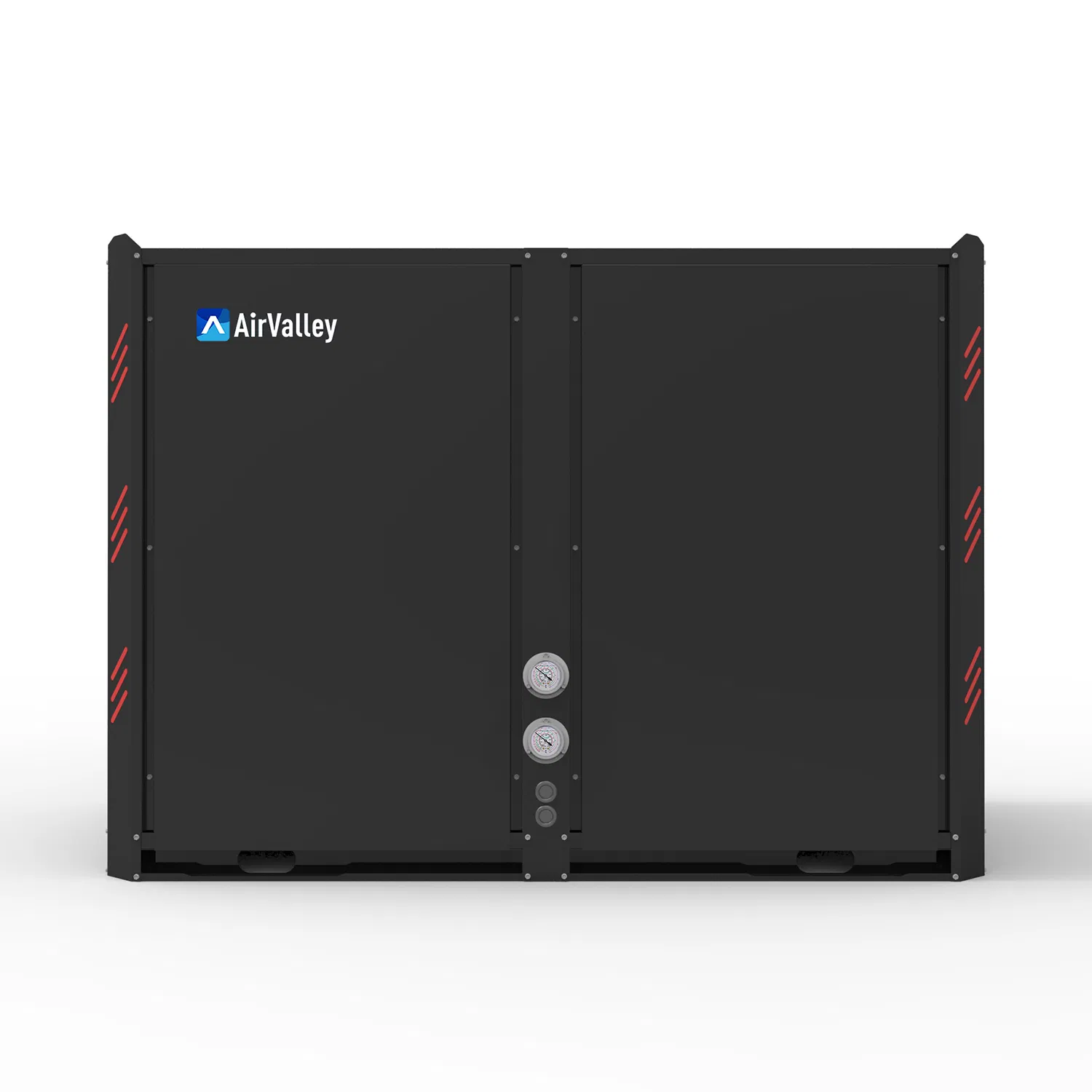

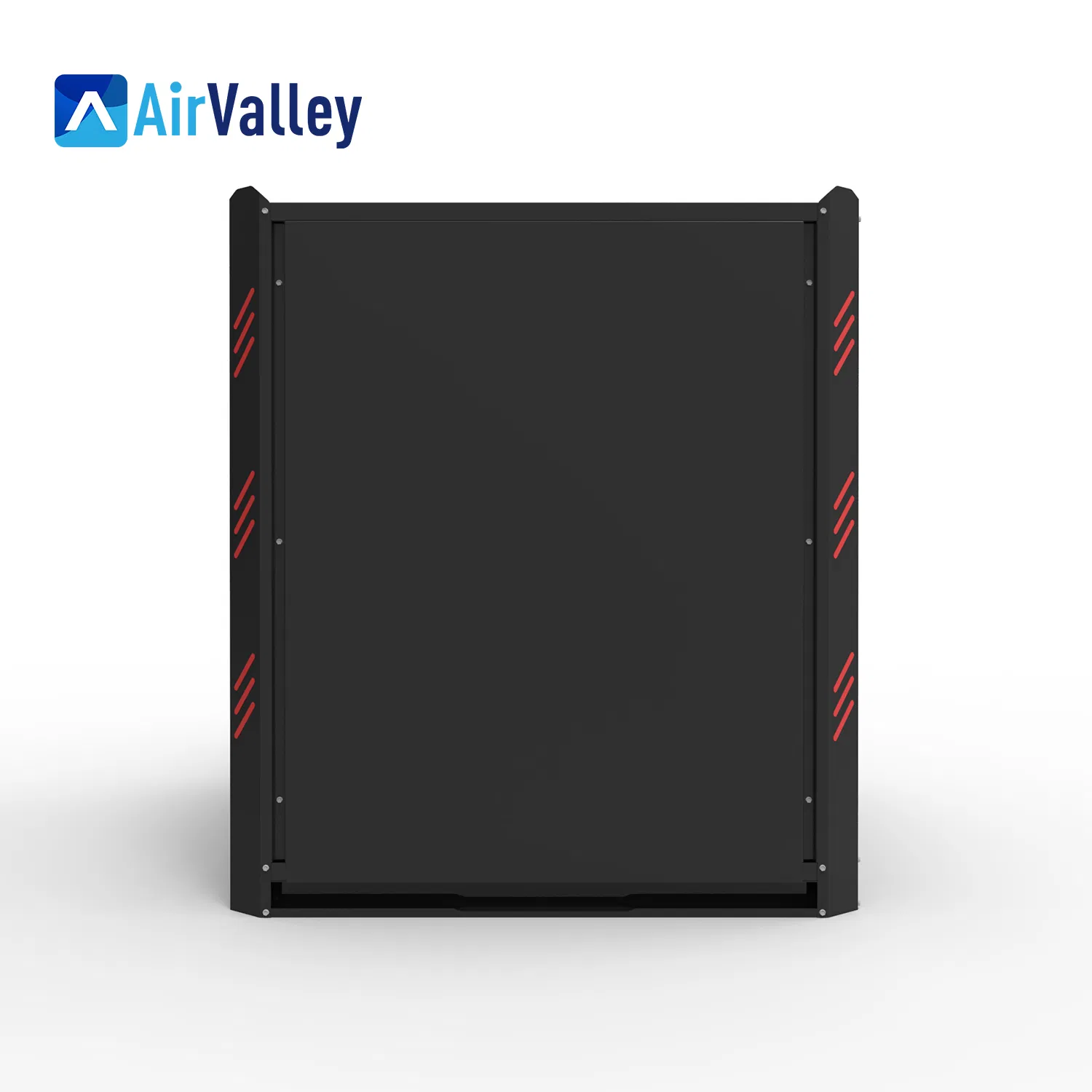

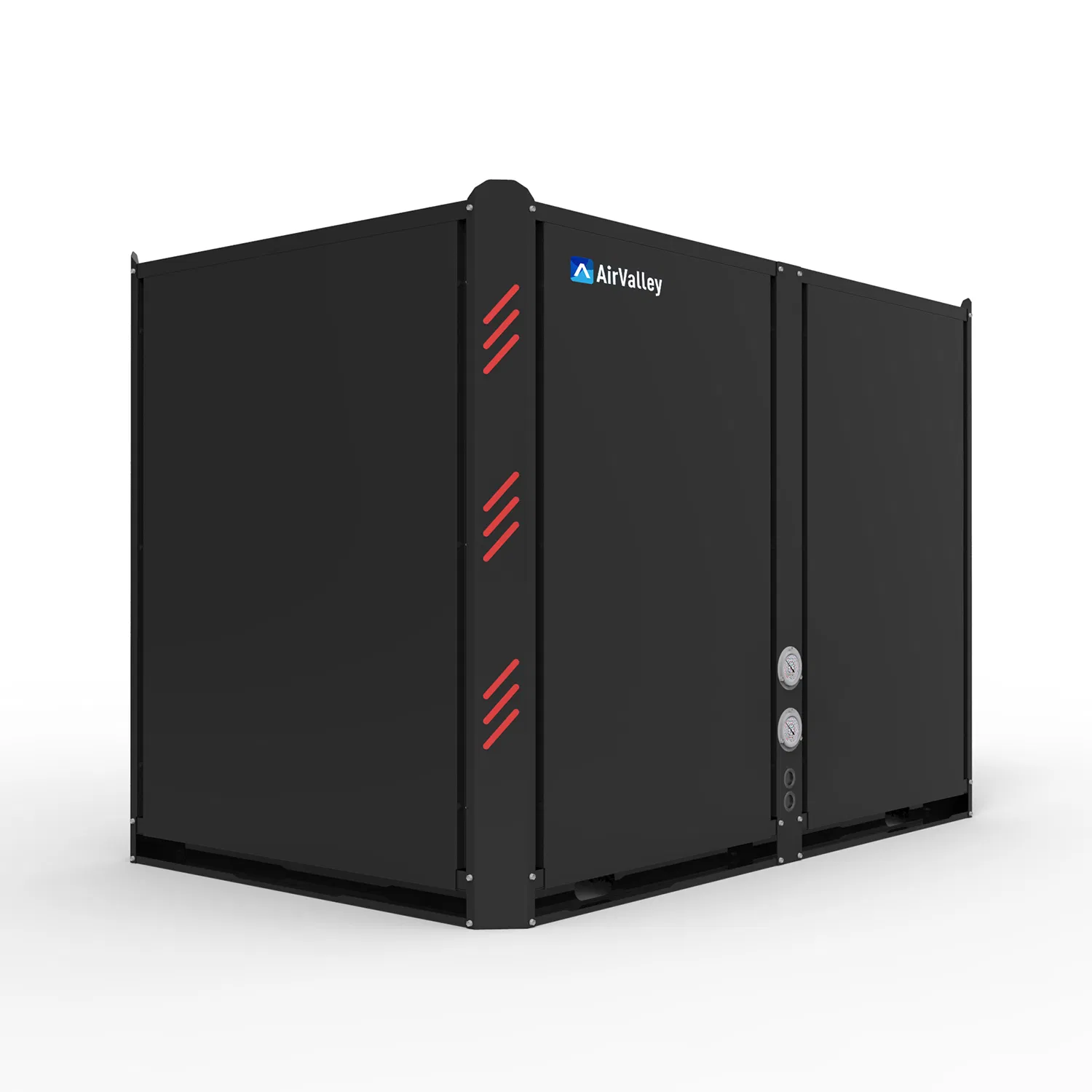

40kw High Temperature Water Source Heat Pump

Basic Information

Model NO.

WRS-40IIG

Work Environment

Common Heat Pump

Heat Source

Water-source

Heating Type

Circulating Heat

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Compressor

Panasonic/Copeland

Refrigerant

R134A

Modbus

Yes

Application

Villa, Sauna, Swimming Pool, Hotel, Hospital

HS Code

8418612090

Production Capacity

3000 Units/Month

Package

Wooden Case

Product Description

⭐

High Temperature Water Source Heat Pump: Utilizing R134A refrigerant, this low-pressure system achieves a maximum water output temperature of 80°C.

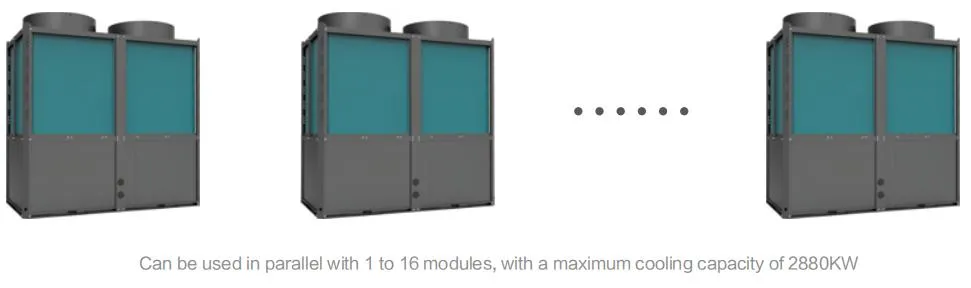

Modular Design & Flexible Installation

Unit modules of different capacity specifications can be freely combined. A maximum of 16 units can be connected in parallel, with strong compatibility and scalability. This allows for cooling capacities up to 2080kW, meeting diverse large-scale project needs.

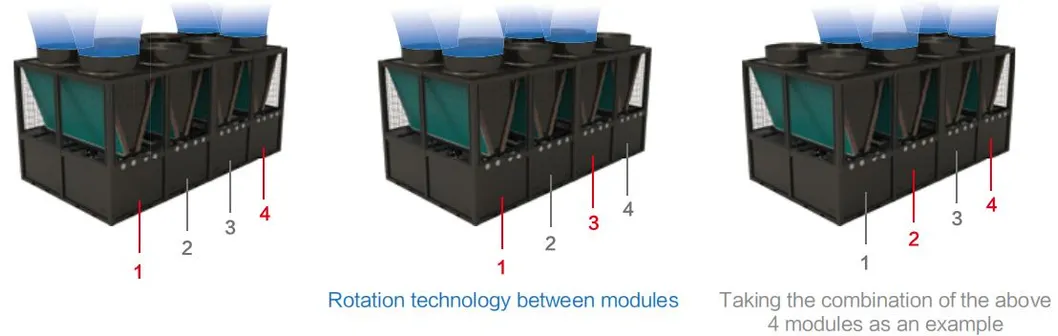

Balanced Rotation Work

The system intelligently rotates module startup sequences based on load conditions, balancing running time for each unit to significantly extend the overall service life.

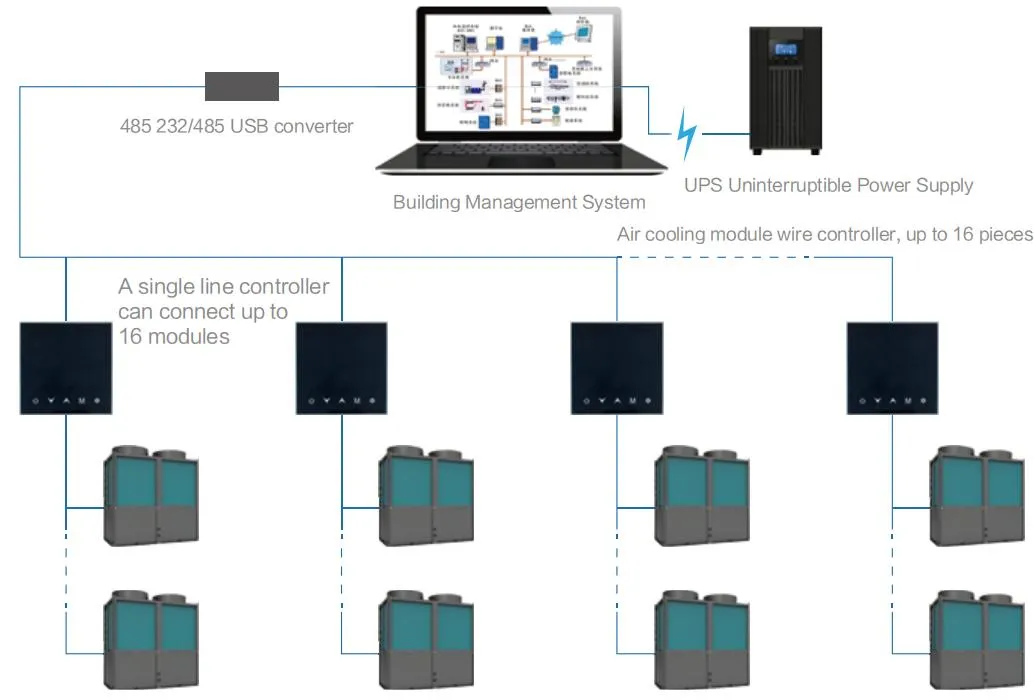

BMS Intelligent Control

Supports Modbus open protocol, allowing seamless integration into BMS building control systems for remote monitoring and centralized management of multiple heat pump modules.

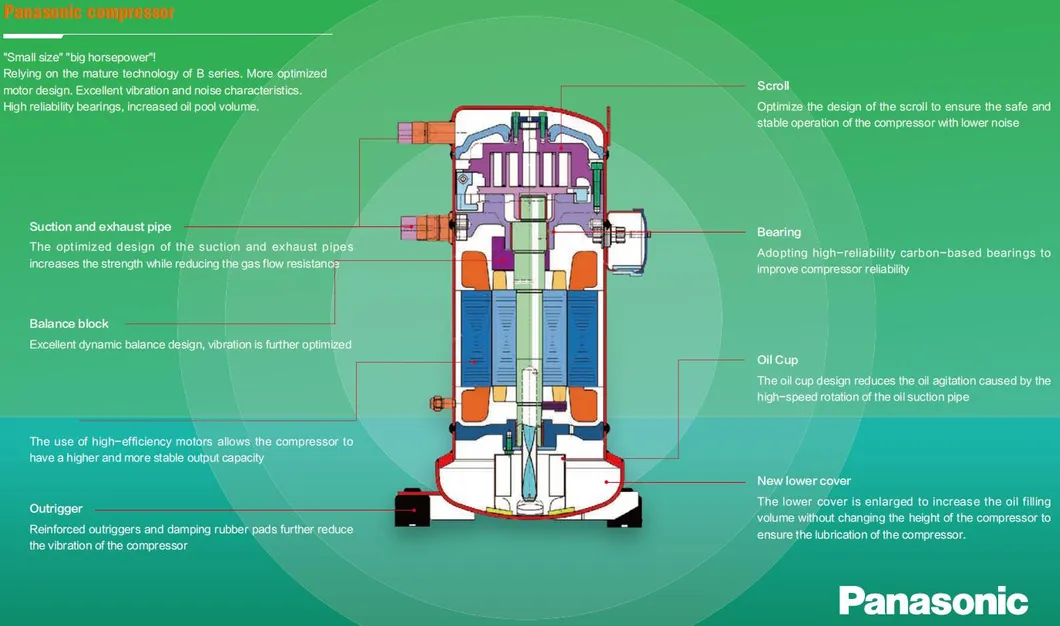

Panasonic Compressor

High horsepower in a compact size. Optimized motor design, superior vibration/noise characteristics, and high-reliability bearings with increased oil volume.

Multiple Protections

Equipped with high/low pressure switches, antifreeze protection, water flow switches, and phase sequence protection. Real-time fault alarms ensure safety.

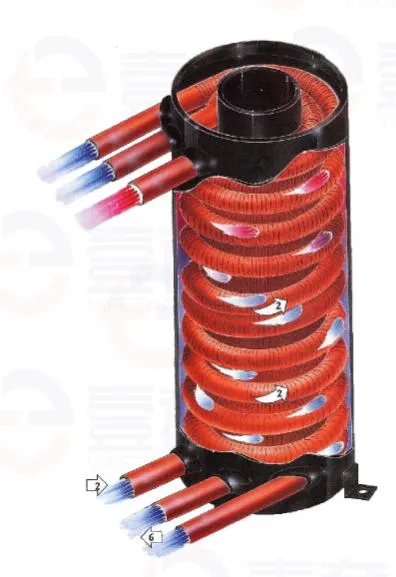

Efficient Water-Side Heat Exchanger

Features a high-efficiency shell & coil heat exchanger. With water in the tube and fluorine outside, it offers excellent heat exchange, antifreeze capability, and stability.

Precision Electric Control

Uses world-class components. The front-mounted control box ensures quick installation and easy maintenance access.

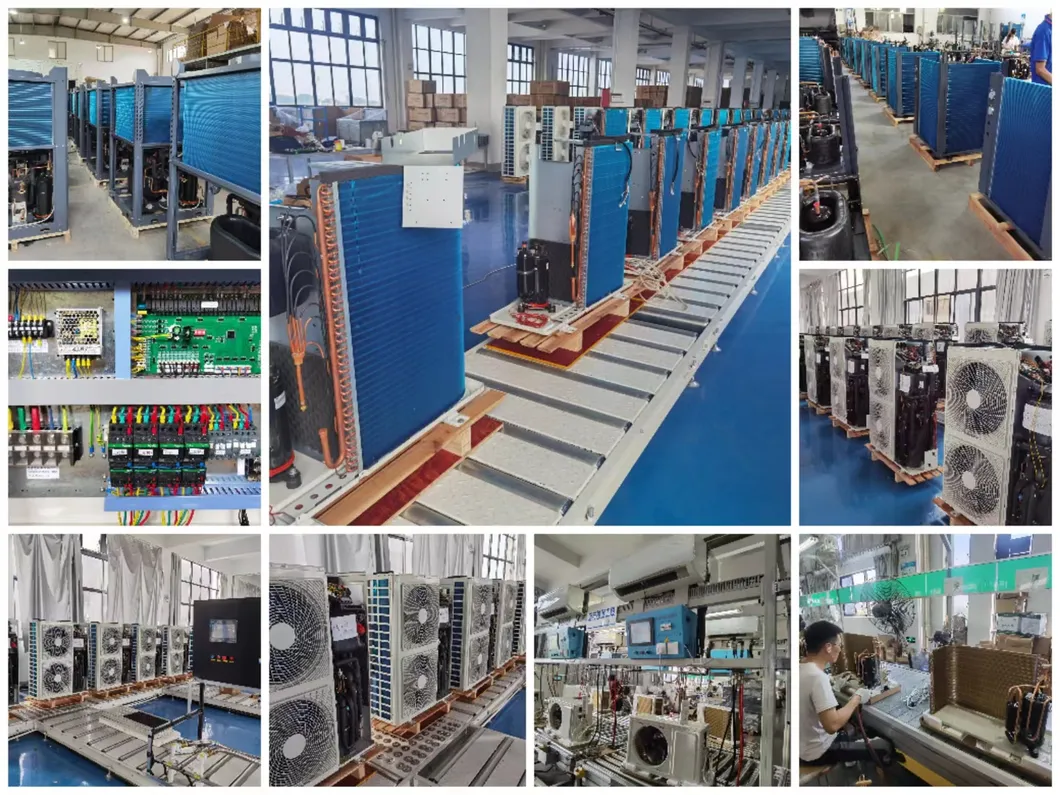

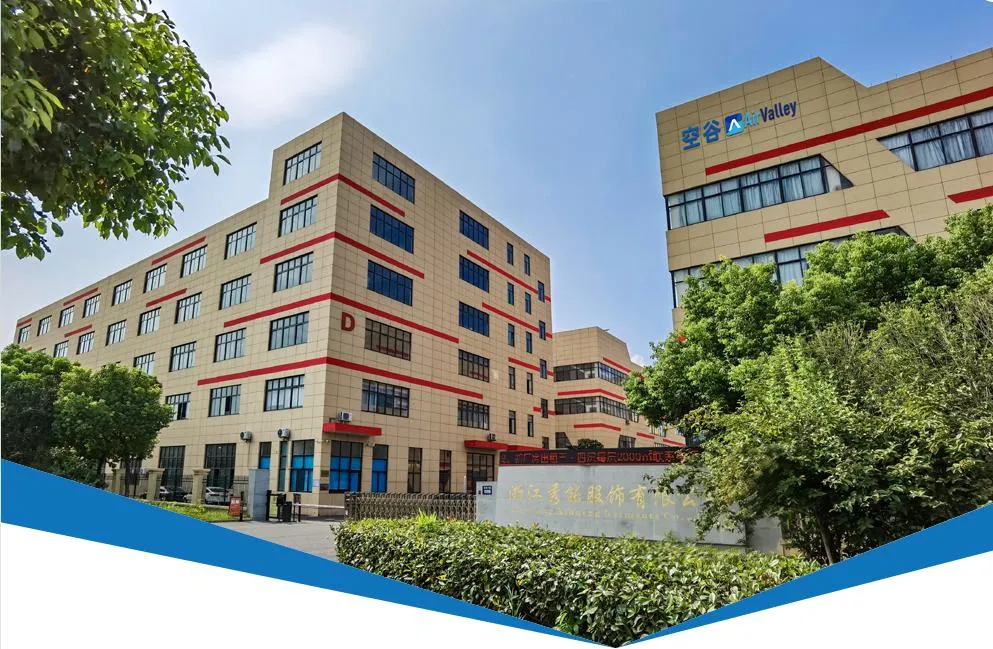

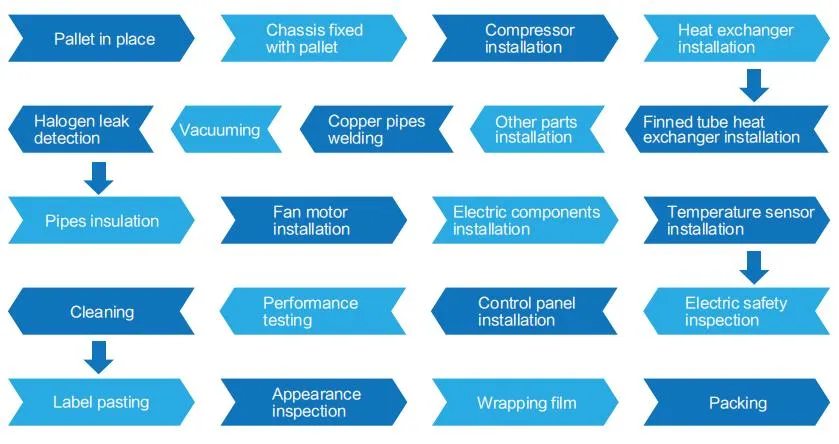

Production & Quality

As a professional manufacturer focusing on OEM and ODM, we employ engineers with over 10 years of experience. Strategic collaborations with global leaders like Danfoss ensure our DC Inverter units maintain ultra-high performance and stability.

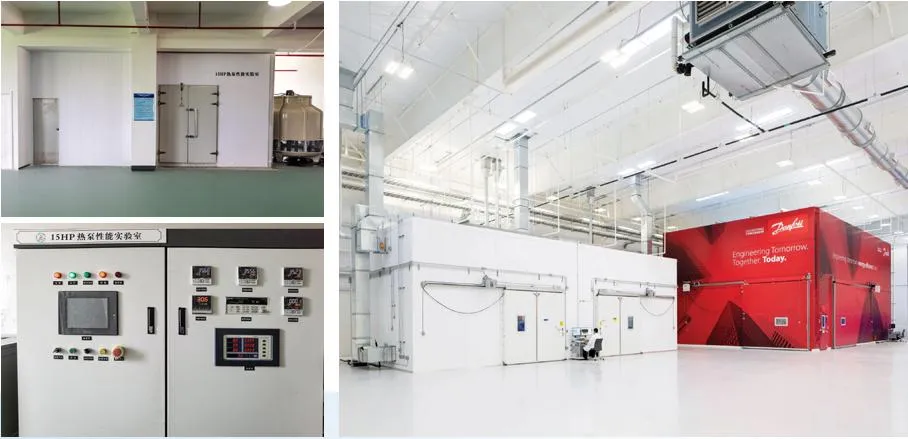

Advanced Laboratory Testing

Our facility includes a -35ºC 15HP performance lab. We test units across a range of -40ºC to 55ºC, with testing capacity reaching up to 300kW.

Product Parameters

WS80 Series High Temperature Water Source Heat Pump Specifications
Model	WRS-8IG	WRS-14IG	WRS-19IIG	WRS-28IIG	WRS-40IIG	WRS-50IIG	WRS-65IIG	WRS-85IIG	WRS-100IIG	WRS-130IIG
Heating Capacity (kW)	8.5	14	19	28	40	50	66	84	100	132
Rated Power (kW)	1.91	3.10	4.21	6.19	8.97	11.29	14.83	18.96	22.42	29.86
COP	4.46	4.51	4.51	4.52	4.46	4.43	4.45	4.43	4.46	4.42
Water Temp Range	Default 70°C (Adjustable 28-80°C)
Power Supply	220V/50Hz		380V/50Hz
Refrigerant	R134A
Net Weight (kg)	68	95	135	195	320	480	885	985	1180	1210

Frequently Asked Questions

Q: What are the primary advantages of a water source heat pump?

A: They utilize renewable energy from groundwater or lakes, offering higher efficiency (COP > 4.4) than air source systems. They are stable year-round, provide heating, cooling, and hot water, and operate with no on-site combustion or smoke pollution.

Q: What is the maximum water temperature this system can provide?

A: The WS80 series is specifically designed for high-temperature applications, capable of producing hot water up to 80°C using R134A refrigerant.

Q: Can these units be integrated into a building management system (BMS)?

A: Yes, the units come standard with Modbus protocol compatibility, allowing them to be connected to BMS for remote control and data monitoring.

Q: How many modules can be connected in a single parallel system?

A: The modular design allows for a maximum of 16 units to be connected in parallel, providing extreme flexibility for both small and very large scale heating/cooling requirements.

Q: What is the typical lead time for orders?

A: For sample orders, the delivery time is approximately 35-45 days. For bulk orders, it typically takes 25-40 days after receiving the deposit.

Q: What kind of warranty is provided?

A: We provide a two-year warranty period from the date of shipping, covering free spare parts for any manufacturing-related issues.
