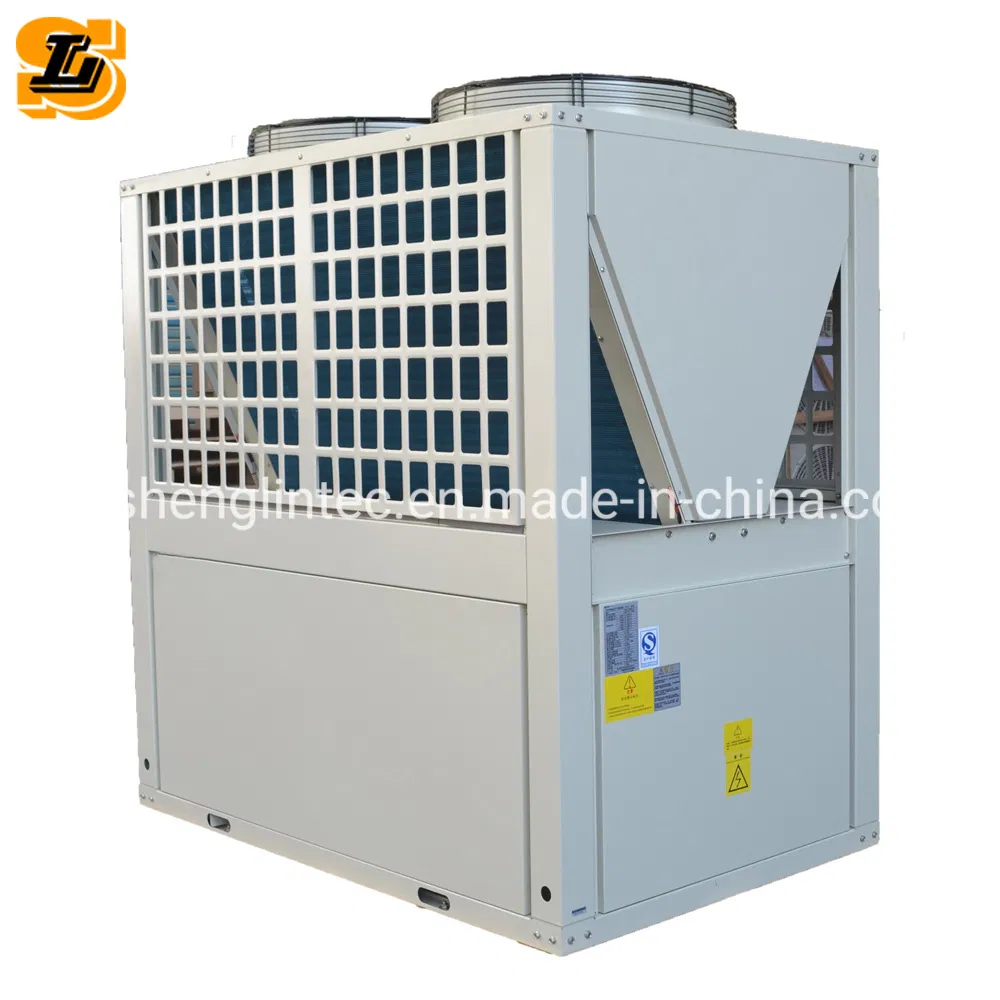

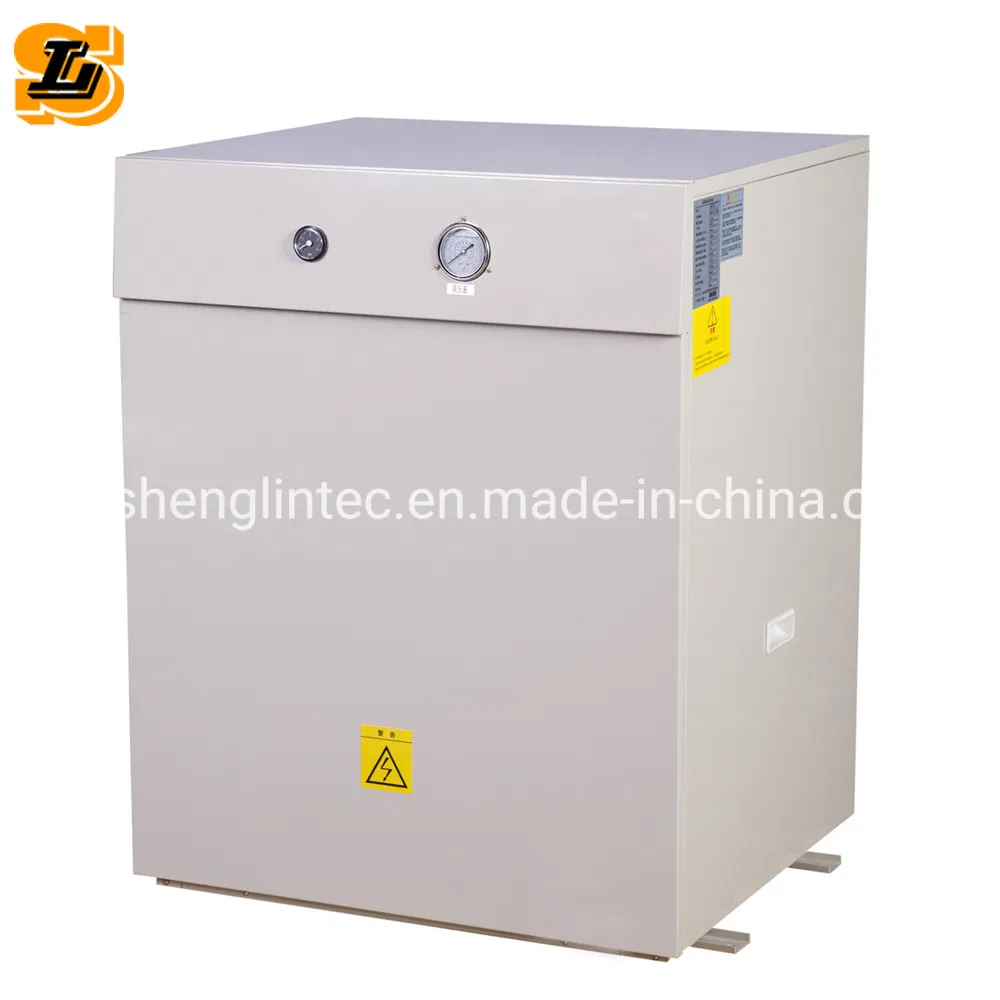

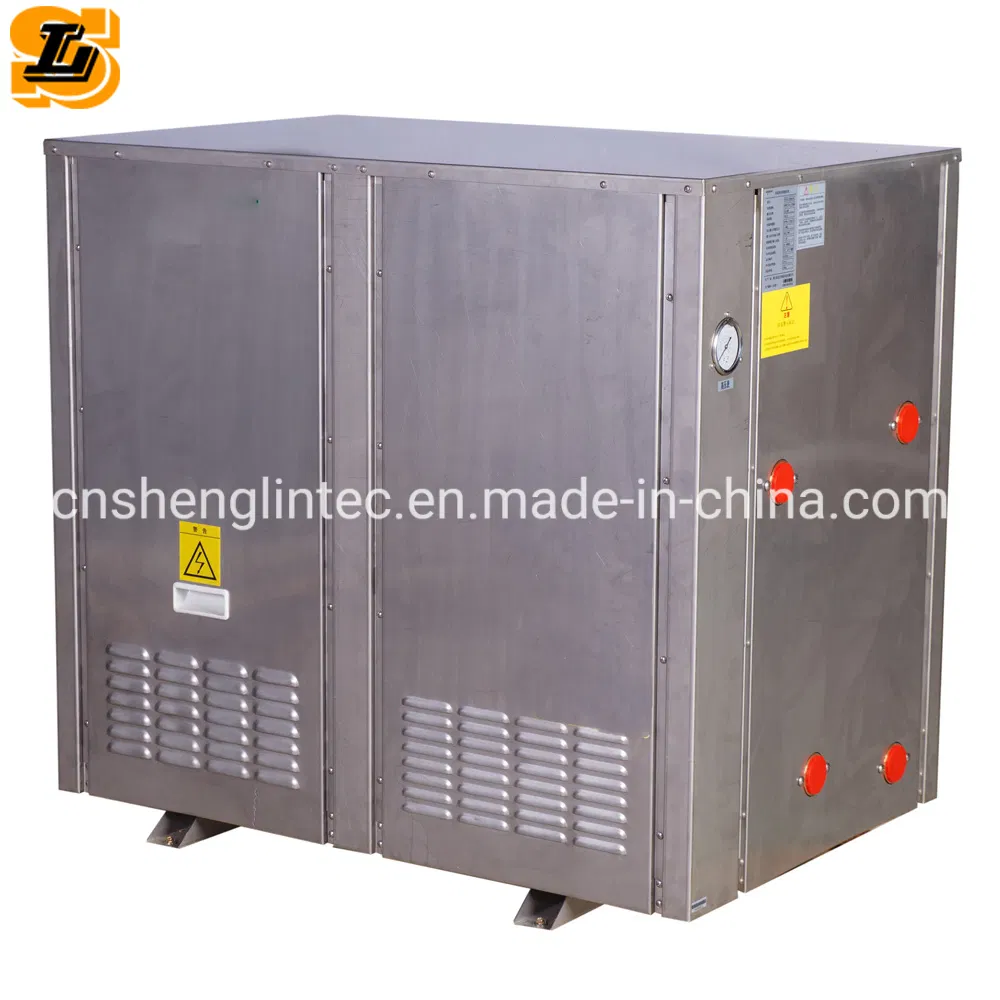

2024 High Temperature City Sludge Heat Pump Dryer

1 / 5

2024 High Temperature City Sludge Heat Pump Dryer

Customization:	Available
Certification:	RoHS, ISO9001, CE
Working Medium:	R407c

Send Inquiry

Product Description

Basic Specifications

Model NO.KFXH-026UAII

Heat Source TypeAir Source Heat Pump

Heating Capacity13kw

Max. Air Outlet Temp.75°C

Ambient Temp. Range-7~+43°C

Power380V 3n~50Hz

Noise65dB/(a)

Weight130kg

Specification750*690*1070mm

HS Code8418612090

Production Capacity3000 units/Month

Product Description

Opened Cycle Heat Pump (Dehumidification and Drying)

Ideal replacement for original boilers and electric heating systems.

Intelligent operation for ease of use
Significant reduction in labor costs
Guaranteed drying quality
Maximum outlet temperature up to 80°C

Closed Cycle Heat Pump (Dehumidification and Drying)

Overcomes environmental temperature and humidity influences. Perfect for food, medicine, and mosaic industries.

Low temperature with high efficiency
Fast, high-quality drying
Independent of external environment
Recyclable humid wind
Zero odor emission

Opened & Closed Cycle Heat Pump

Integrates the advantages of both systems for maximum flexibility.

Unaffected by ambient temperature
Automatic switching between modes based on set temperature
Superior energy efficiency

Outdoor Machine Model		KFXH-013UAII	KFXH-013SAII	KFXH-016UAII
Ambient Temp Range	ºC	-7~43ºC	-7~43ºC	-7~43ºC
Rated Heating Capacity	kw	13	13	16
Rated Input Power	kw	4.33	4.33	5.33
Power Supply	/	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
Refrigerant Type	/	R134a	R134a	R134a
Compressor Type	/	Scroll	Scroll	Scroll
Noise	dB/(A)	65	65	66
Net Weight	kg	130	130	140

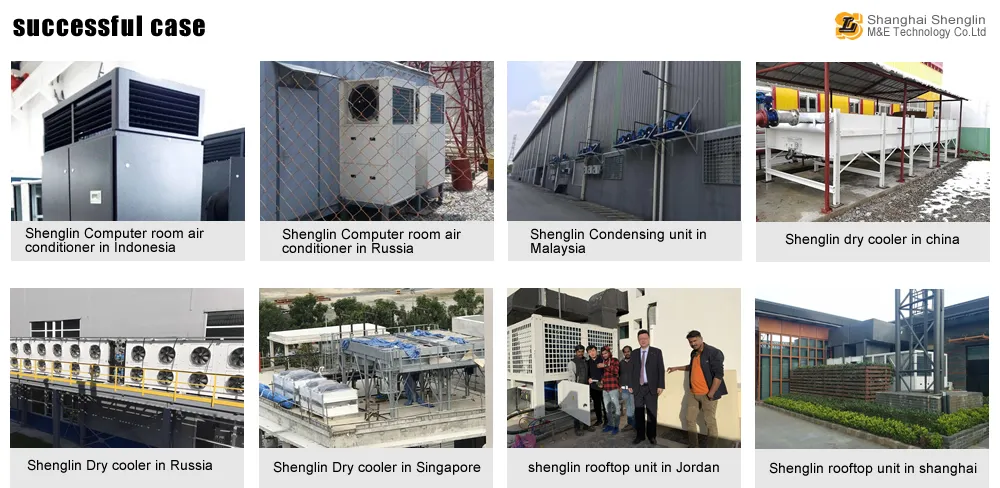

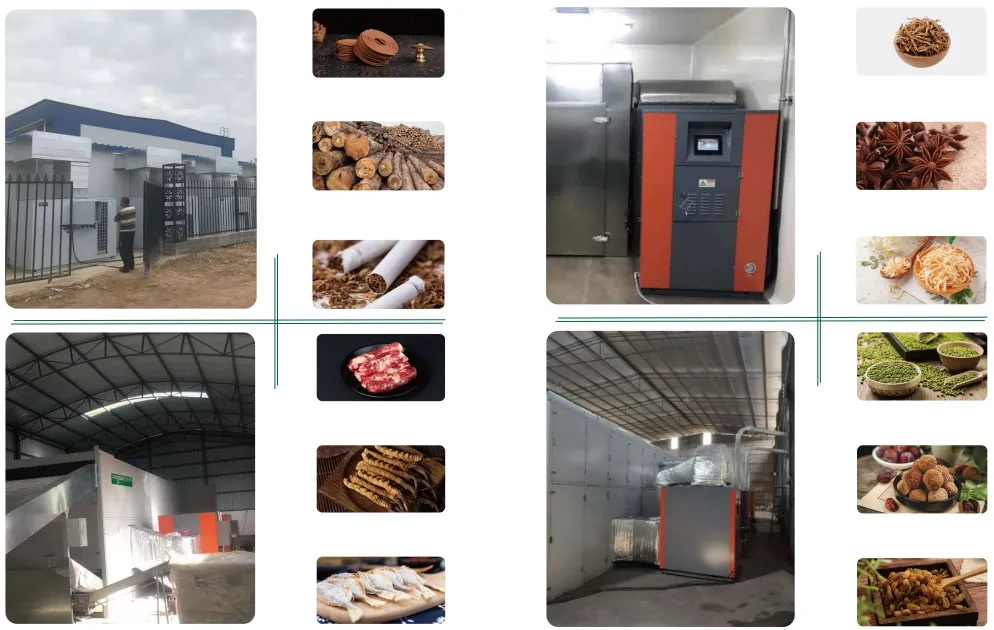

Product Gallery & Applications

Frequently Asked Questions

What is the maximum outlet temperature of this heat pump?

The system can reach a maximum air outlet temperature of 75°C to 80°C, depending on the specific cycle mode used.

In what temperature range can the unit operate?

The unit is designed to operate efficiently within an ambient temperature range of -7°C to +43°C.

What are the main advantages of the closed cycle mode?

Closed cycle mode is unaffected by external environmental conditions, ensures no odor emission, and is highly efficient for sensitive materials like food and medicine.

What safety protections are built into the system?

The system includes high and low pressure protection, overload protection, temperature protection, and power phase sequence protection.

Can the indoor machine be customized?

Yes, the circulating air volume and certain dimensions of the indoor machine can be customized according to specific customer requirements.

What type of compressor is used in these models?

All mentioned models (KFXH-013 and KFXH-016 series) utilize high-performance Scroll compressors.
