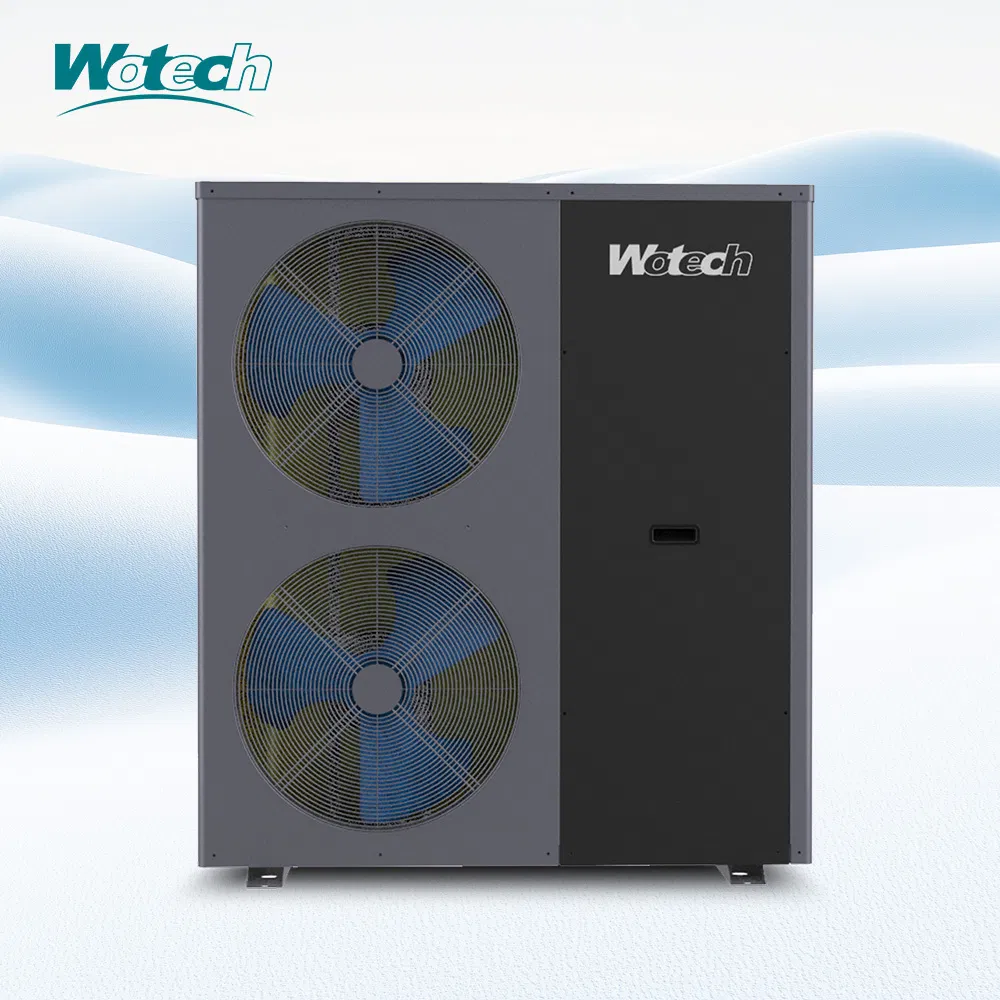

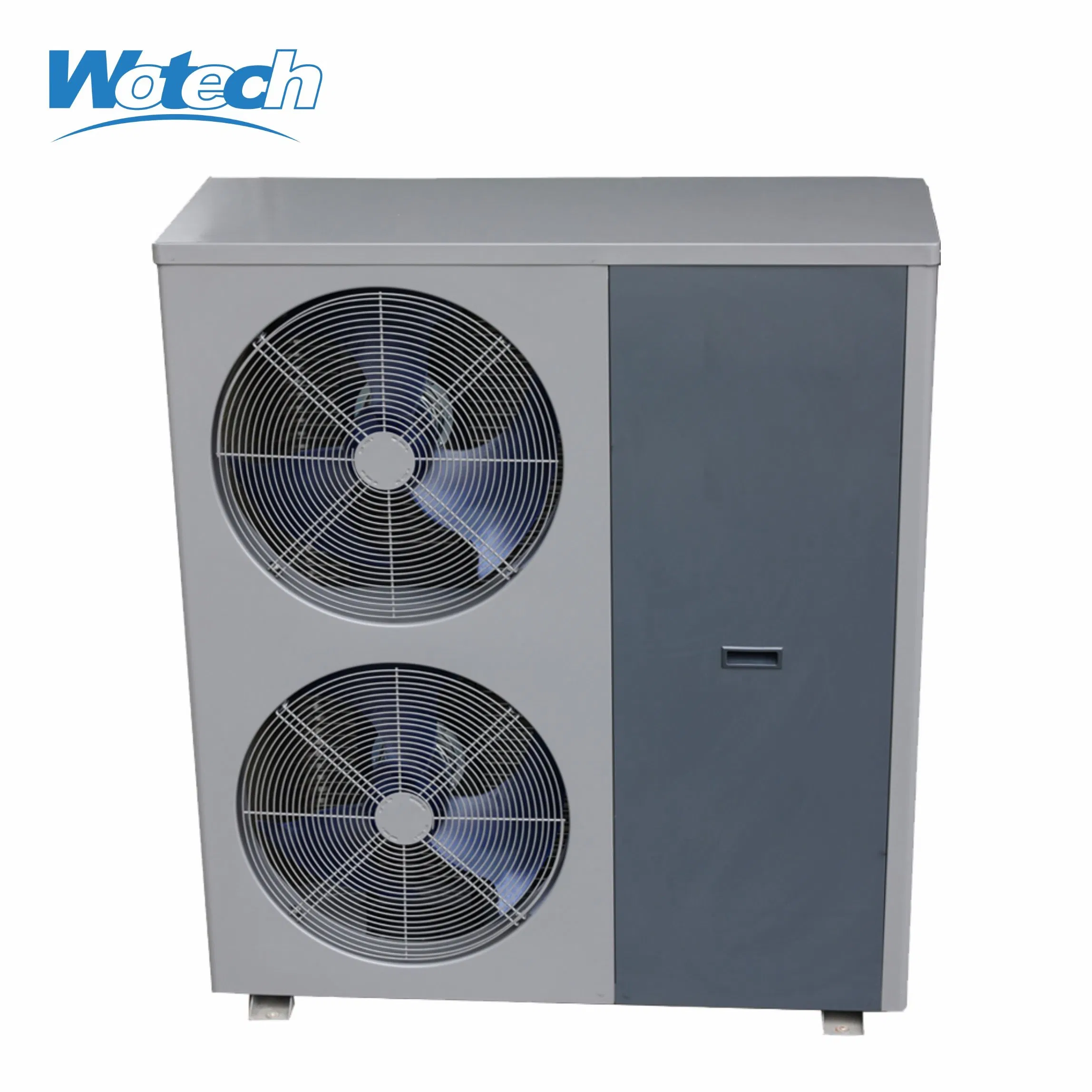

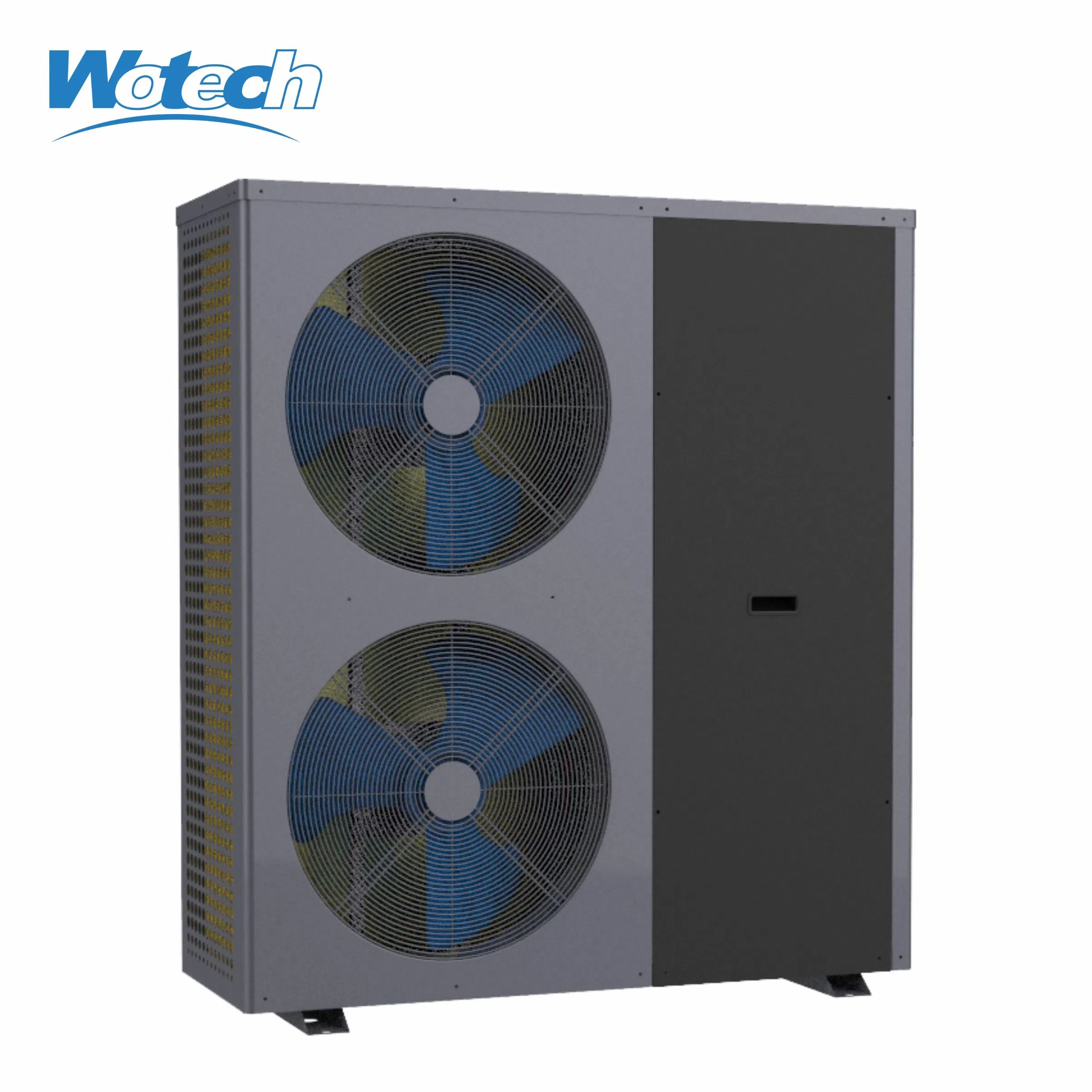

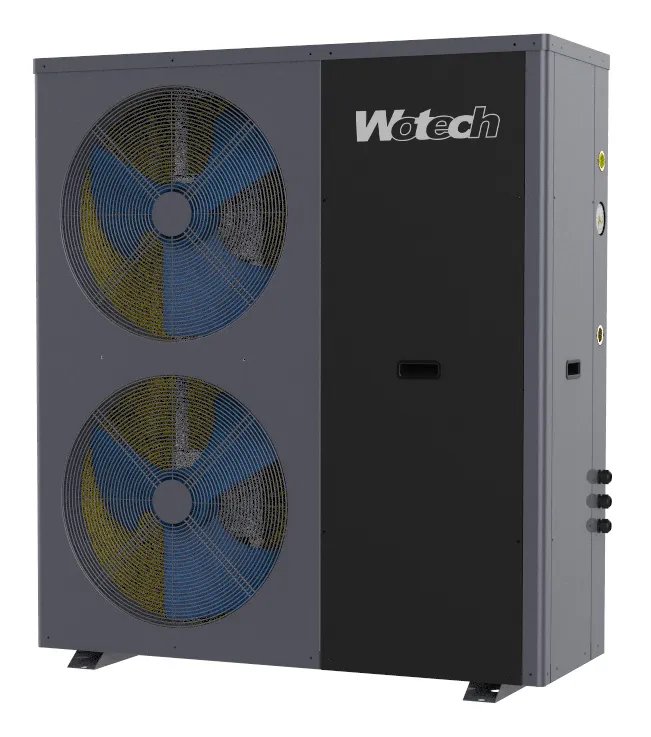

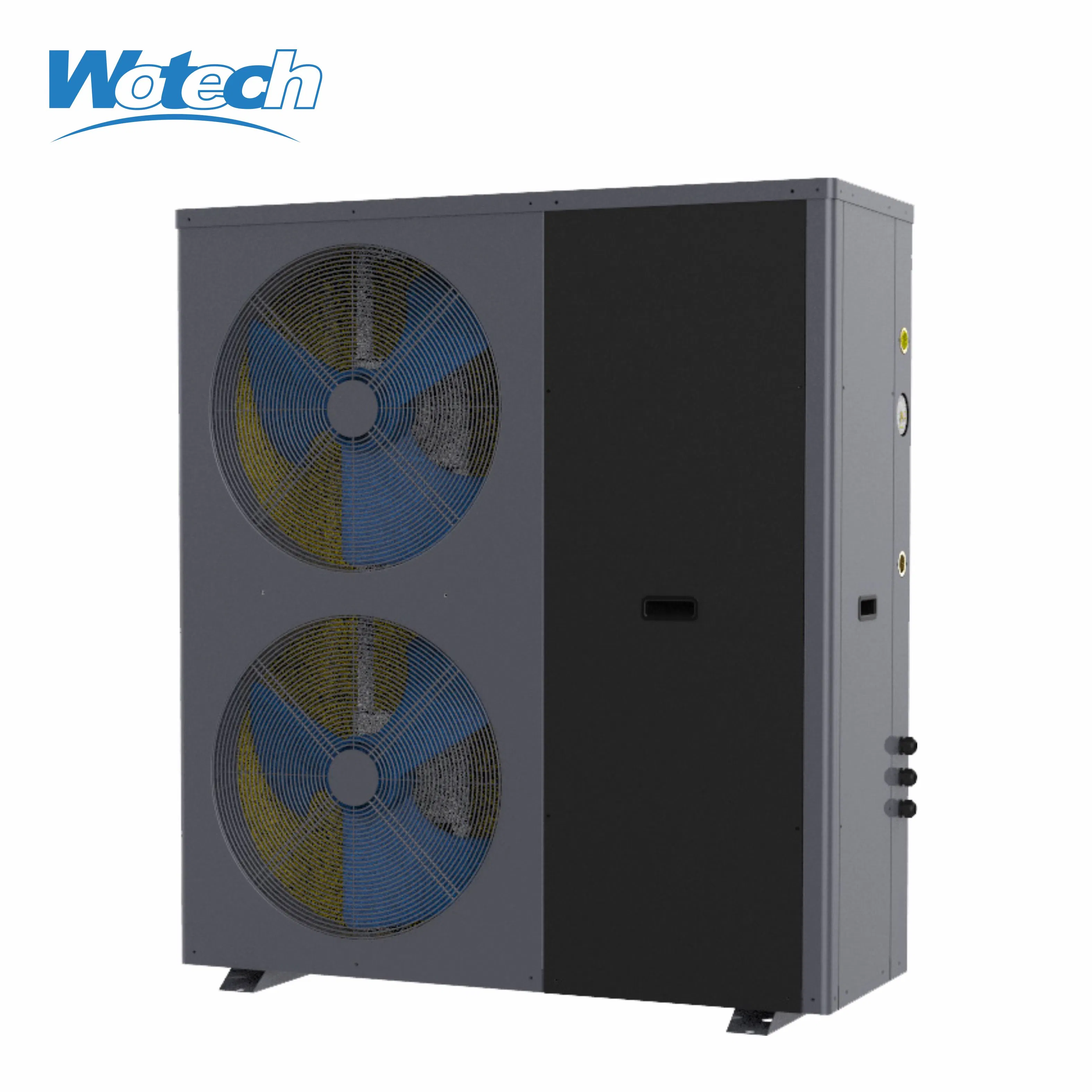

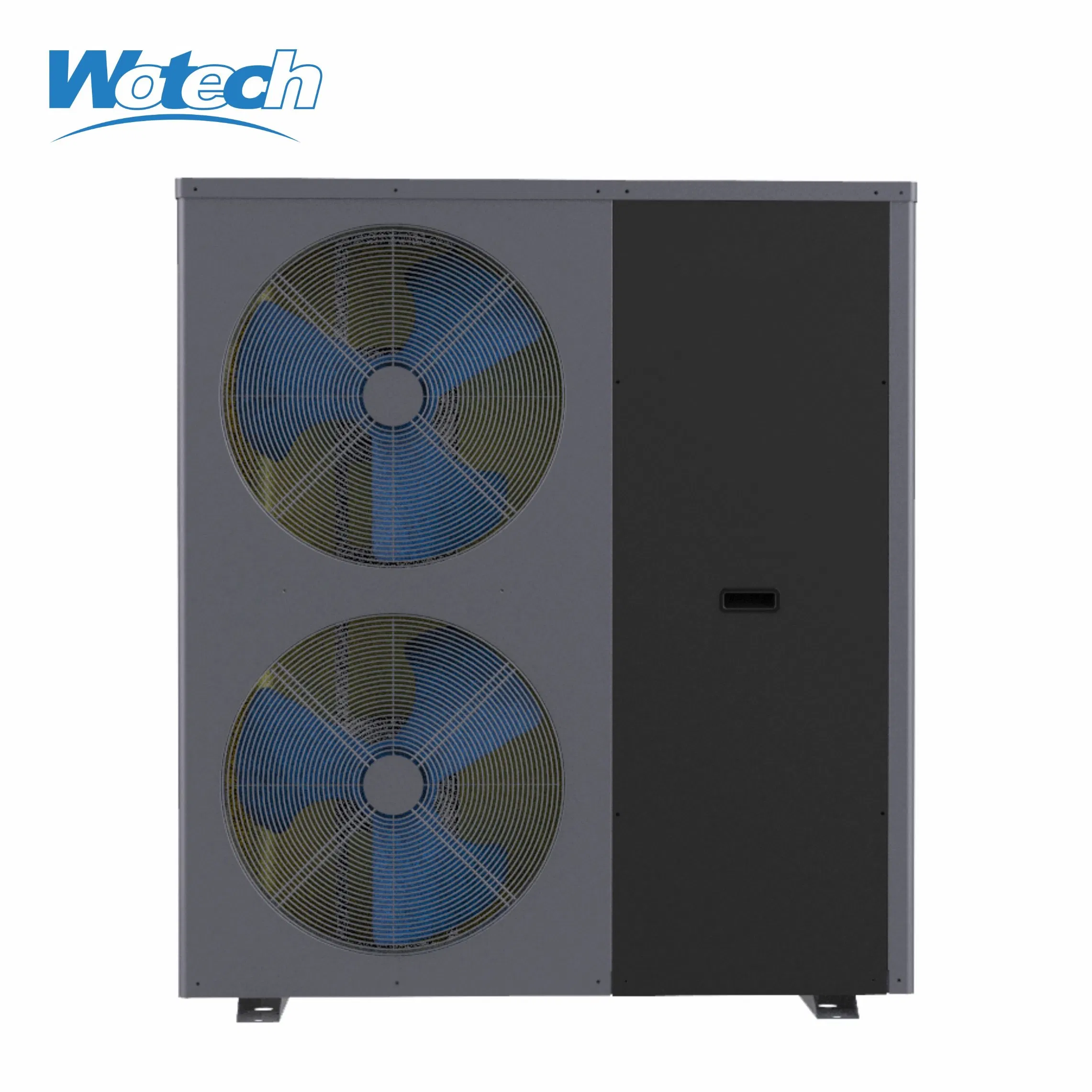

10kw Eco-Friendly R32 Residential Air Source Heat Pump for House Heating and Hot Water

1 / 5

10kw Eco-Friendly R32 Residential Air Source Heat Pump for House Heating and Hot Water

Customization:	Available
Certification:	RoHS, CB, ISO9001, CE
Working Medium:	R32

Send Inquiry

Product Description

Basic Specifications

Model NO.

Heat Source Type

Air Source Heat Pump

Heating Capacity

10-19kw

Compressor

Panasonic Rotary

Thermostat Setting

55°C (Factory) / 60°C (Max)

Display Controller

LCD Including WiFi

Unit Type

on/off

Specification

1010*370*615mm

Origin

China

HS Code

84186120

Product Description

10KW Eco-friendly R32 residential air source heat pump for house heating and hot water

✔ Design suitable for tropical or subtropical regions (Southeast Asia, South Europe, etc.)
✔ Hot water up to 60ºC, ideal for underfloor and radiator heating.
✔ Intelligent EE valve for excellent efficiency across ambient temperatures.
✔ Plug & play motherboard for easy maintenance.
✔ Unique fan motor construction for super quiet operation.
✔ Eco-friendly R32a System available.
✔ Triple Function: Cooling, Heating, and Sanitary Hot Water.

Technical Parameters

Market model			WW10	WW14	WW19
Heating (A7ºC/W35ºC)	Output Capacity	Kw	9.4	13.6	19.1
	Input Power	Kw	2.41	3.32	4.55
	COP	-	3.9	4.1	4.2
	Input Current	A	11.5	5.9	8.1
Power Supply		V/PH/HZ	220V/1/50HZ	380V/3/50HZ	380V/3/50HZ
Refrigerant Type		-	R32	R32	R32
Max Water Temp		ºC	60	60	60
Working Ambient Temp		ºC	-7~43	-7~43	-7~43
Sound Pressure Level @1m		dB(A)	57	58	58
Net Dimension (LWH)		mm	1120427665	11204271225	11204271225

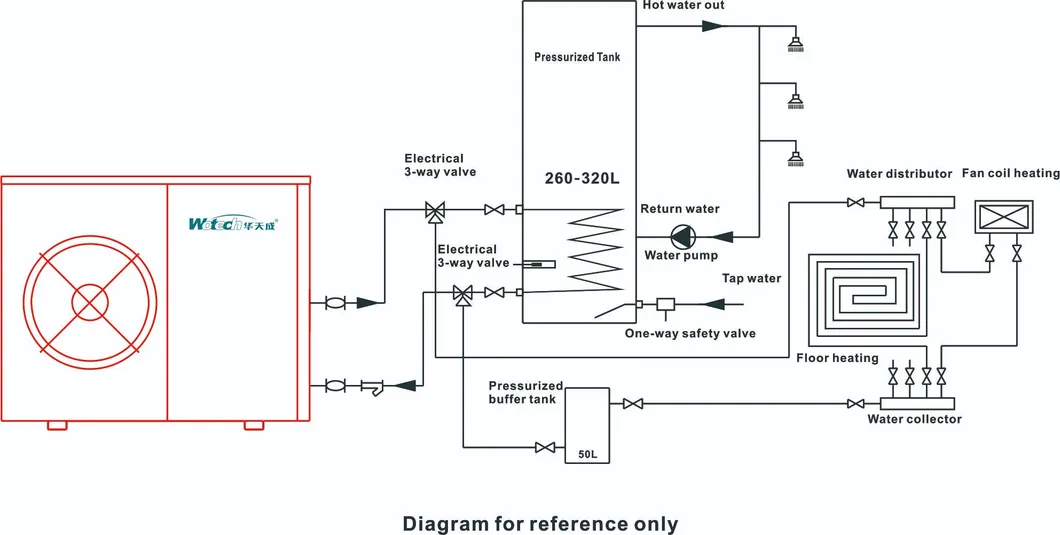

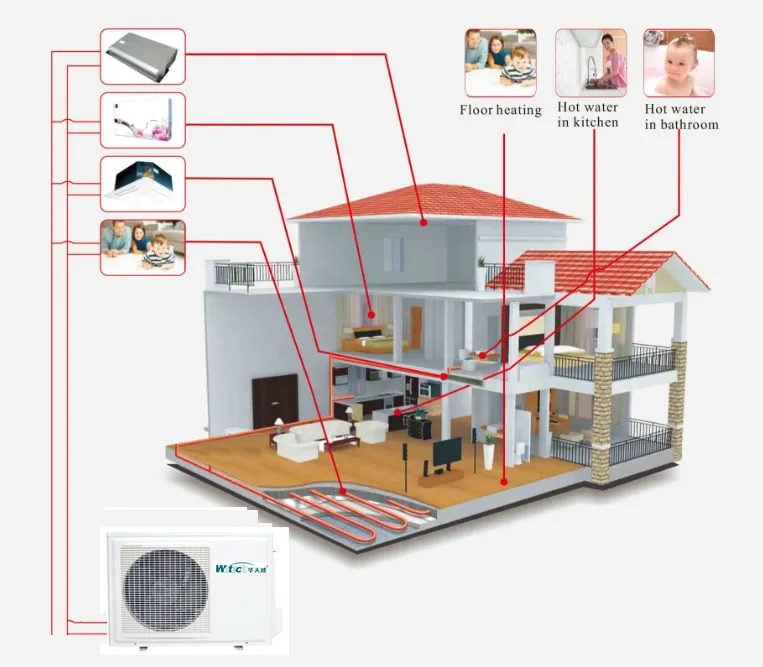

Installation Diagram

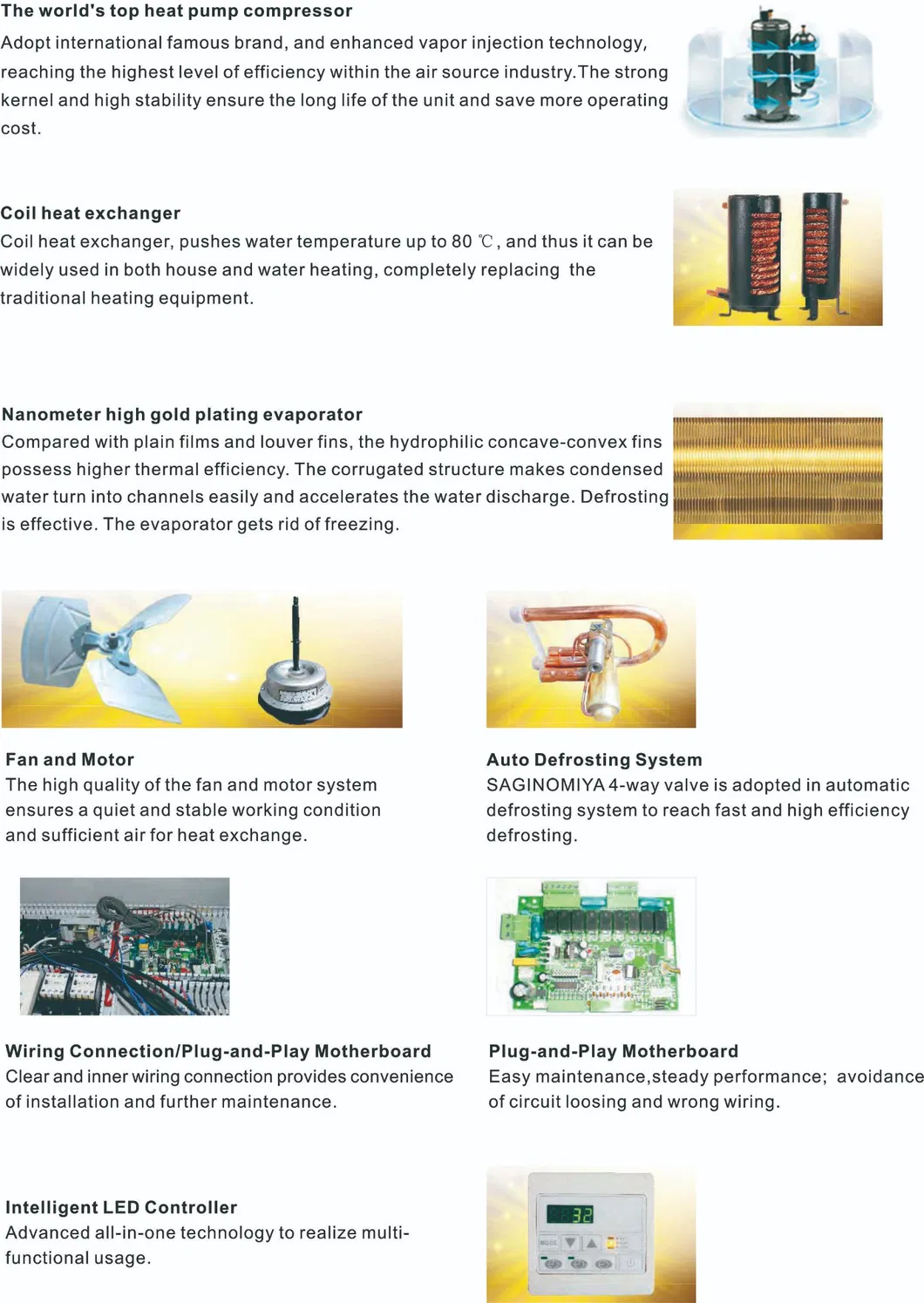

Key Components

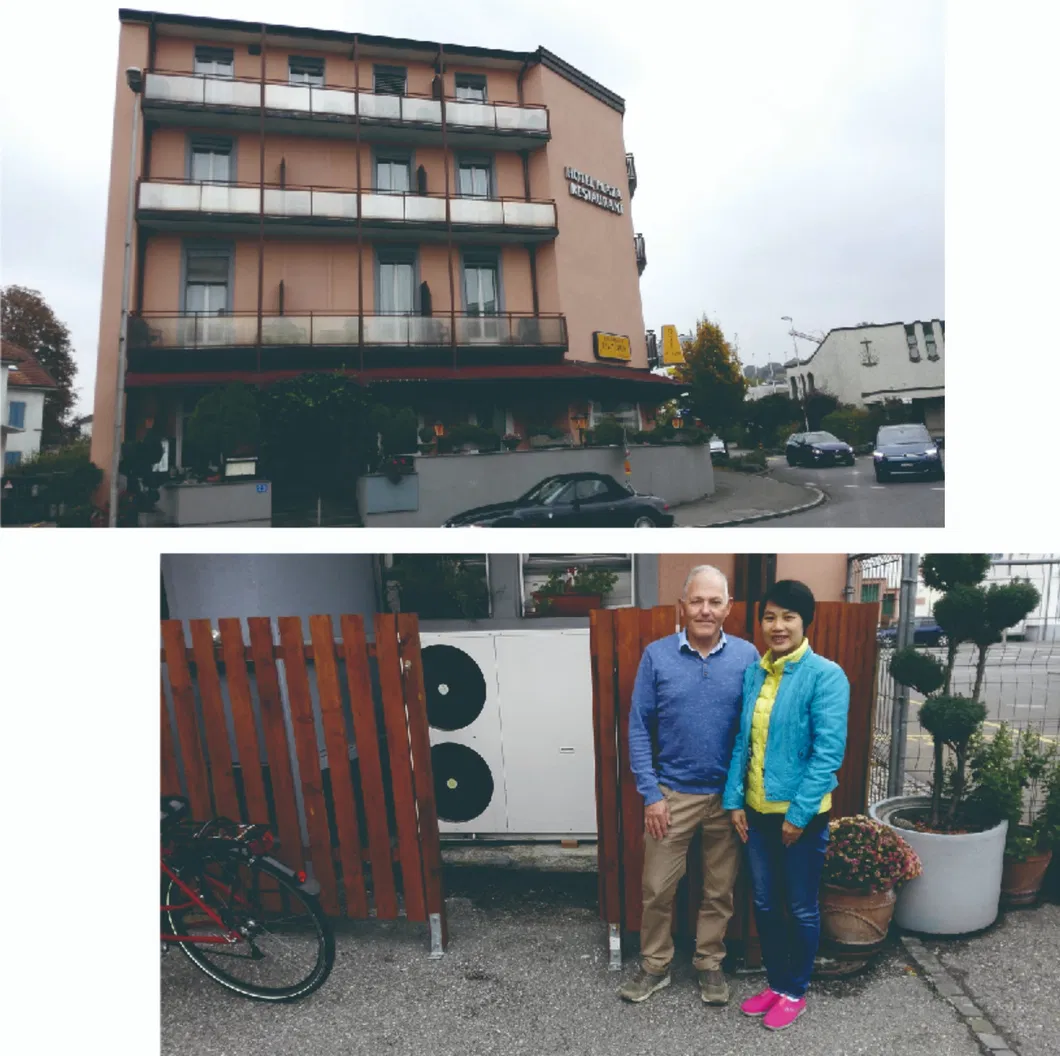

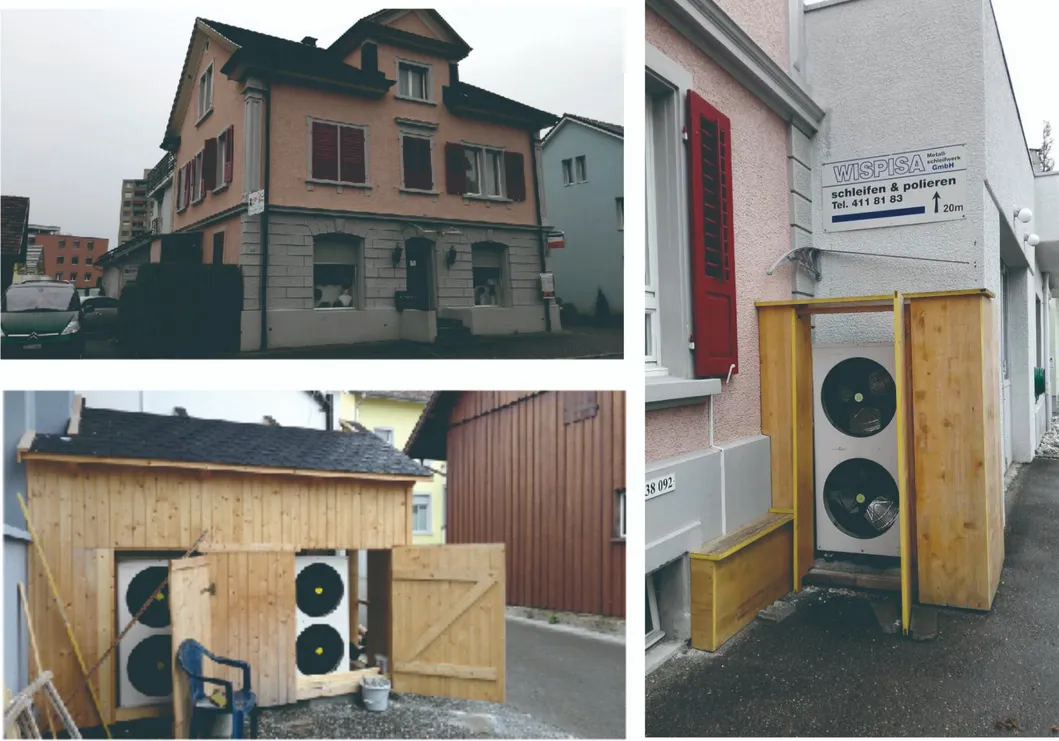

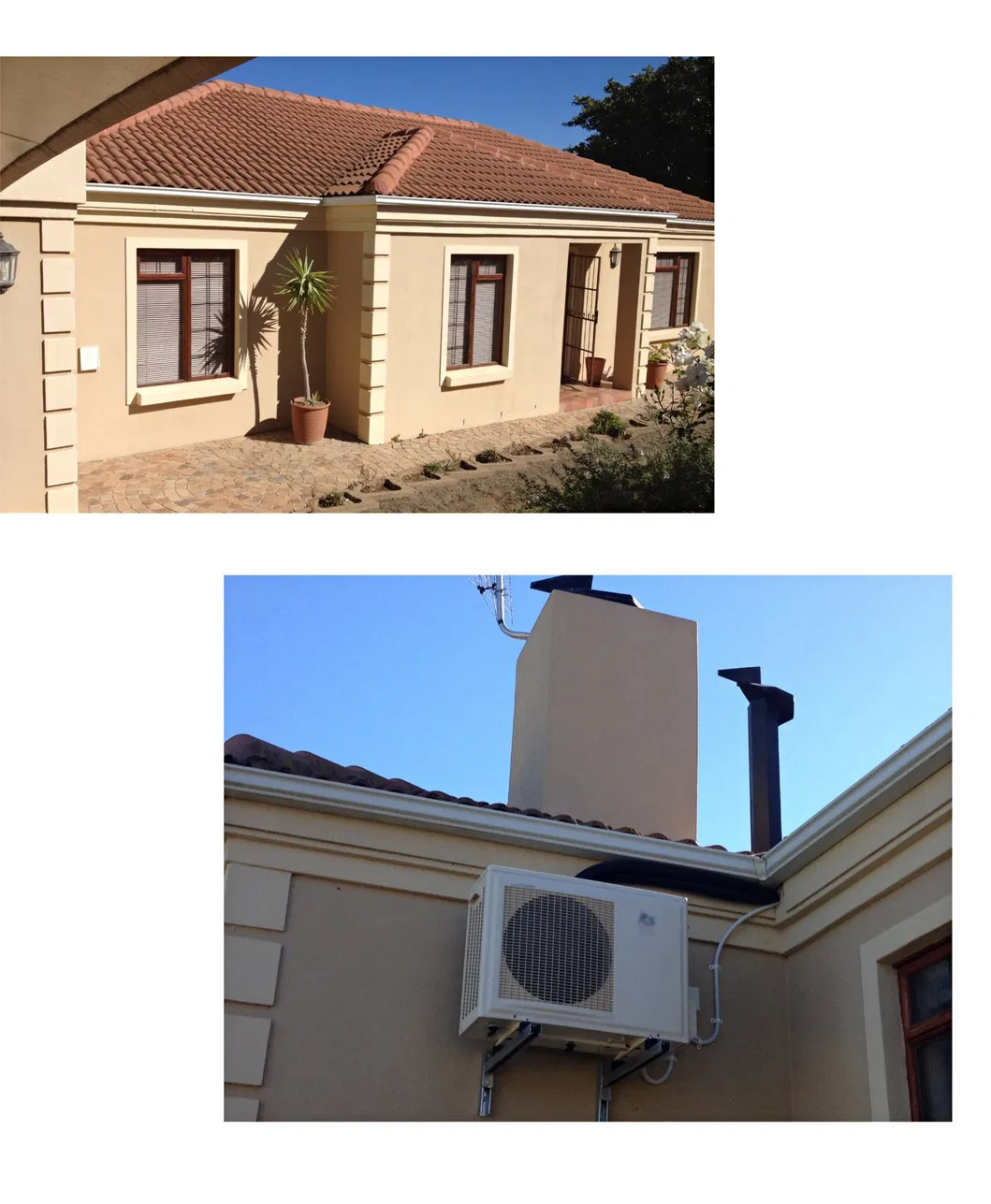

Project Cases

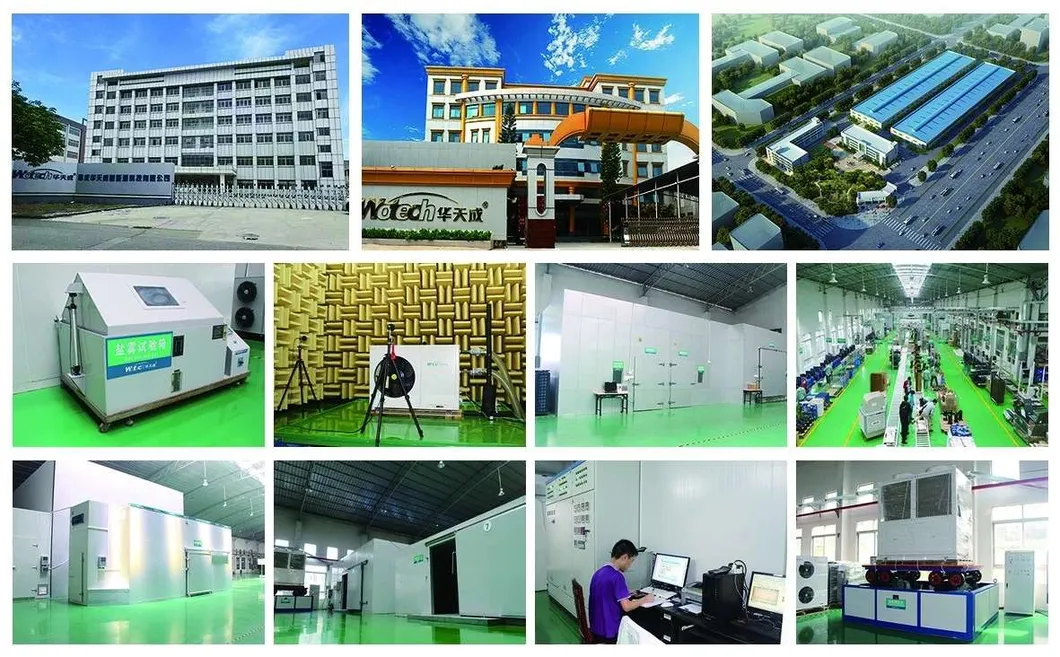

Manufacturing & Laboratories

Frequently Asked Questions

What is the maximum water temperature this heat pump can provide?

The unit can provide hot water up to 60ºC, making it suitable for both sanitary use and home heating systems like radiators or underfloor heating.

Is the R32 refrigerant environmentally friendly?

Yes, R32 is an eco-friendly refrigerant with a much lower Global Warming Potential (GWP) compared to older refrigerants, ensuring high efficiency with less environmental impact.

Can I control the heat pump remotely?

Yes, the system comes with an LCD display controller that includes built-in WiFi, allowing you to manage settings via your smartphone.

What is the working ambient temperature range?

The heat pump is designed to operate efficiently in ambient temperatures ranging from -7ºC up to 43ºC, suitable for tropical and subtropical climates.

Does this unit support both heating and cooling?

Yes, this versatile unit provides three functions: House Cooling, House Heating, and Sanitary Hot Water production.

What brand of compressor is used in these units?

These heat pumps utilize high-quality Panasonic Rotary compressors for reliable performance and long-term durability.
